GF14.30-P-2020CY Component Description For the Air Pump Switchover Valve
GF14.30-P-2020CY Component Description For The Air Pump Switchover Valve
ENGINE 272.911 in MODEL 204.0 up to Model Year 8
ENGINE 272.921 in MODEL 204.0 /2 up to Model Year 8
ENGINE 272.947 in MODEL 204.0 /2 up to Model Year 8
ENGINE 272.948 in MODEL 204.0 up to Model Year 8
ENGINE 272.961 in MODEL 204.0 /2 up to Model Year 8
ENGINE 272.971 in MODEL 204.0 up to Model Year 8

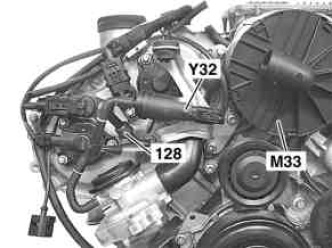

Location
128 Check valve (vacuum)
M33 Electric air pump
Y32 Air pump switchover valve
The switchover valve is located at the front on the right cylinder head.
Task
The switchover valve actuates the air shutoff valve with vacuum out of the variable intake manifold for air injection.
Design
1 Aeration connection
2 Vacuum pressure supply connection
3 Connection to the air shutoff valves
a Armature disk
b Return spring
c Housing
d Solenoid (coil resistance about 28)
e Electrical connection
f Rubber seal
Function
1 Ventilation connection (atmospheric)
2 Vacuum supply connection (from variable intake manifold)
3 Connection to the air shutoff valves
4 Electrical connection
A Air pump switchover valve energized (air shutoff valve has vacuum applied to it)
B Air pump switchover valve deenergized (air shutoff valve ventilated)
The switchover valve is actuated directly for a released air injection by the ME-SFI [ME] control unit (N3/10) by means of a ground signal. In this way the anchor disc (a) from the solenoid (d) is pulled in and the rubber seal (f) closes connection 1. The connection between connection 2 and connection 3 is released and vacuum from variable intake manifold is built up in the air shutoff valve.
In a deenergized condition, the connection between connection 1 and 3 is recreated, whereby the air shutoff valves (via connection 3) are again ventilated.
A check valve (128) ensures that the vacuum develops or remains in the vacuum switchover valve. Thus actuation of the air shutoff valves by means of vacuum is guaranteed under all operating conditions.
