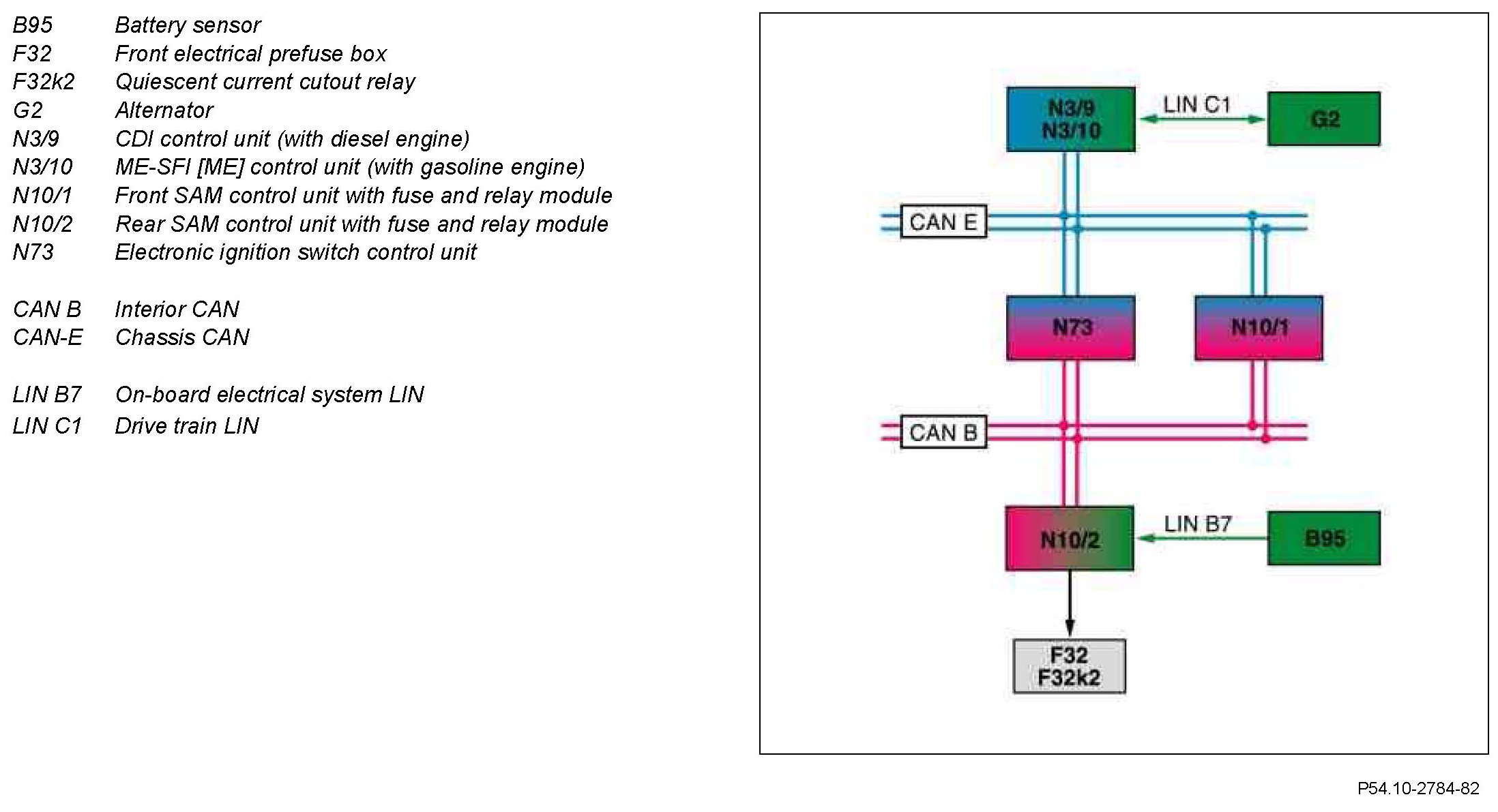

GF54.10-P-0002-02CW On-Board Computer Control, Block Diagram



GF54.10-P-0002-02CW On-board Computer Control, Block Diagram
- up to model year 08

Component Identification:
