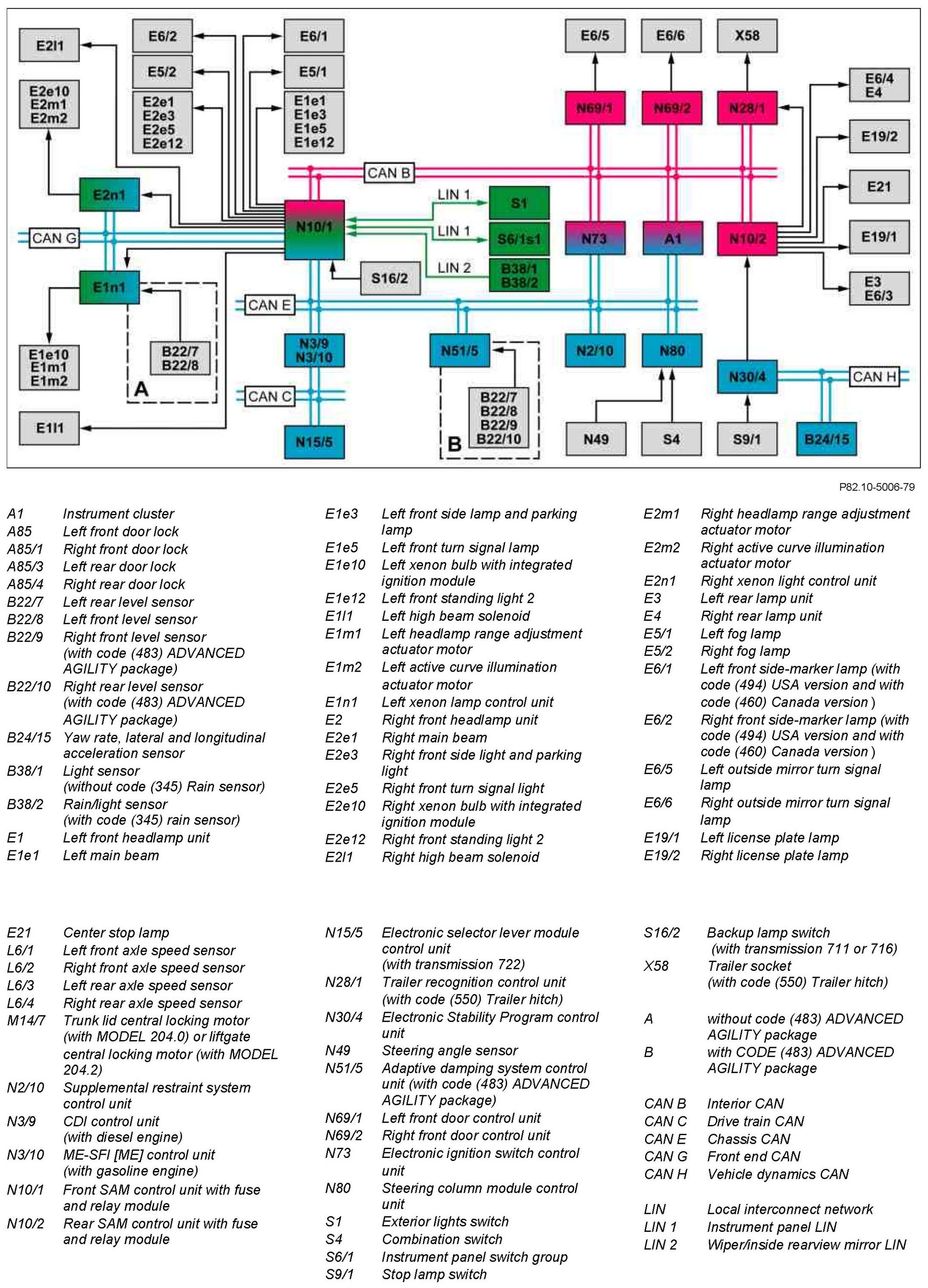

GF82.10-P-0003-03CWA Block Diagram of Exterior Lights
GF82.10-P-0003-03CWA Block Diagram Of Exterior Lights
- with CODE (614) Bi-xenon headlamp unit
- with CODE (622) Intelligent Light System (right-hand traffic)
Component Identification:
GF82.10-P-0003-03CWA Block Diagram Of Exterior Lights
- with CODE (614) Bi-xenon headlamp unit
- with CODE (622) Intelligent Light System (right-hand traffic)
