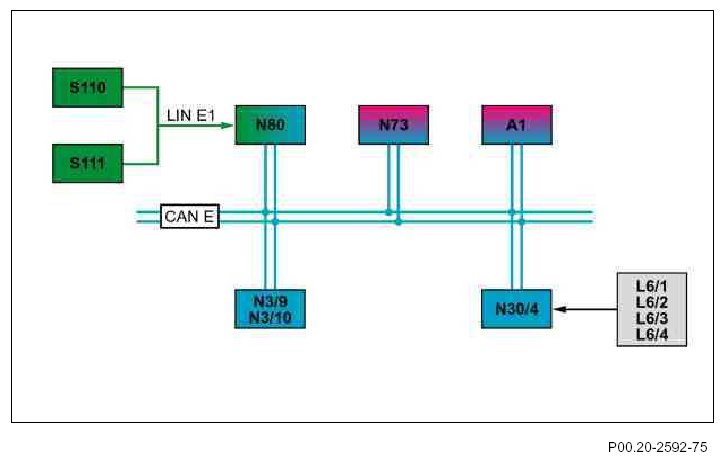

GF00.20-P-0003-03CW Active Service System (ASSYST), Block Diagram

GF00.20-P-0003-03CW Active Service System (ASSYST), Block Diagram







A1 Instrument cluster
L6/1 Left front axle rpm sensor
L6/2 Right front axle rpm sensor
L6/3 left rear axle rpm sensor
L6/4 right rear axle rpm sensor
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N30/4 Electronic Stability Program control unit
N73 Electronic ignition switch control unit
N80 Steering column module control unit
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
CAN E Chassis CAN
LIN E1 Steering LIN
