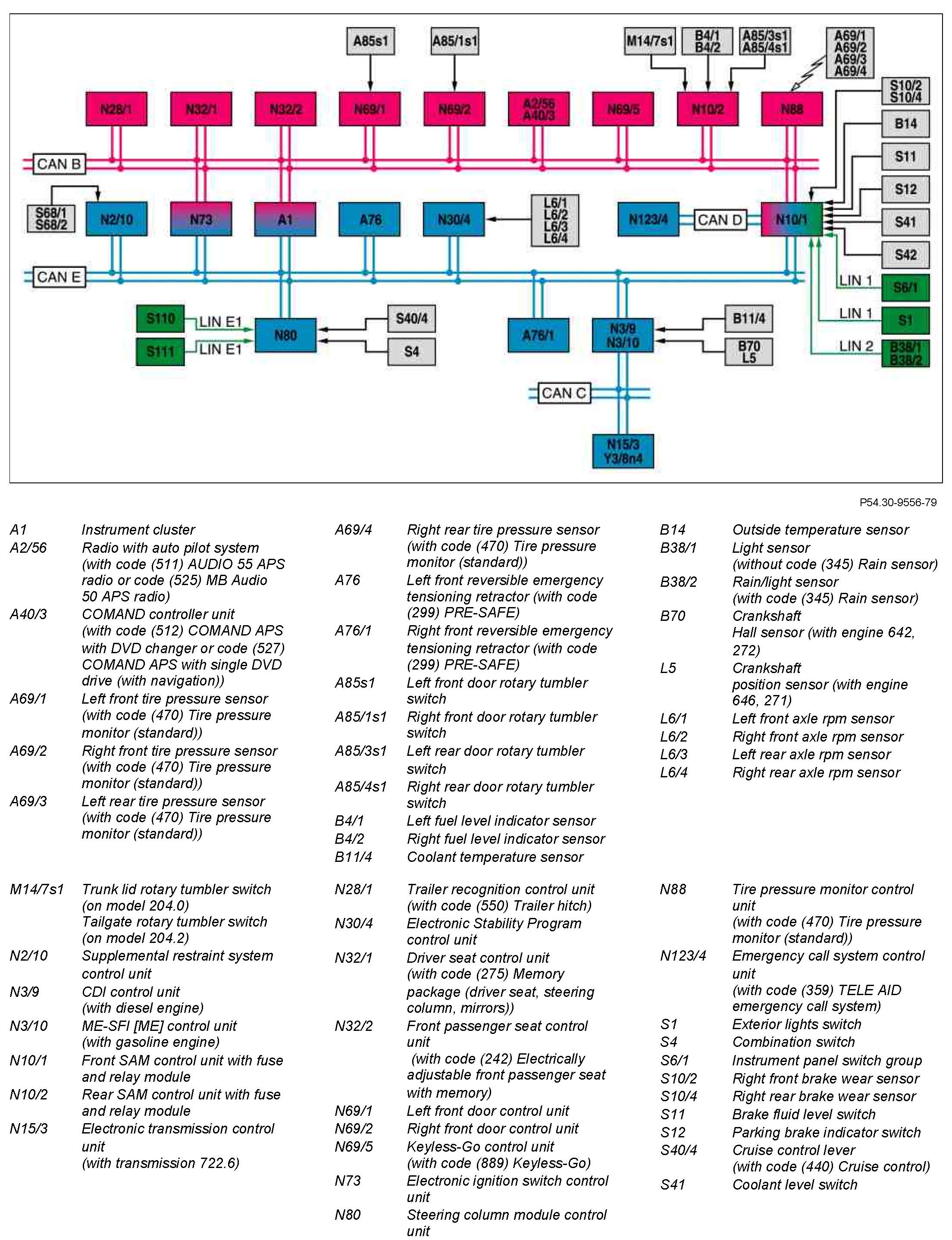

GF54.30-P-0002-01CW Instrument Cluster (IC), Block Diagram
GF54.30-P-0002-01CW Instrument Cluster (IC), Block Diagram
GF54.30-P-0002-01CW Instrument Cluster (IC), Block Diagram
- up to model year 08

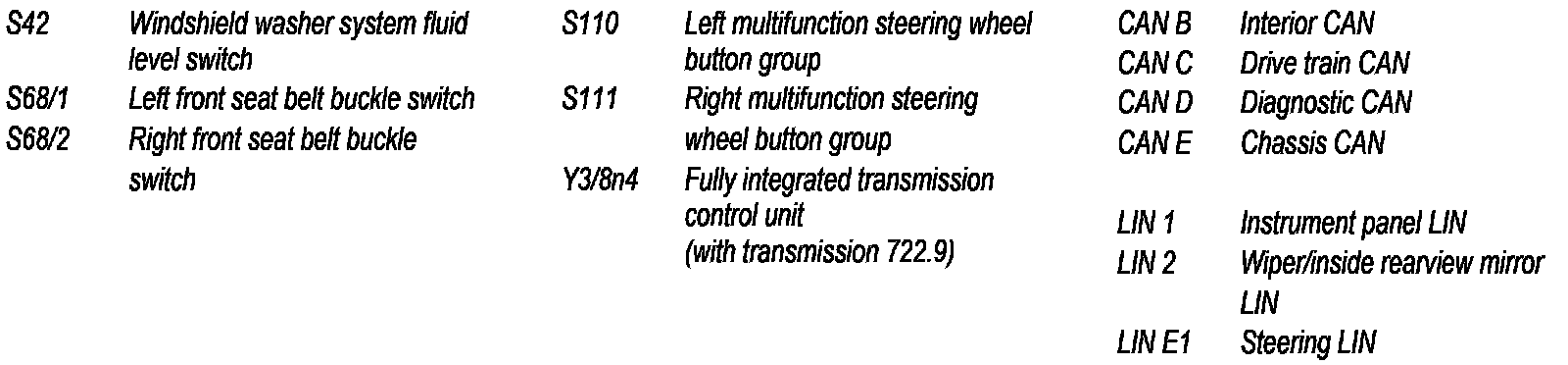

Component Identification:
