GF83.40-P-0005-01CW Automatic Air Conditioning, Location of Components



GF83.40-P-0005-01CW Automatic Air Conditioning, Location Of Components

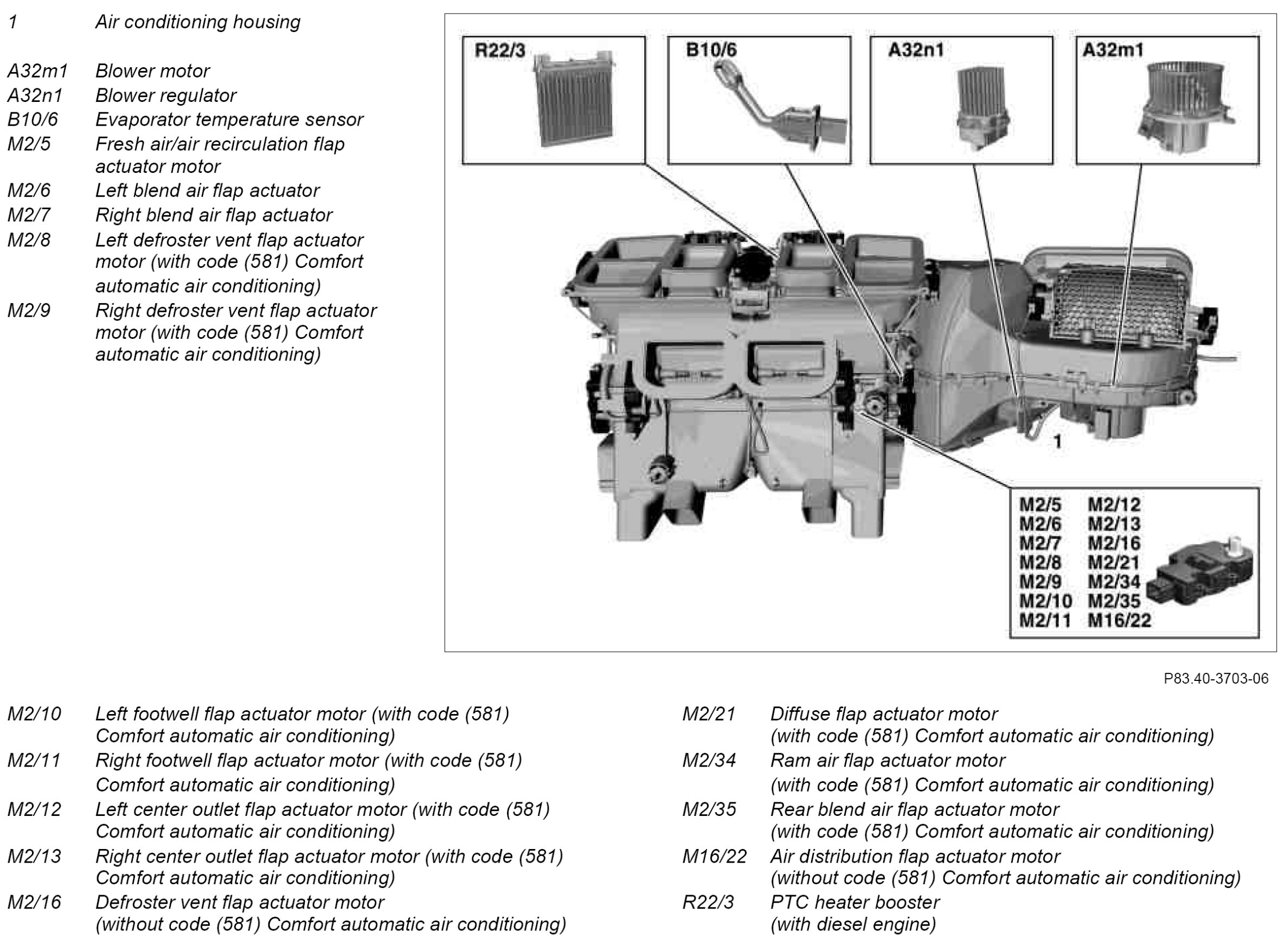

Component Identification:

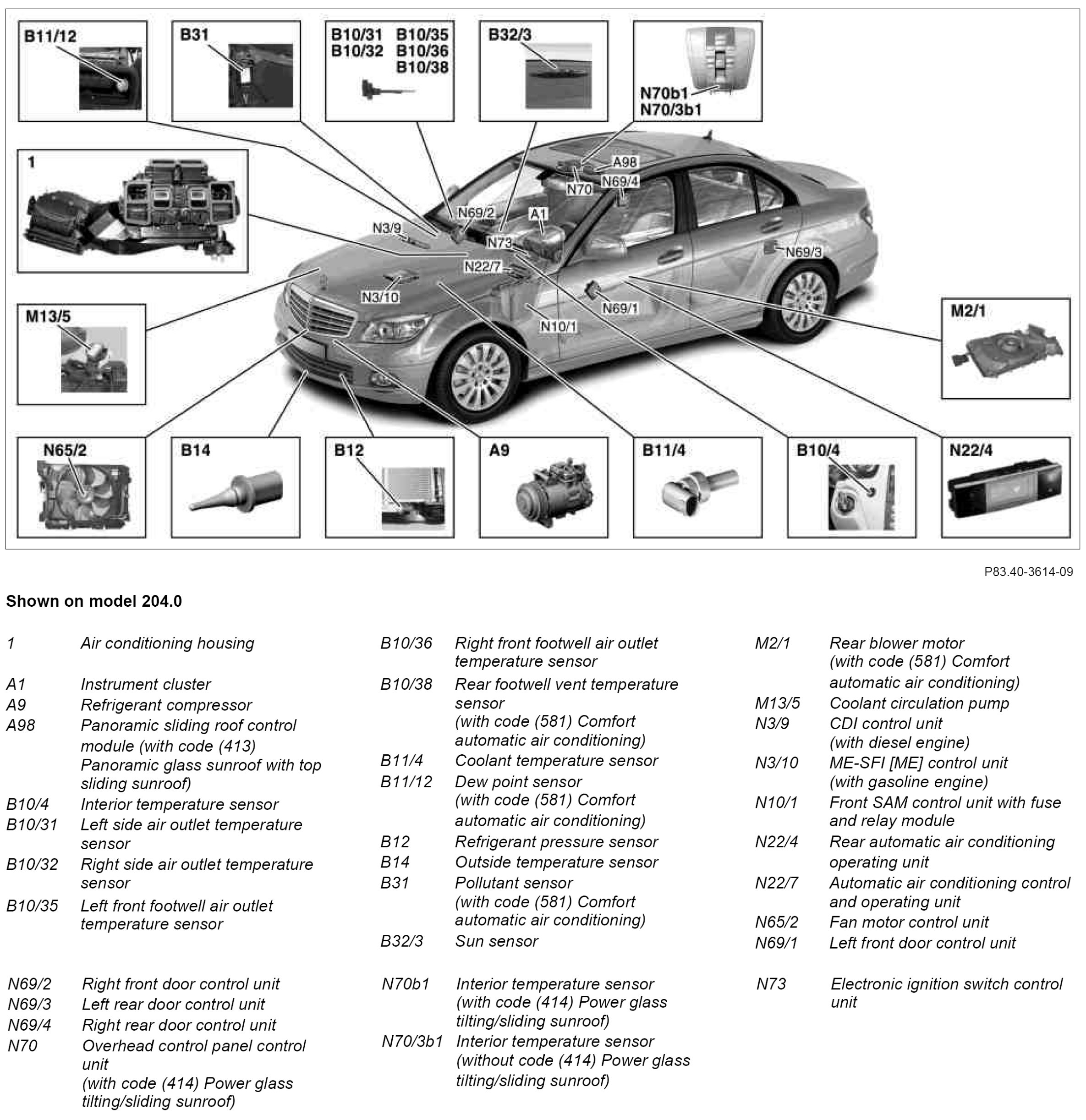

Component Identification:
