Cabin Air Filter / Purifier: Locations

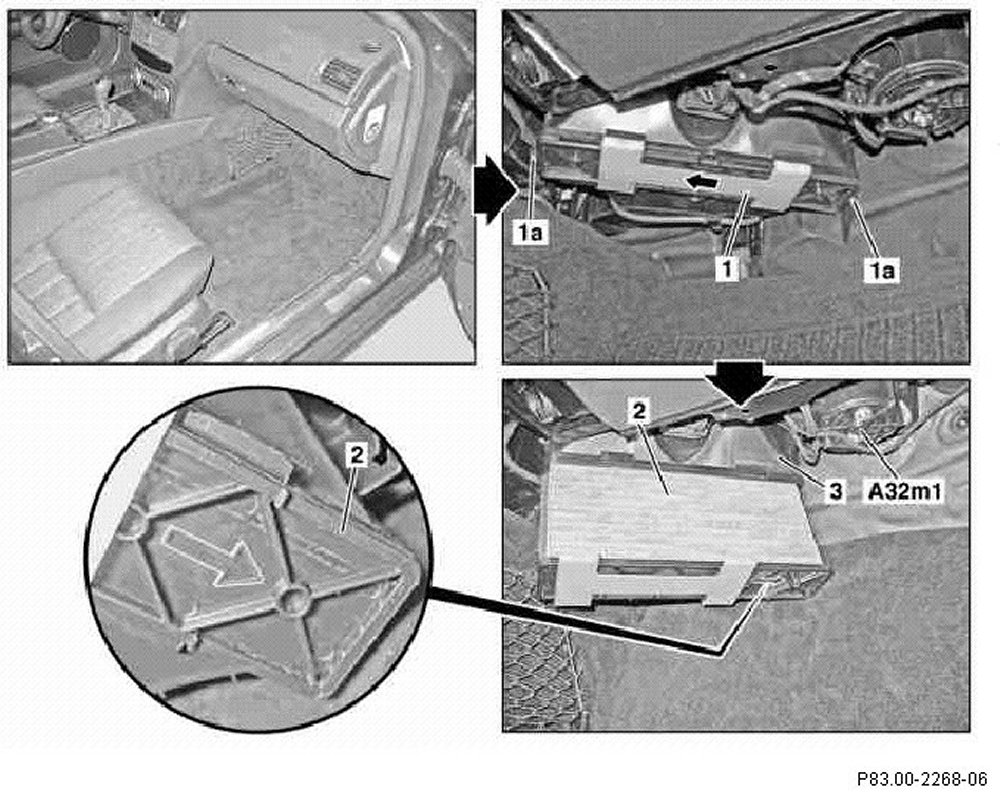

Cabin Air Filter/ Combination Filter








1) Slide
1a) Clamp
2) Combination Filter
3) AC Housing

A32m1) Blower motor
