AR05.10-P-7800QC Remove/Install Chain Tensioner



AR05.10-P-7800QC Remove/Install Chain Tensioner
- Chain tensioner with thread M22x1.5

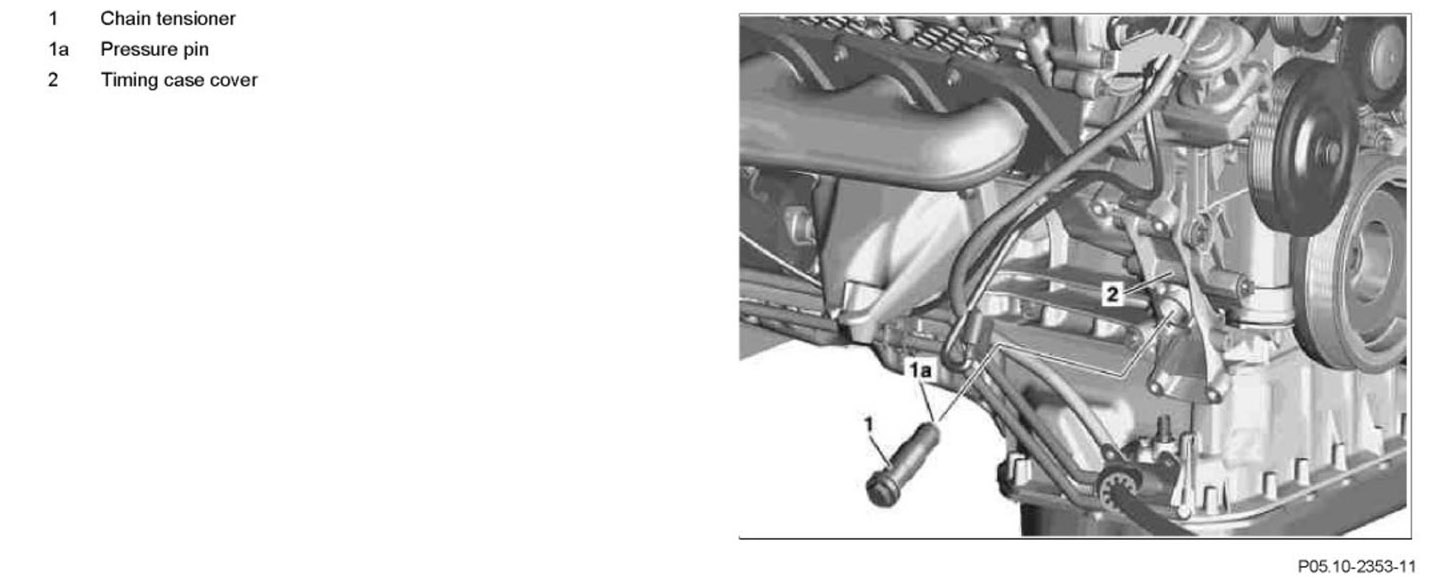

Component Identification:




Component Identification:

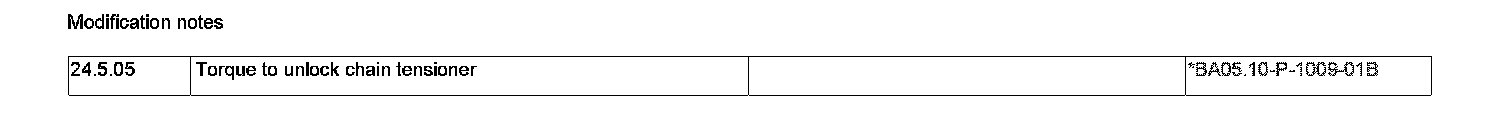

Modification notes:

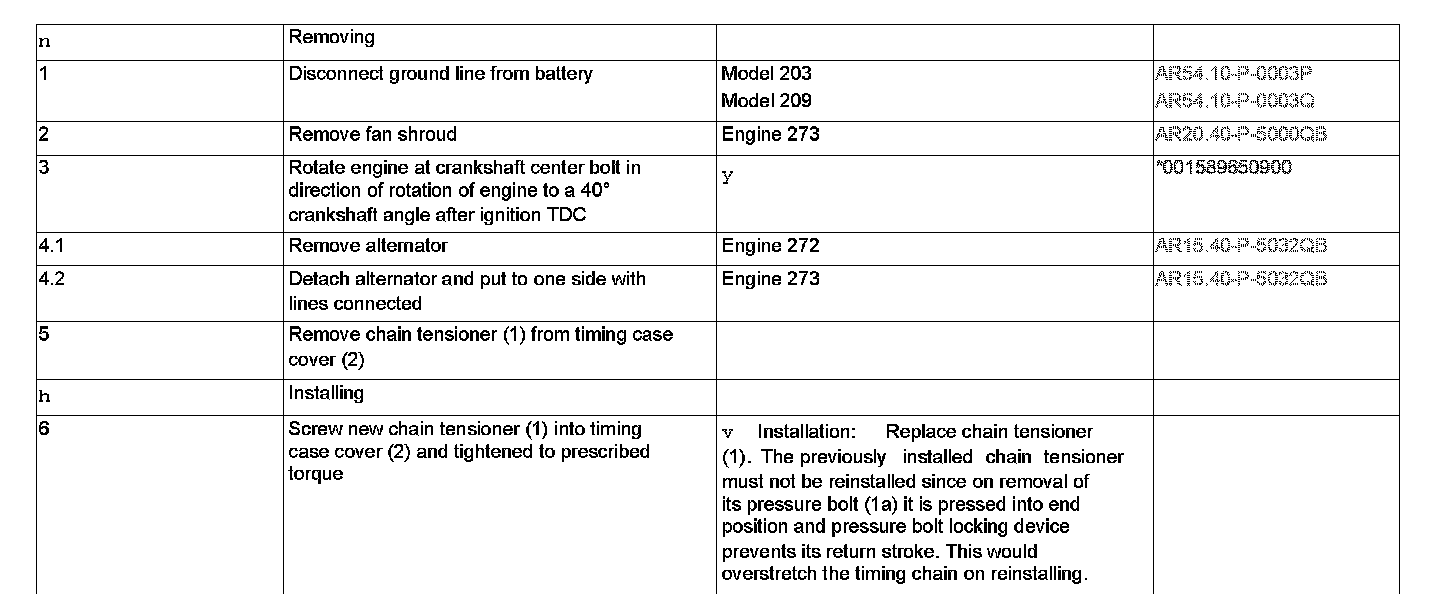

Steps 1 - 6:

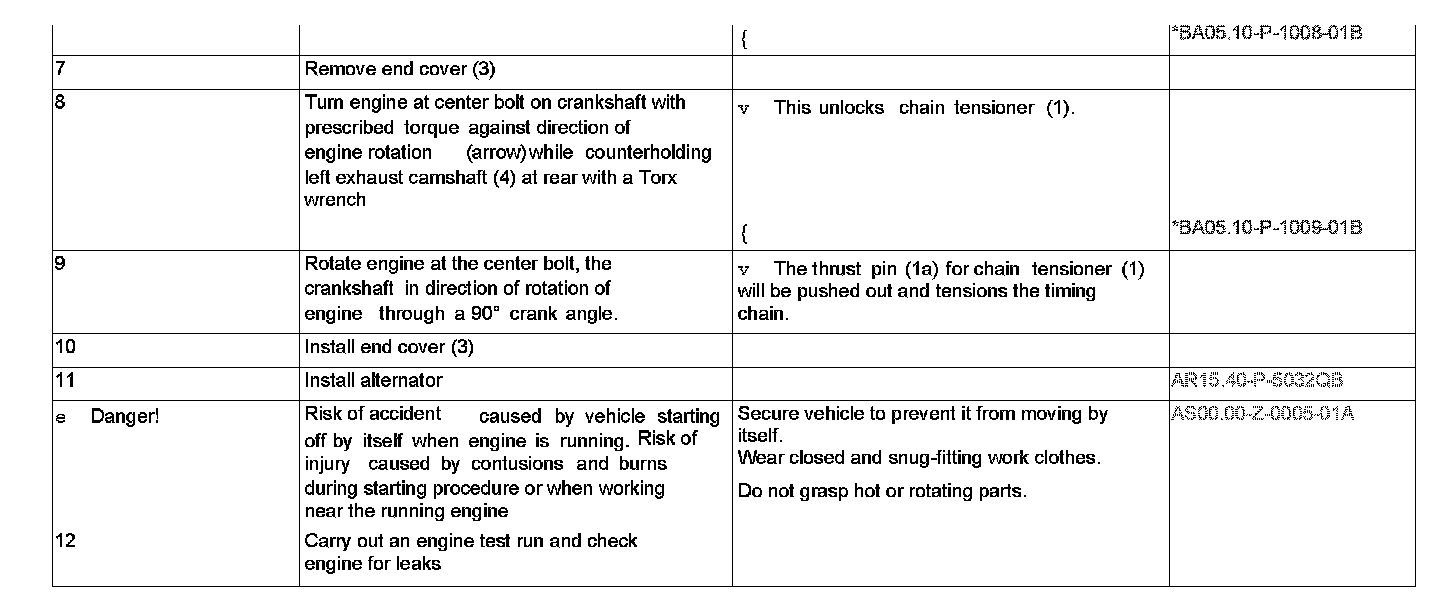

Steps 7 - 12:

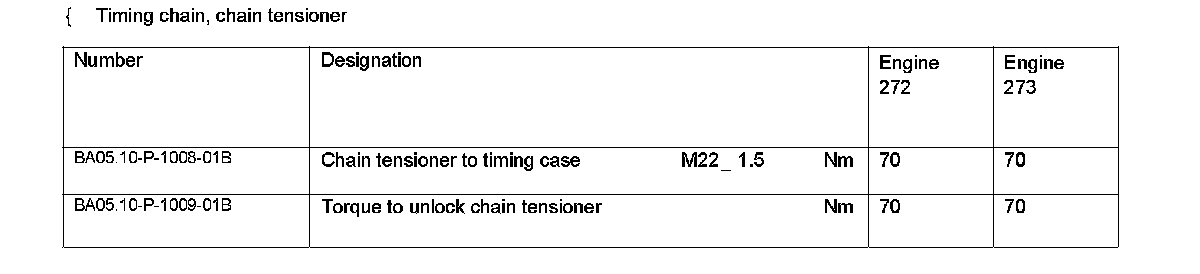

Timing Chain, Chain Tensioner:




Special Tools:
