AR05.10-P-7800QB Remove/Install Chain Tensioner



AR05.10-P-7800QB Remove/Install Chain Tensioner
- Chain tensioner with thread M24x1.5

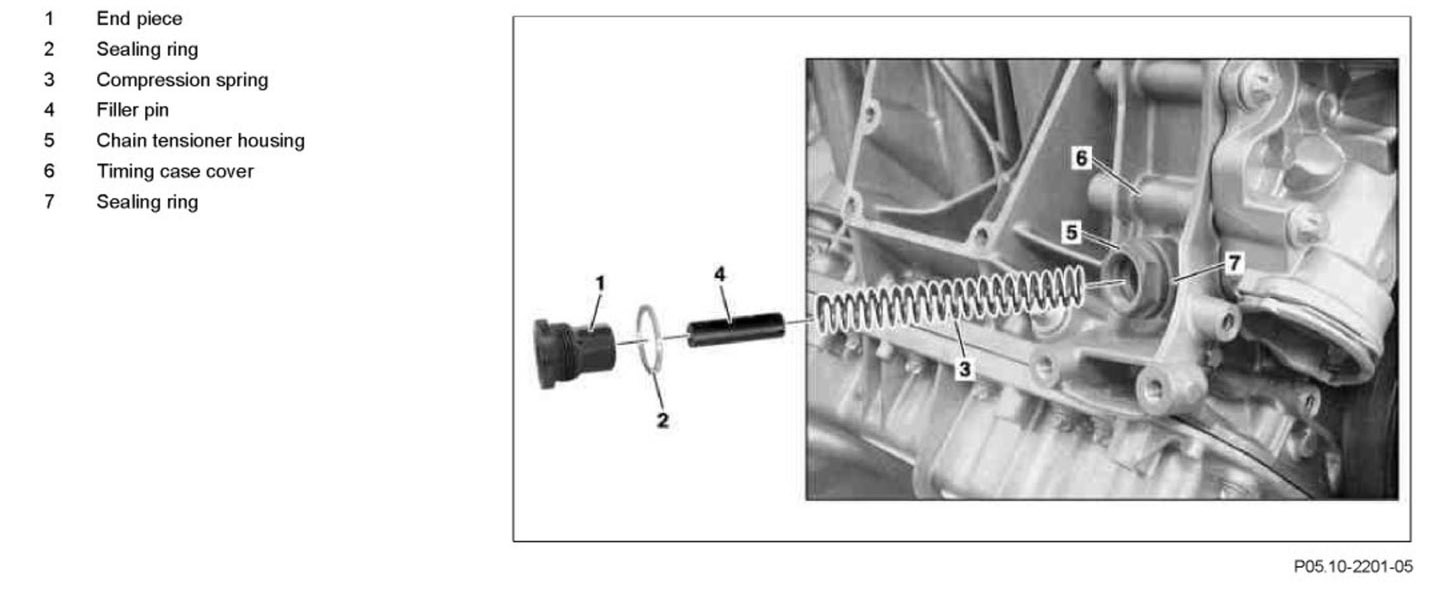

Component Identification:

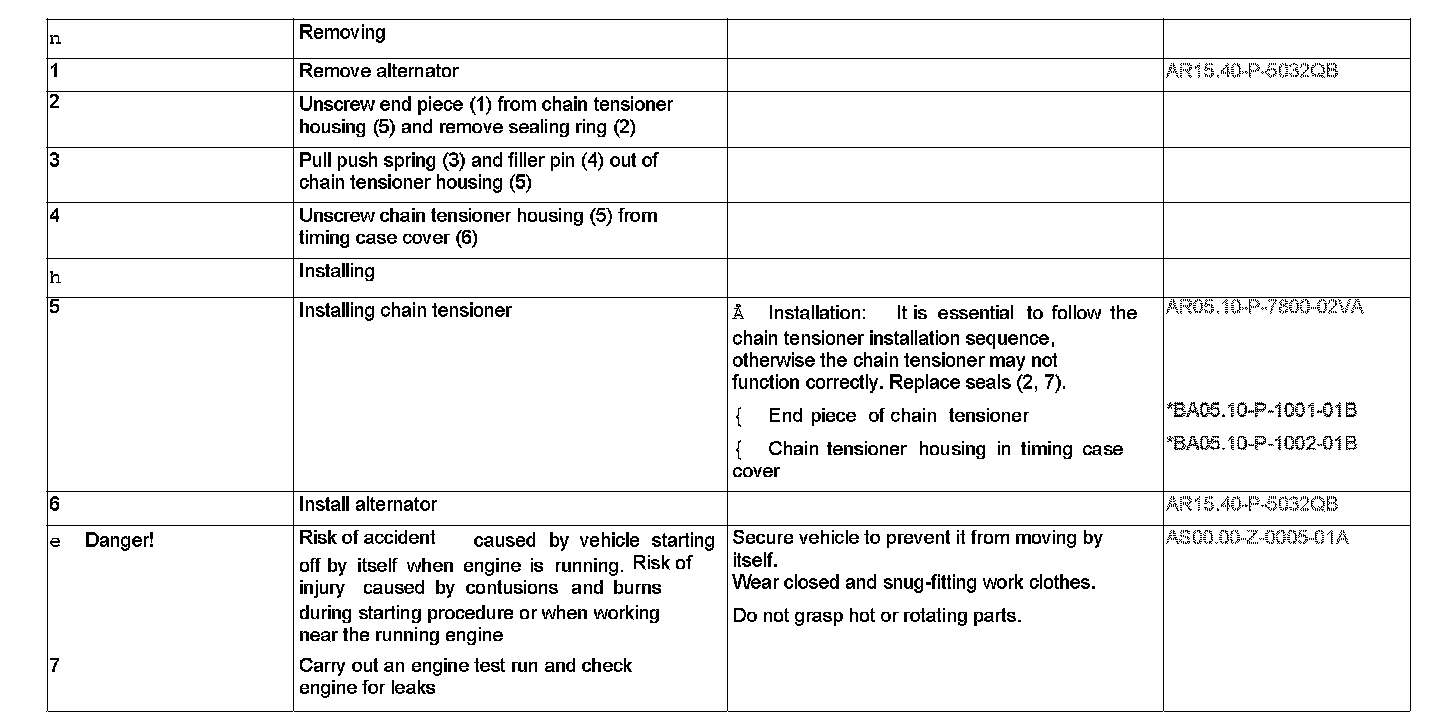

Steps 1 - 7:

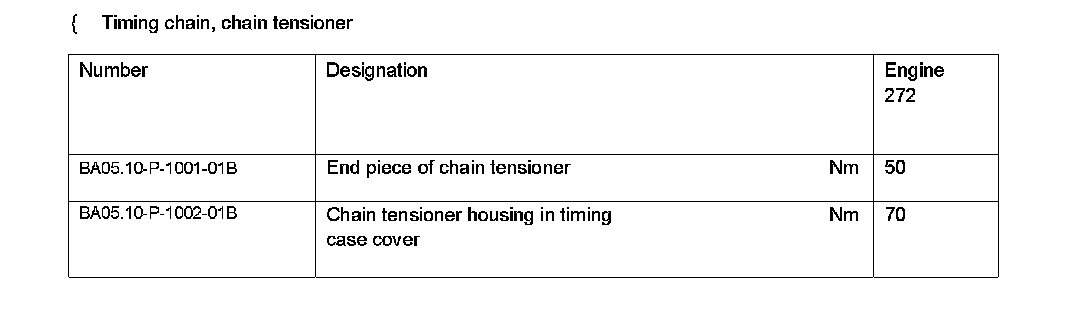

Timing Chain, Chain Tensioner:
