AR05.10-P-8484CV Remove/Install Slide Rail In Timing Case Cover
AR05.10-P-8484CV Remove/Install Slide Rail In Timing Case Cover
AR05.10-P-8484CV Remove/install slide rail in timing case cover

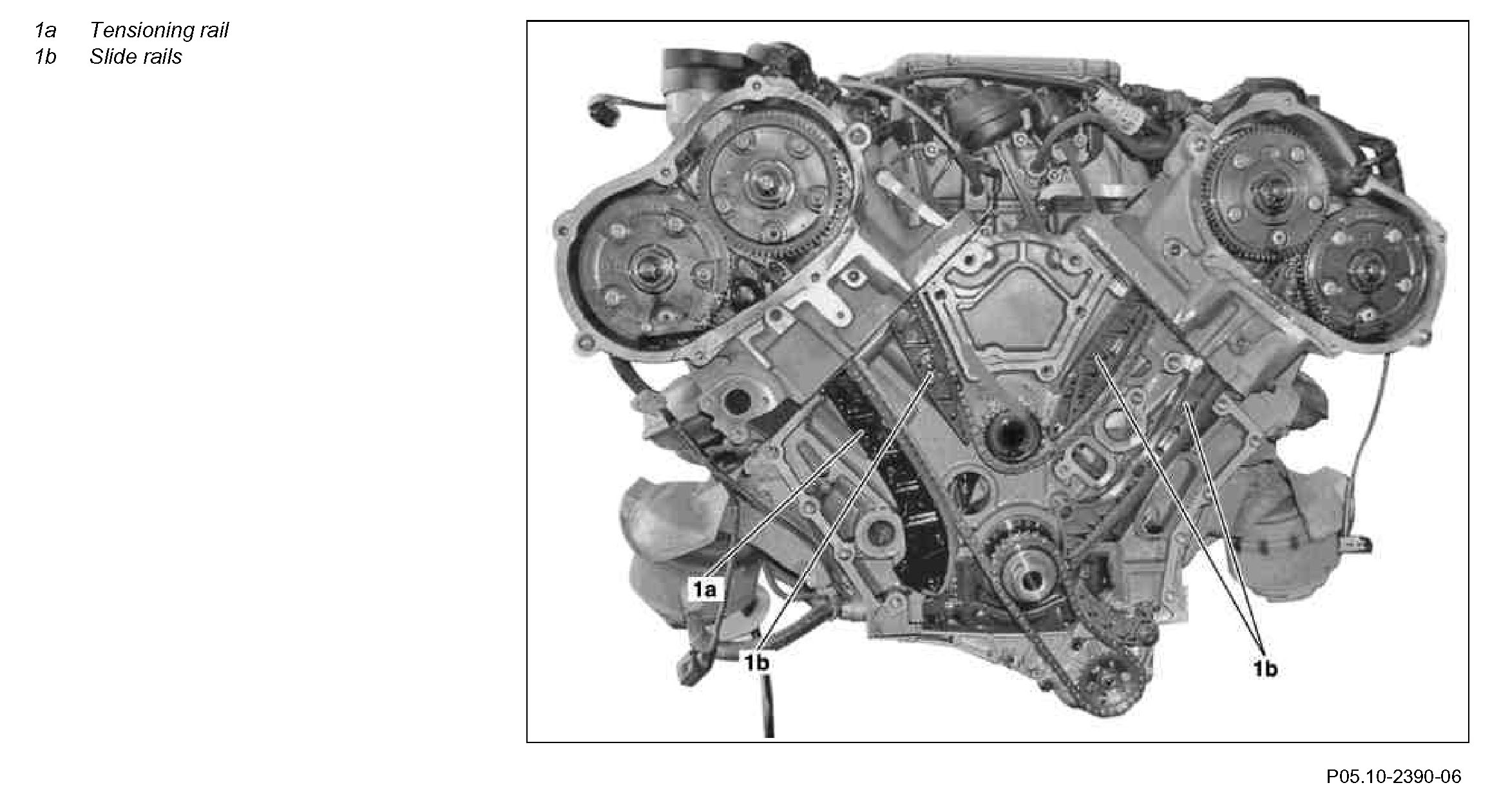

Component Identification:

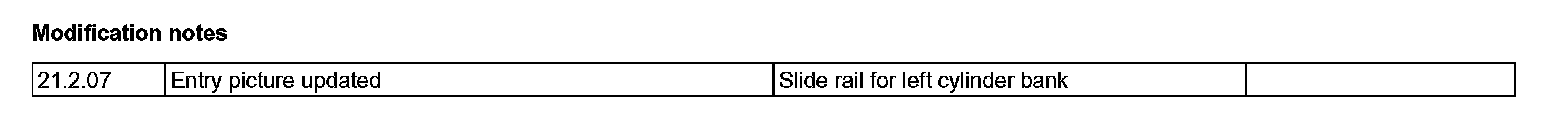

Modification notes:

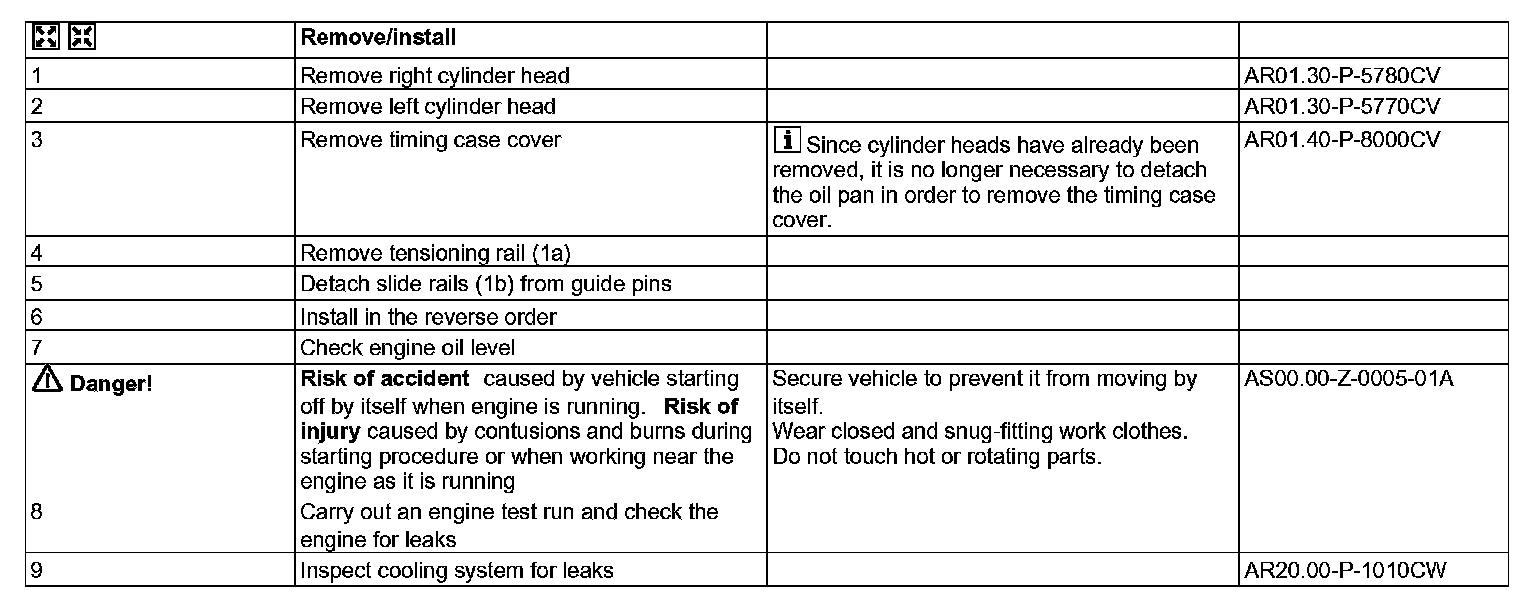

Steps 1-9:
