AR05.20-P-7201CVE Remove/Install Camshafts



AR05.20-P-7201CVE Remove/install camshafts
- On intake camshafts

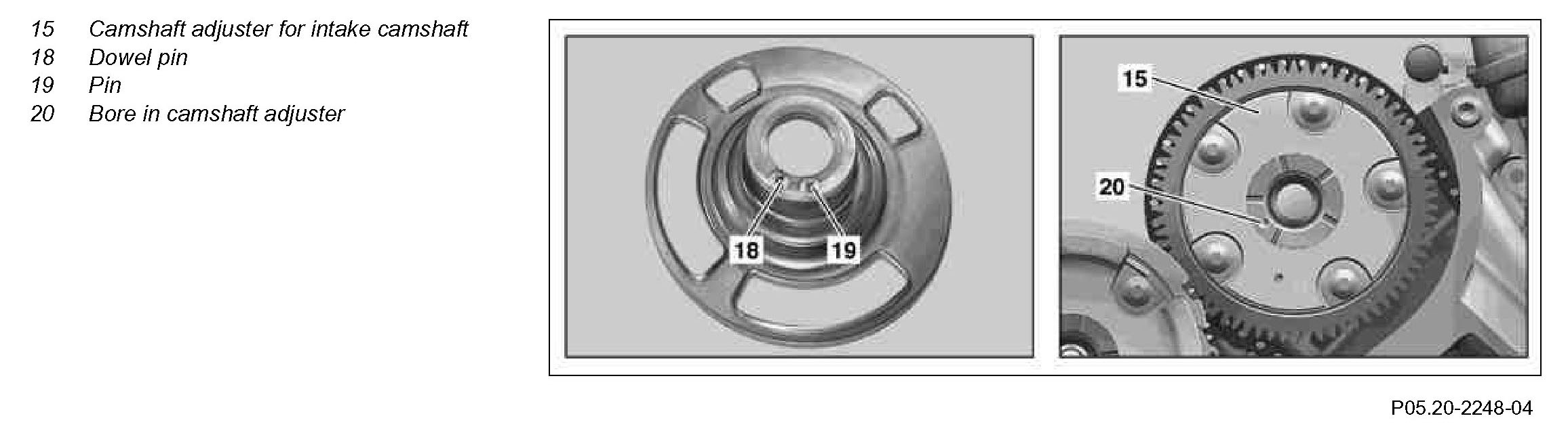

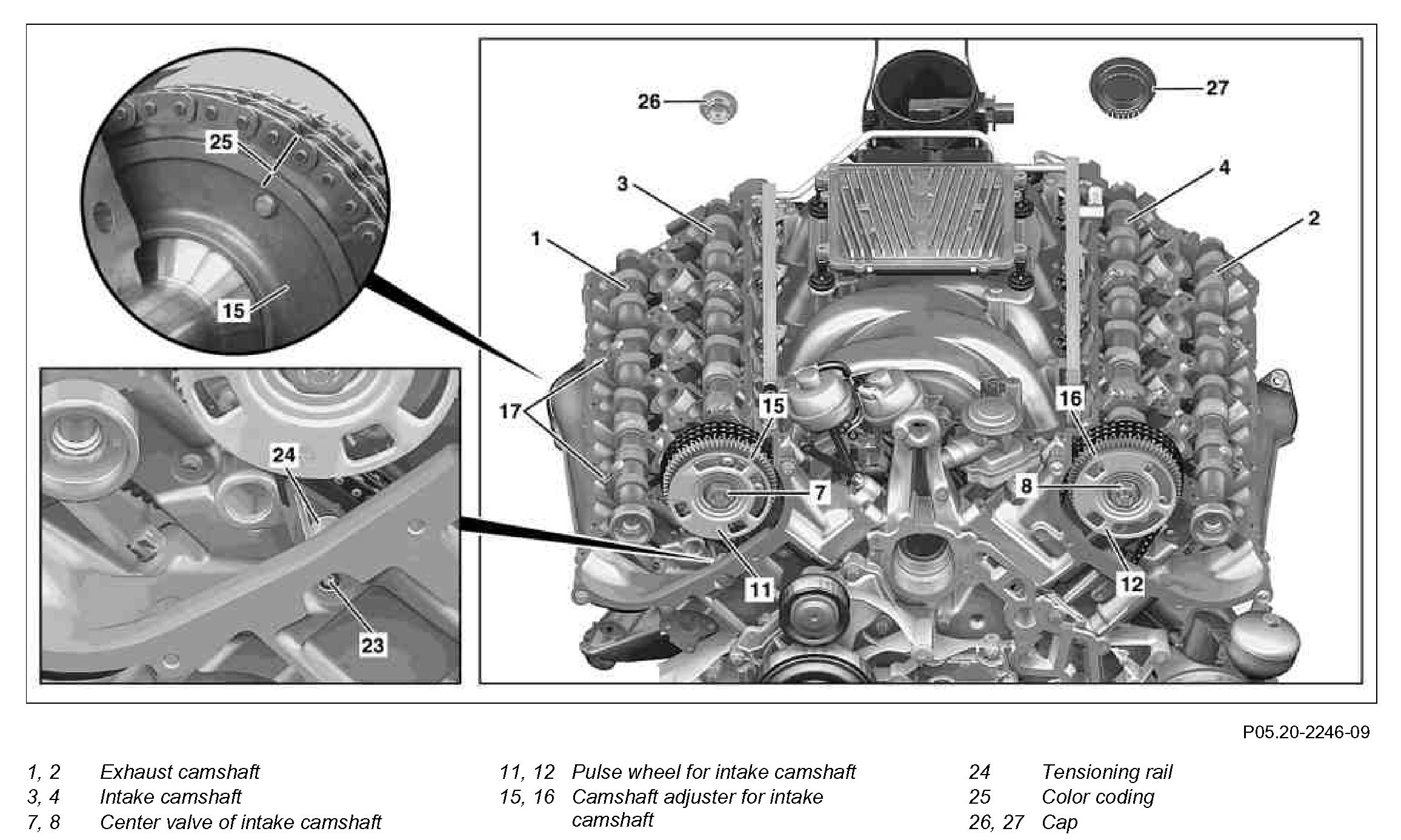

Component Identification:

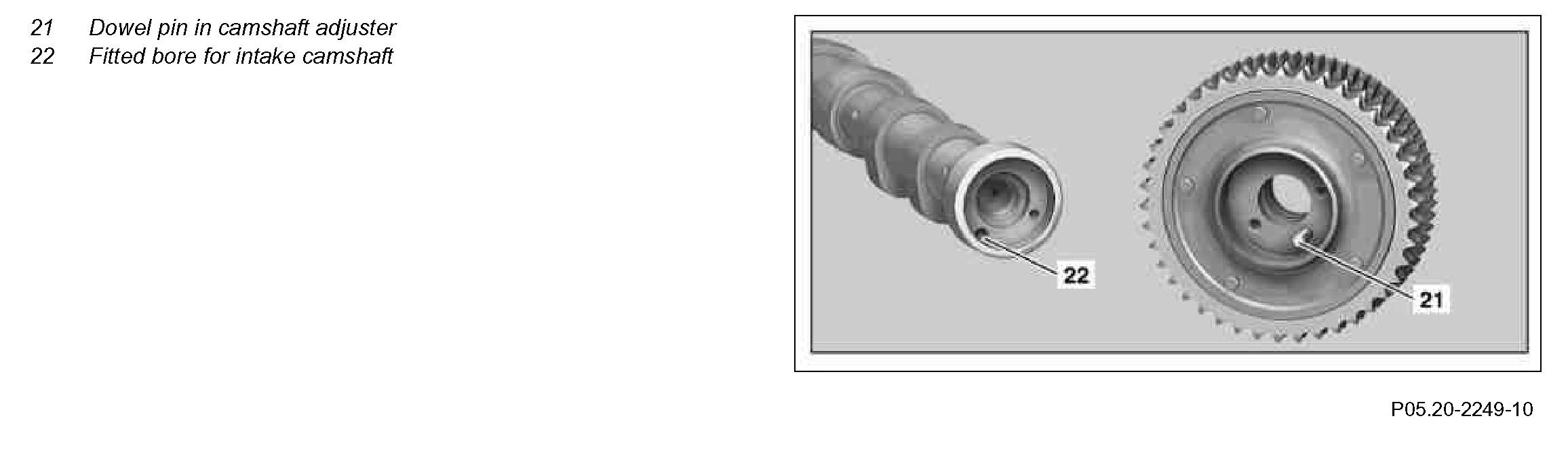

Component Identification:




Component Identification:

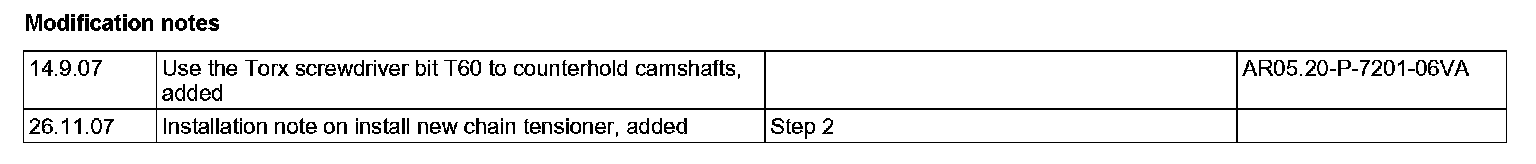

Modification notes:

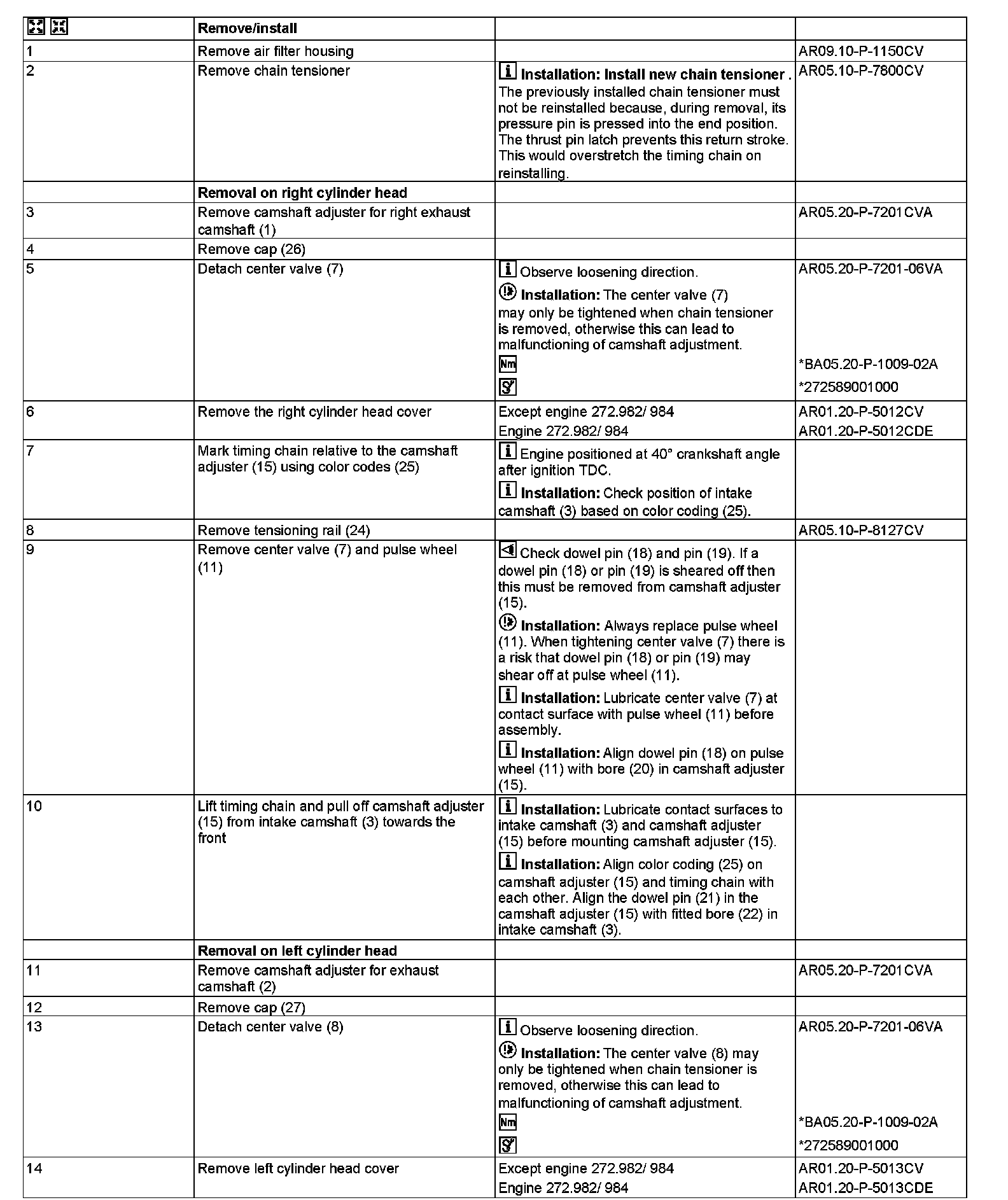

Steps 1-14:

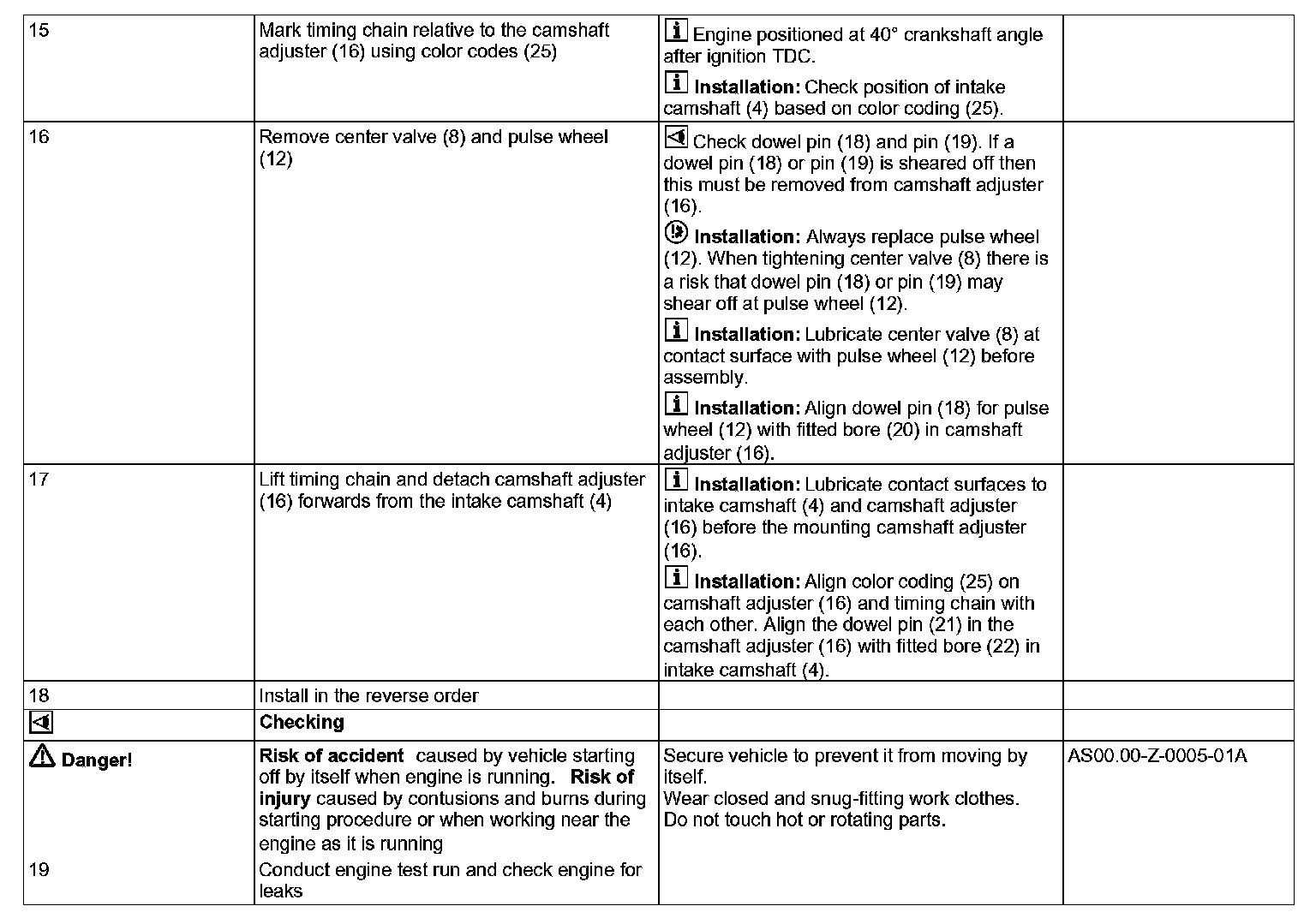

Steps 15-19:

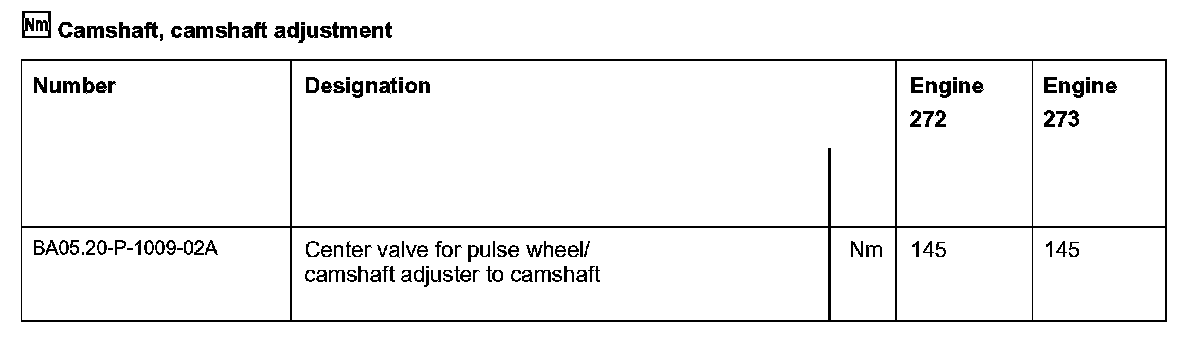

Camshaft, camshaft adjustment:

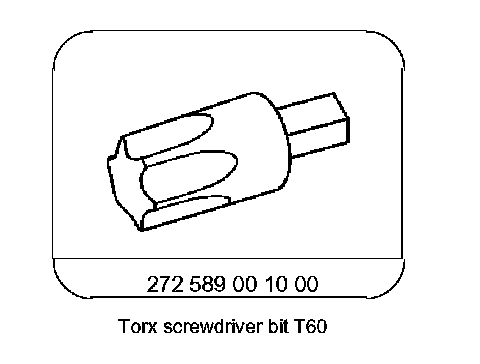

Special Tools:
