AR05.20-P-7201CVA Remove/Install Camshafts



AR05.20-P-7201CVA Remove/install camshafts
- On exhaust camshafts

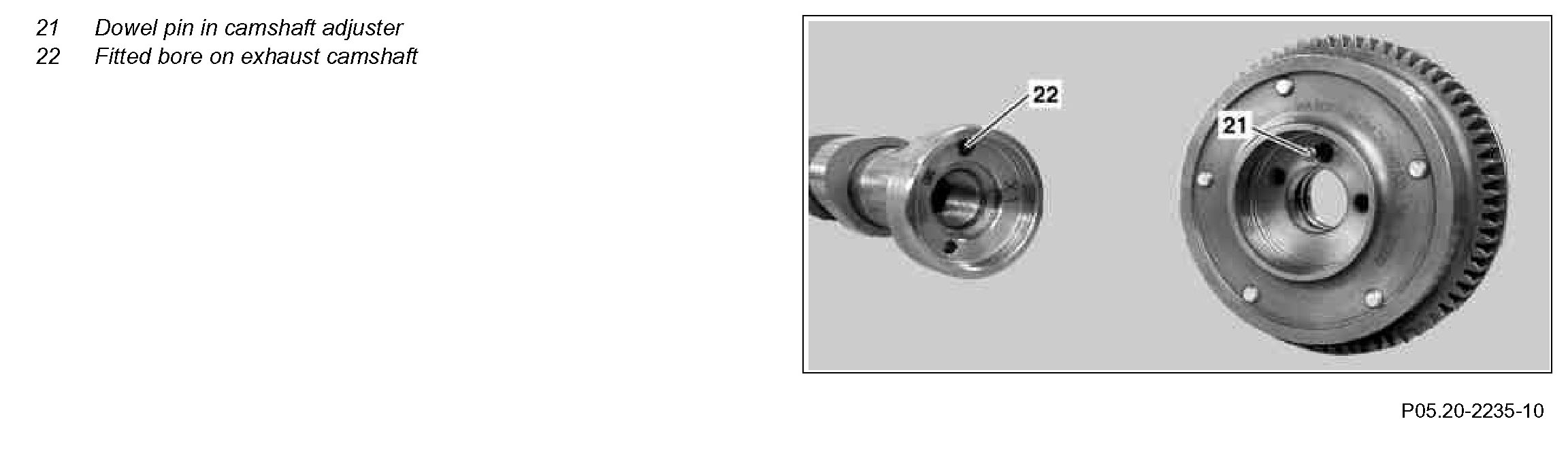

Component Identification:

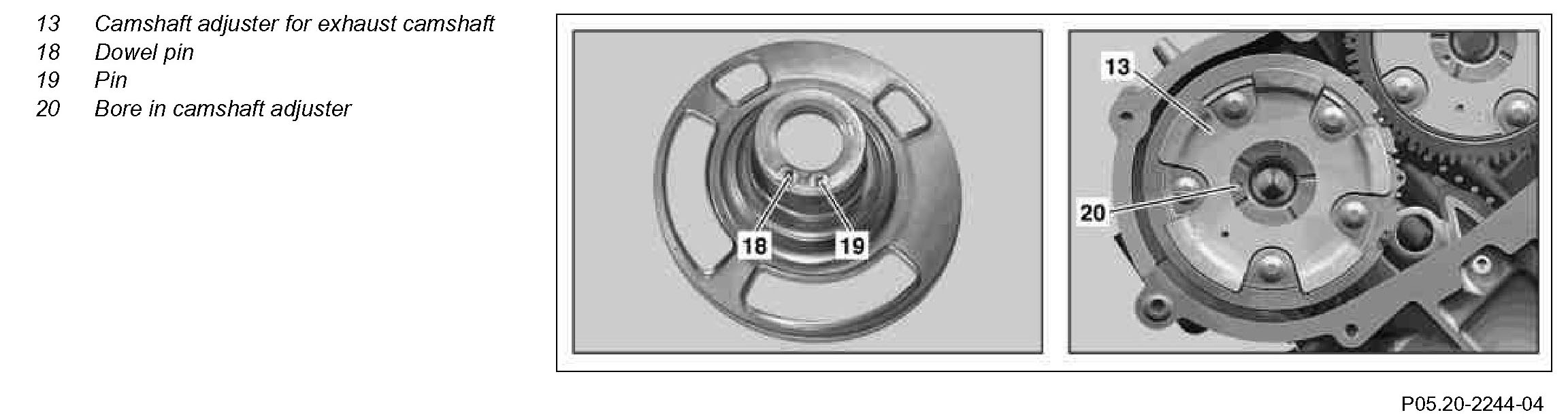

Component Identification:

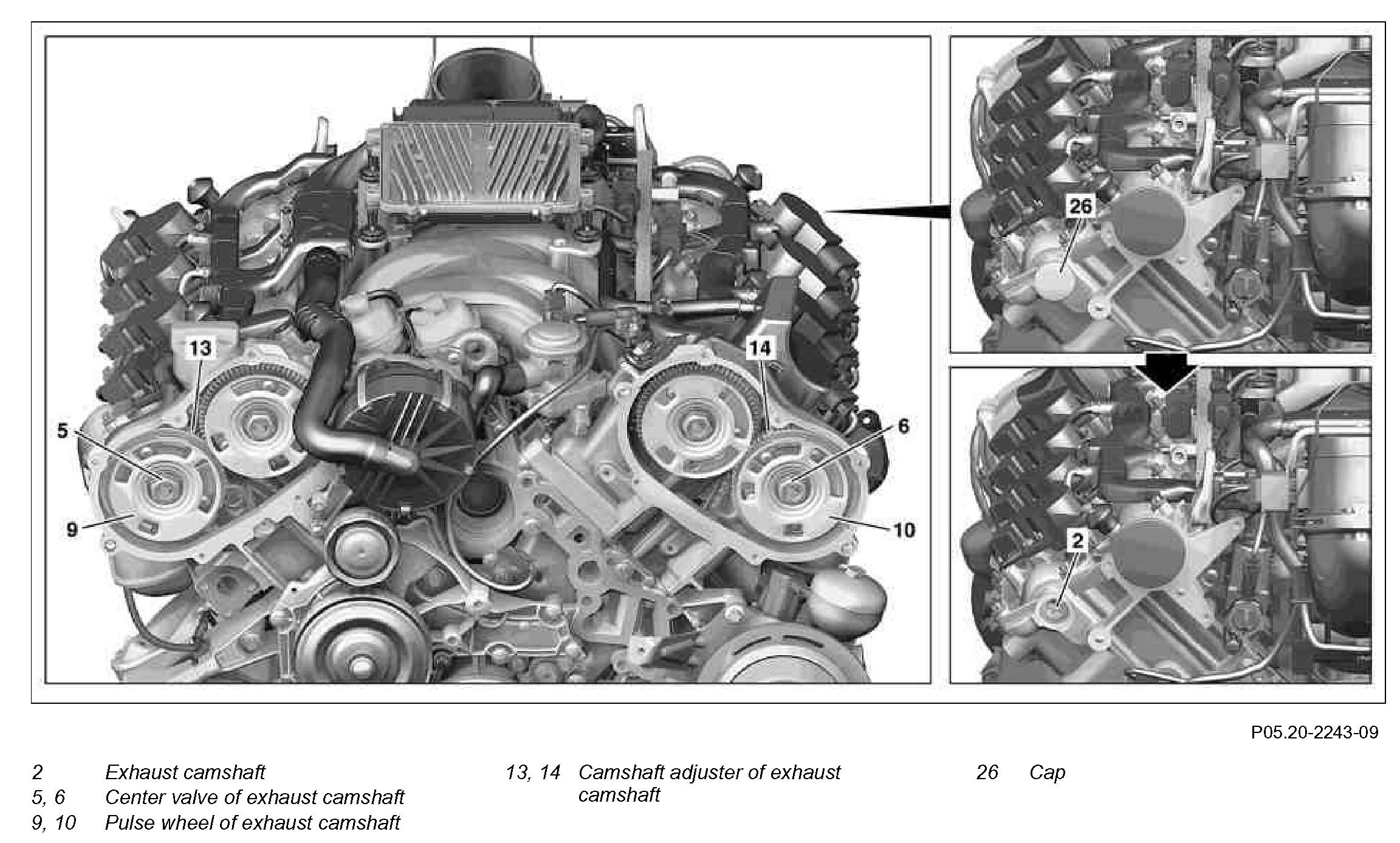

Component Identification:

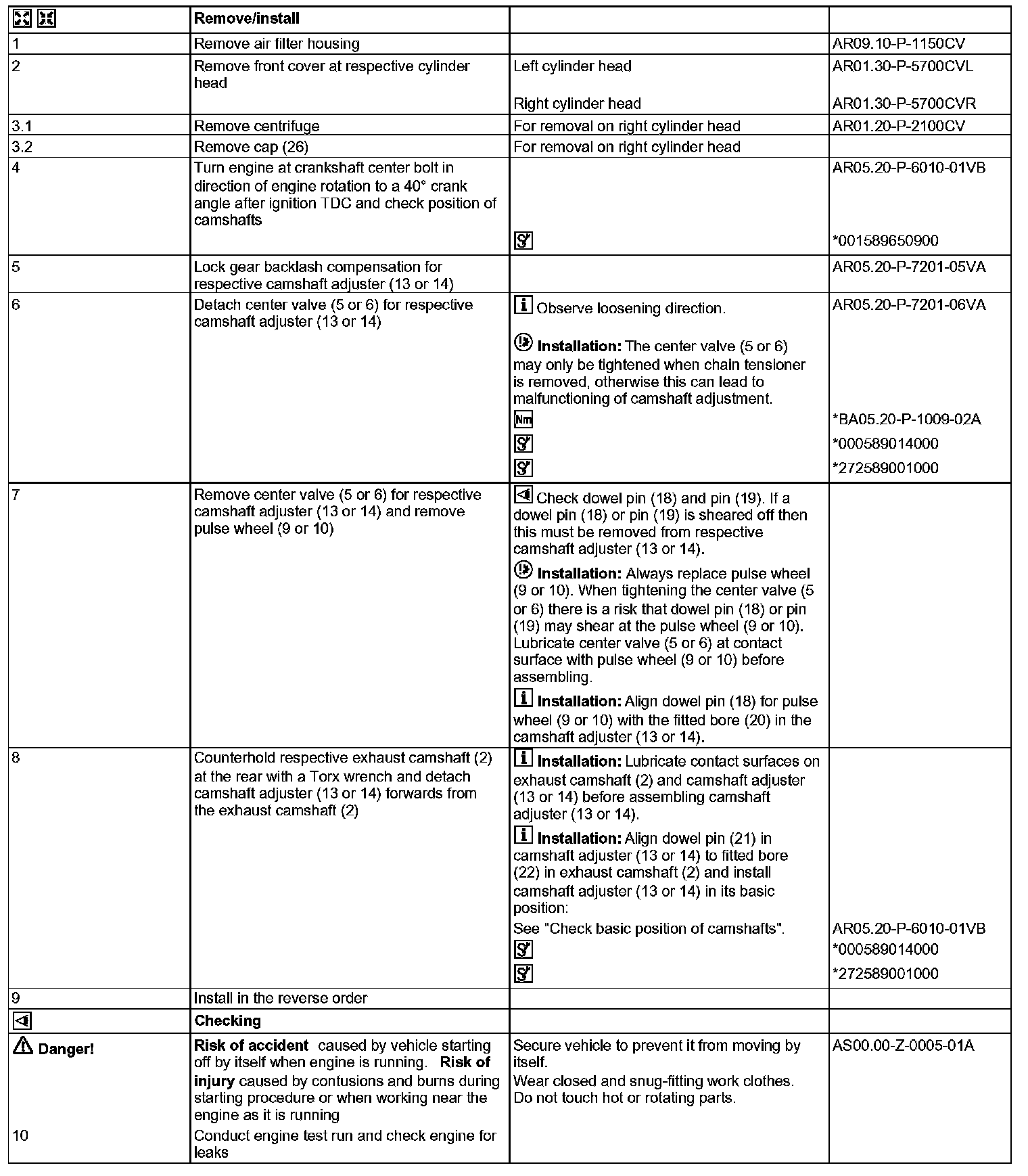

Steps 1-10:

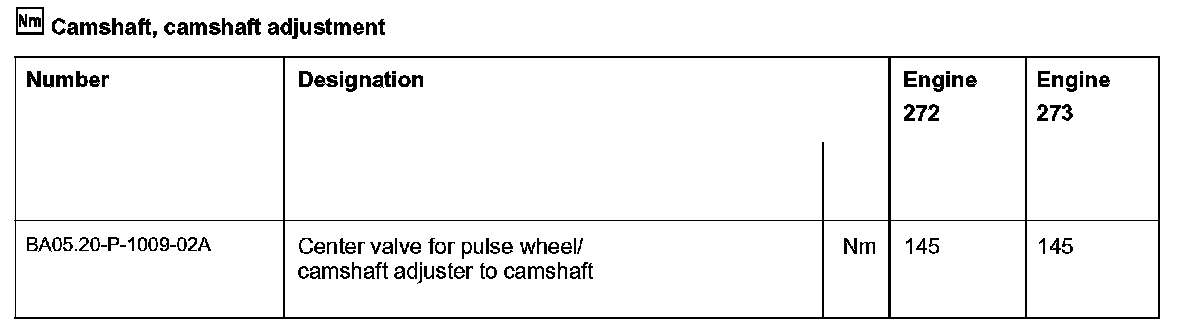

Camshaft, camshaft adjustment:

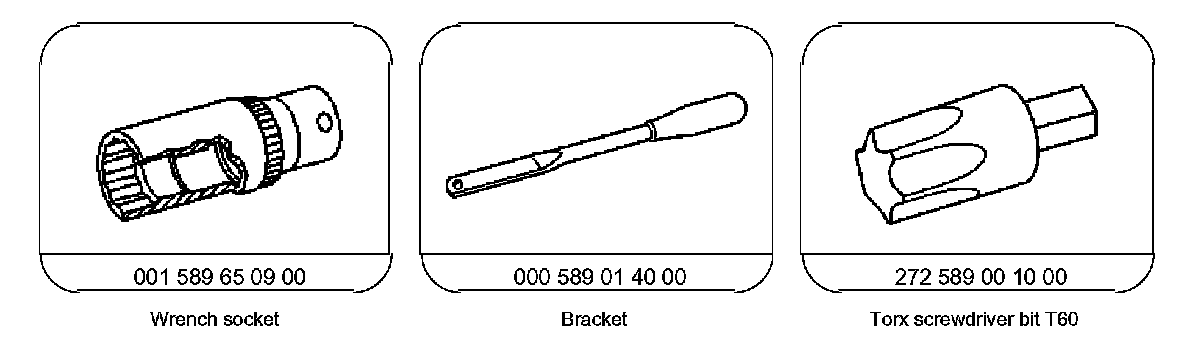

Special Tools:
