Function Diagrams

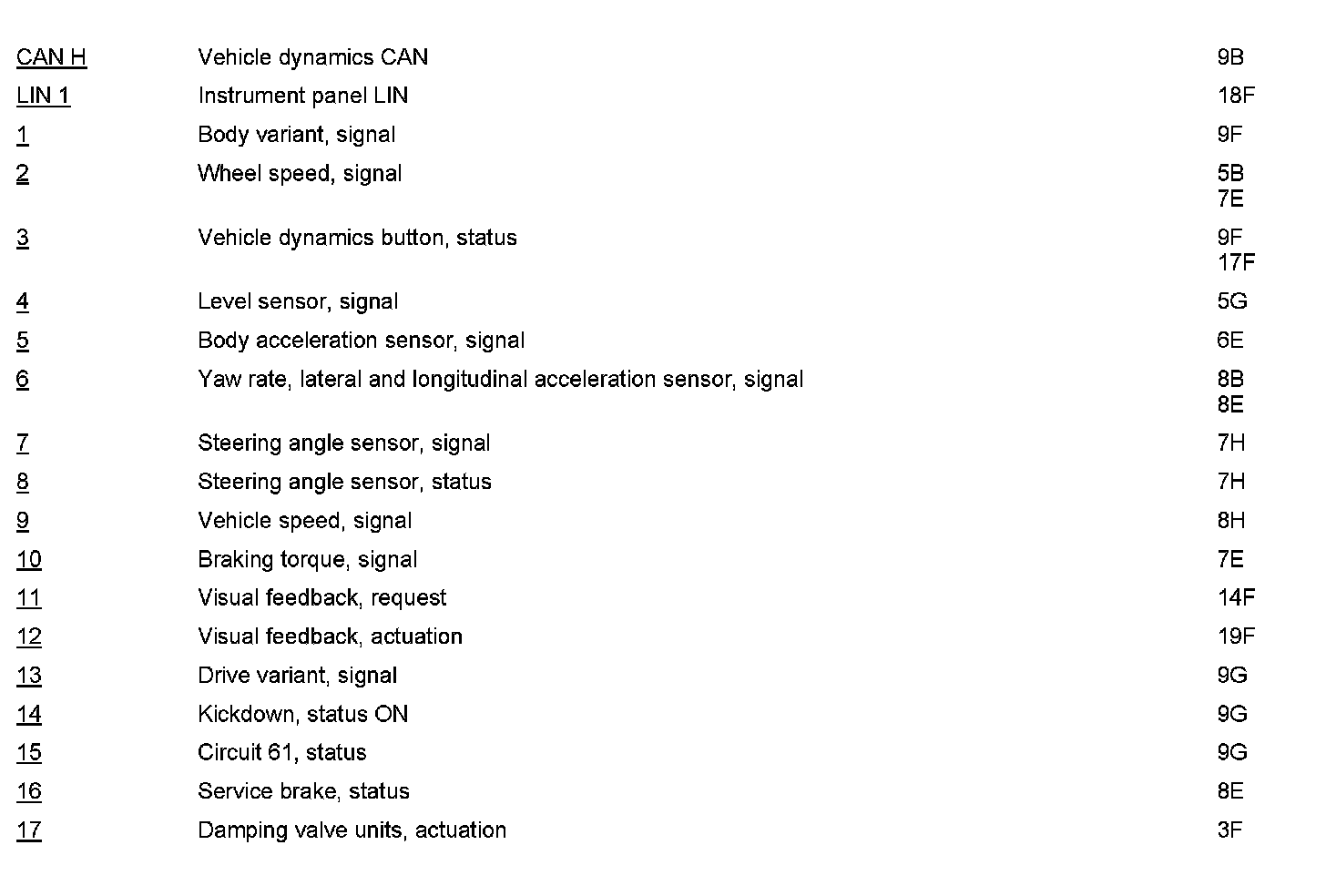

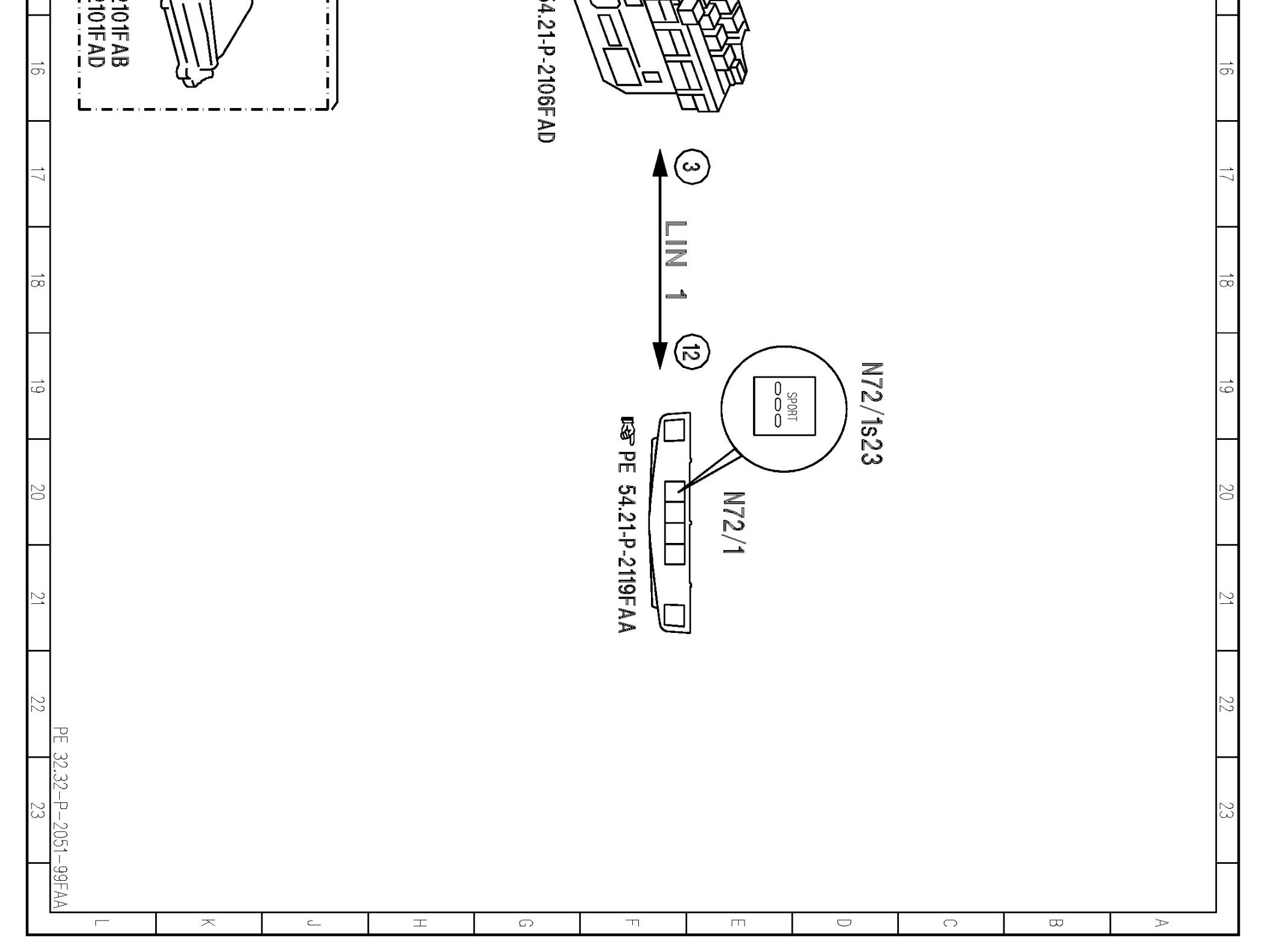

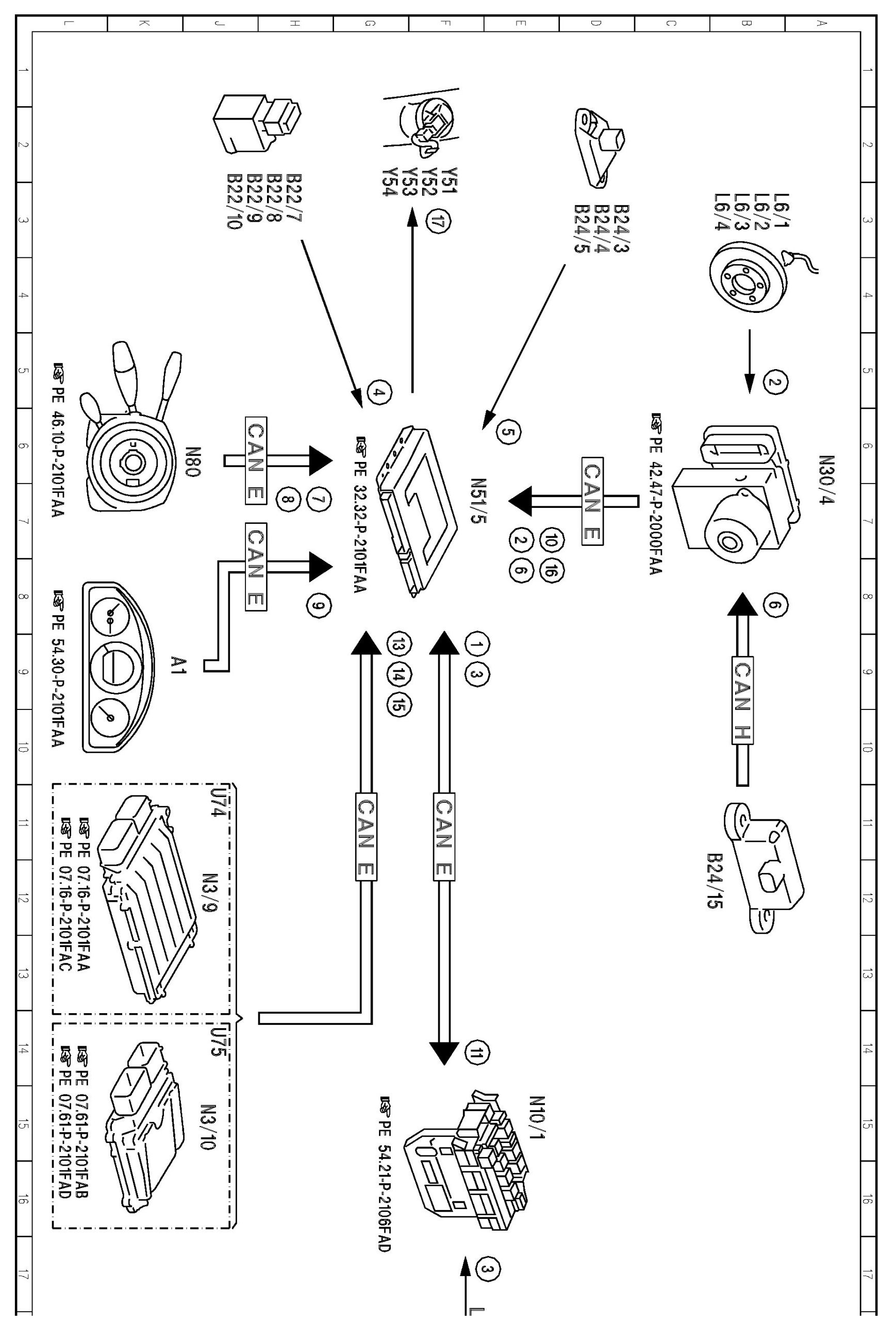

PE32.32-P-2051FAA Electrical Function Schematic For Adaptive Damping System (ADS)

MODEL 204.0 /2
- up to Model Year 08 /Modification Year 07

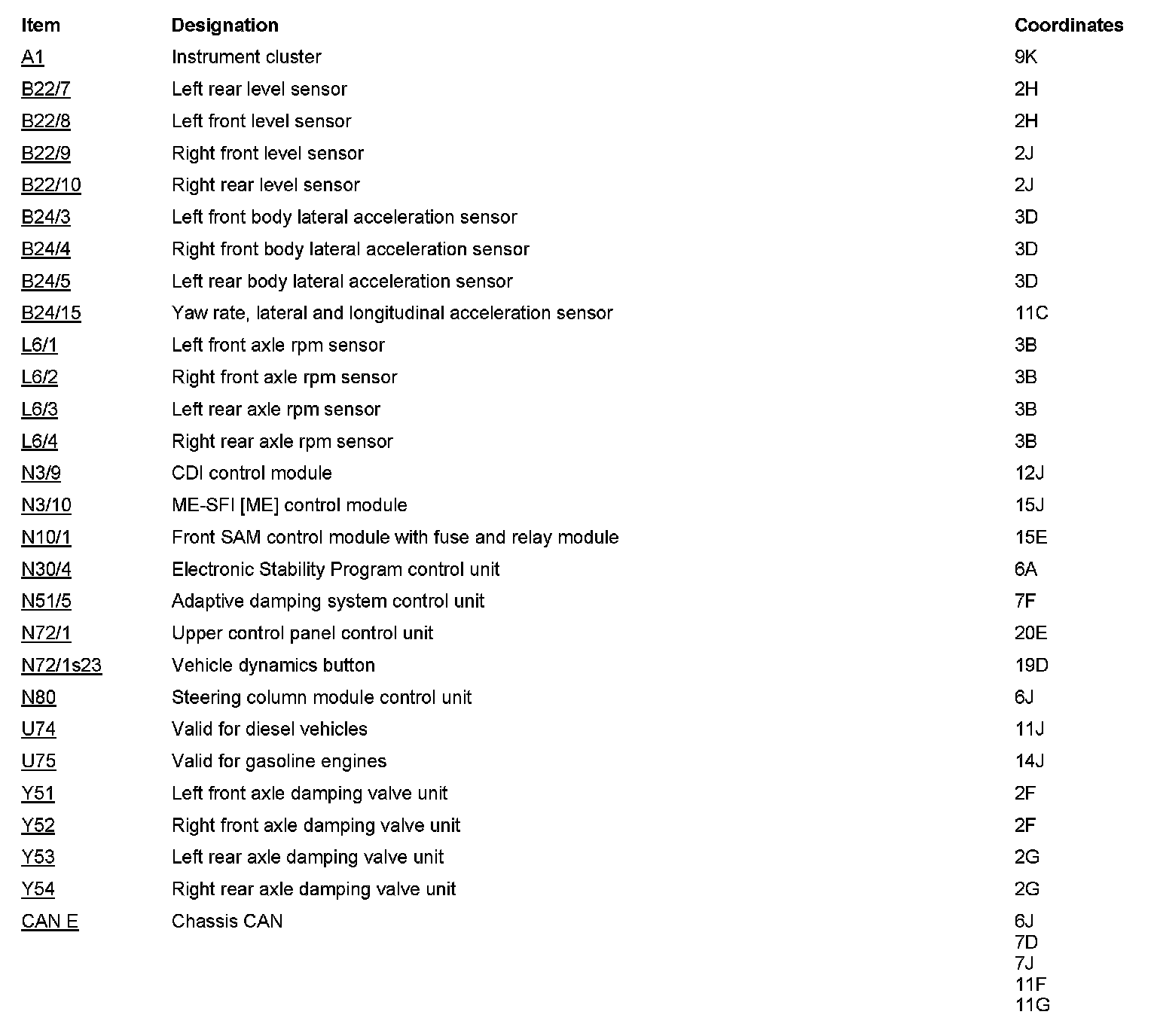

Component Locations: Component Location can be found via their component names at the vehicle level. Component Locations
