PE00.19-U-2701FAA Circuit 58D Wiring

Circuit 58d Wiring PE00.19-U-2701FAA
- Z50/1, Z68/10, Z68/2, Z81

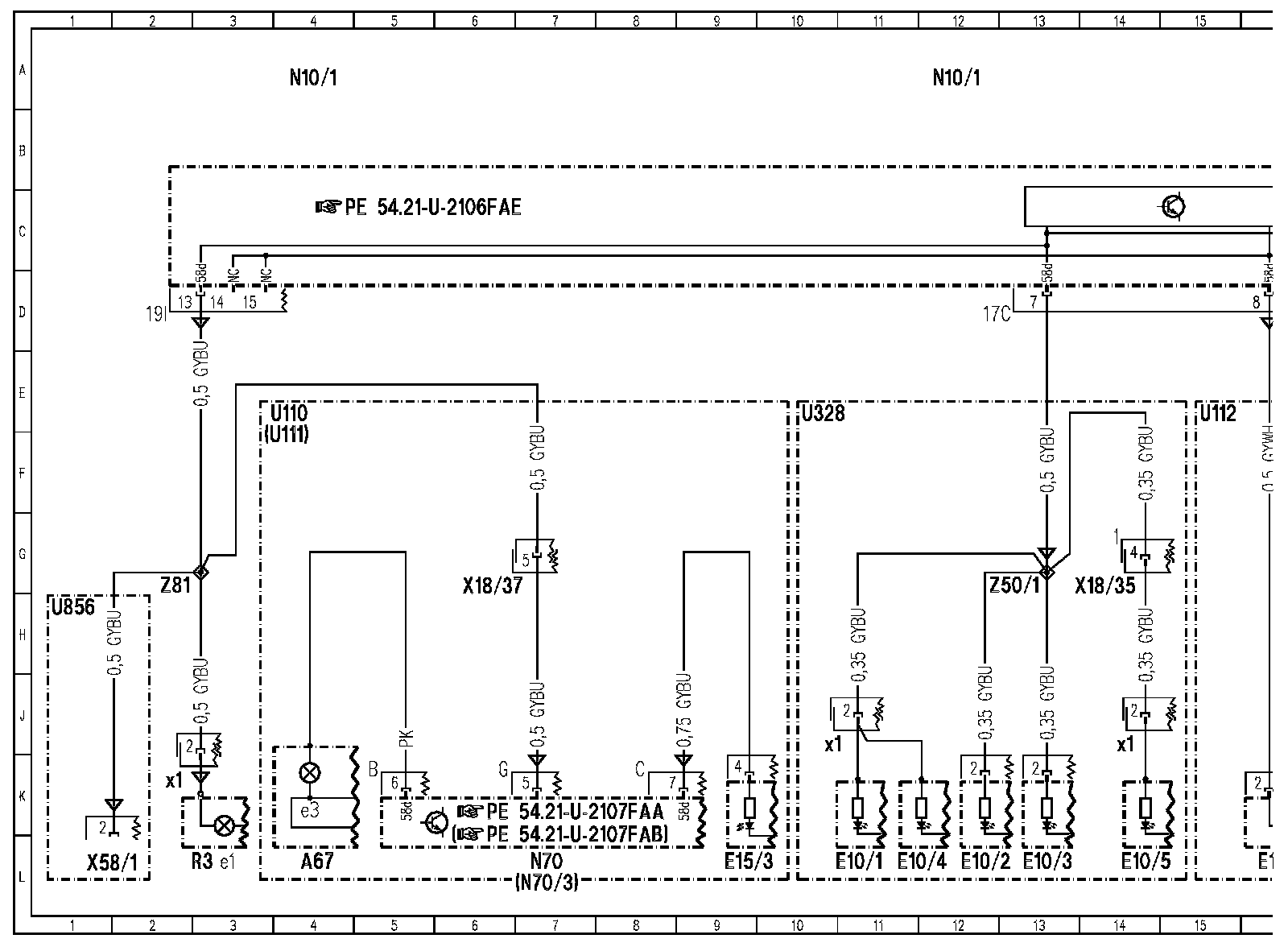

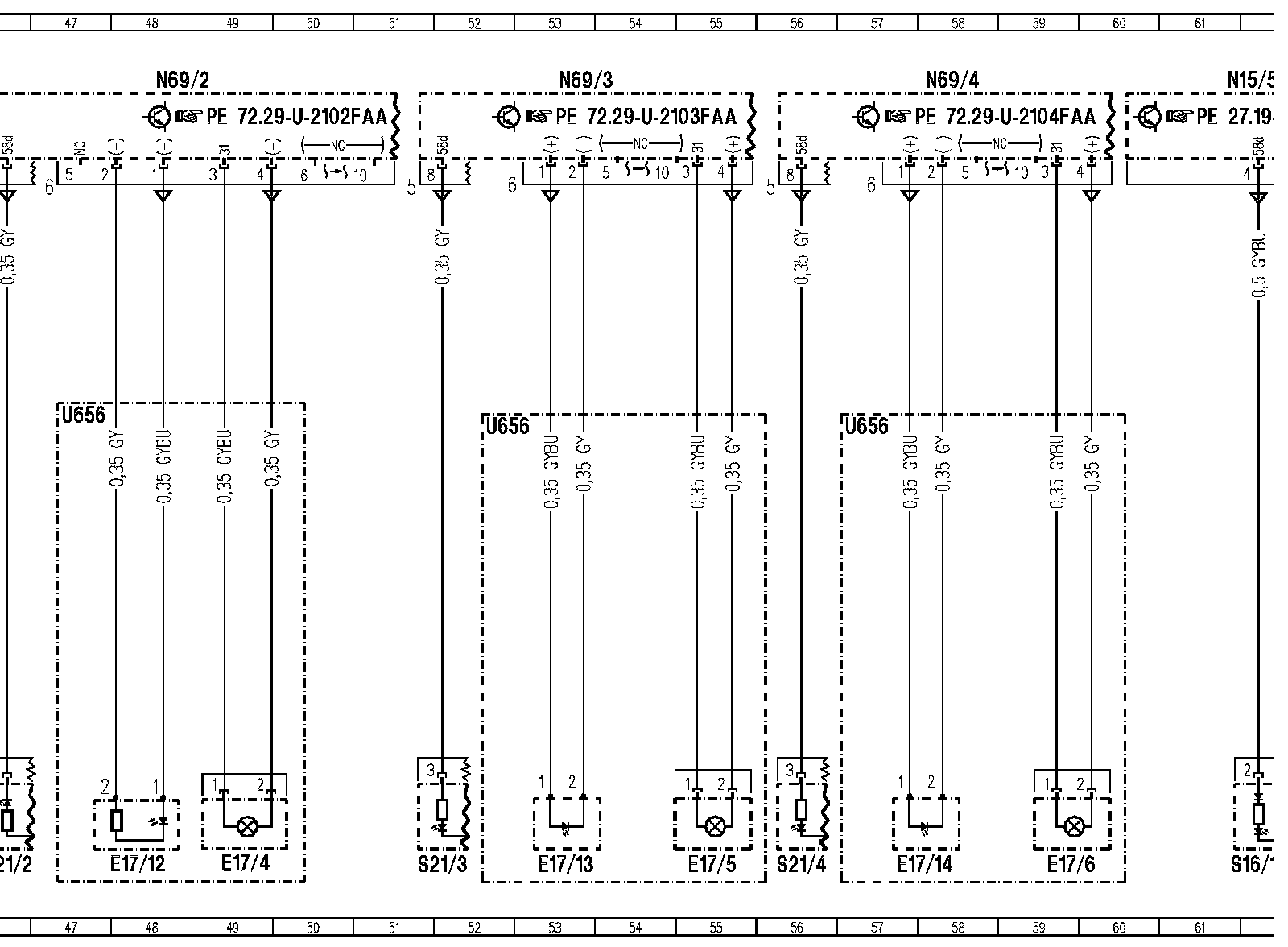

Wiring Diagram (Part 1):

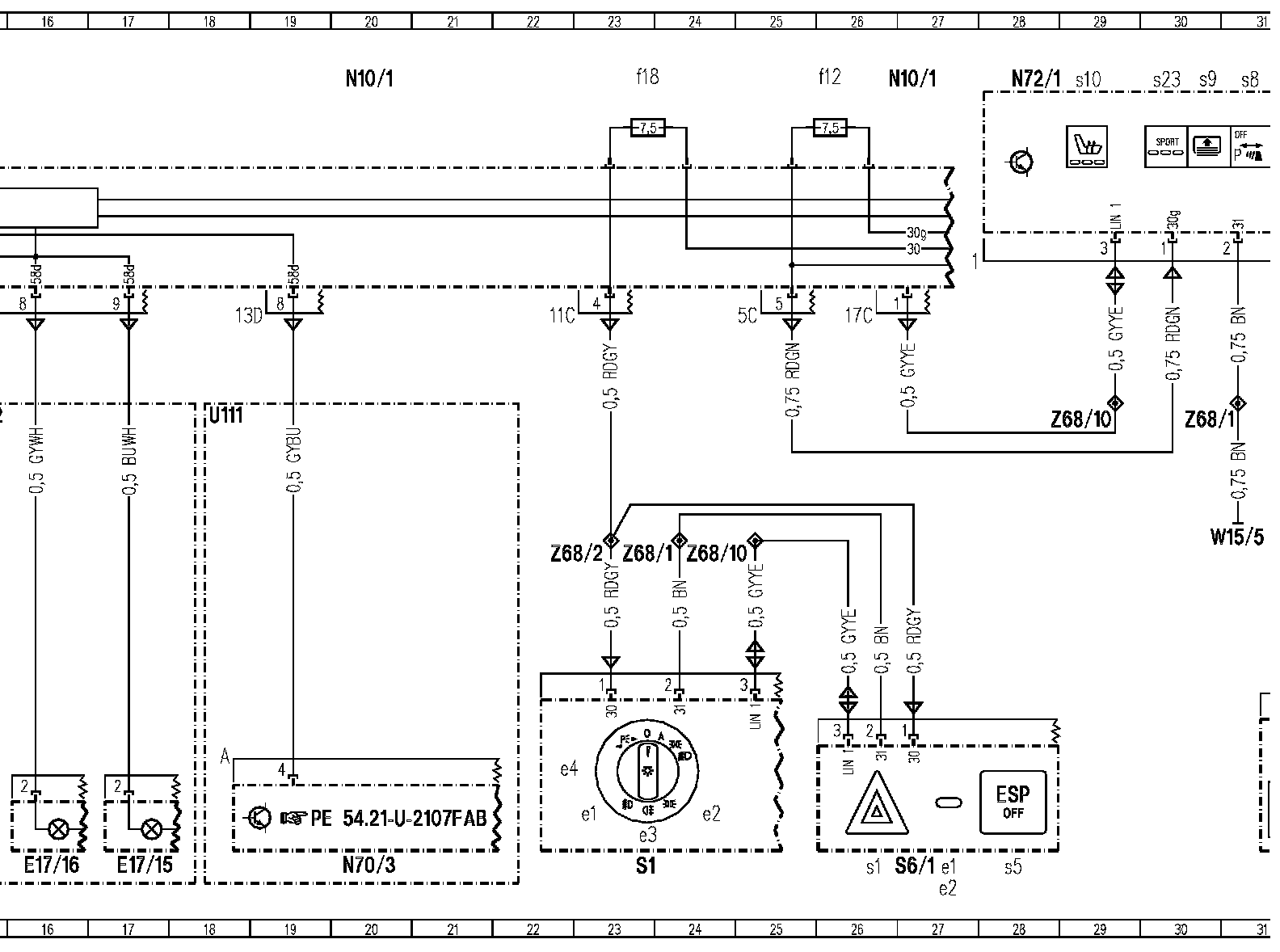

Wiring Diagram (Part 2):

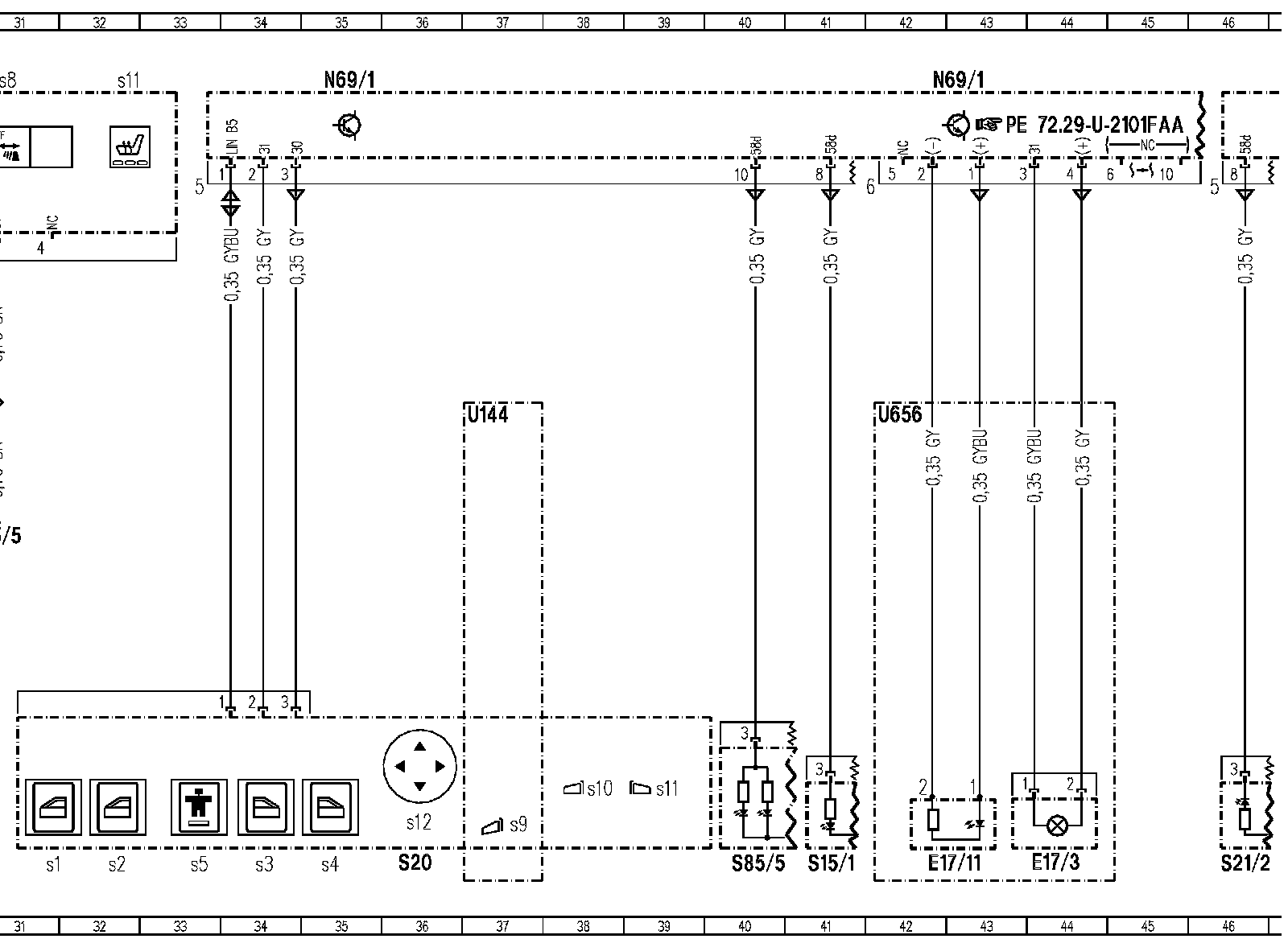

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

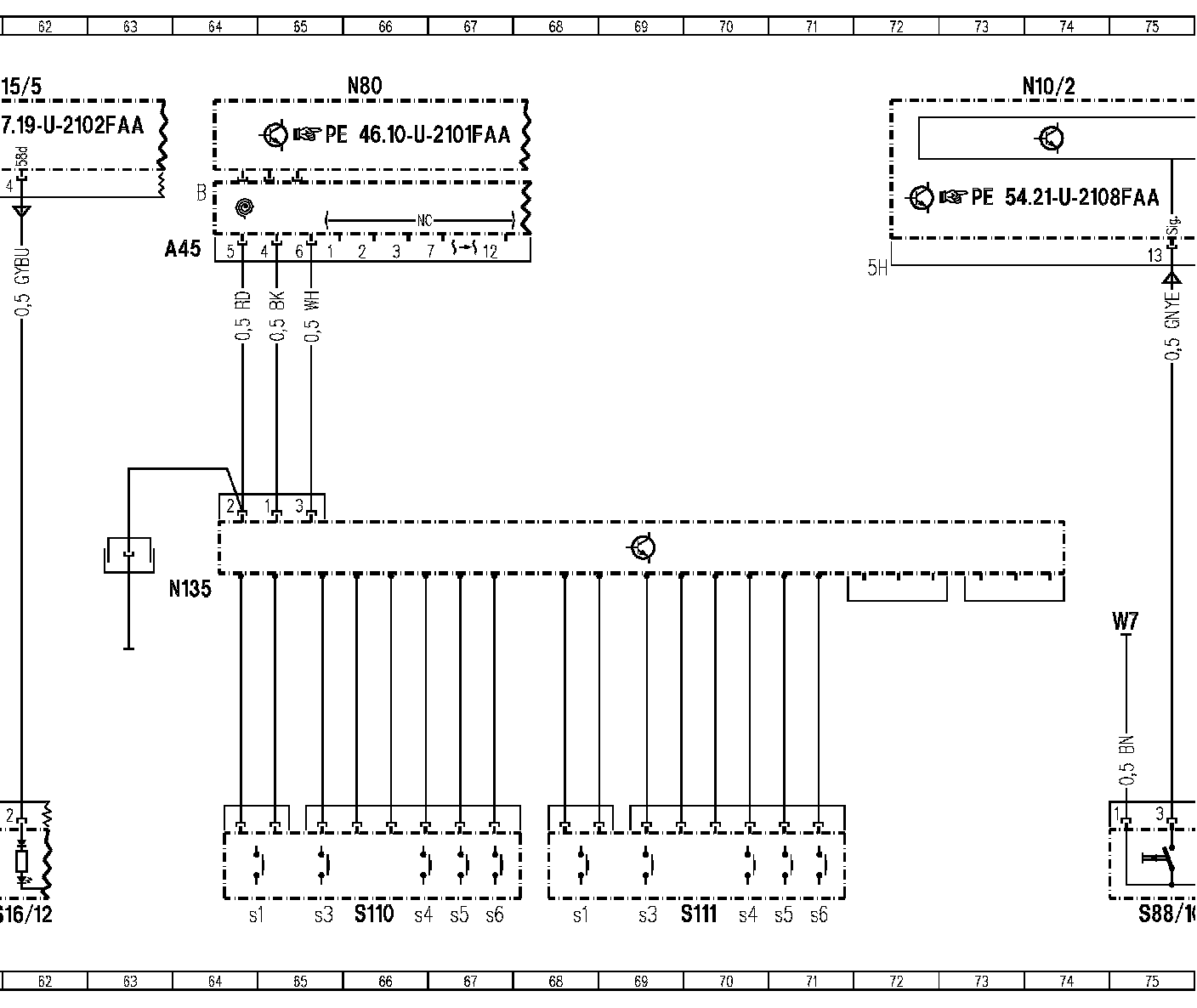

Wiring Diagram (Part 5):

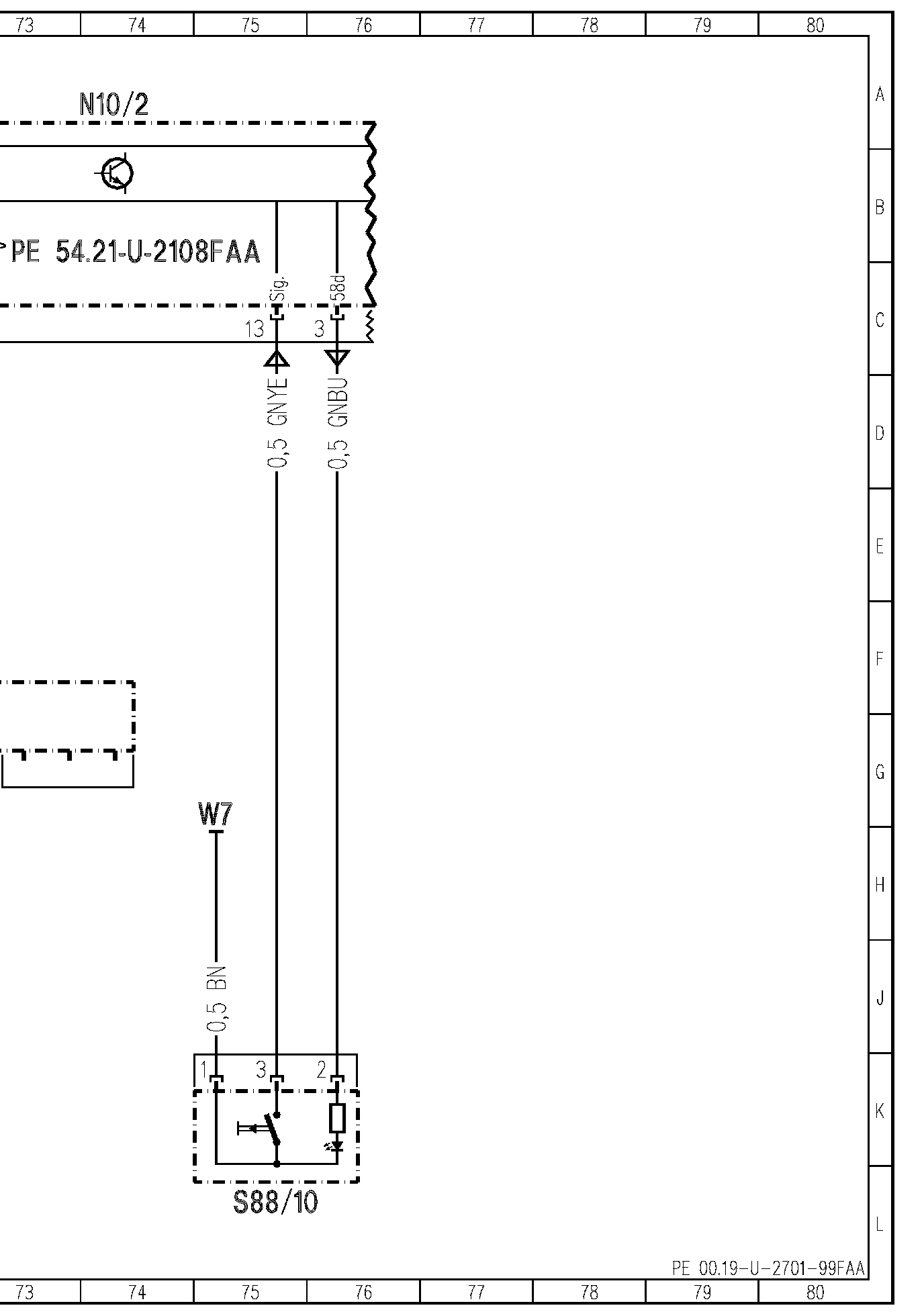

Wiring Diagram (Part 6):

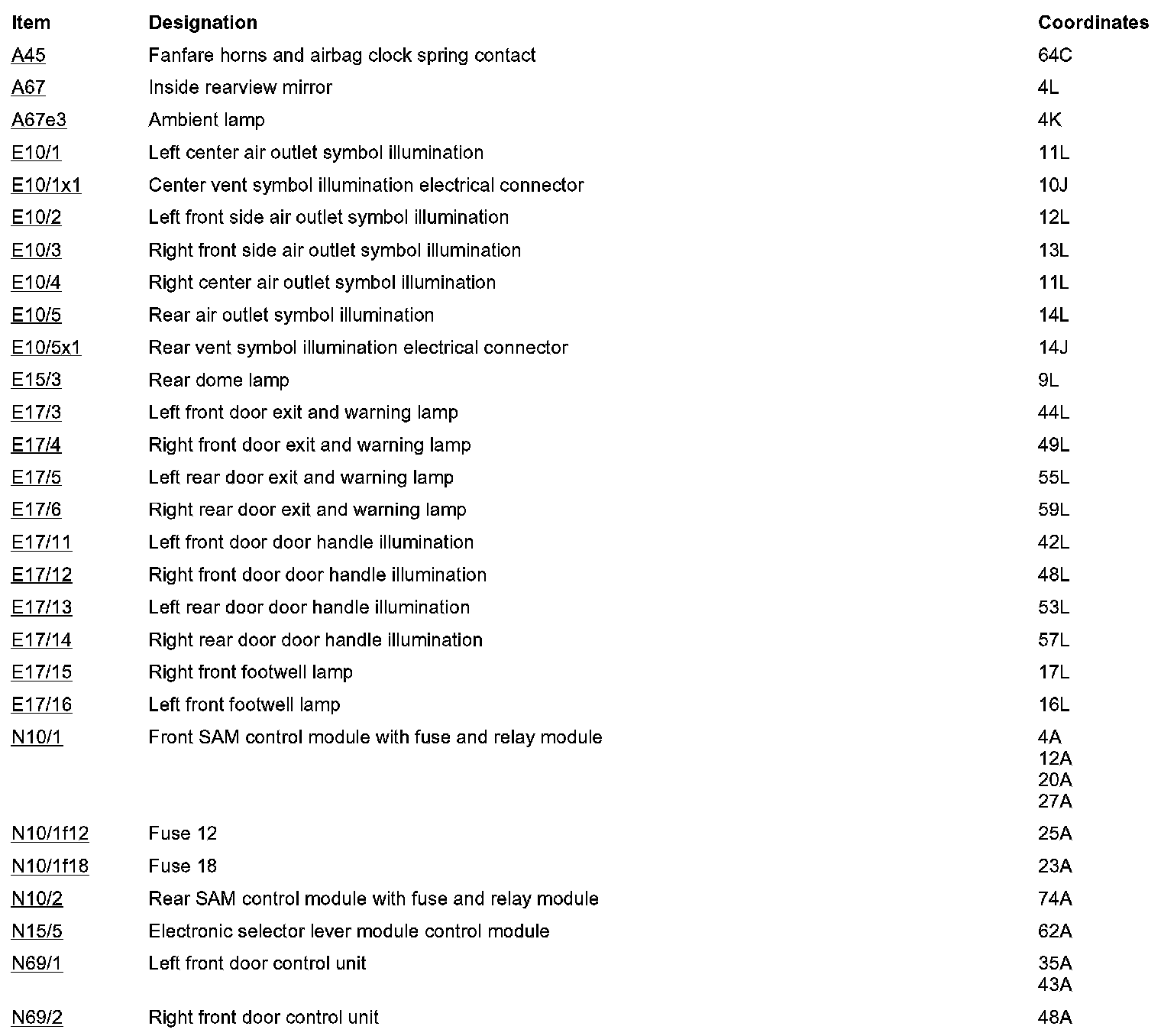

Component Description/Coordinates, A45 To N69/2:

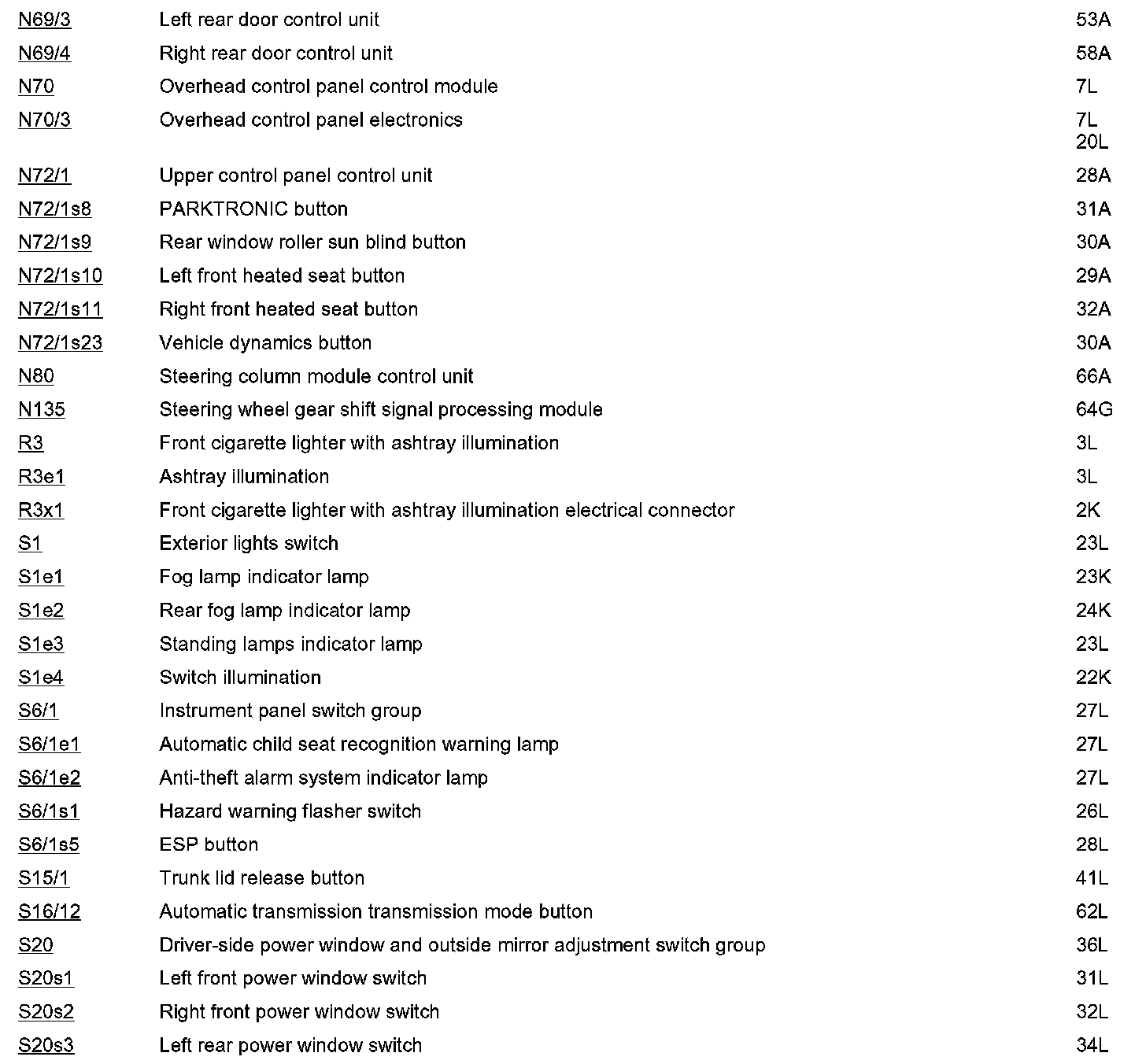

Component Description/Coordinates, N69/3 To S20s3:

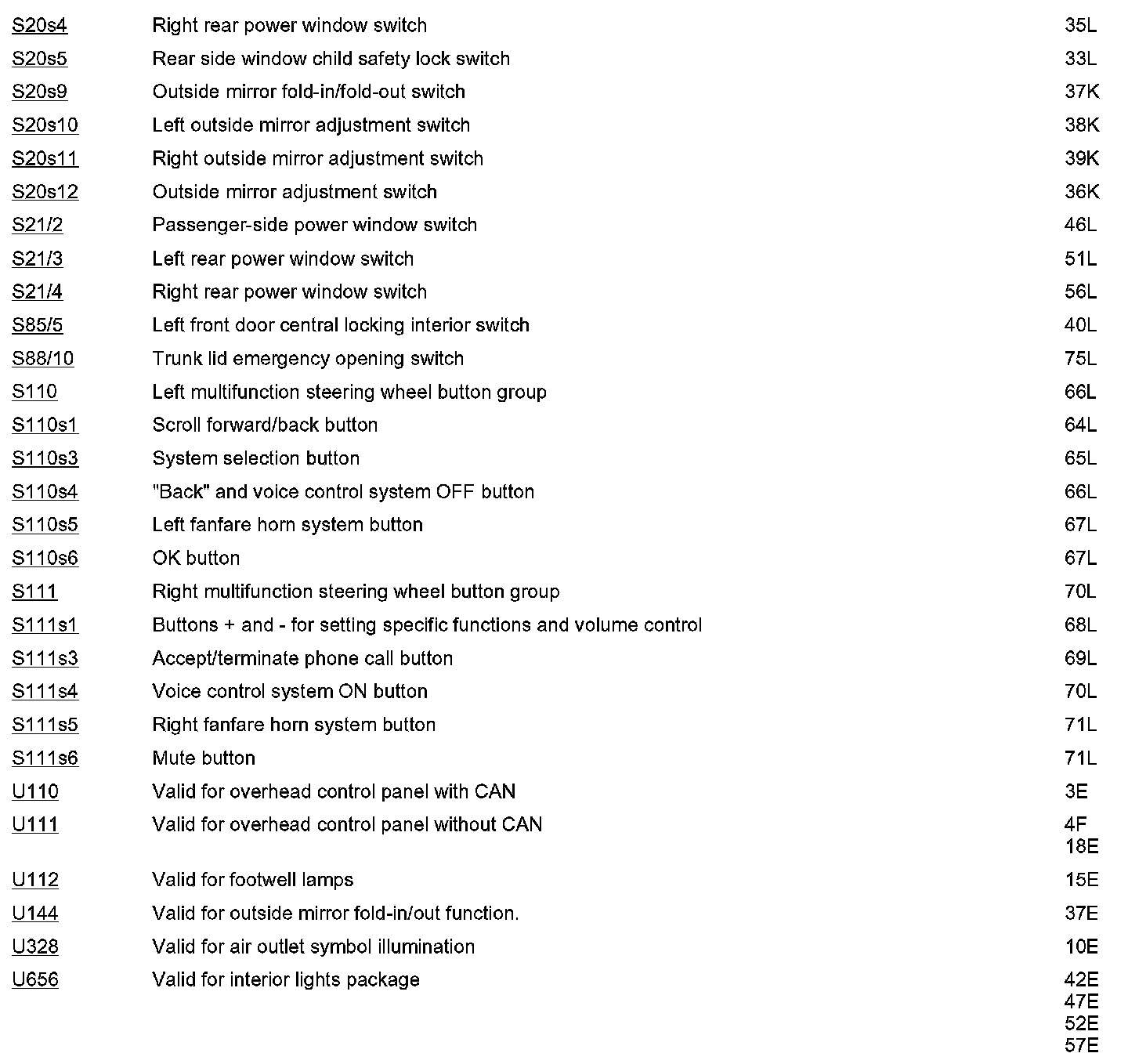

Component Description/Coordinates, S20s4 To U656:

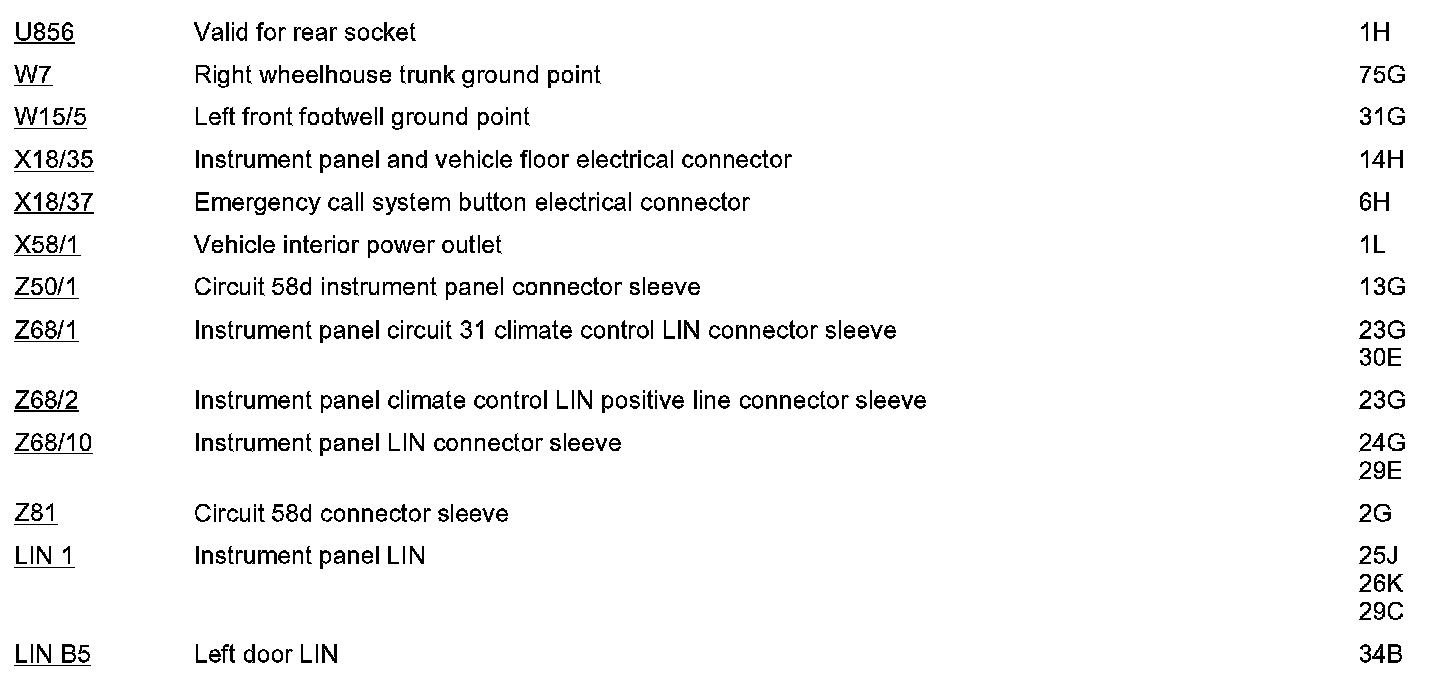

Component Description/Coordinates, U856 To LIN B5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
