Power Distribution Module

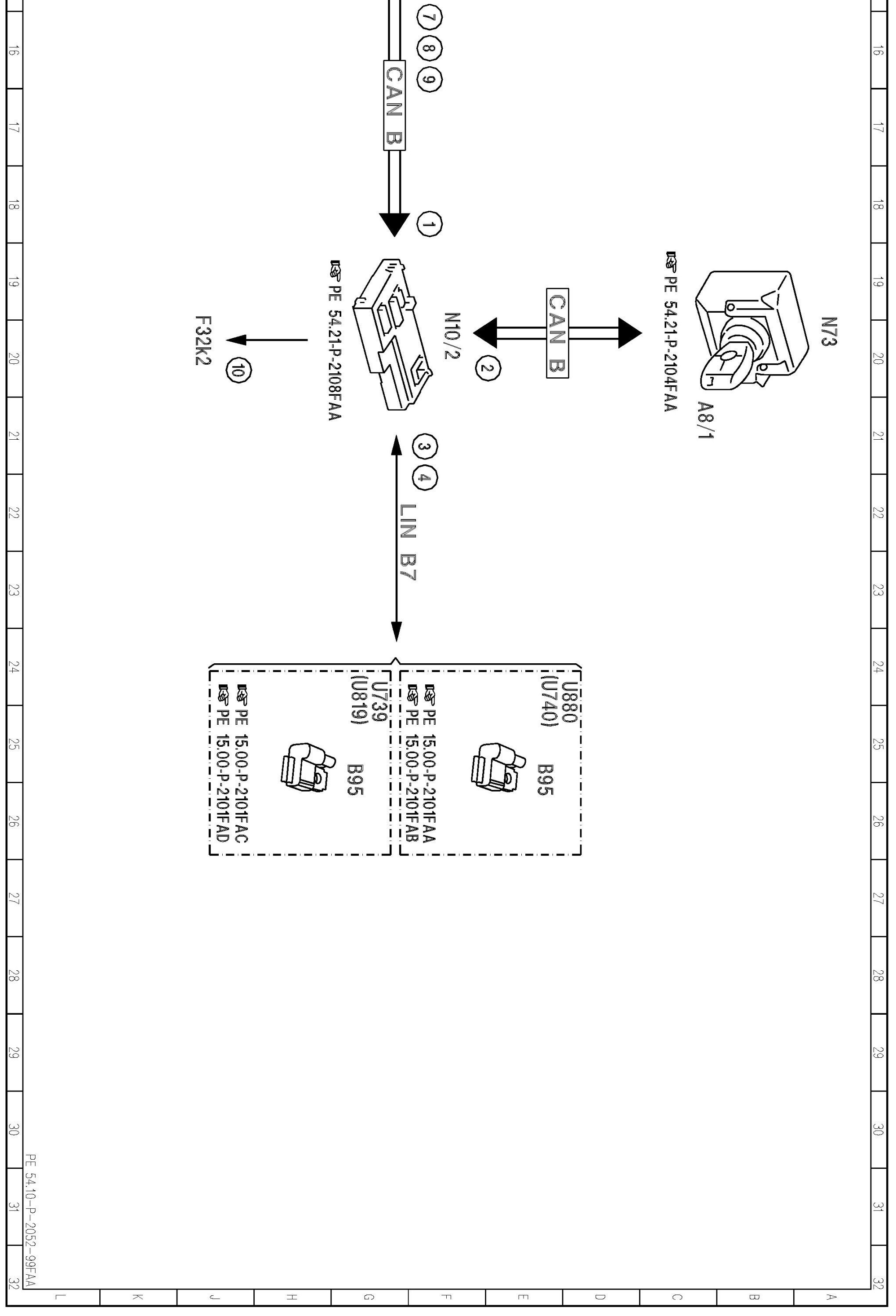

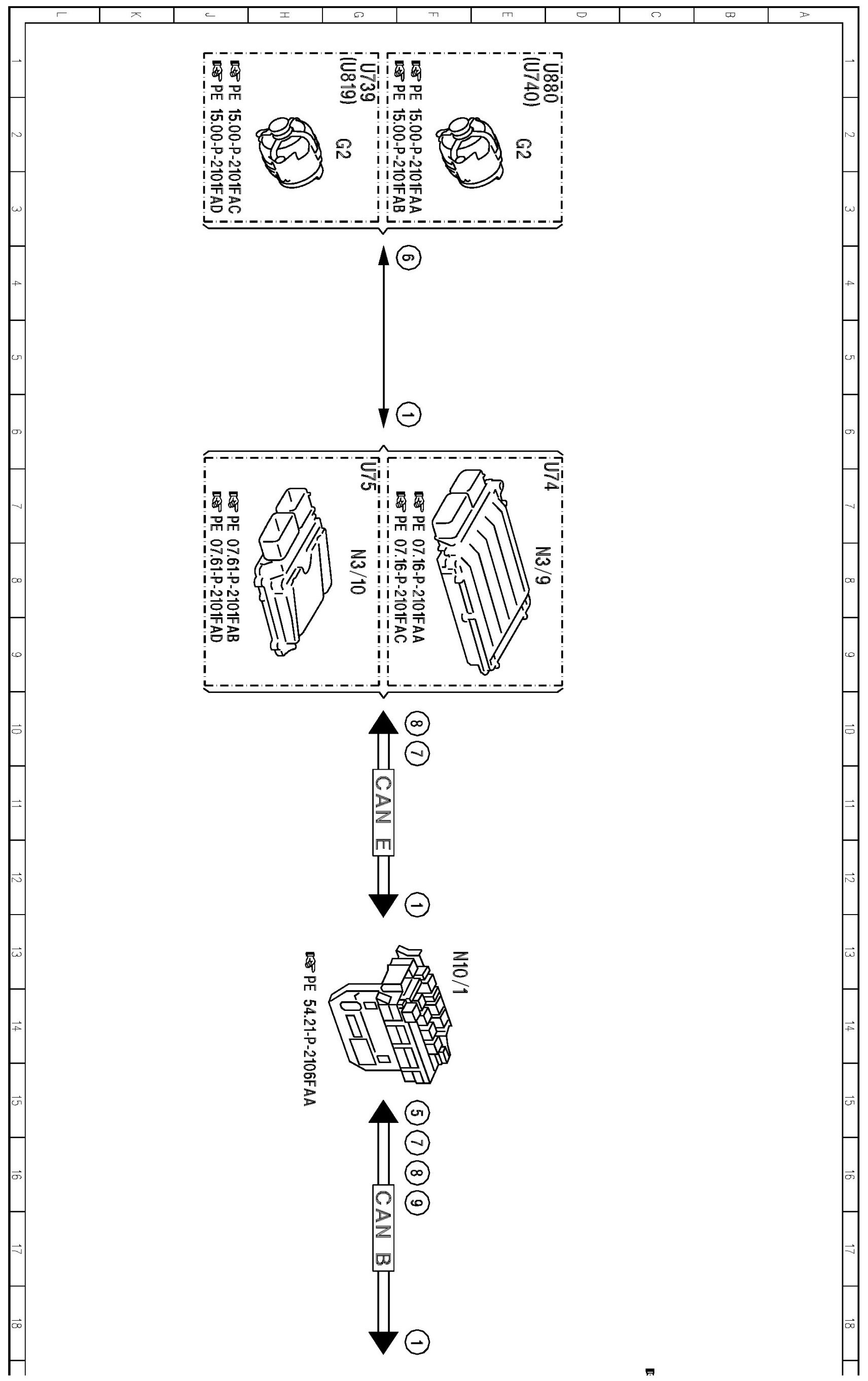

PE54.10-P-2052FAA Electrical Function Schematic For On-Board Electrical System Control

MODEL 204
- up to model year 08/YoM 07







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
