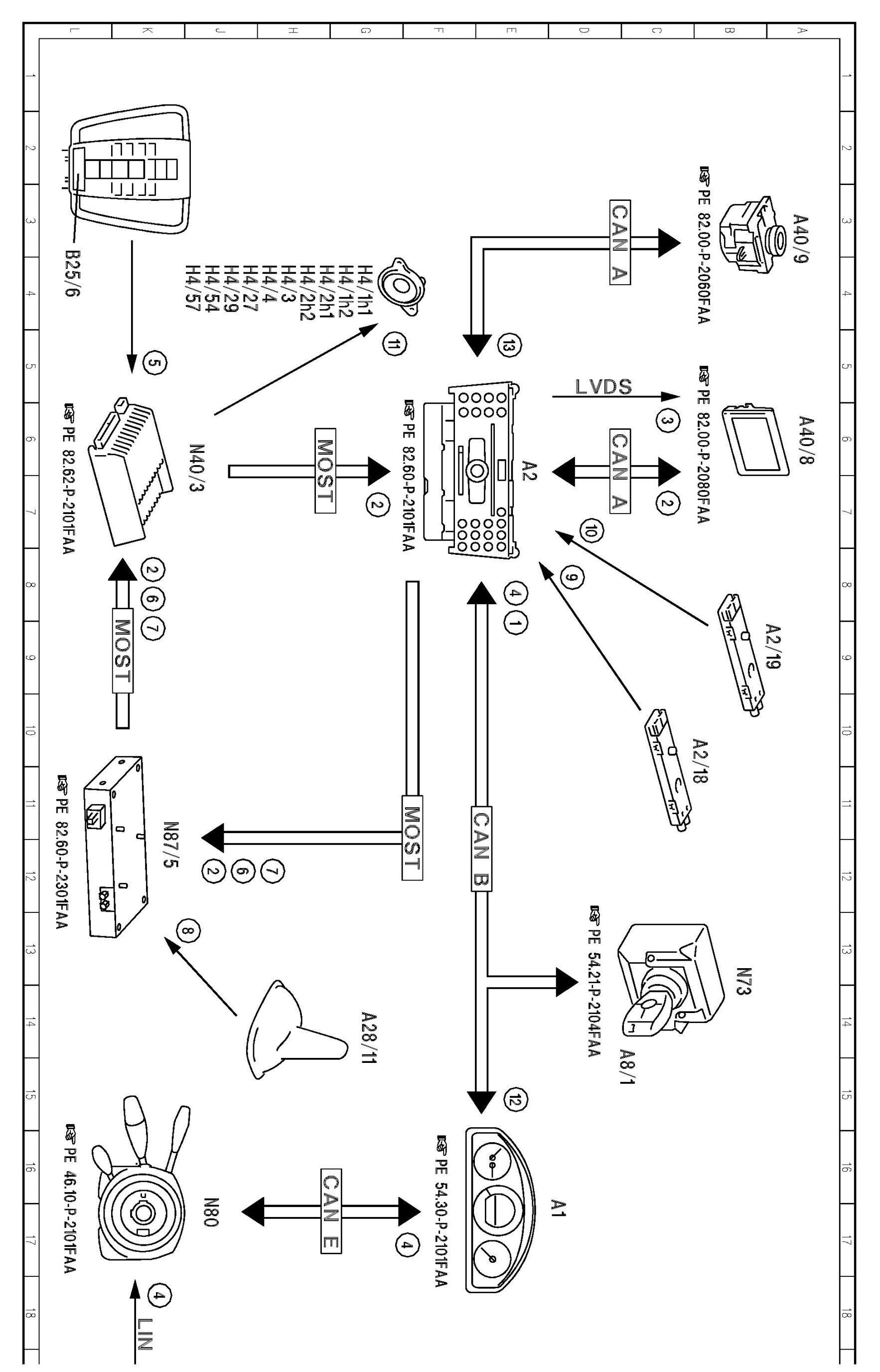

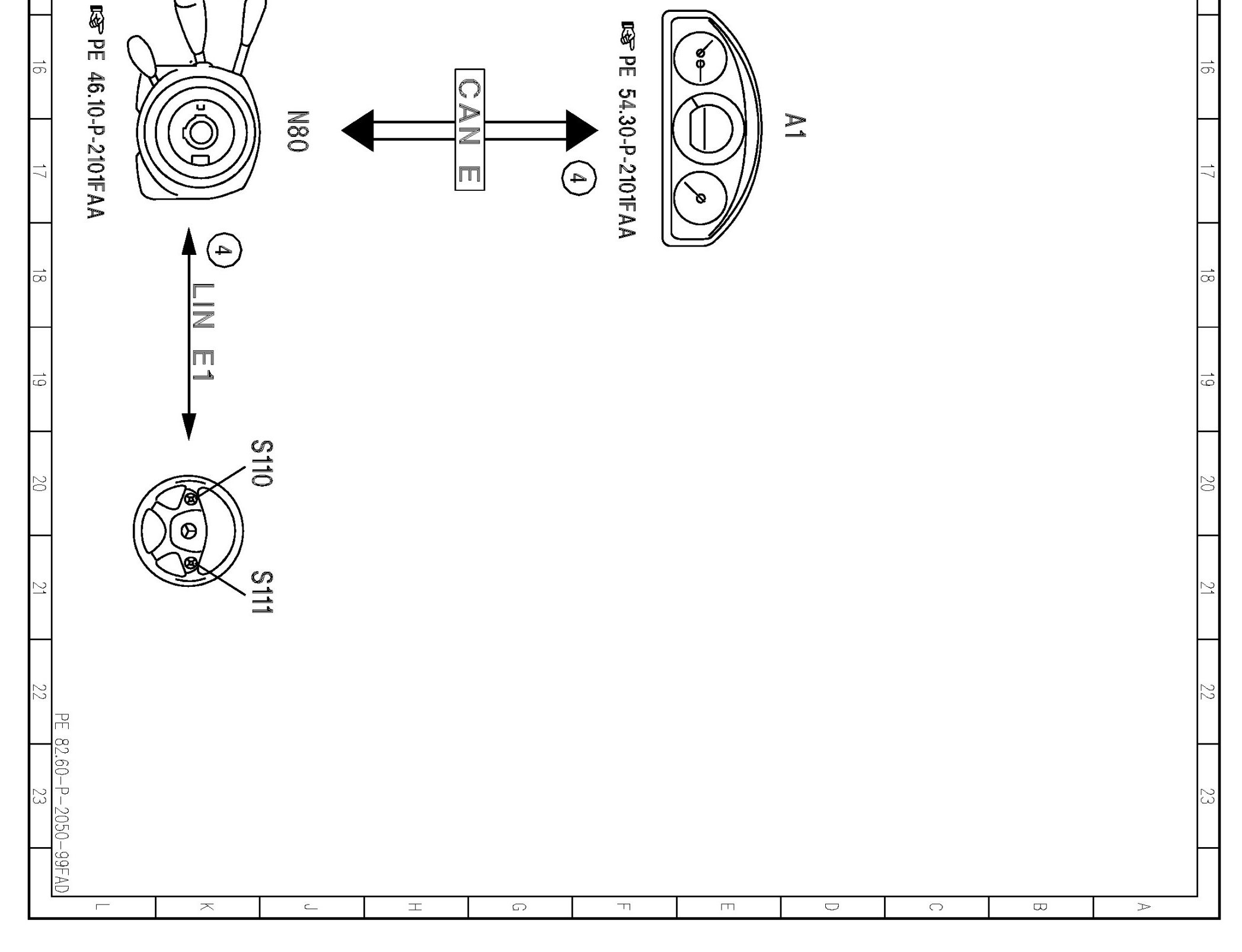

PE82.60-P-2050FAD Electrical Function Schematic For Radio

PE82.60-P-2050FAD Electrical Function Schematic For Radio

MODEL 204
- with CODE (494) USA version
- with CODE (510) Audio 20 with CD changer
- with CODE (536) SIRIUS satellite radio
- with CODE (810) Sound system
- up to model year 08/YoM 07

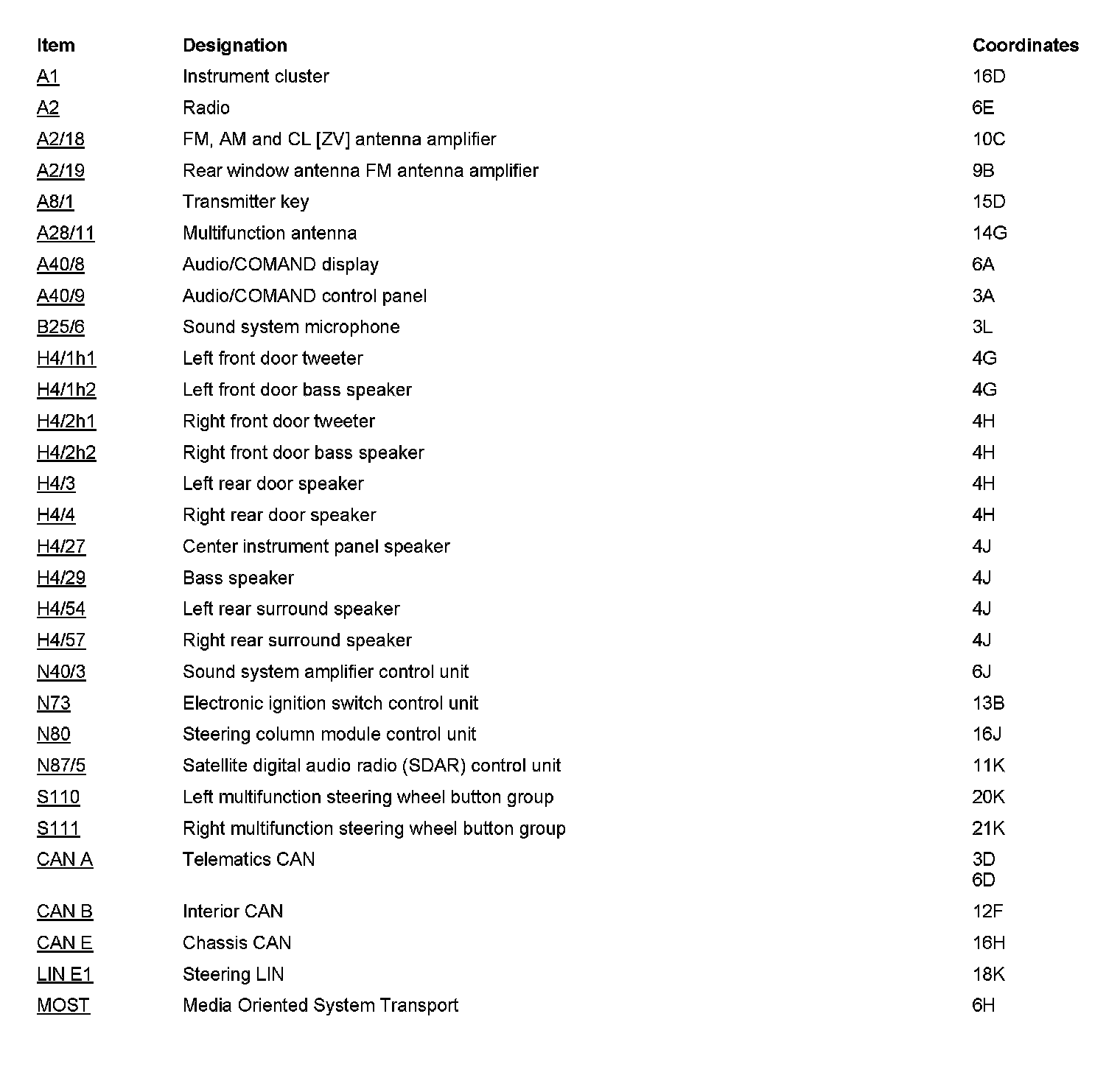

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
