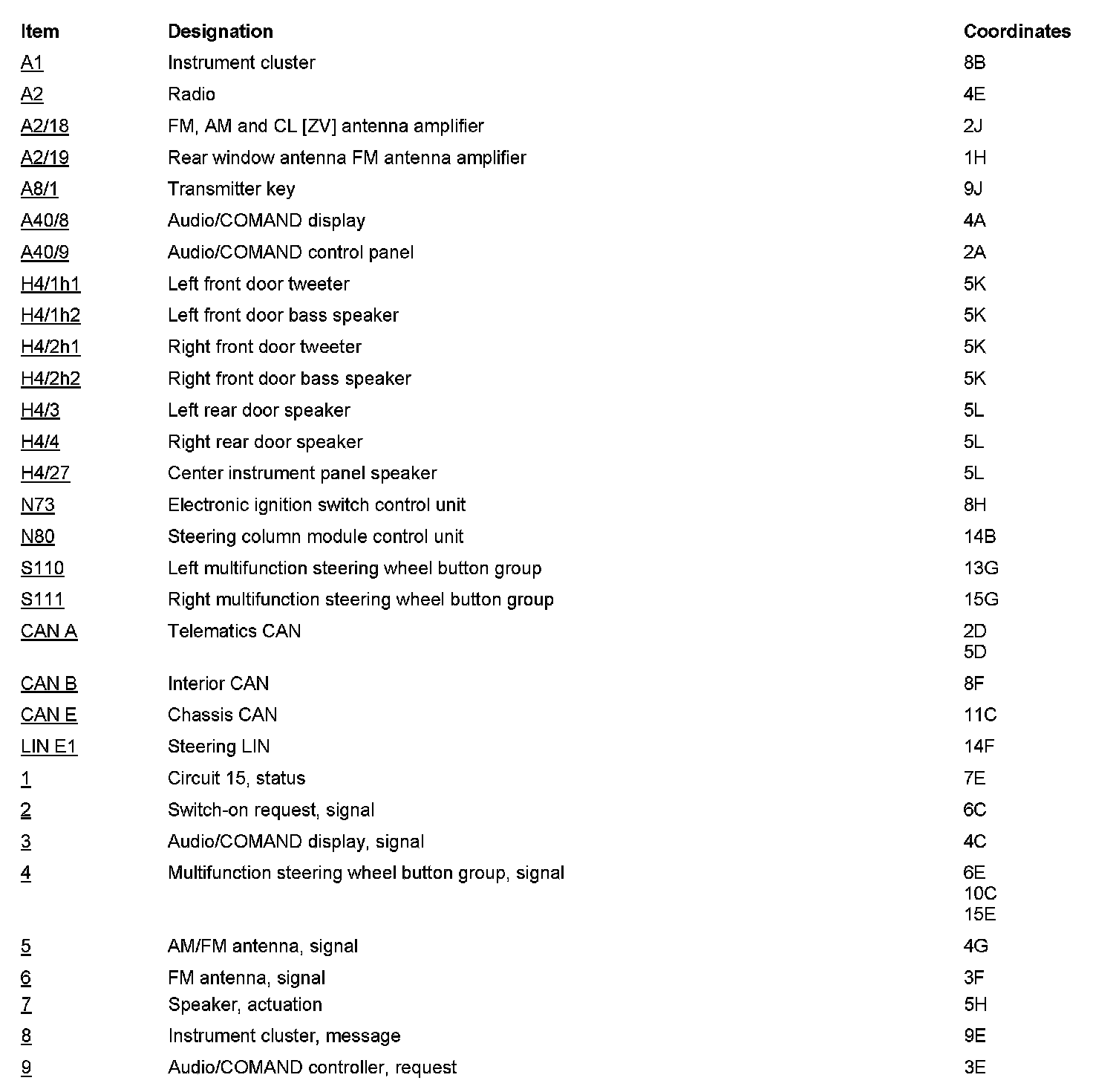

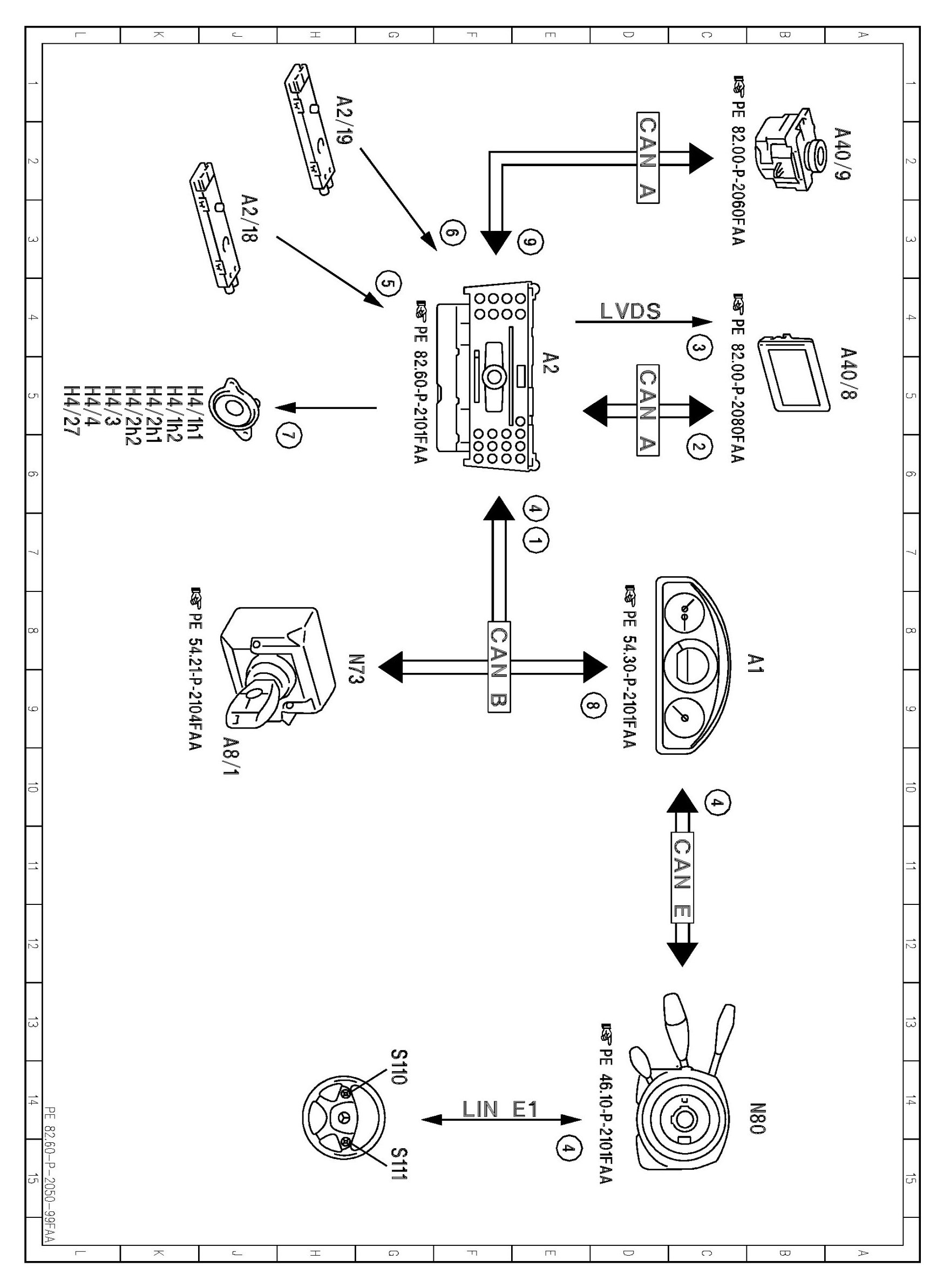

PE82.60-P-2050FAA Electrical Function Schematic For Radio

PE82.60-P-2050FAA Electrical Function Schematic For Radio

MODEL 204
- with CODE (523) MB Audio 20 radio
- except CODE (494) USA version
- up to model year 08/YoM 07



















































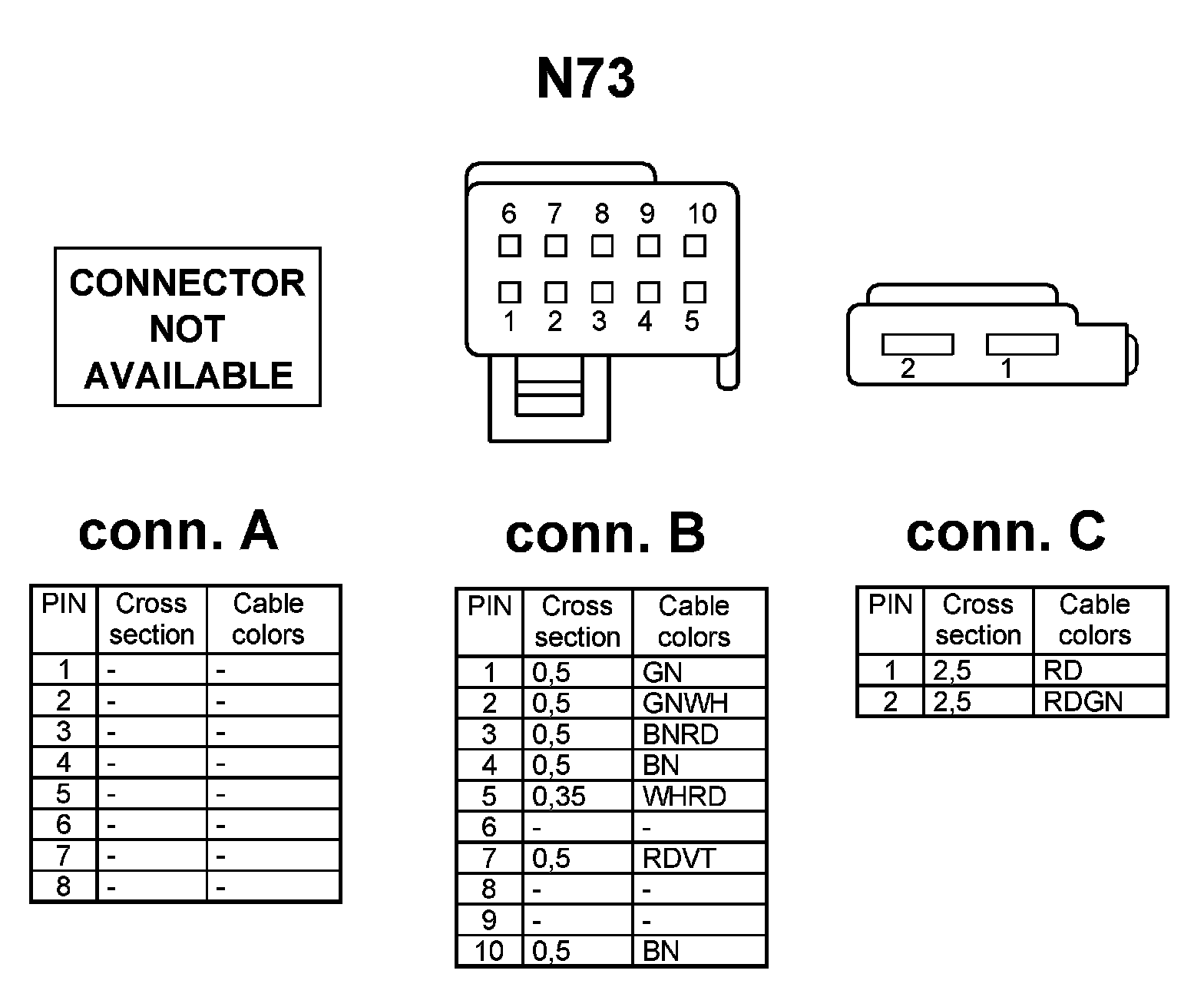

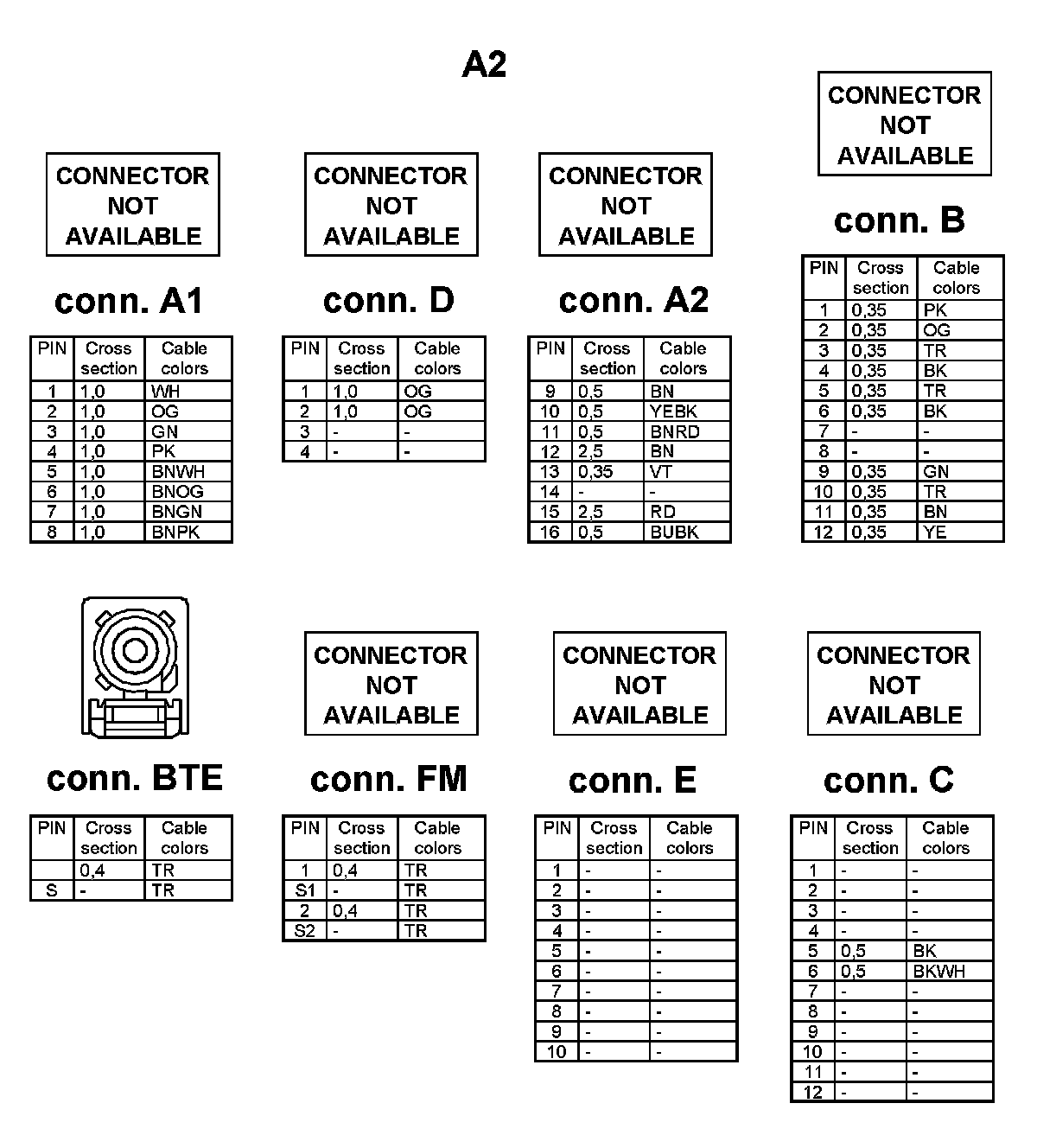

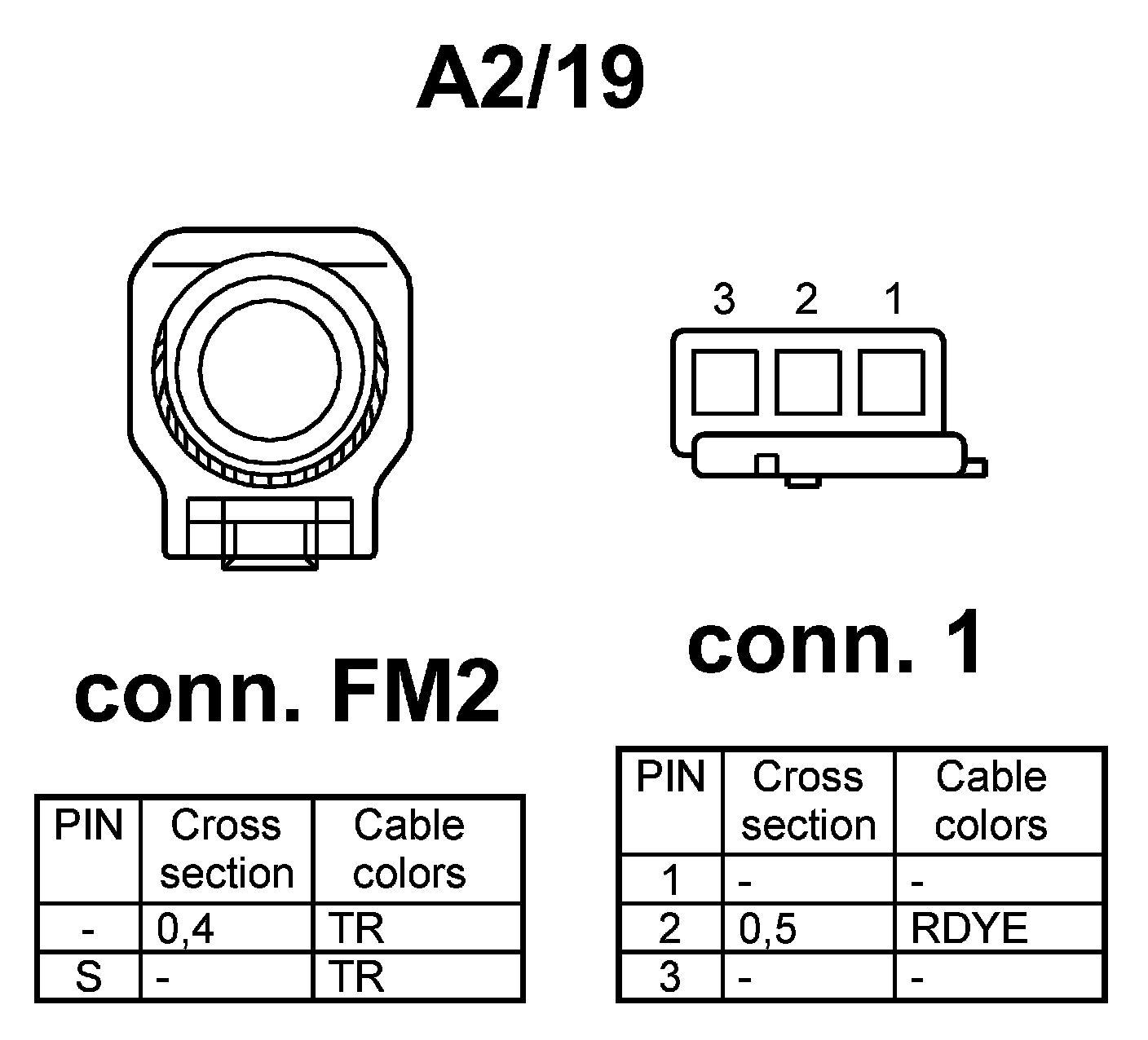

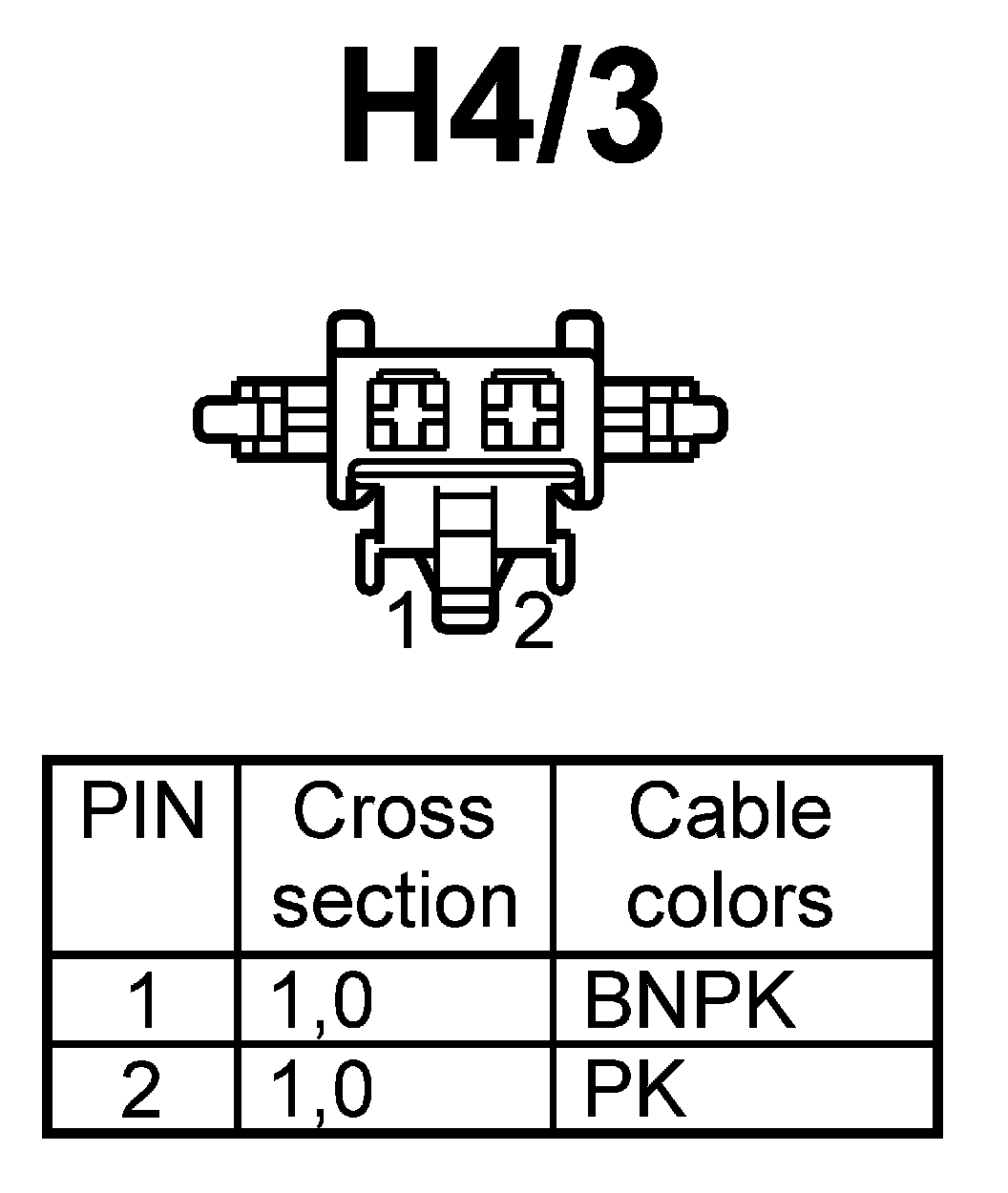

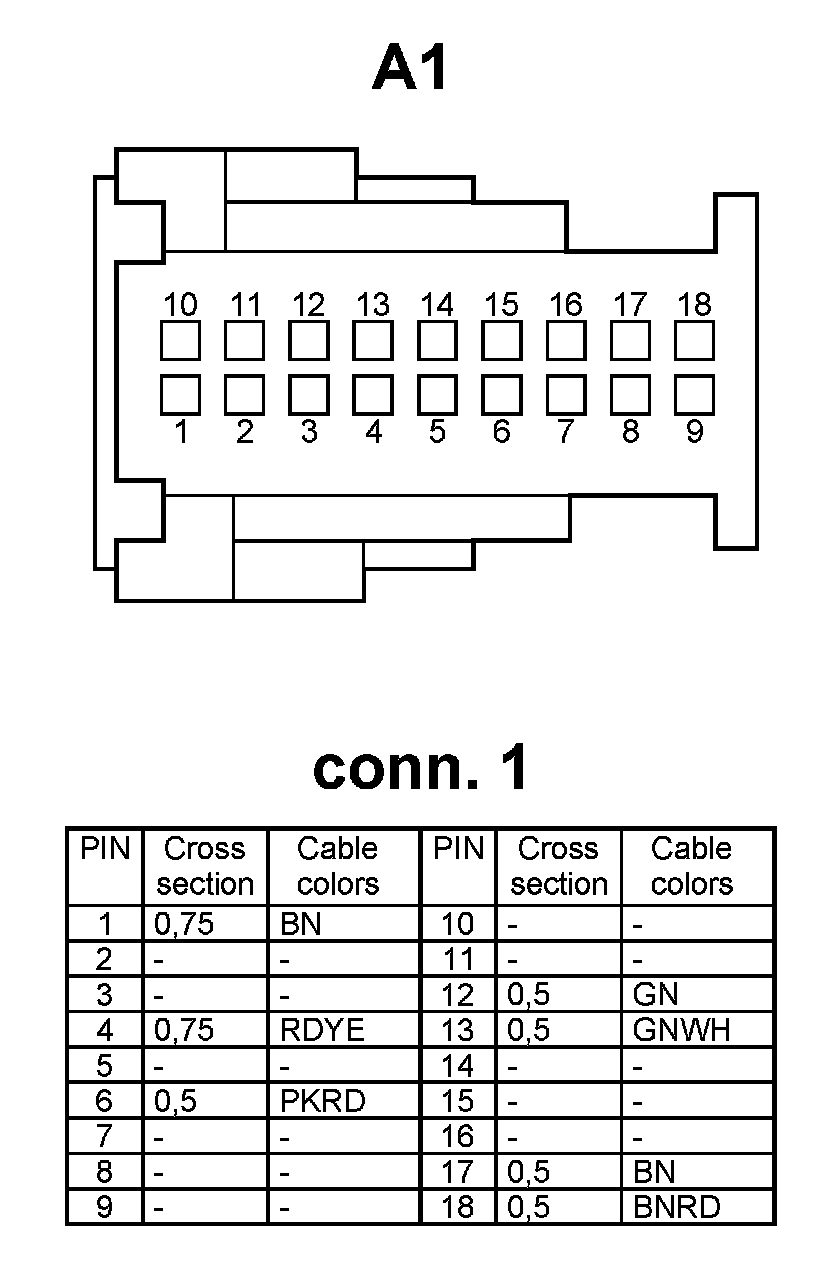

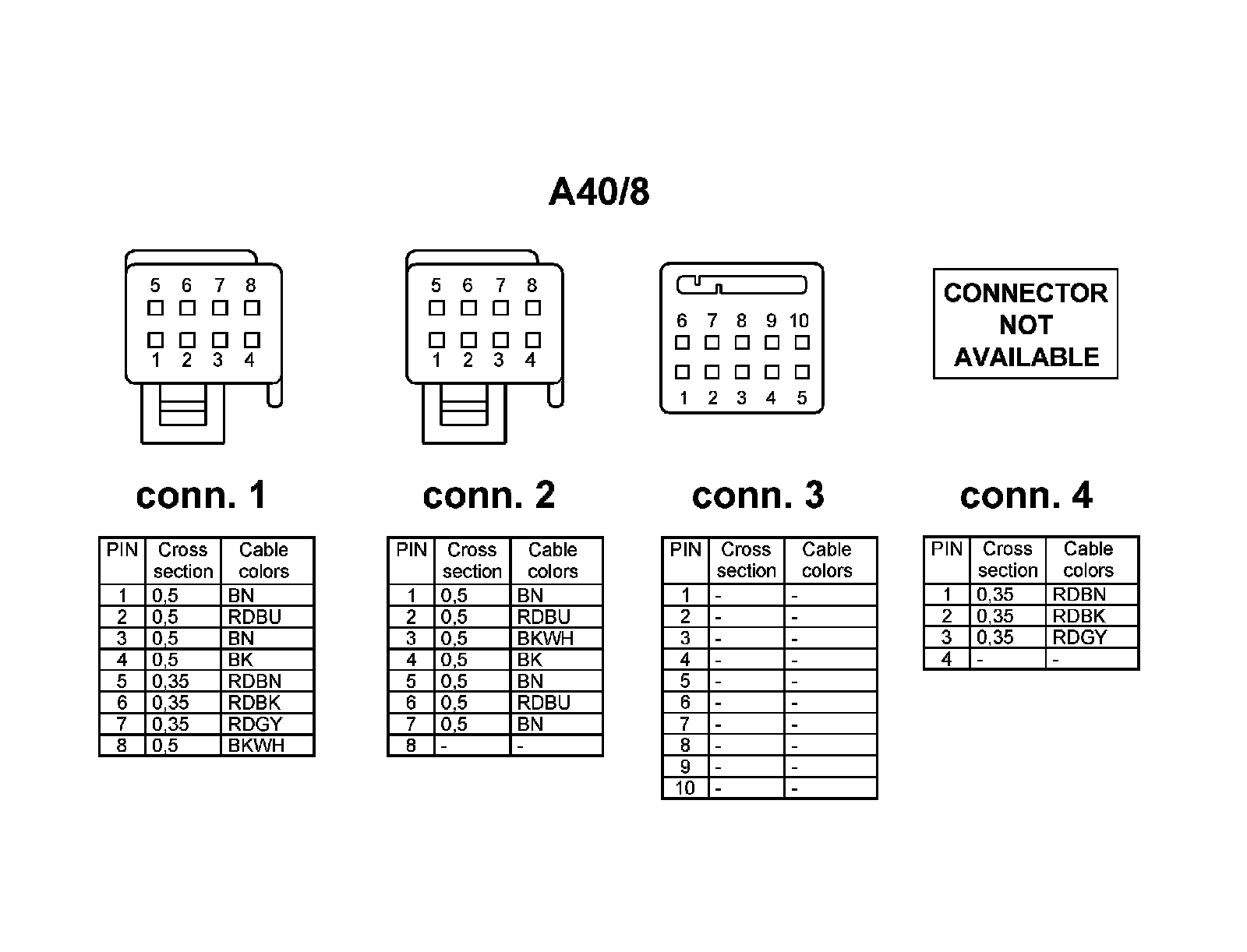

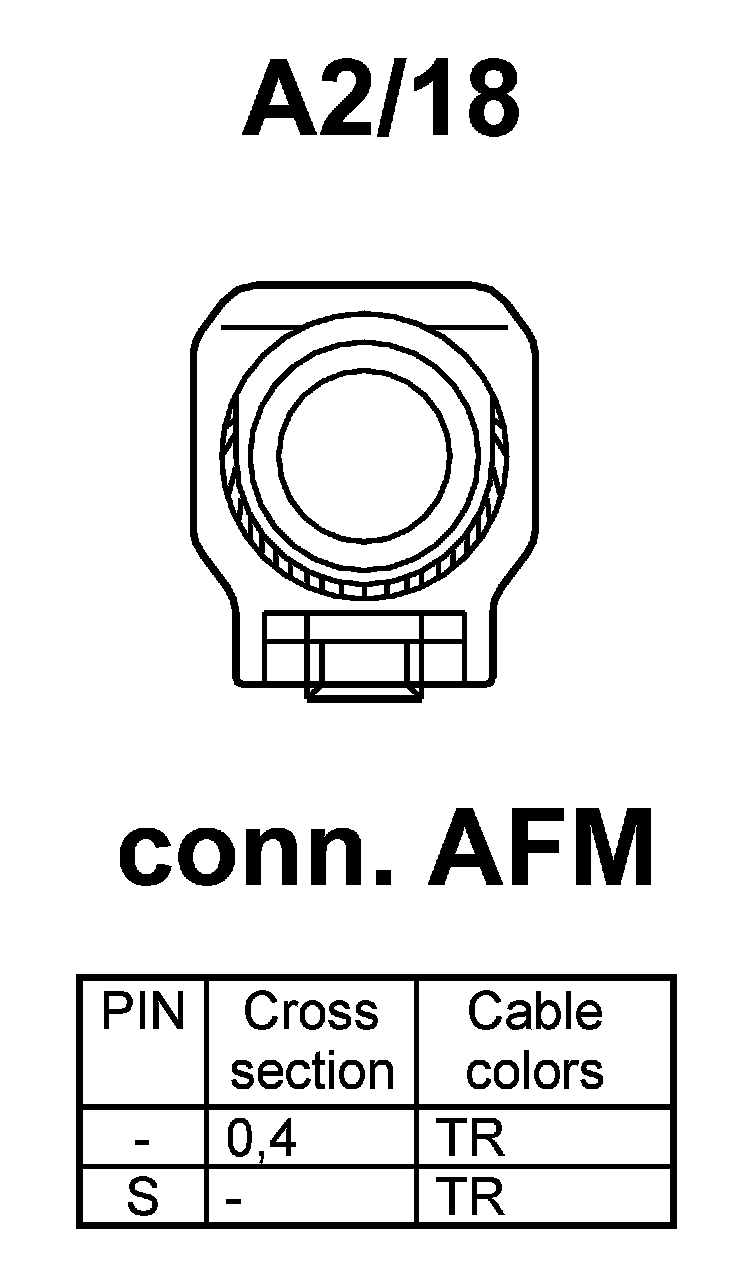

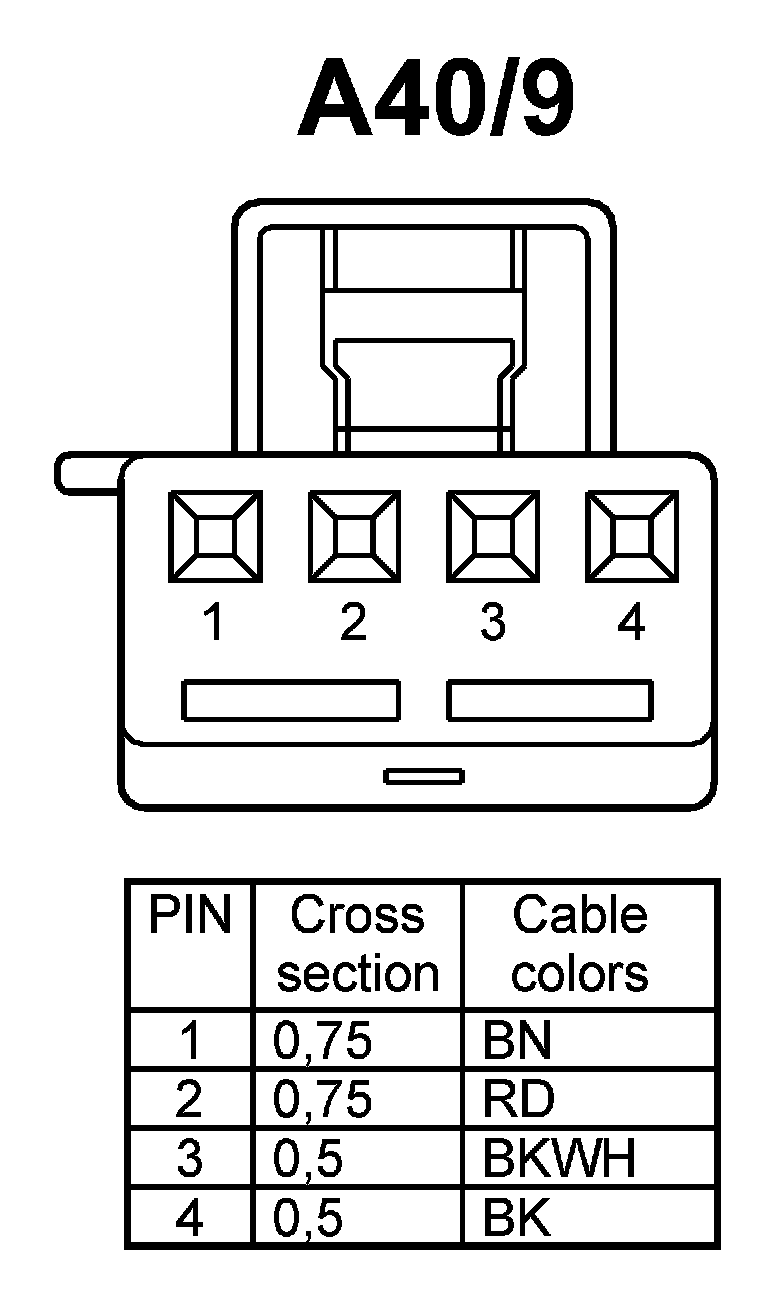

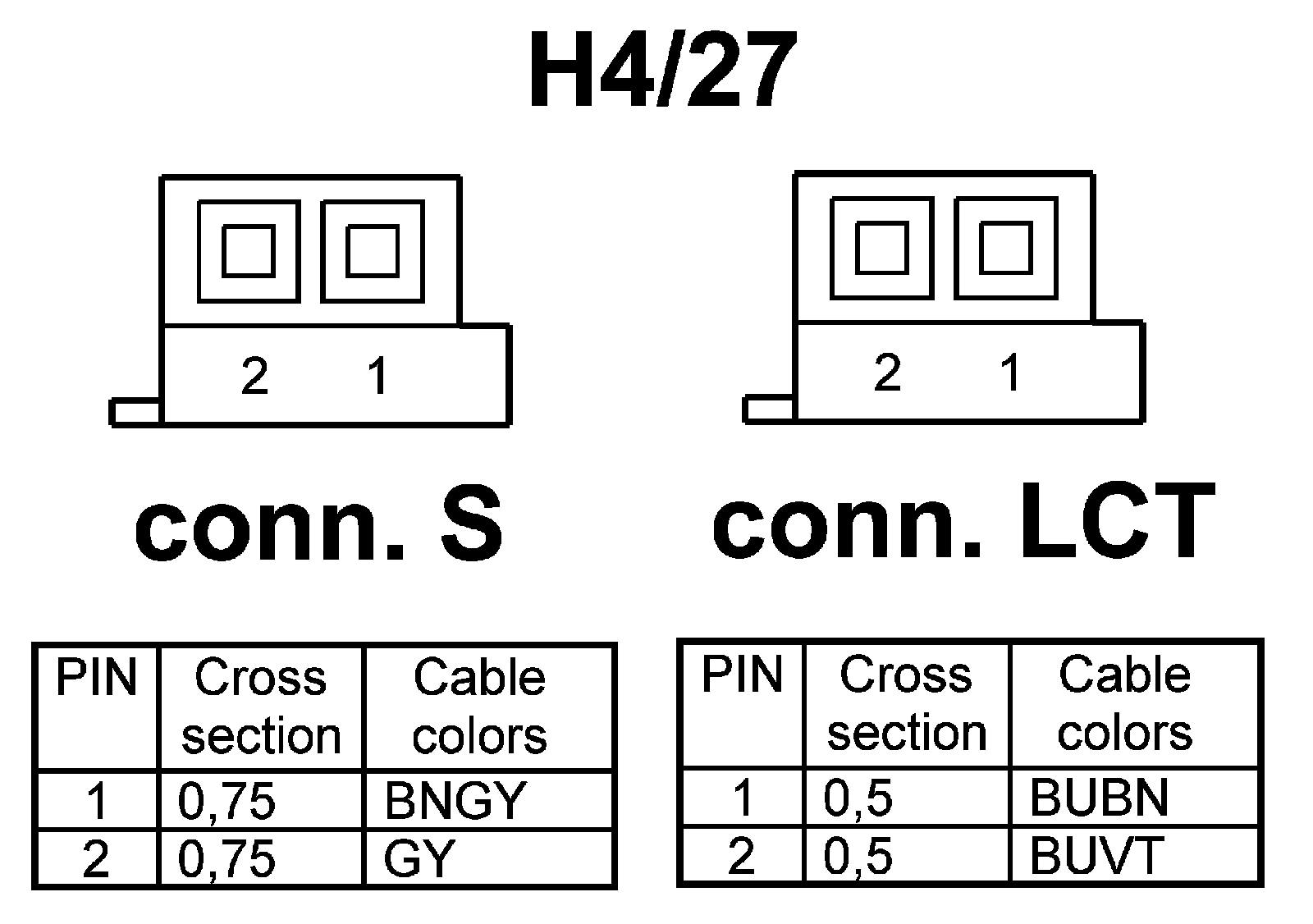

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
