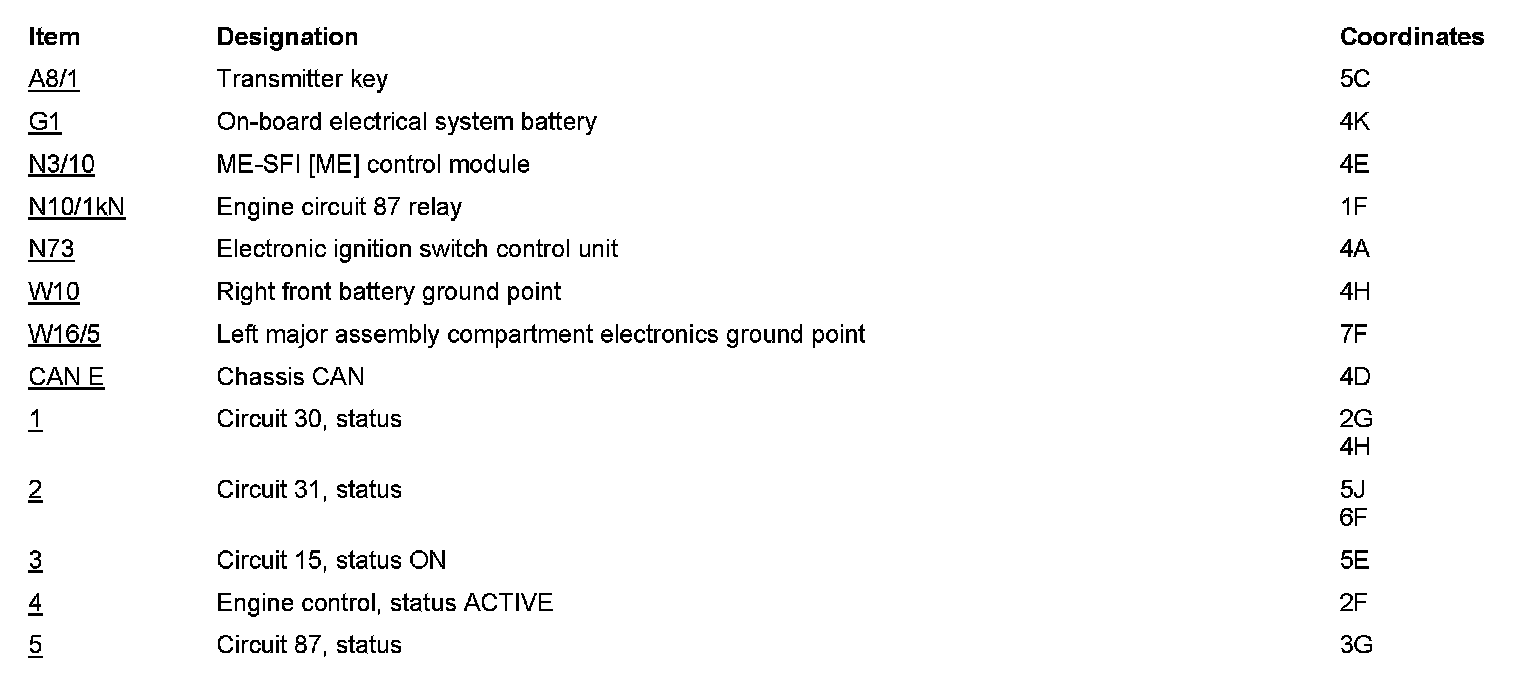

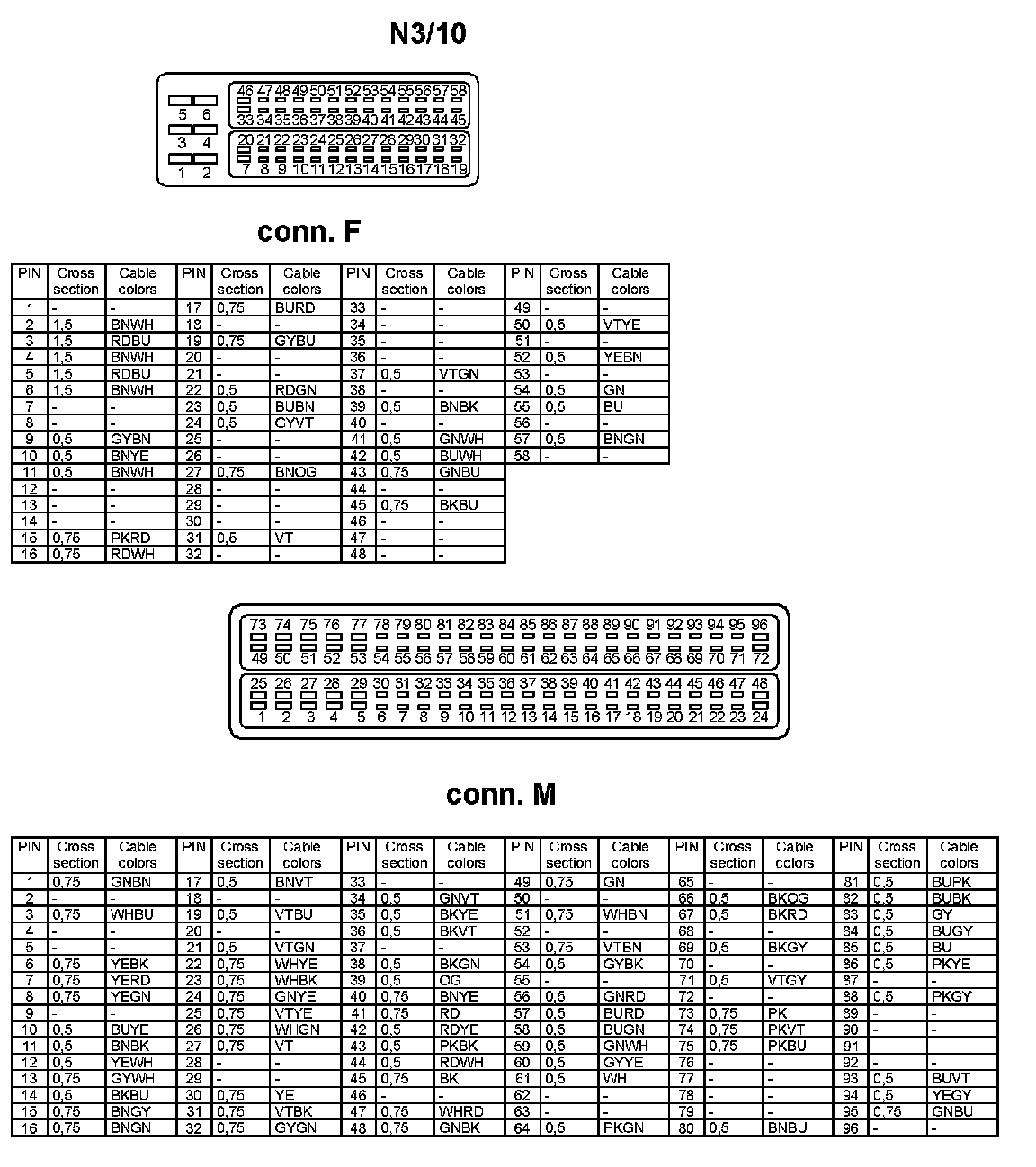

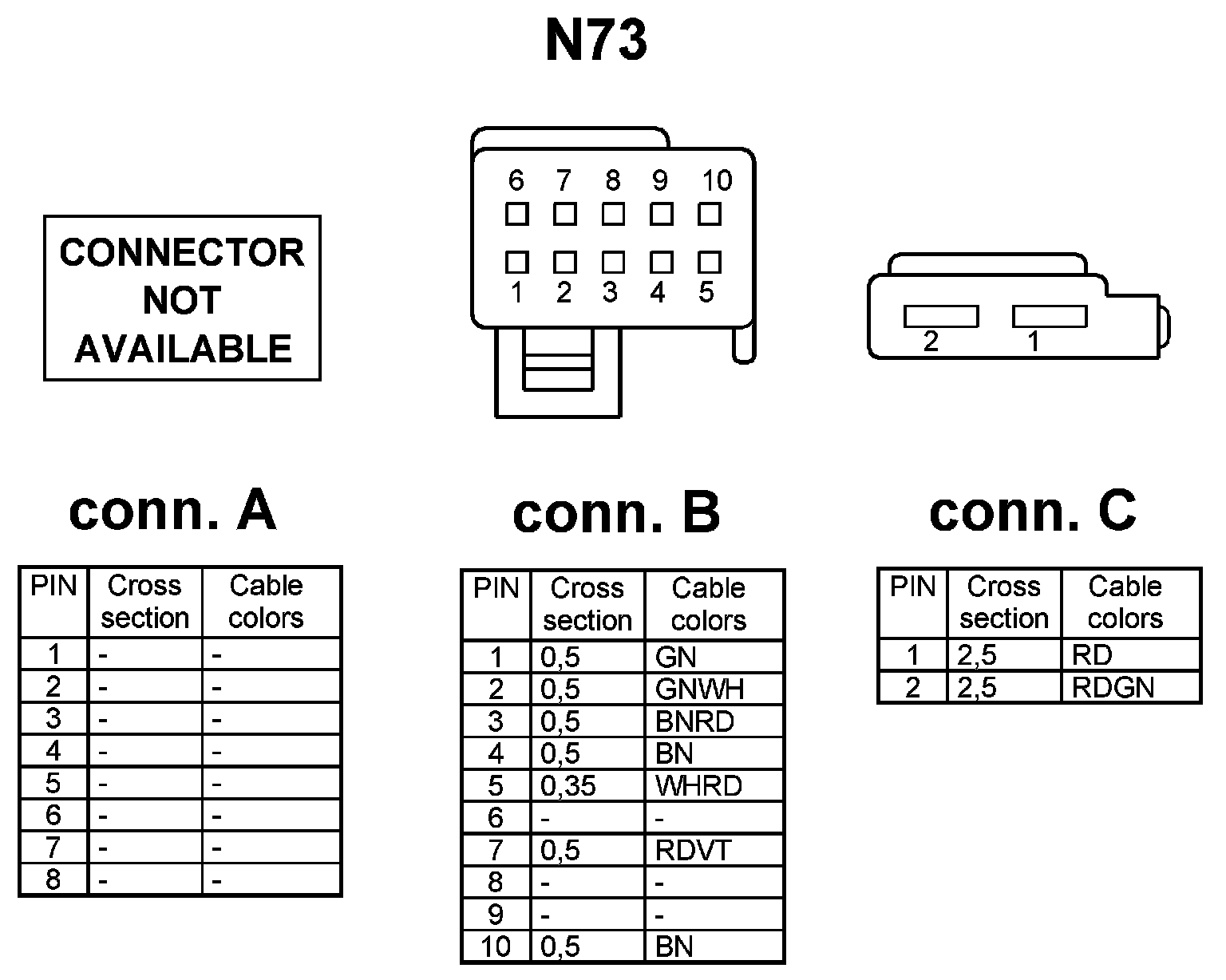

PE07.61-P-2778FAA Electrical Function Schematic For Power Supply To ME Control Unit

PE07.61-P-2778FAA Electrical Function Schematic For Power Supply to Me Control Unit

ENGINE 271, 272 in MODEL 204
- up to model year 08 /AEJ 07



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
