Function Diagrams

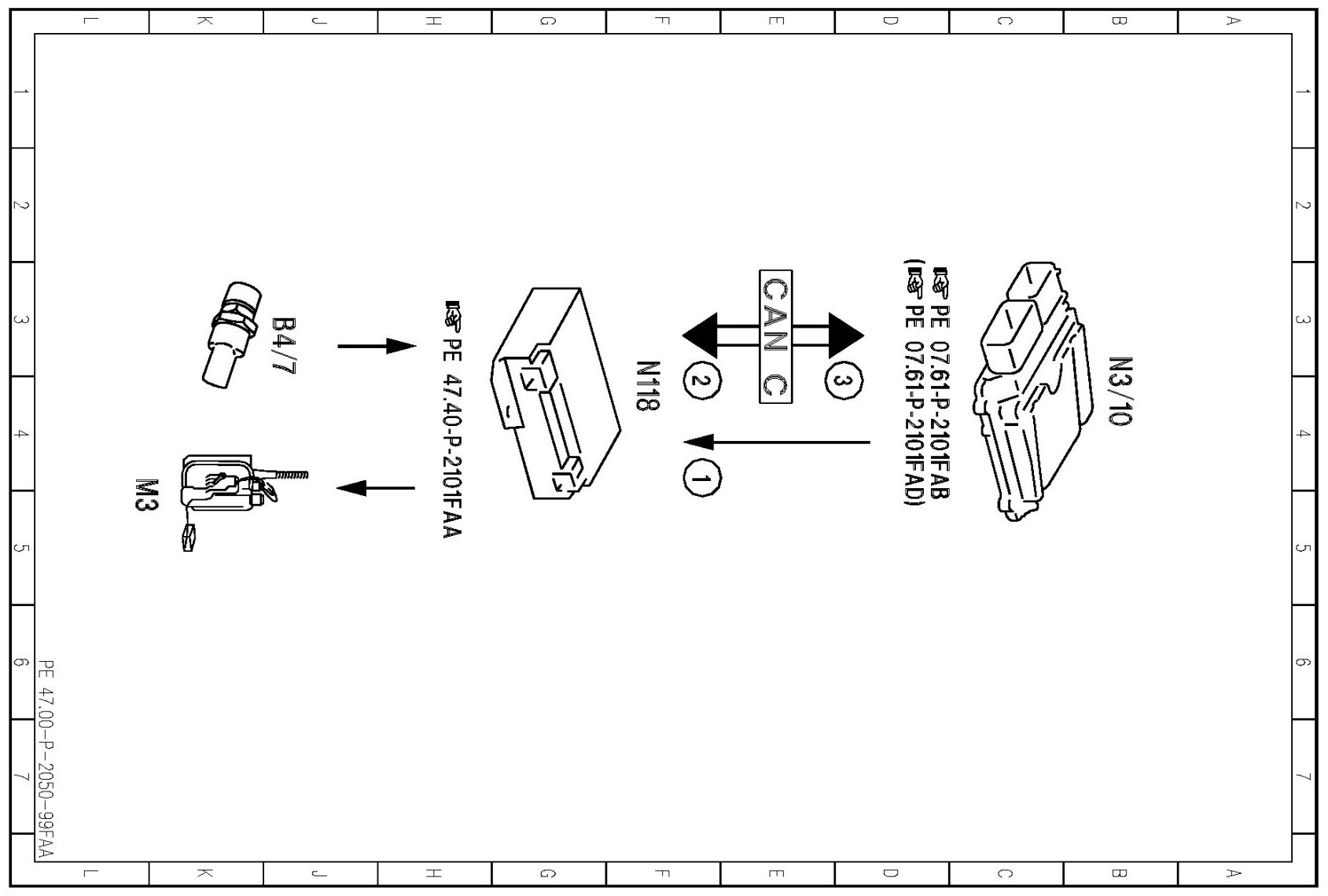

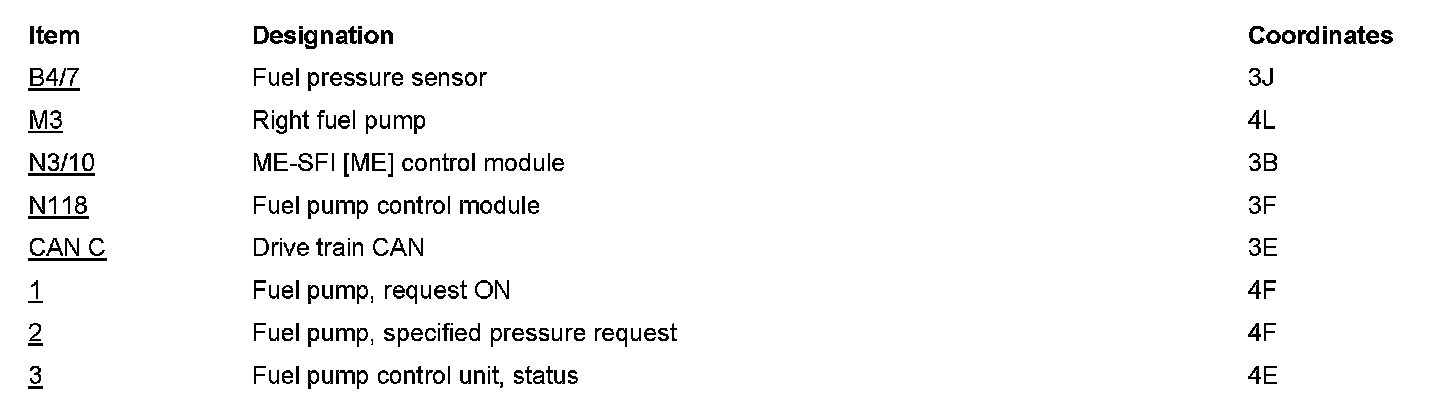

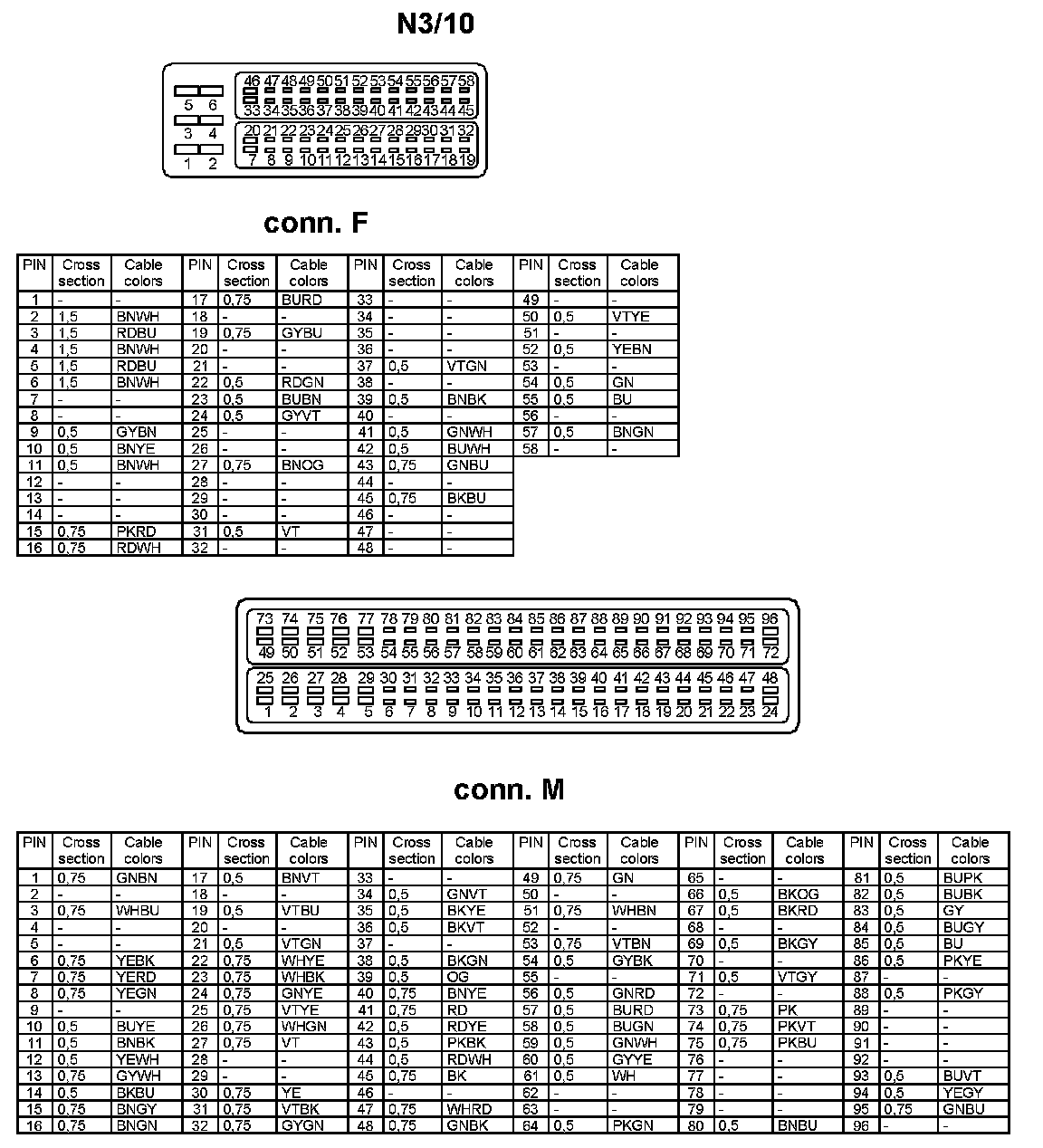

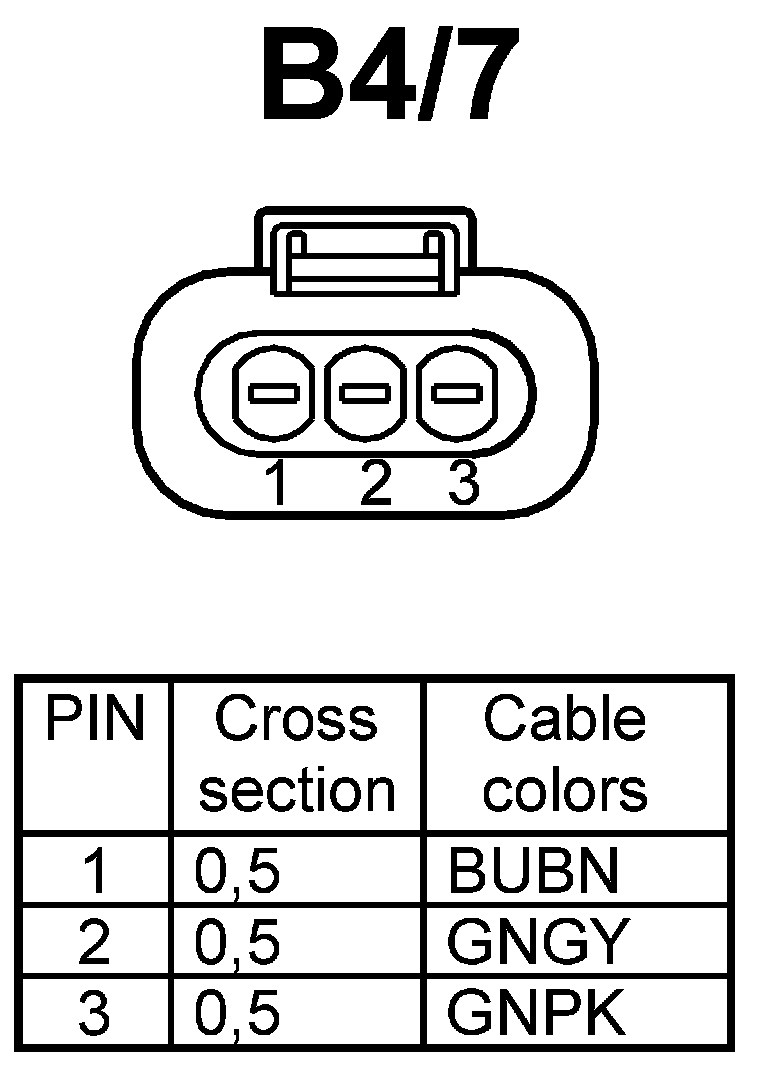

PE47.00-P-2050FAA Electrical Function Schematic For Fuel Supply

ENGINE 271, 272 in MODEL 204
- up to model year 08 /AEJ 07



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
