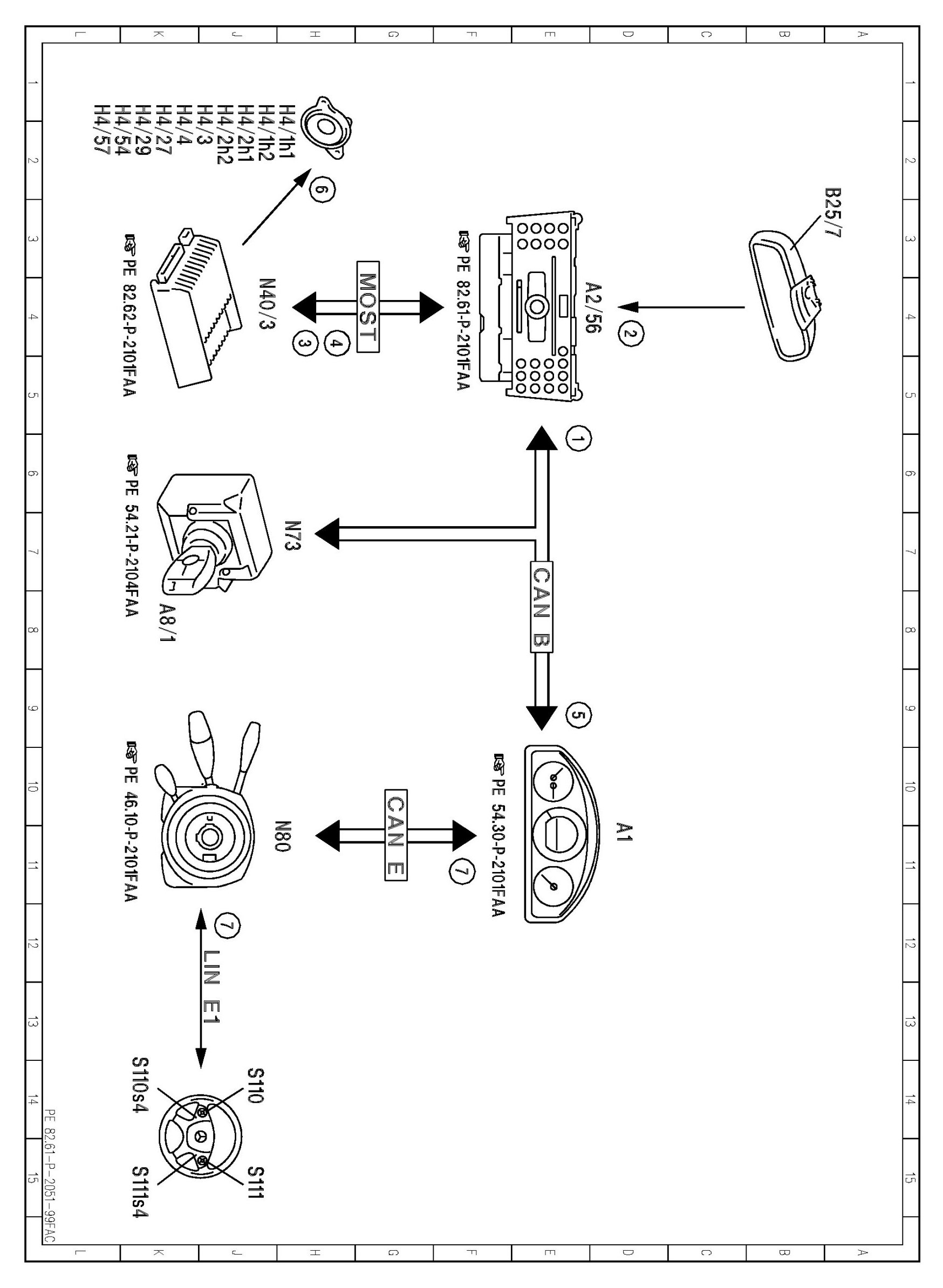

PE82.61-P-2051FAC Electrical Function Schematic For Auto Pilot System (APS)

PE82.61-P-2051FAC Electrical Function Schematic For Auto Pilot System (APS)

MODEL 204
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (810) Sound system
- up to model year 08/YoM 07

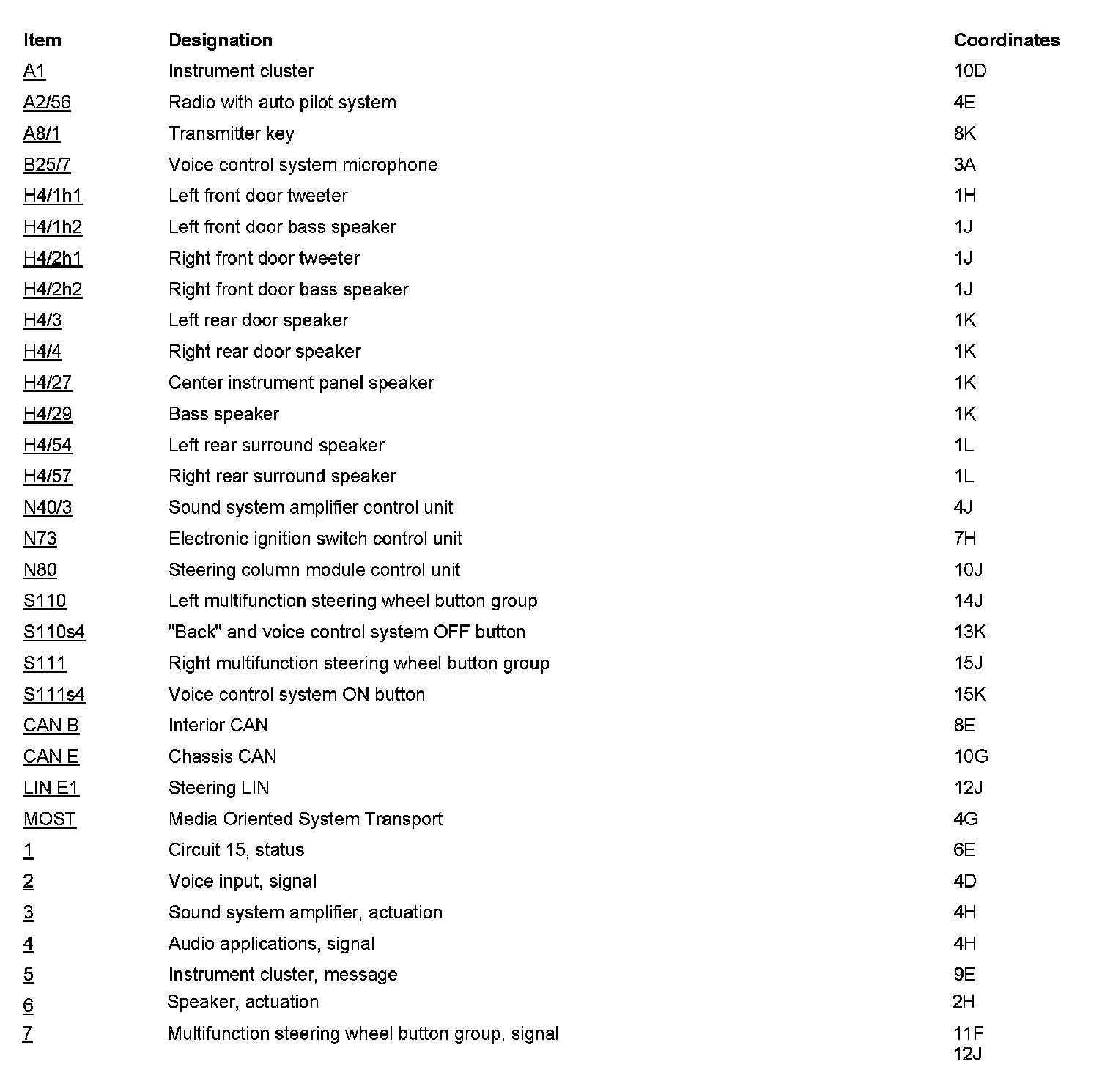

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
