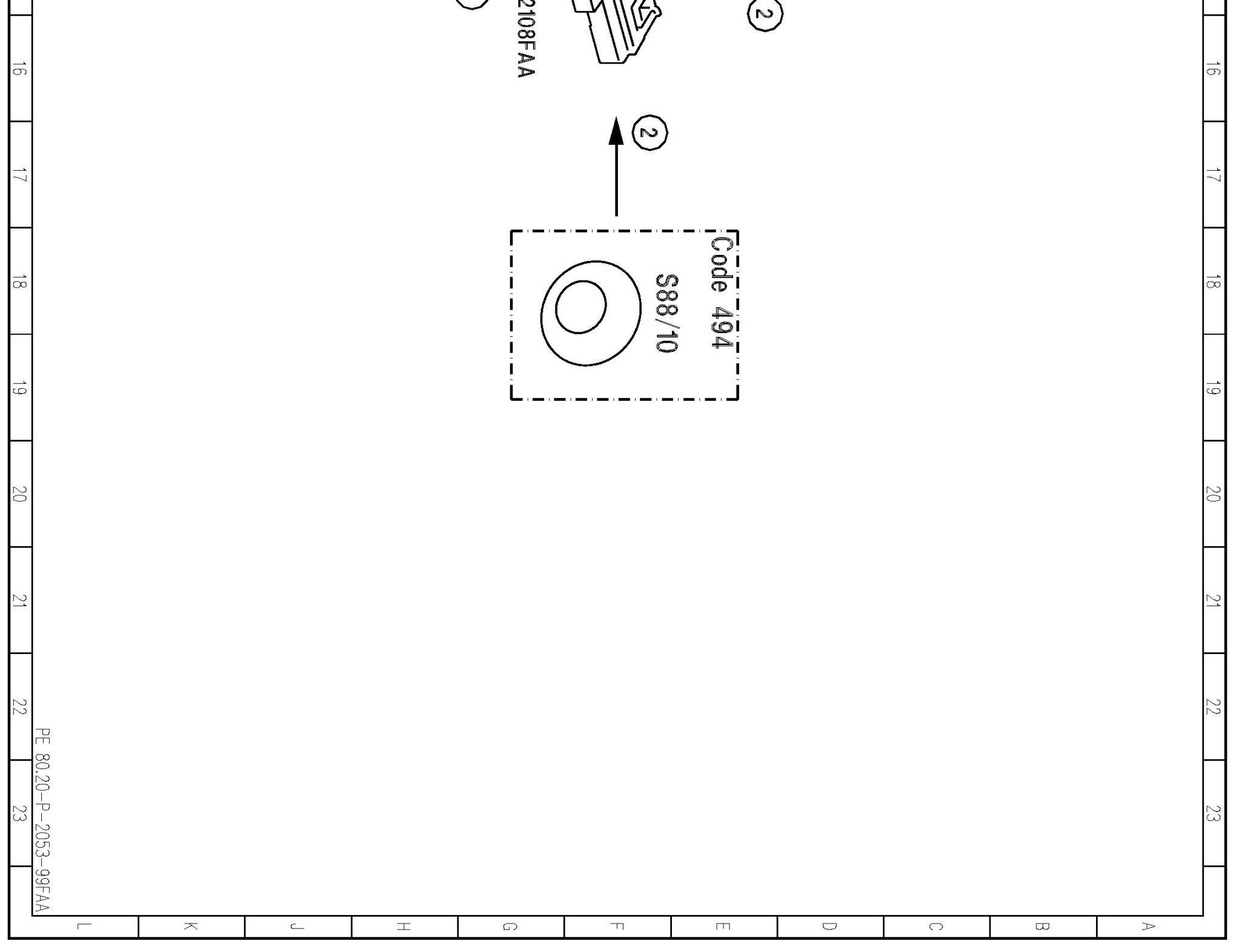

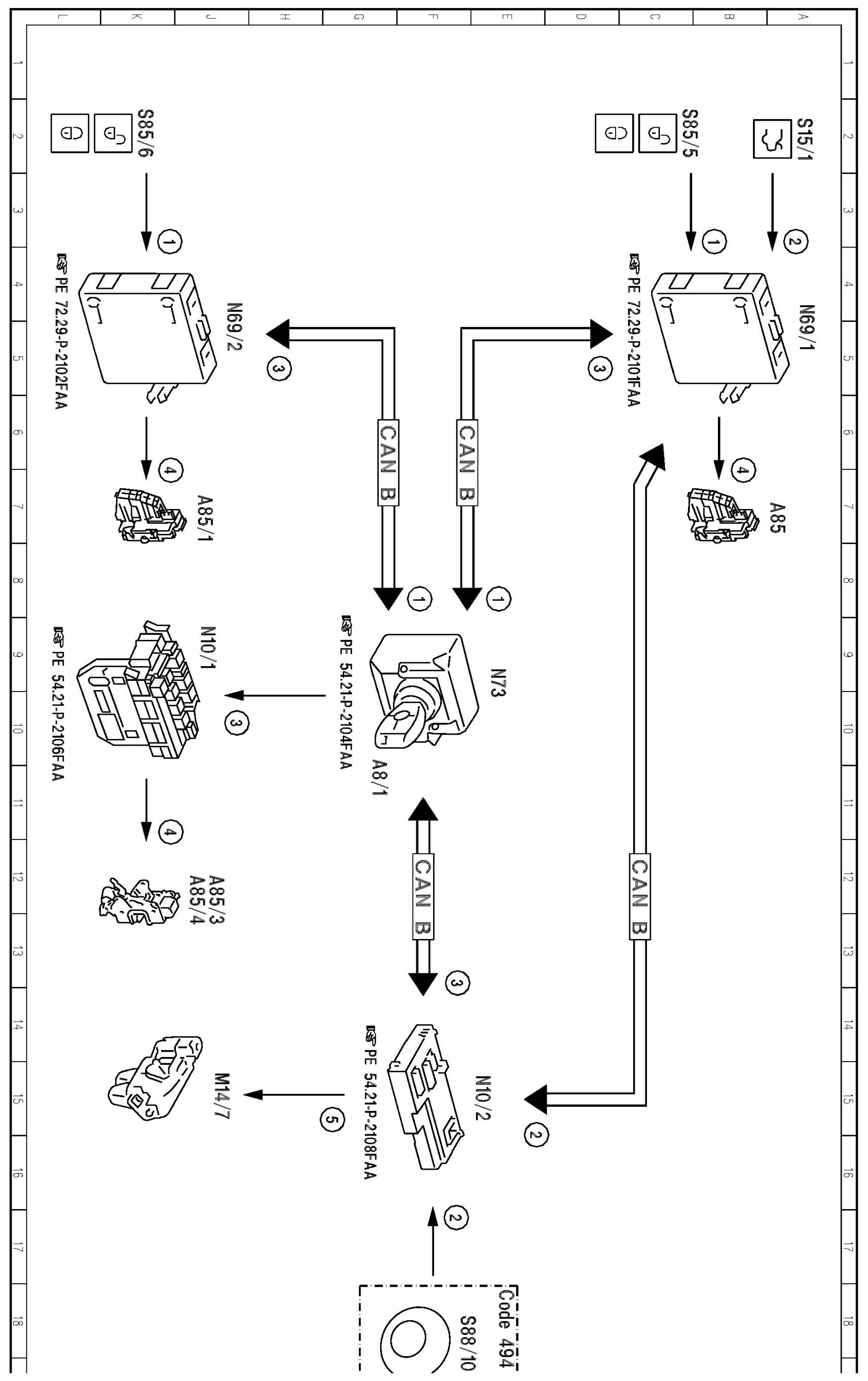

PE80.20-P-2053FAA Electrical Function Schematic For Central Locking With Interior Switch, Locking And Unlocking

PE80.20-P-2053FAA Electrical Function Schematic For Central Locking With Interior Switch, Locking And Unlocking

MODEL 204
- up to model year 08/YoM 07































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
