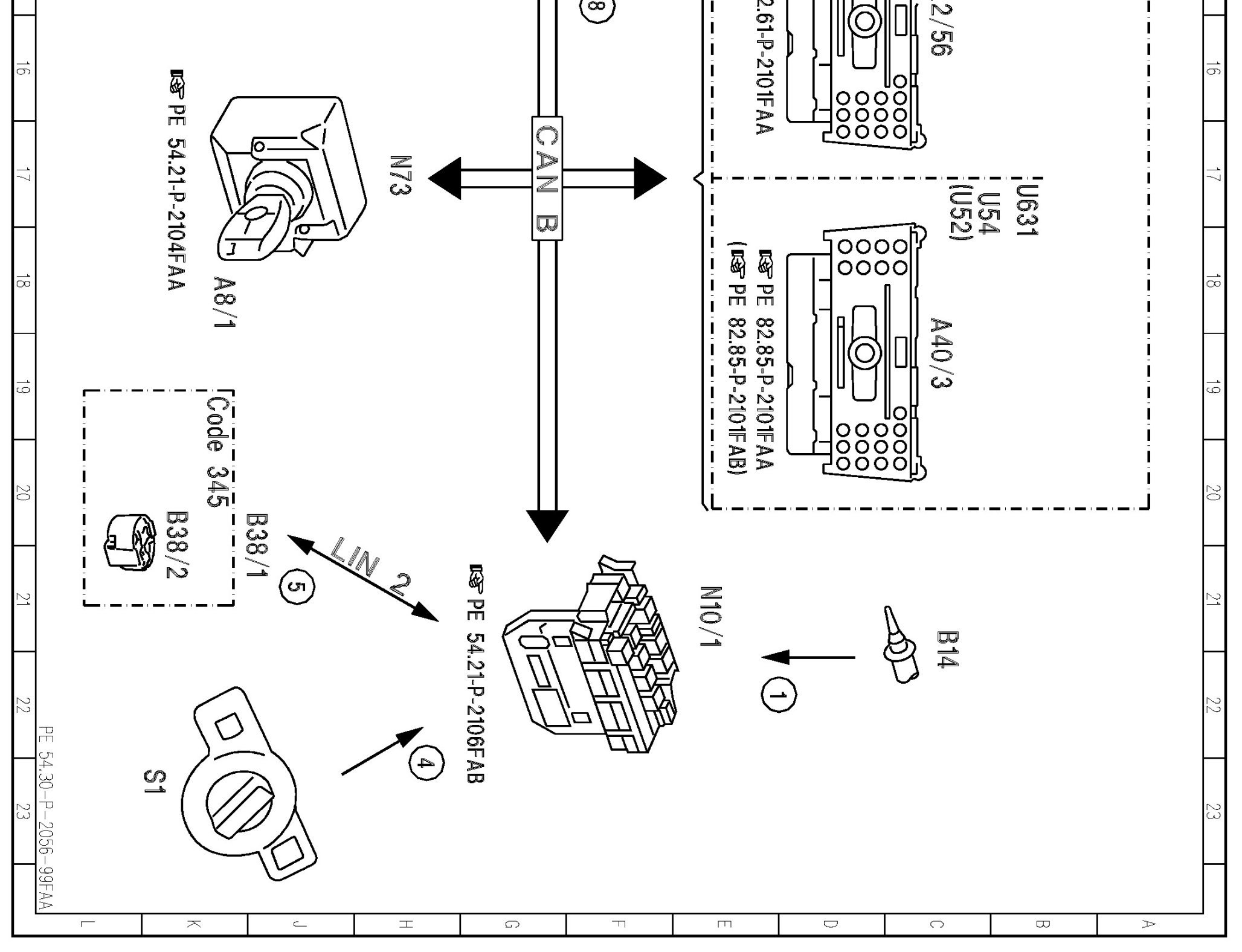

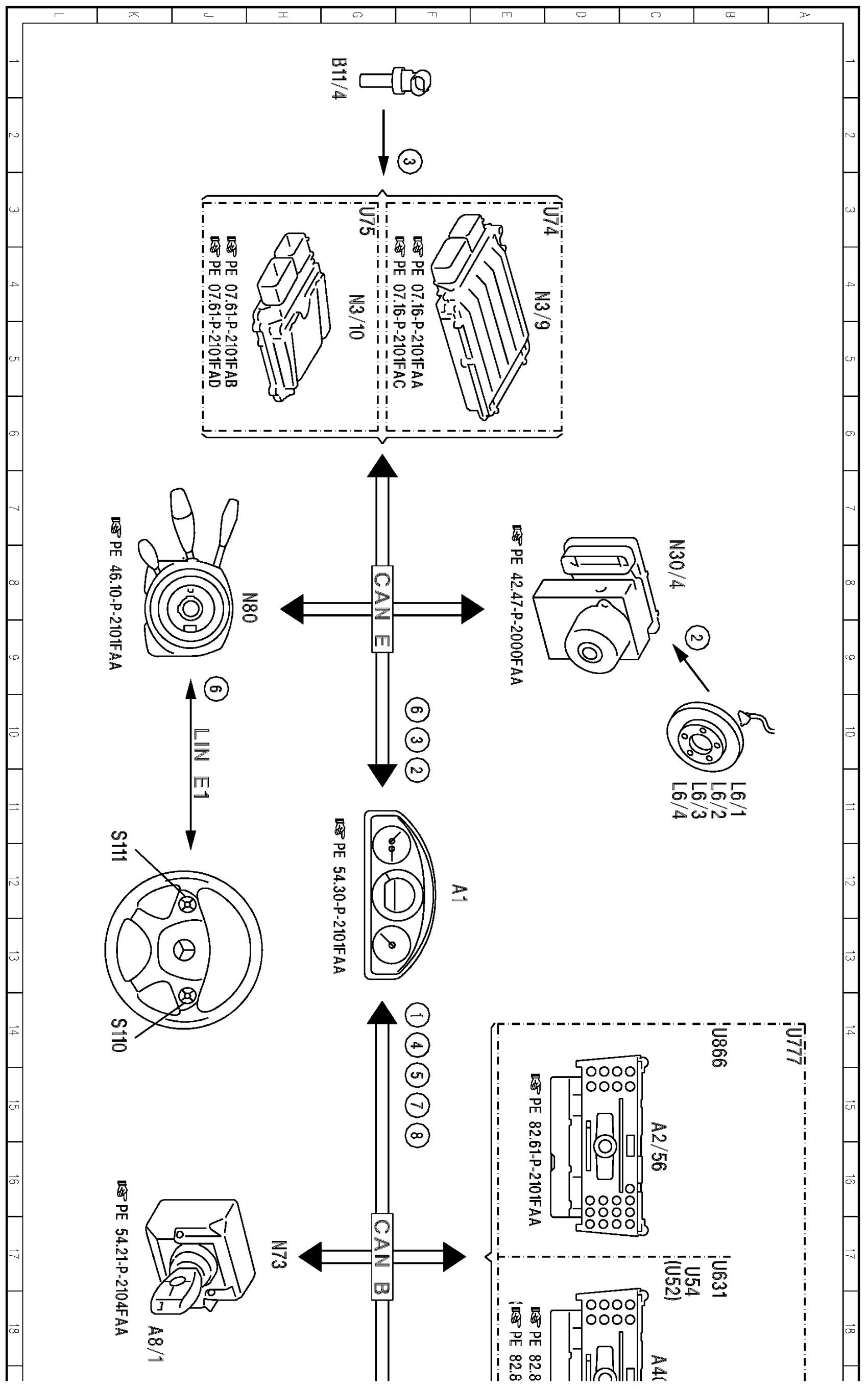

PE54.30-P-2056FAA Electrical Function Schematic Of Instrument Cluster, Comfort Display

PE54.30-P-2056FAA Electrical Function Schematic Of Instrument Cluster, Comfort Display

MODEL 204
- up to model year 08/YoM 07

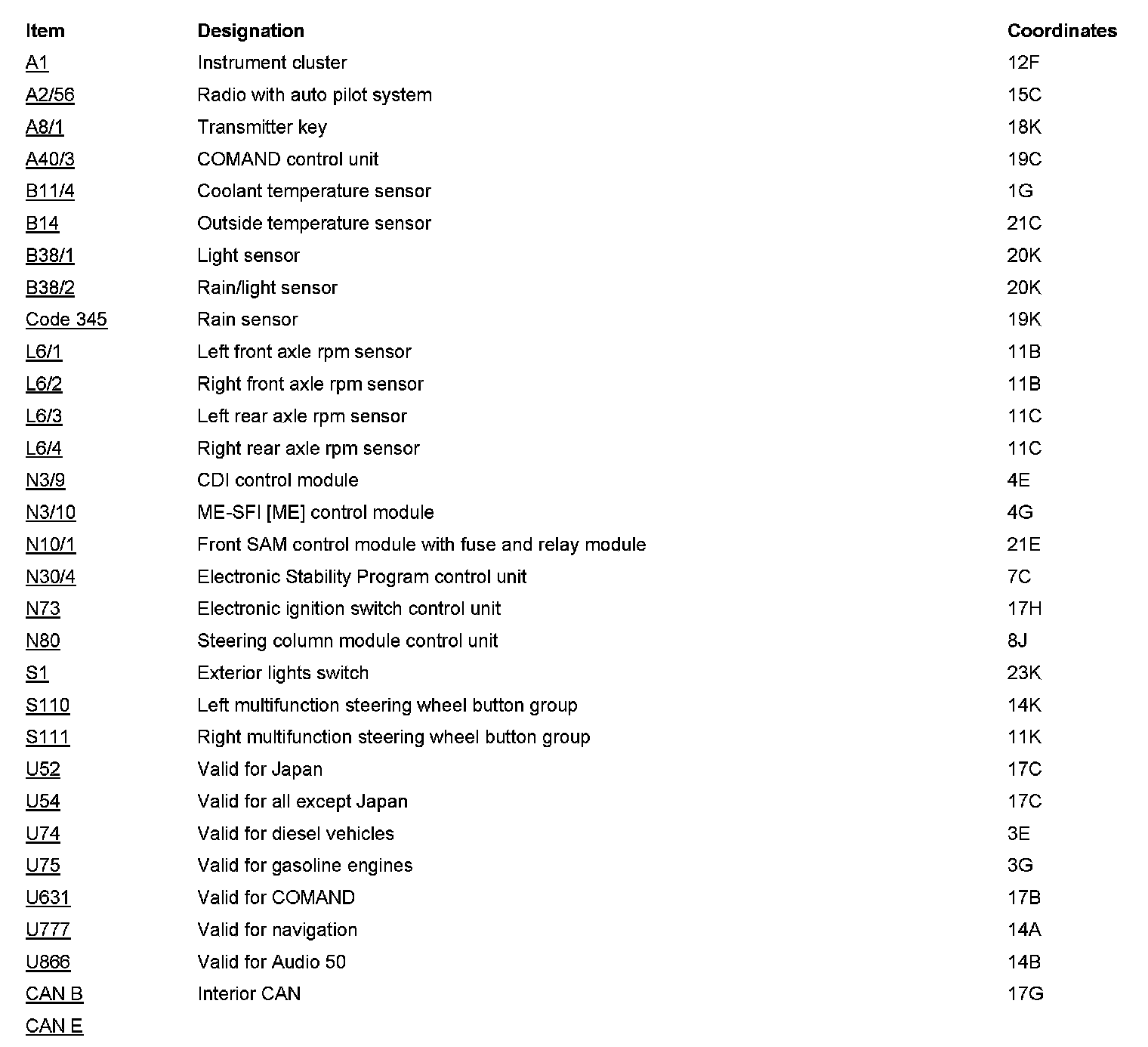

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
