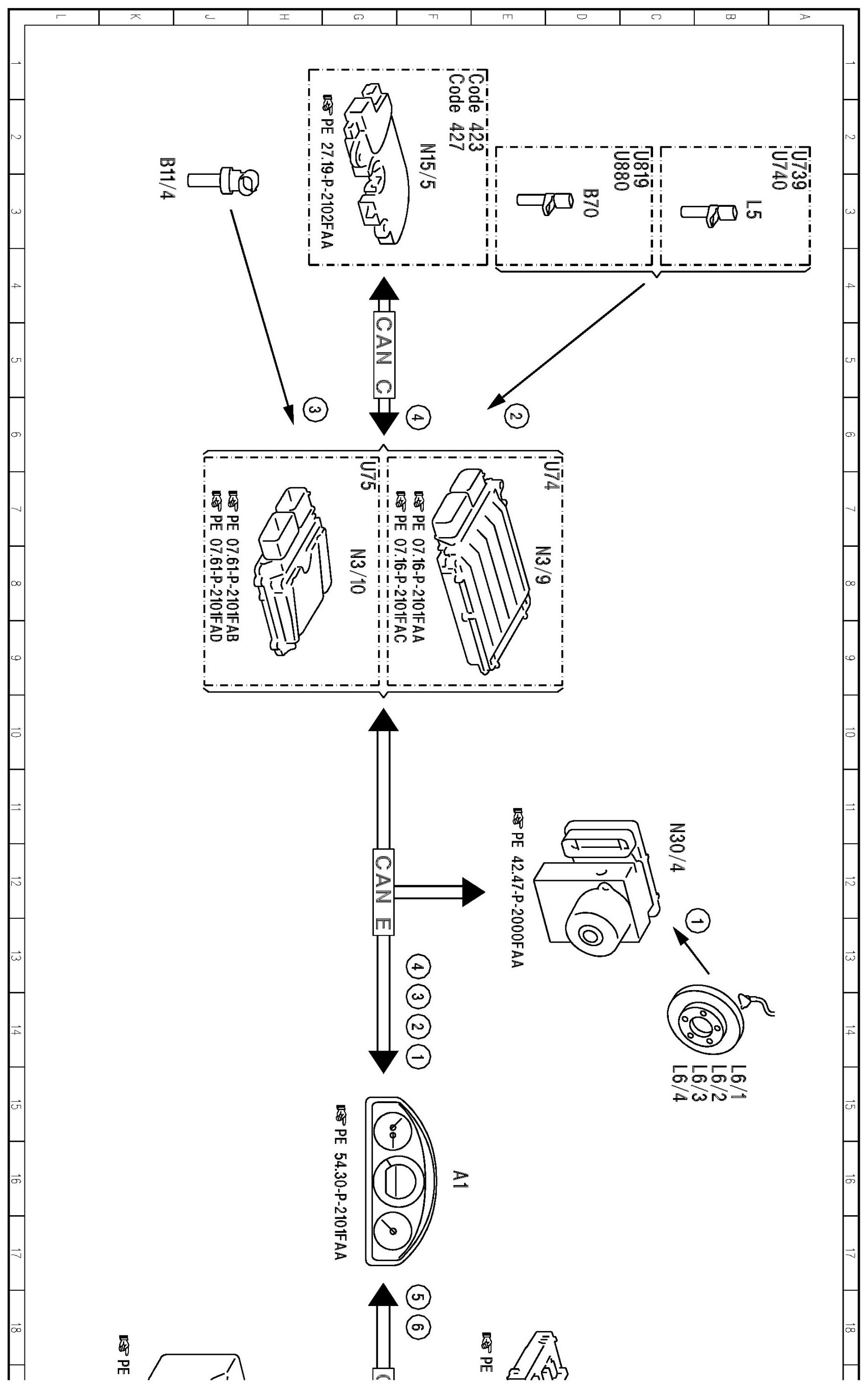

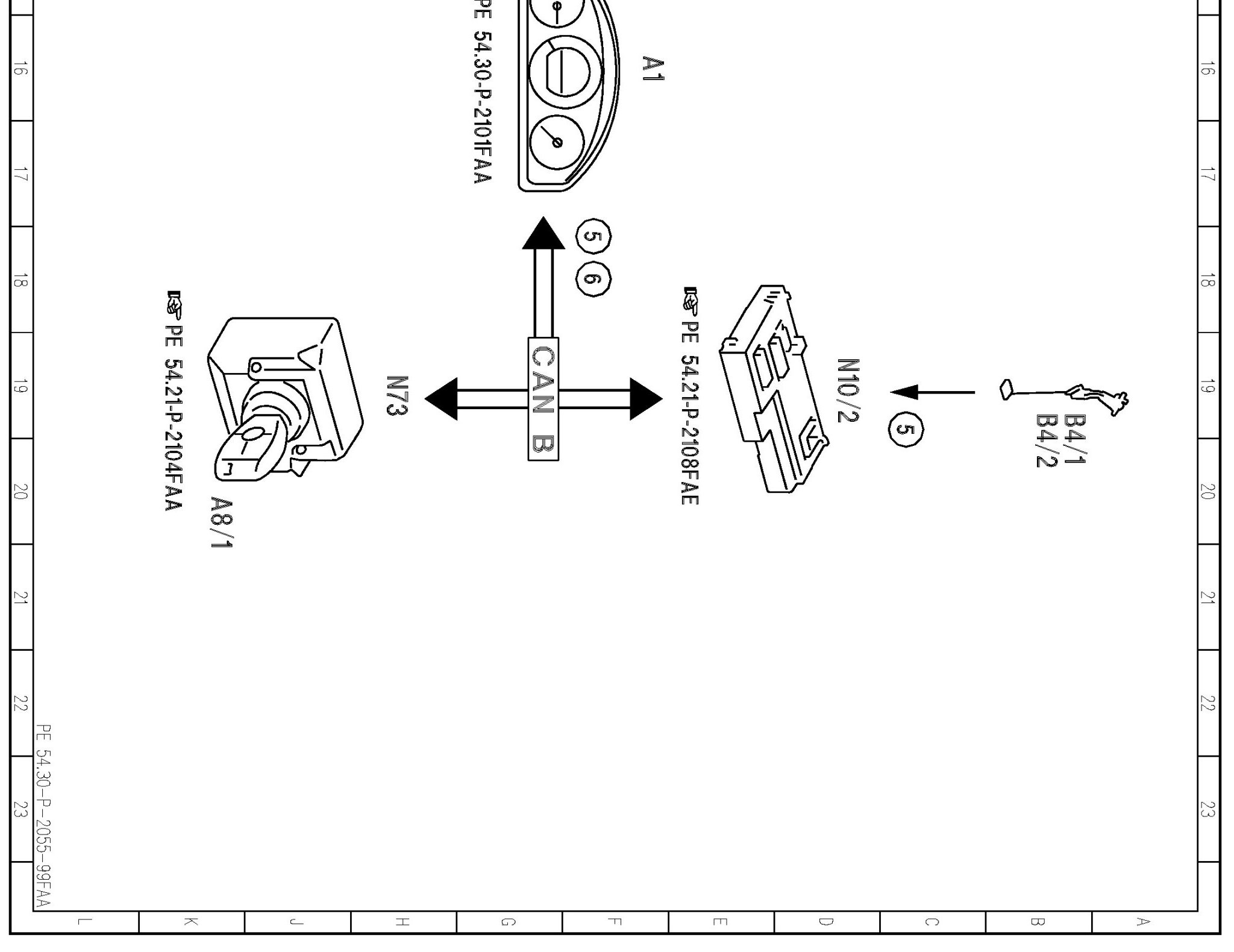

PE54.30-P-2055FAA Electrical Function Schematic Of Instrument Cluster, Operating Condition Display

PE54.30-P-2055FAA Electrical Function Schematic Of Instrument Cluster, Operating Condition Display

MODEL 204
- up to model year 08/YoM 07

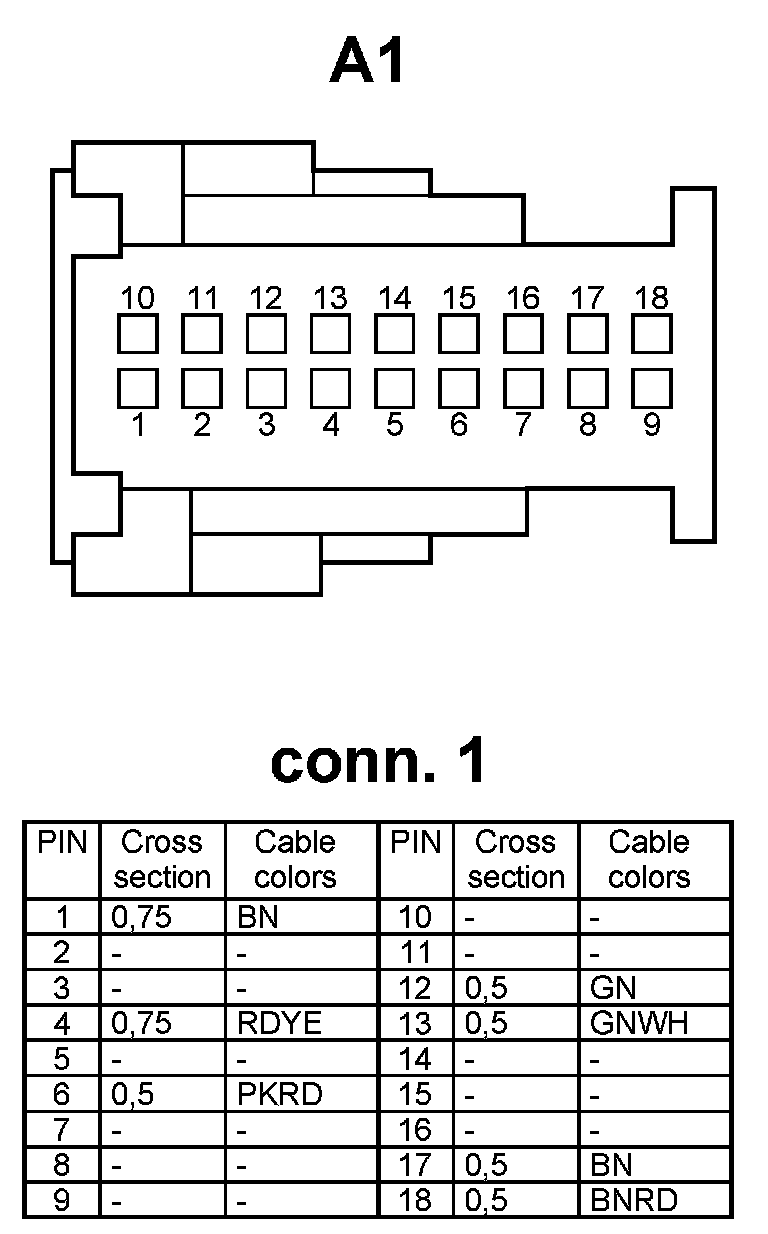

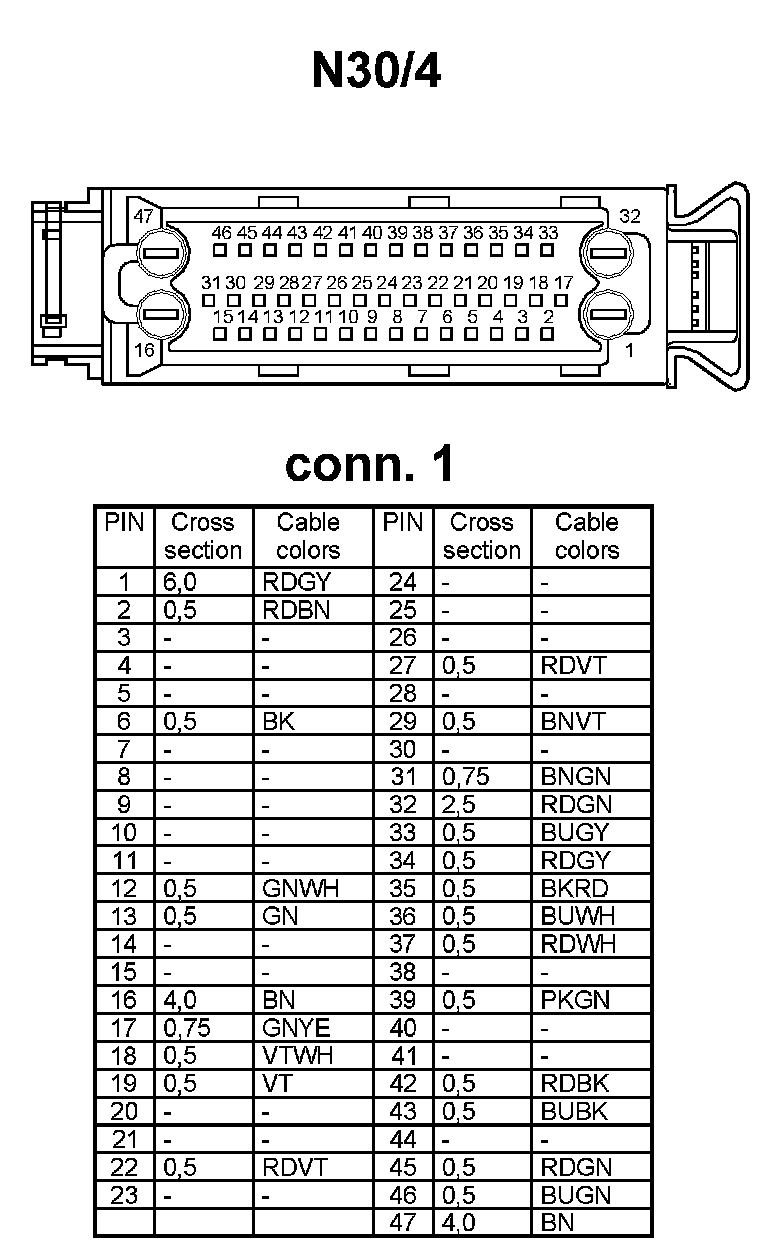

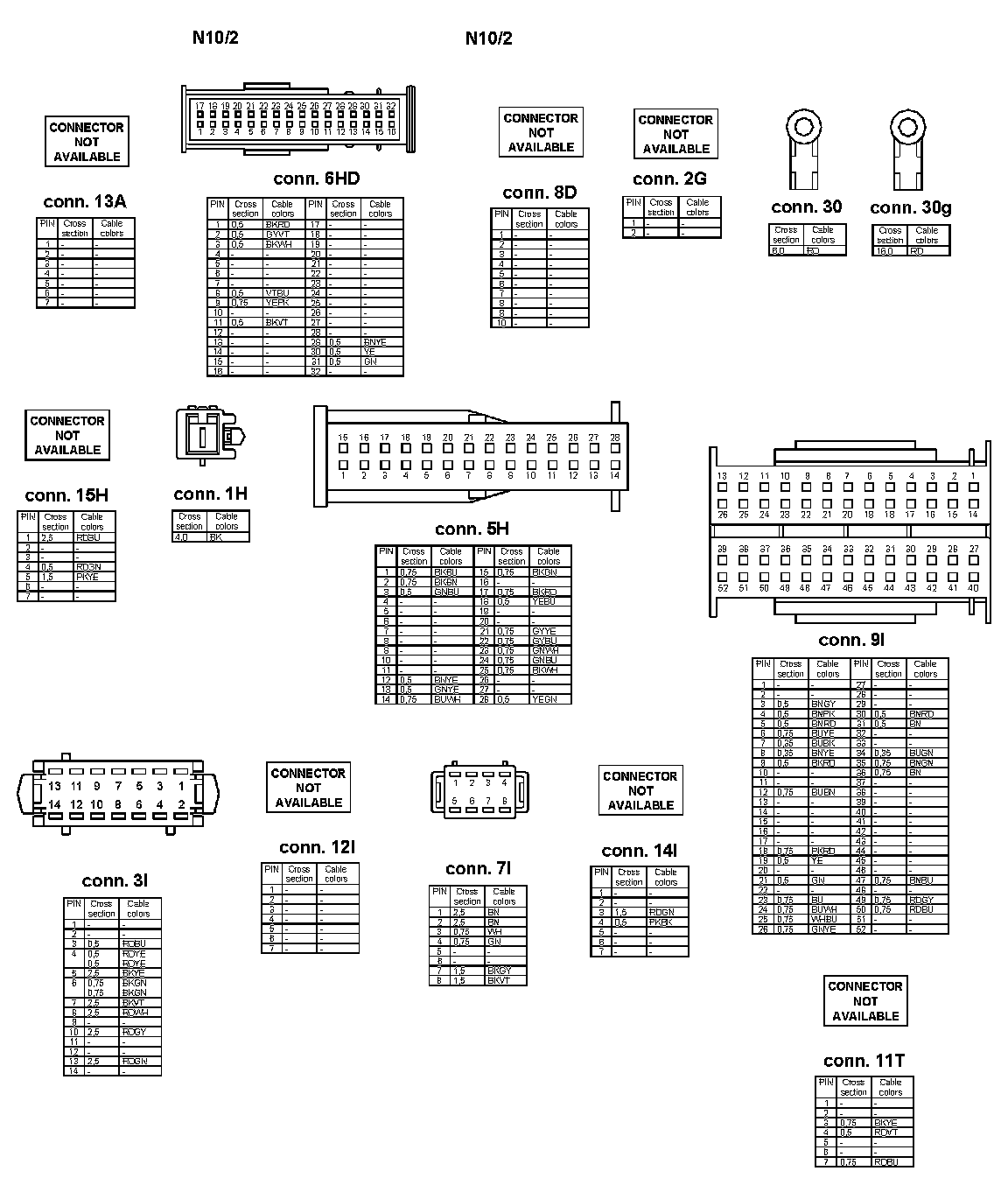

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
