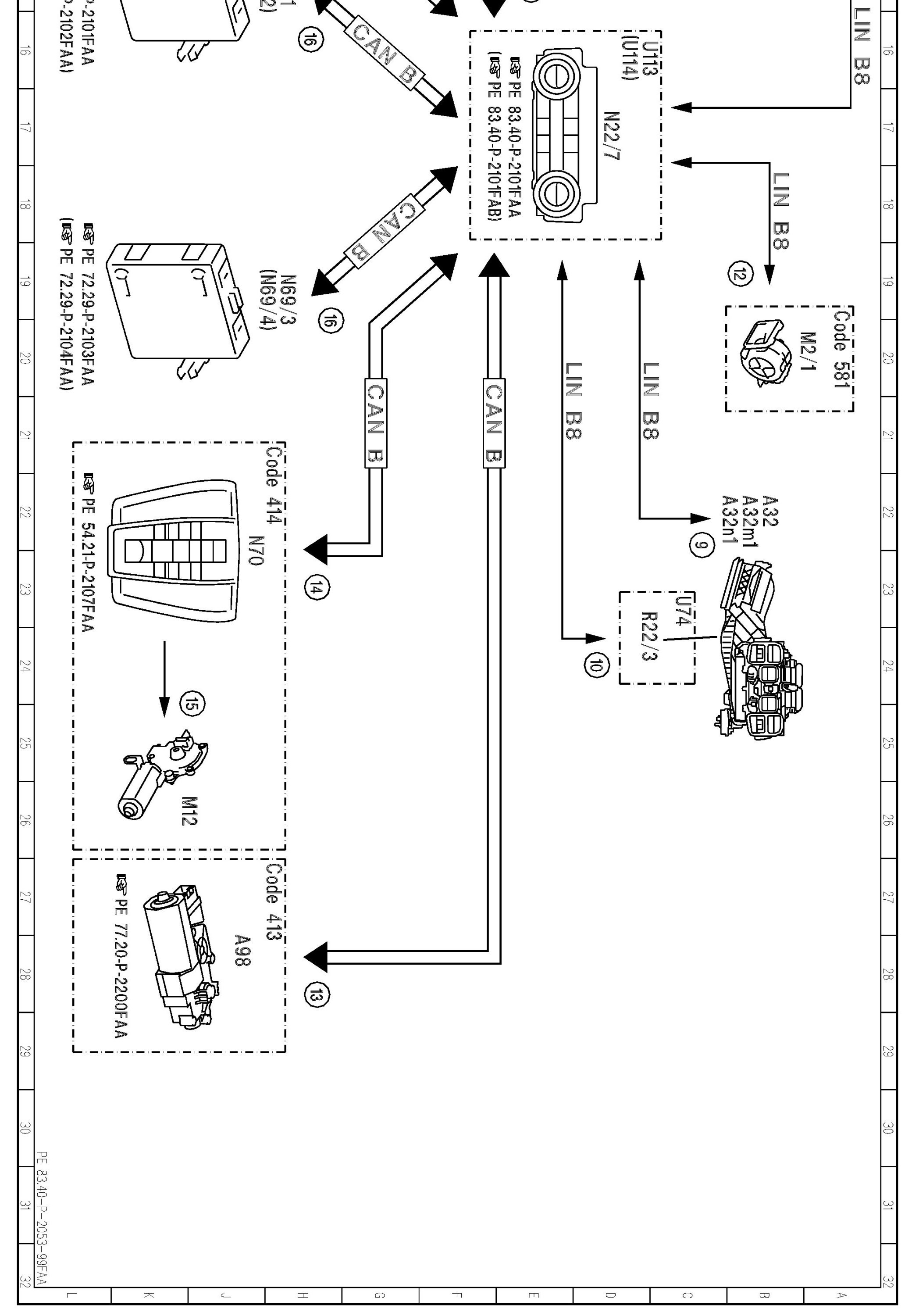

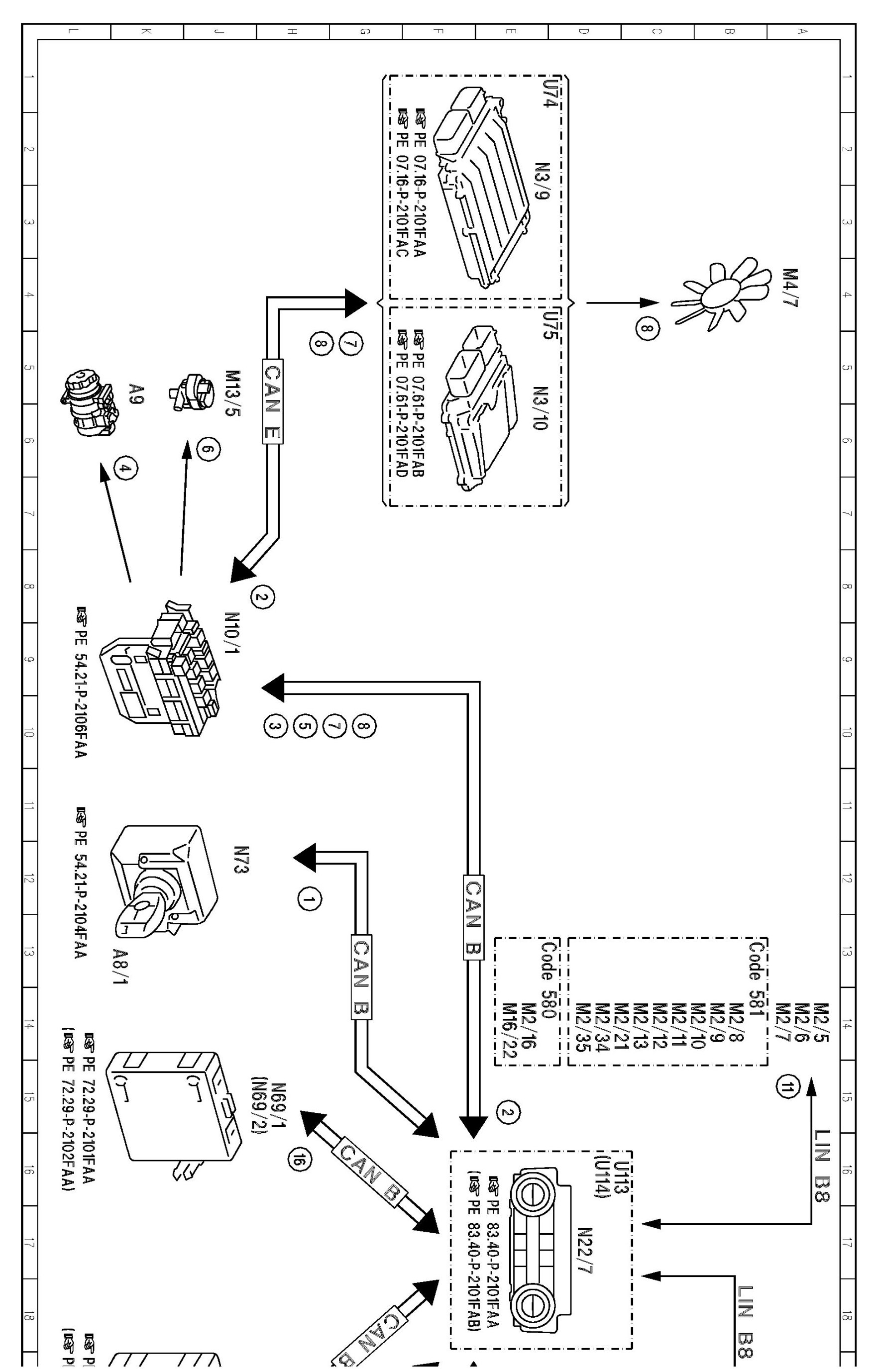

PE83.40-P-2053FAA Electrical Function Schematic For Automatic Air Conditioning, Actuation

PE83.40-P-2053FAA Electrical Function Schematic For Automatic Air Conditioning, Actuation

MODEL 204
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- up to model year 08/YoM 07

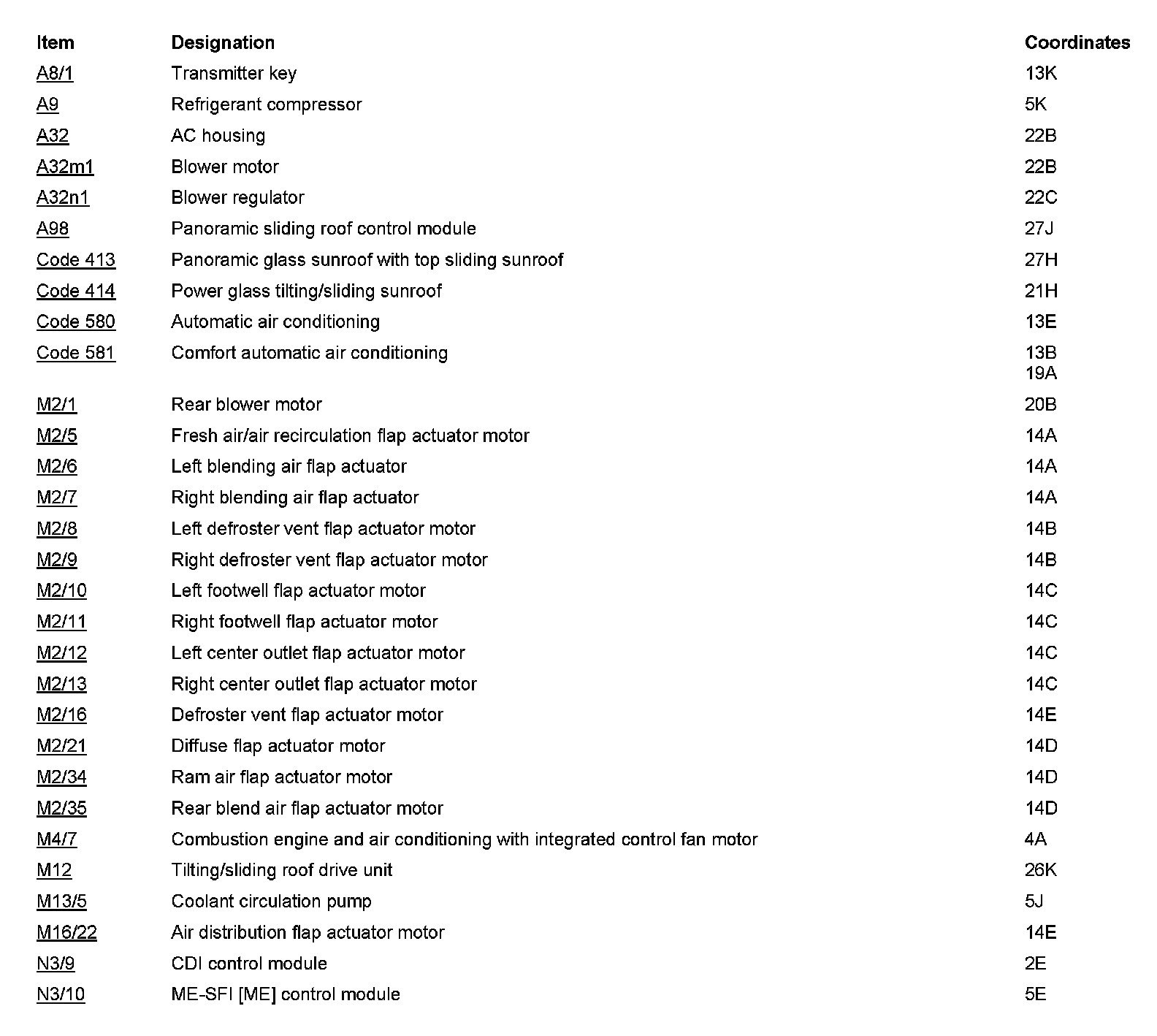

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
