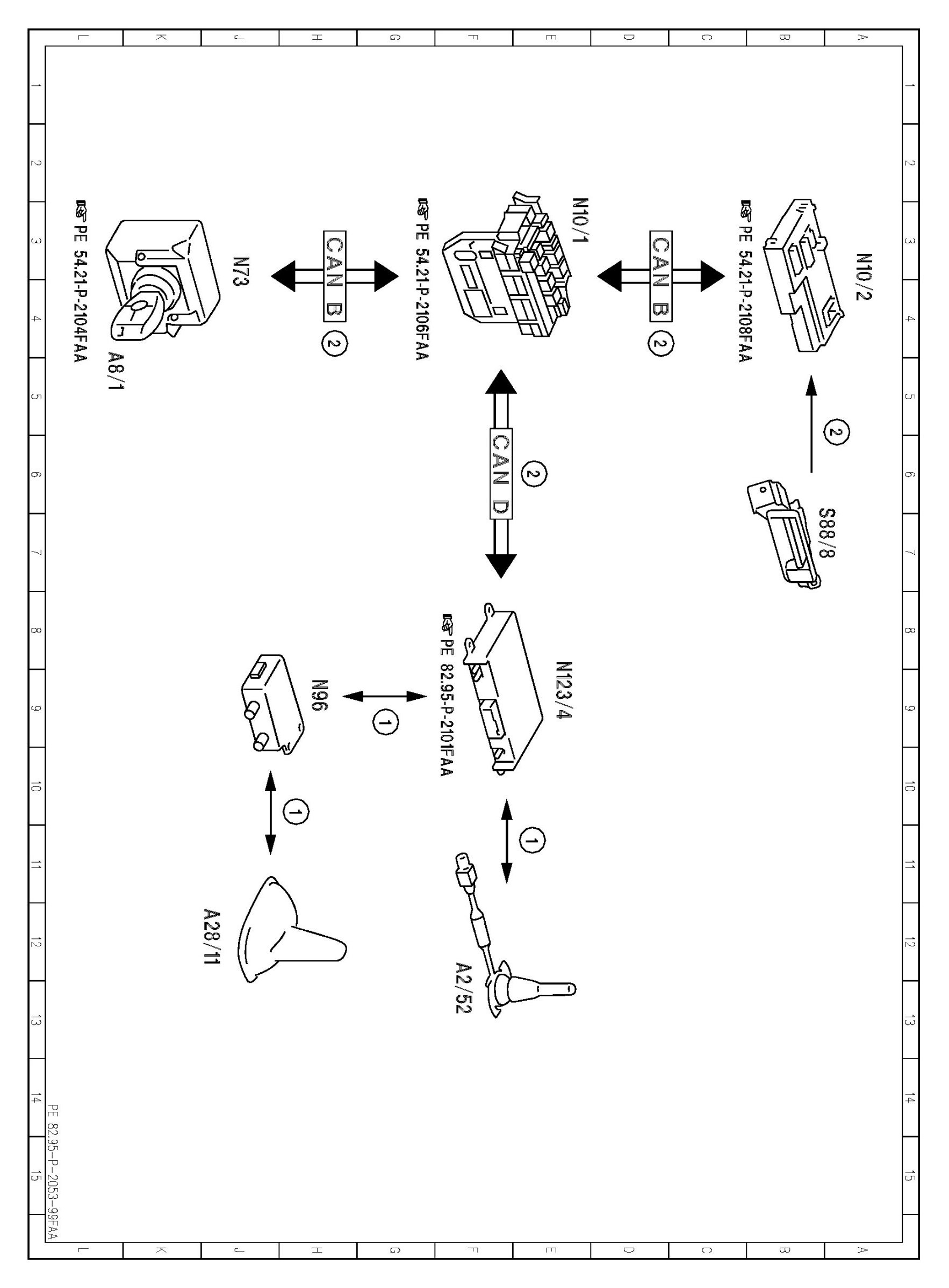

PE82.95-P-2053FAA Electrical Function Schematic For TELEAID Remote Door Unlock

PE82.95-P-2053FAA Electrical Function Schematic For TELEAID Remote Door Unlock

MODEL 204
- with CODE (359) TELE AID emergency call system
- with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada
- up to model year 08/YoM 07 comfort telephony







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
