Function Diagrams

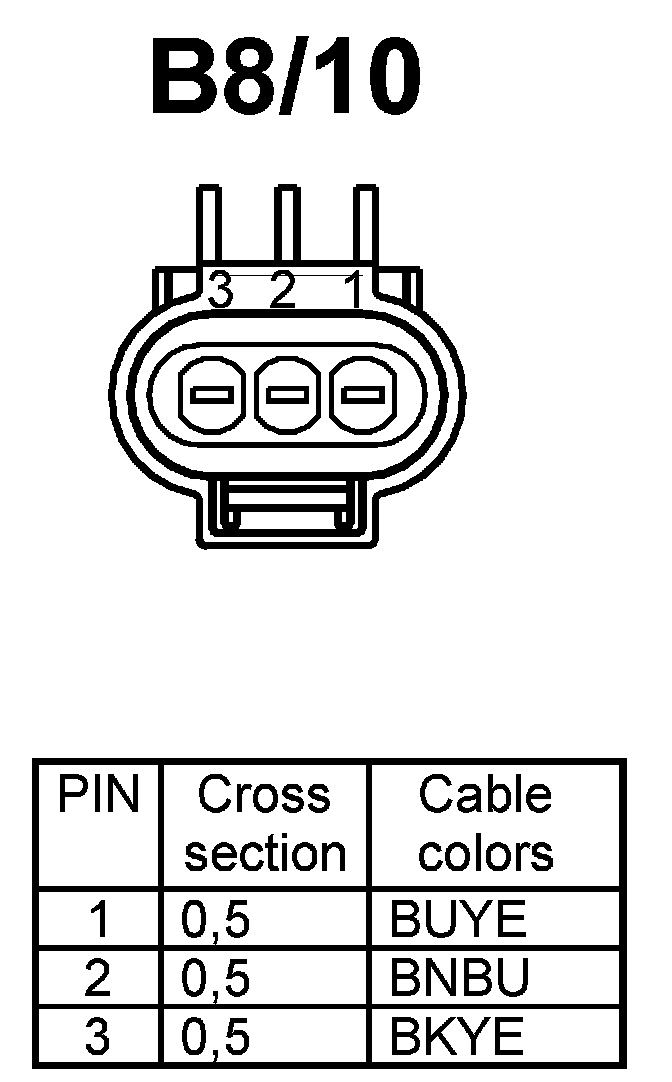

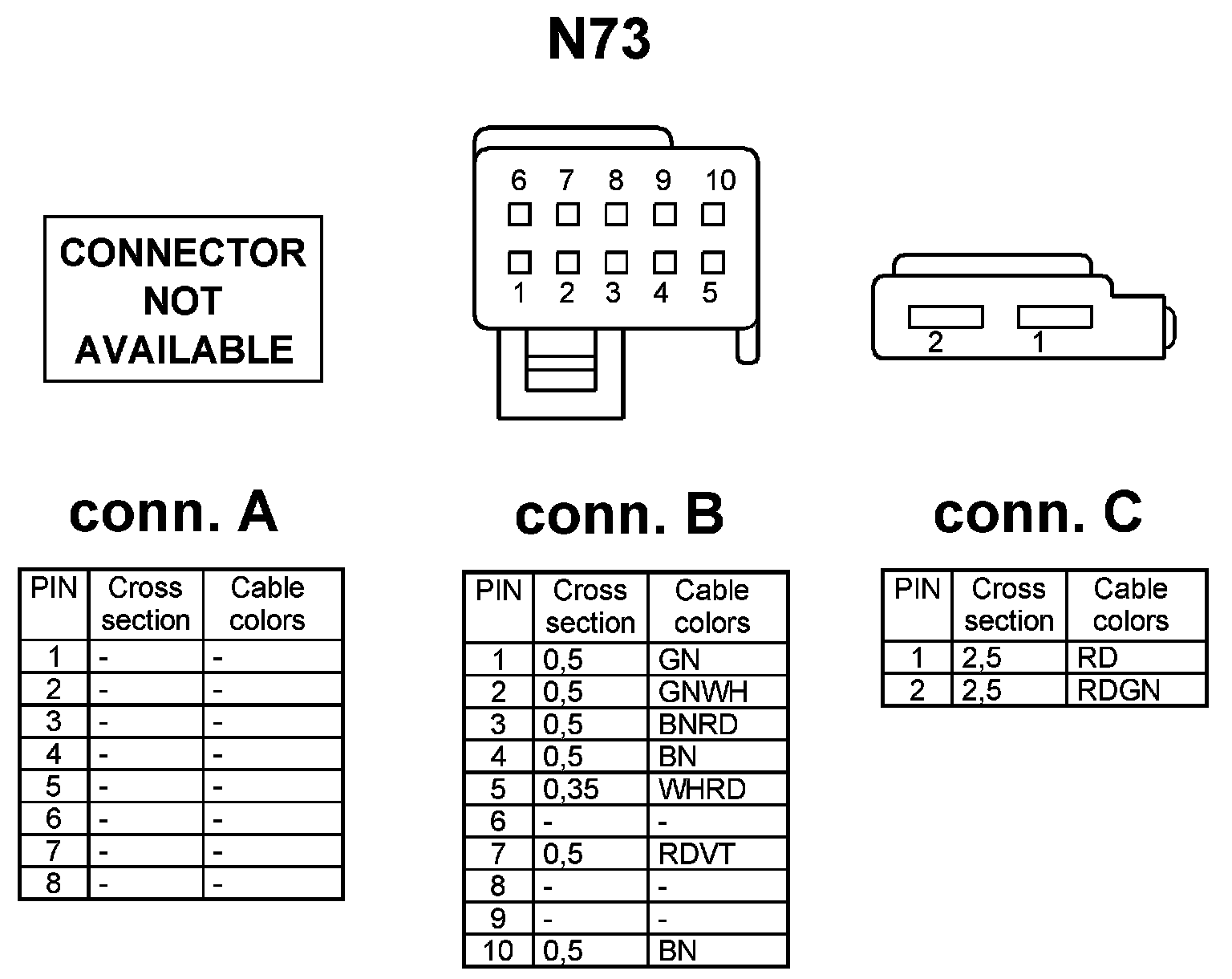

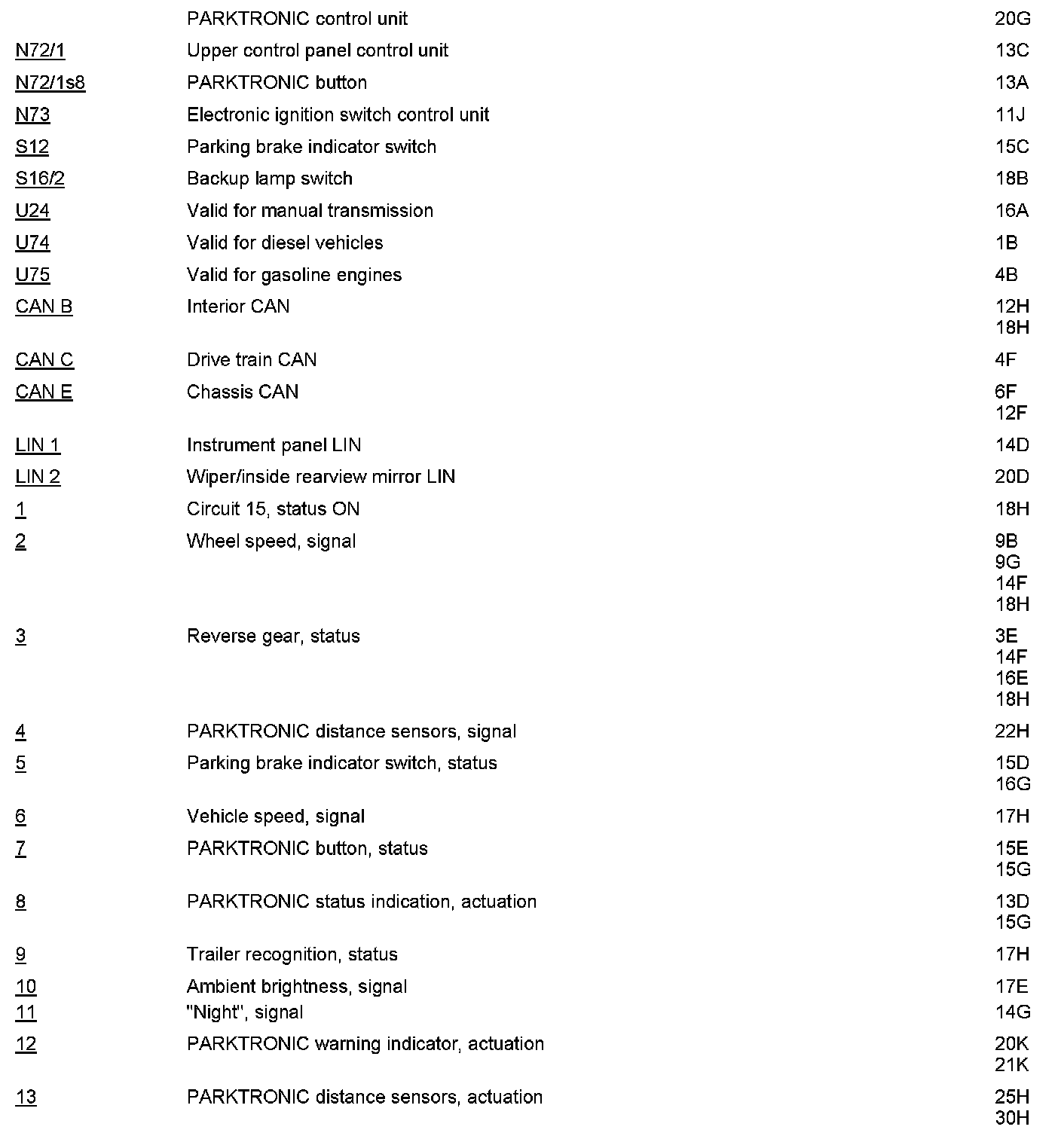

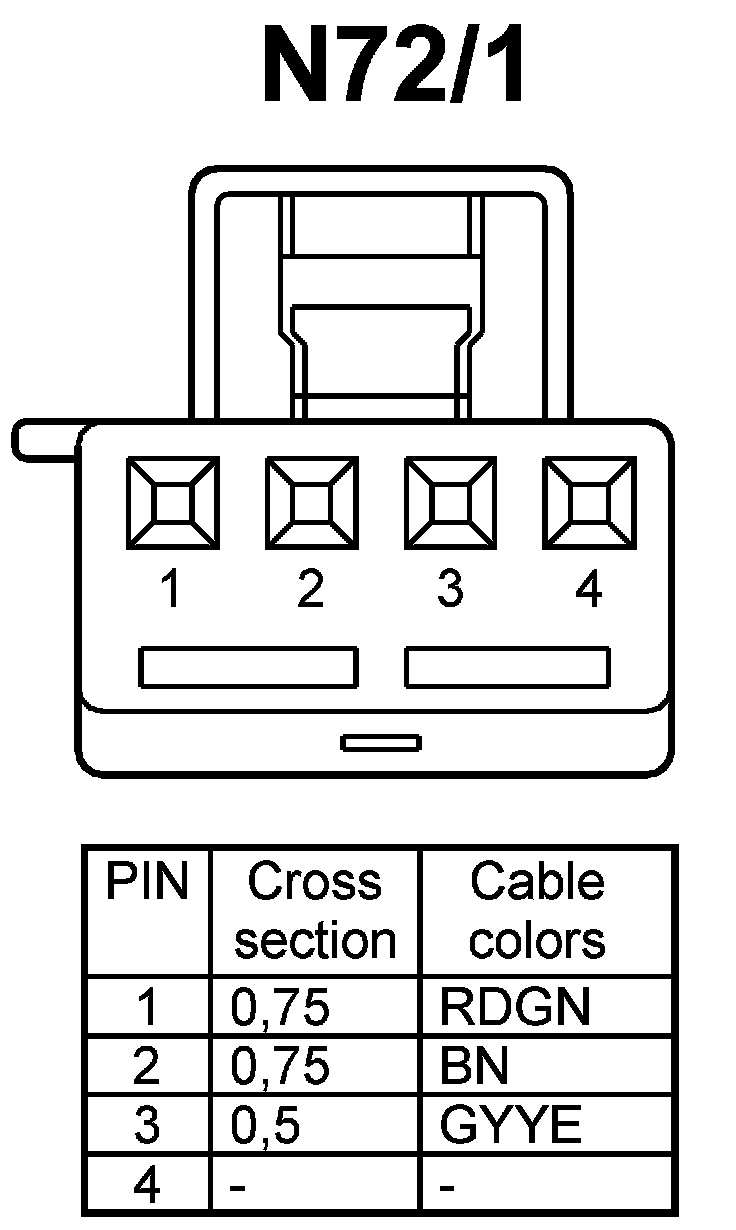

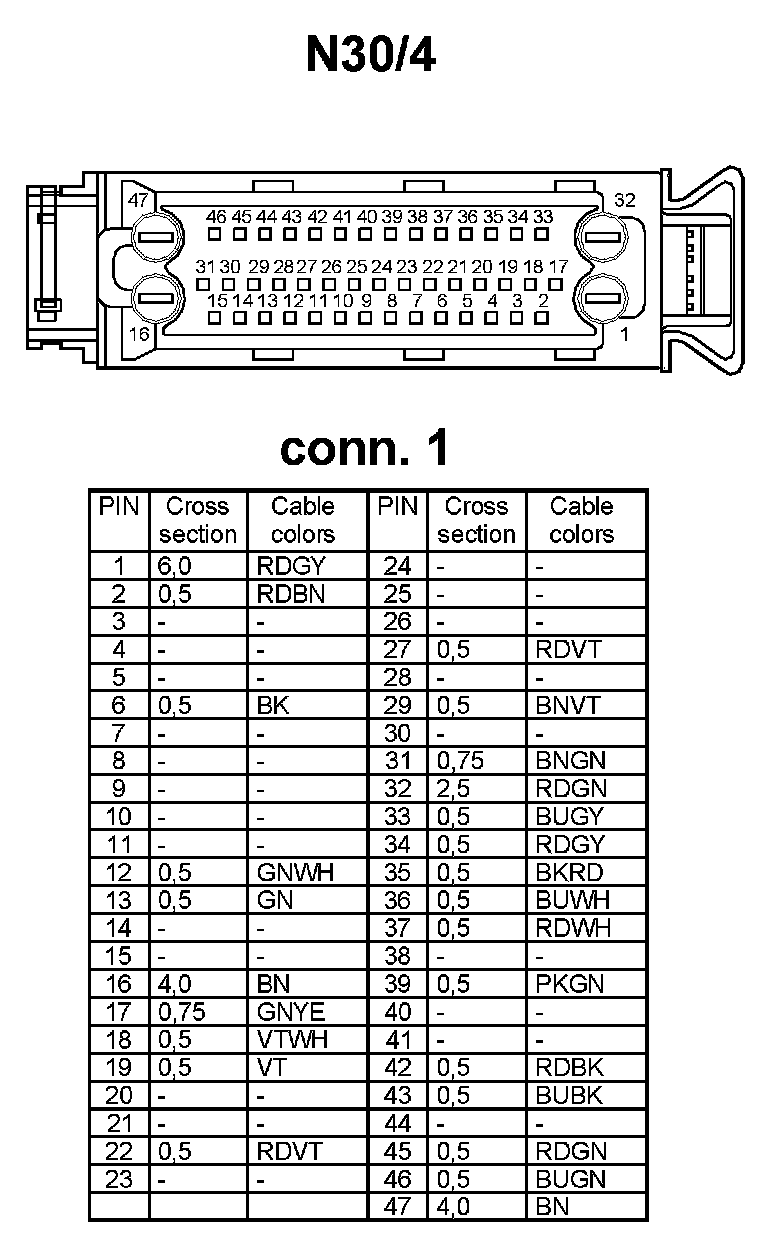

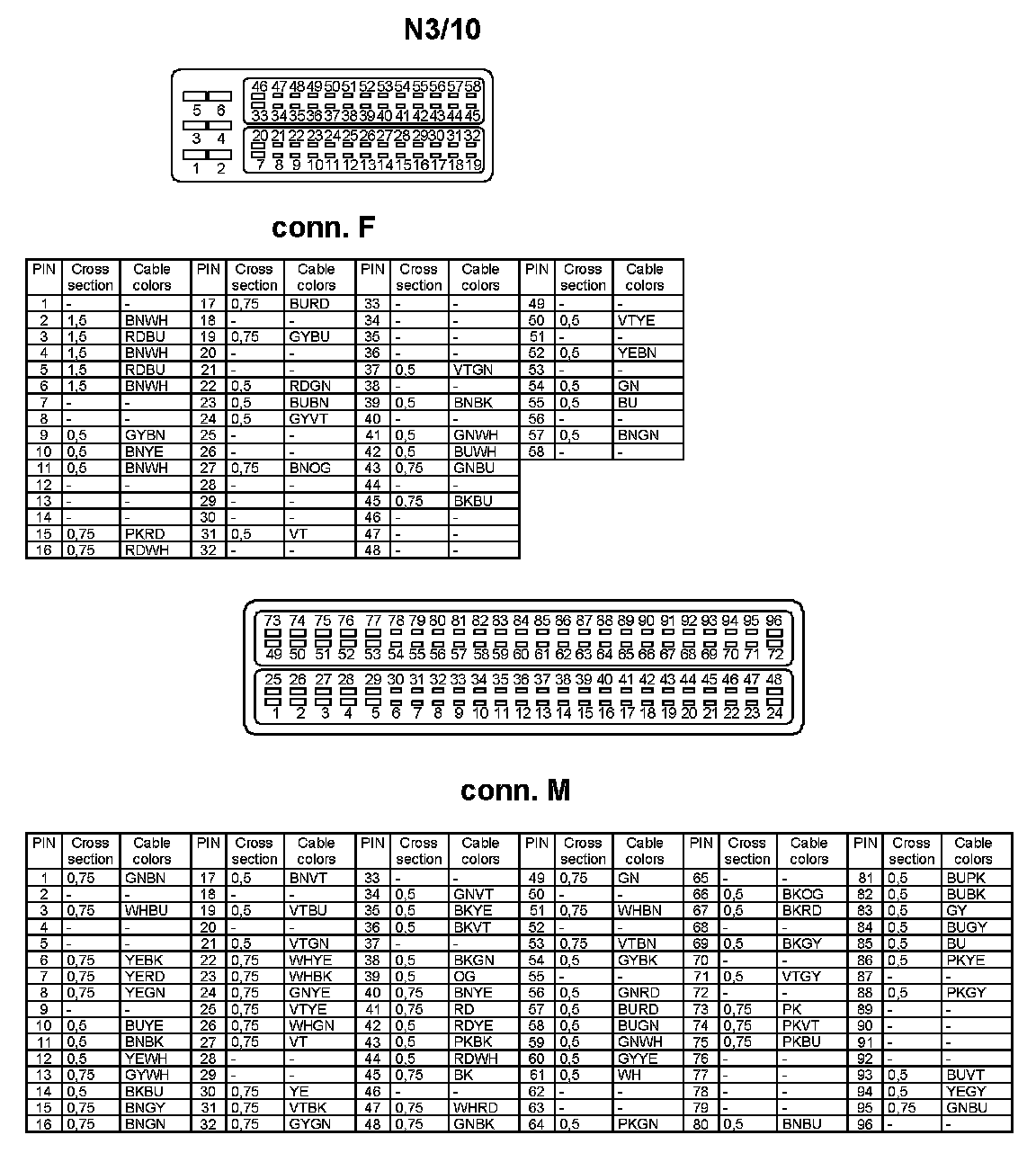

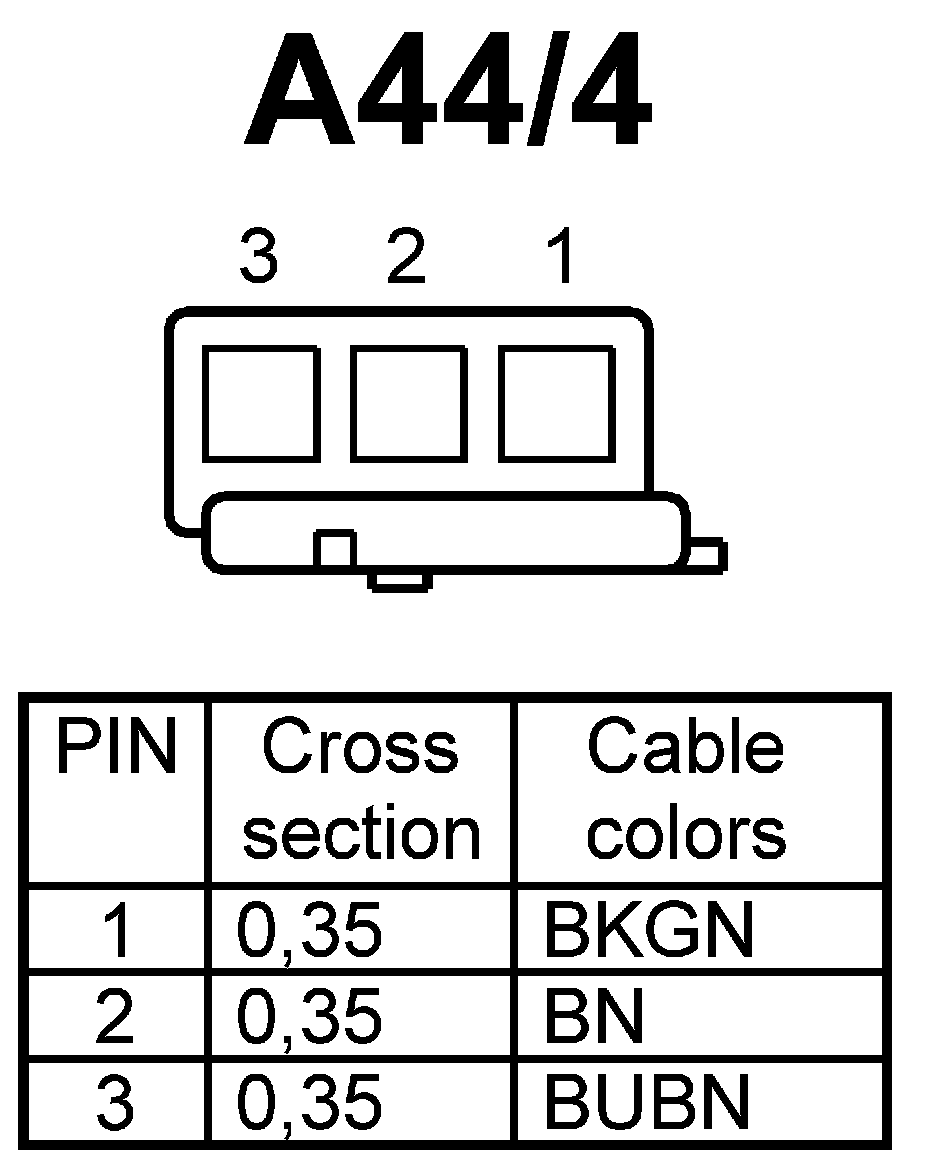

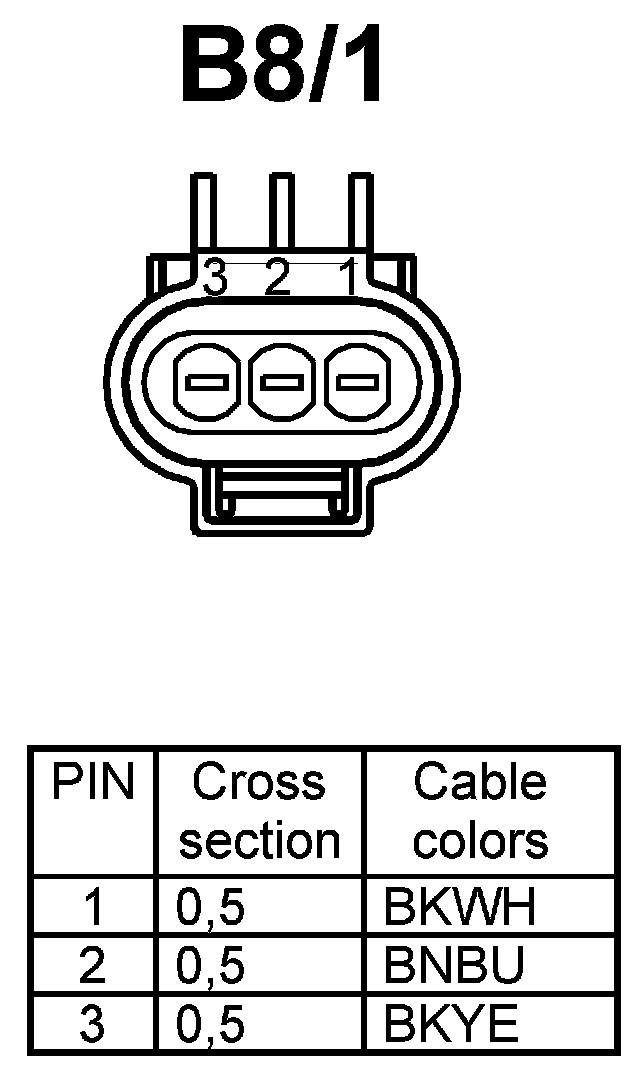

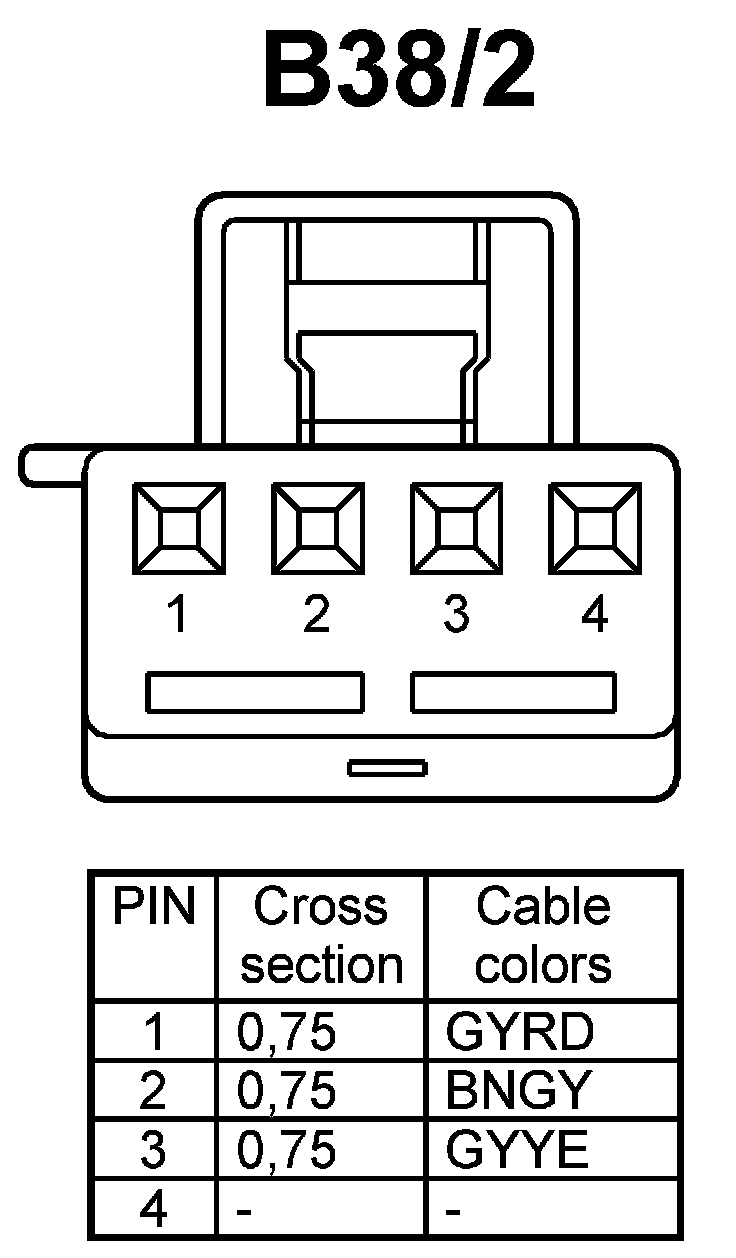

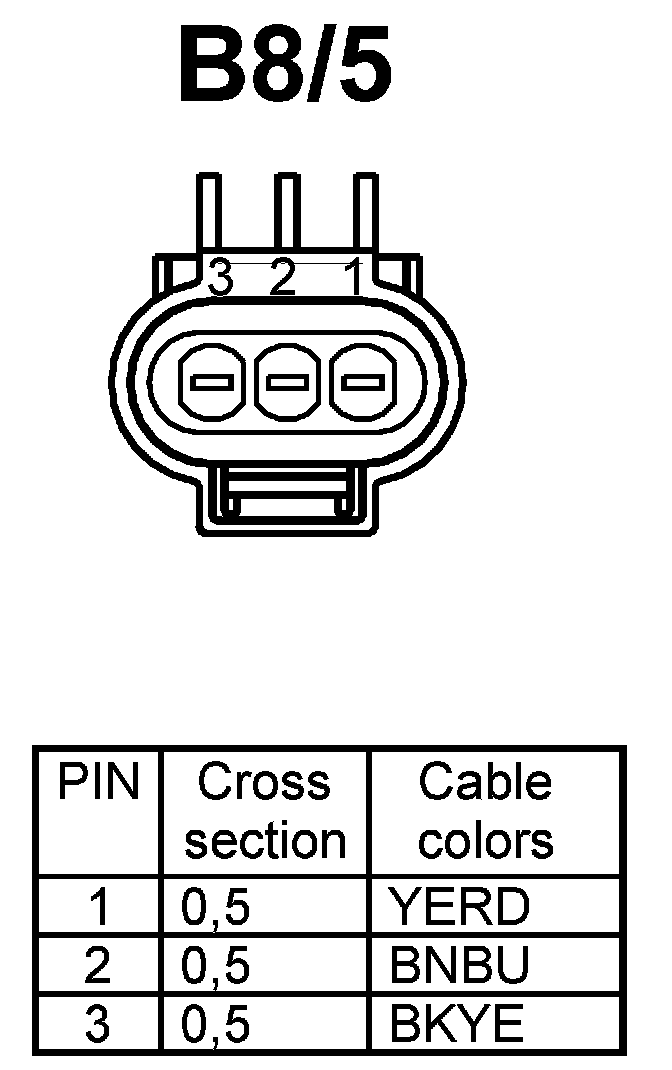

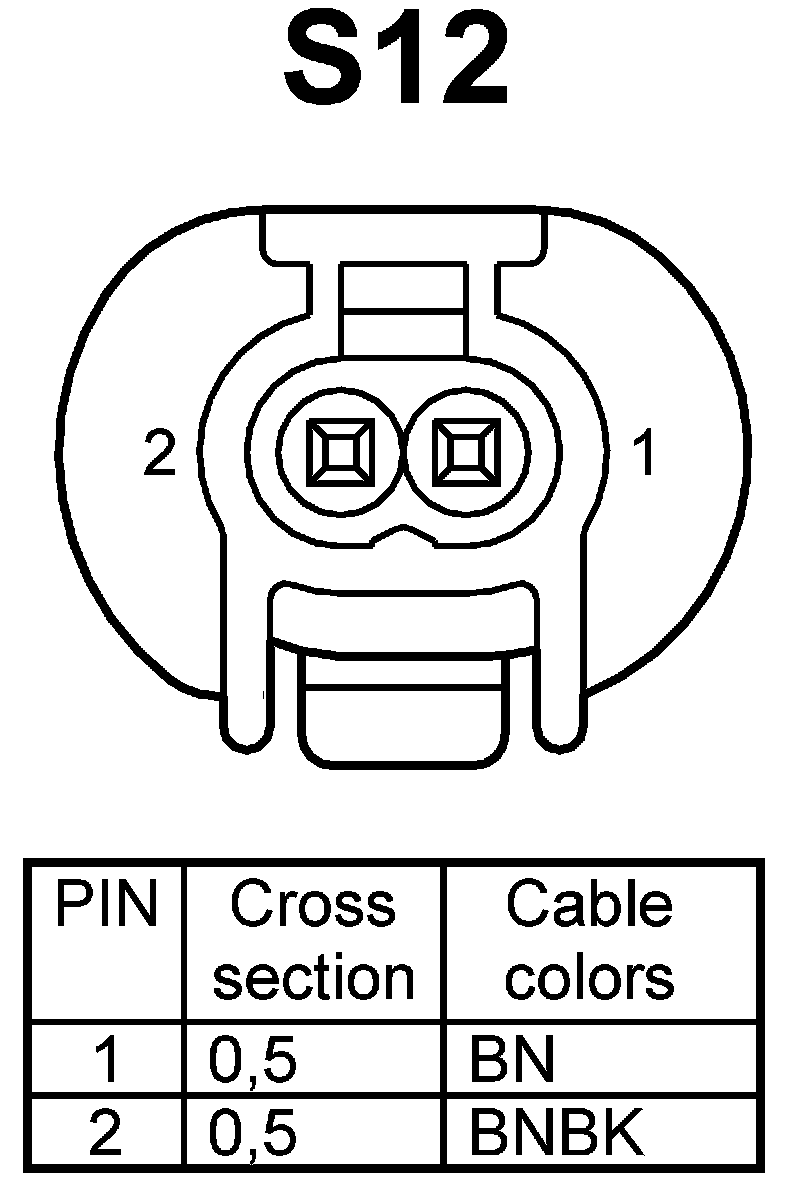

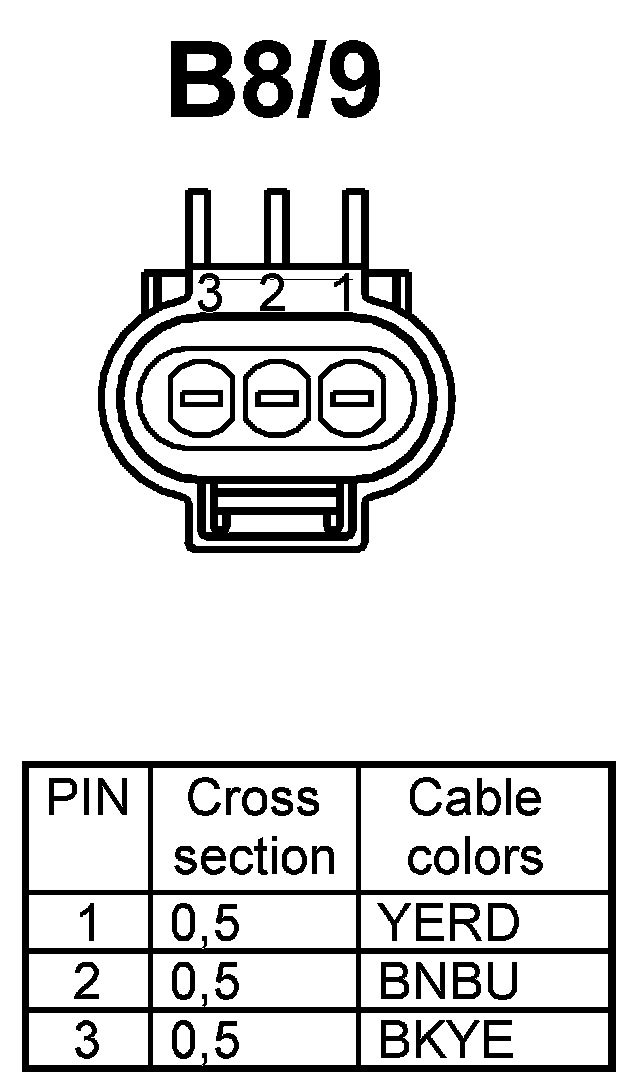

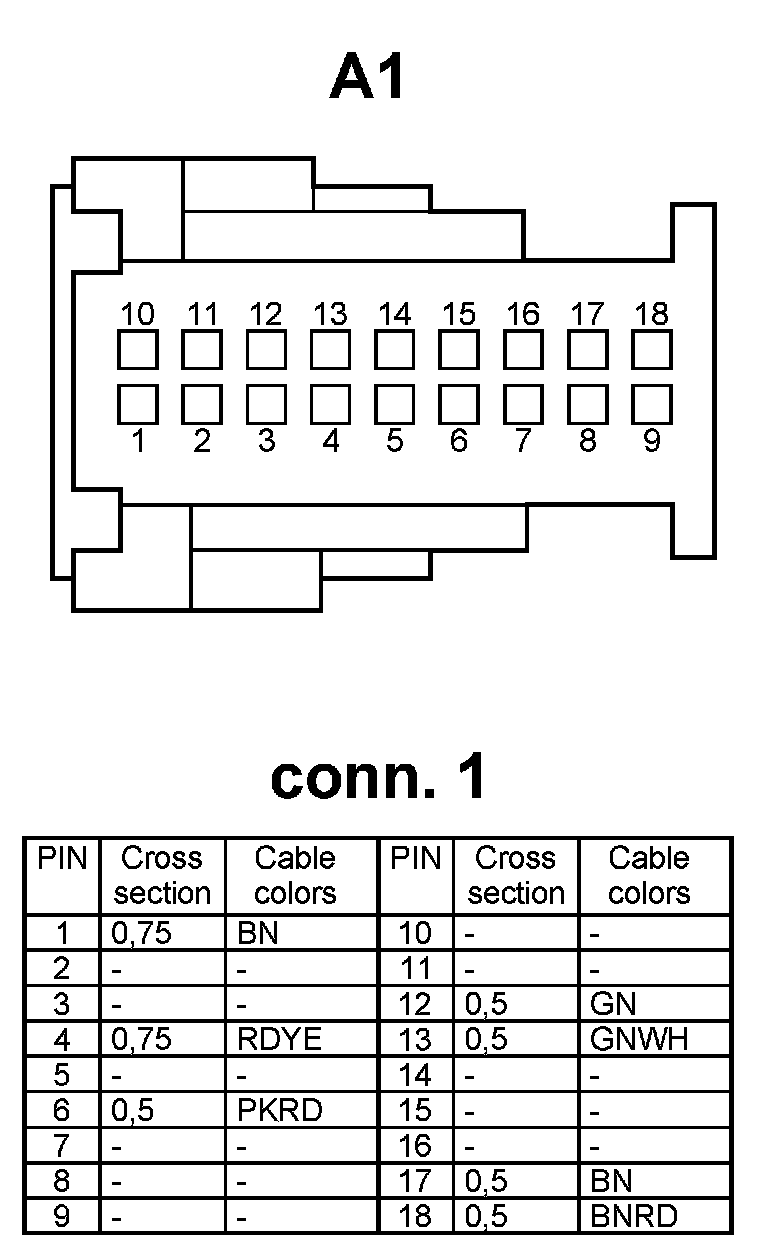

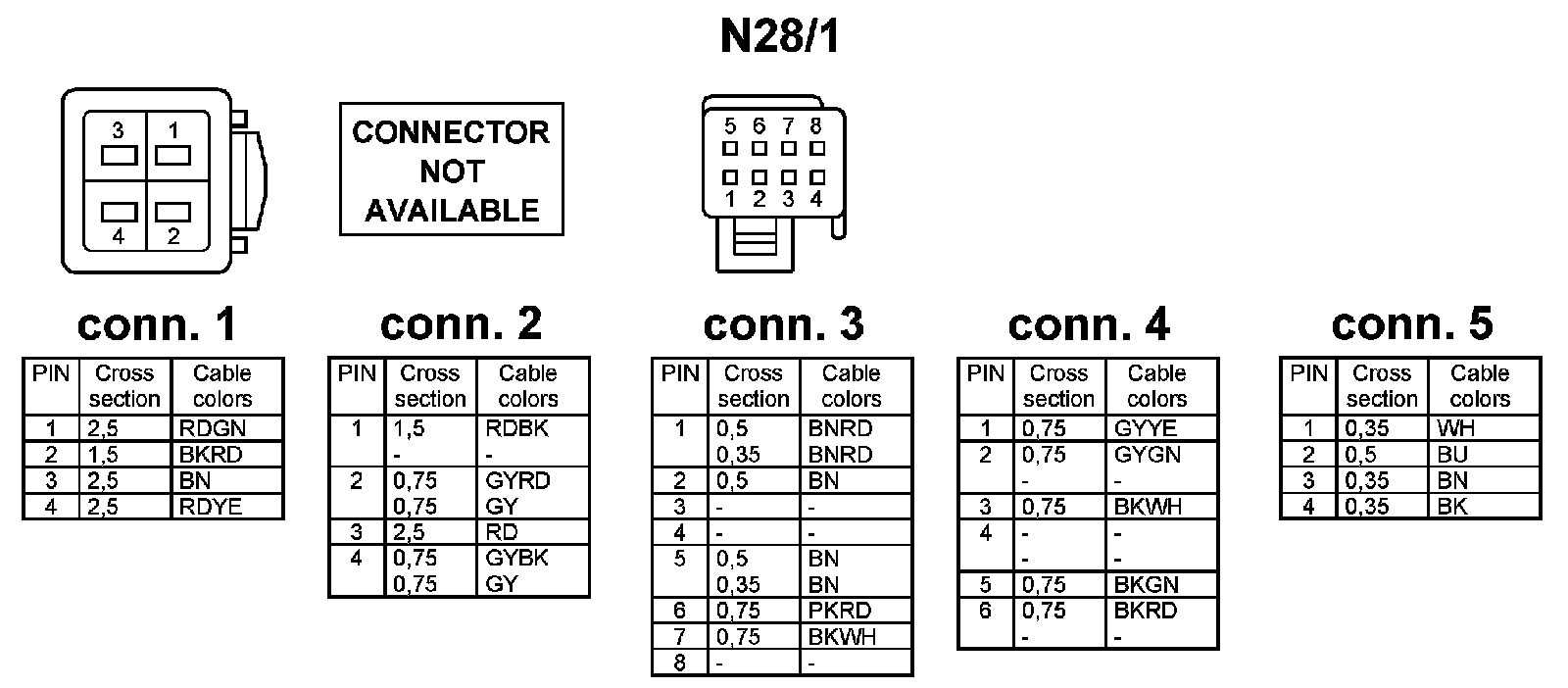

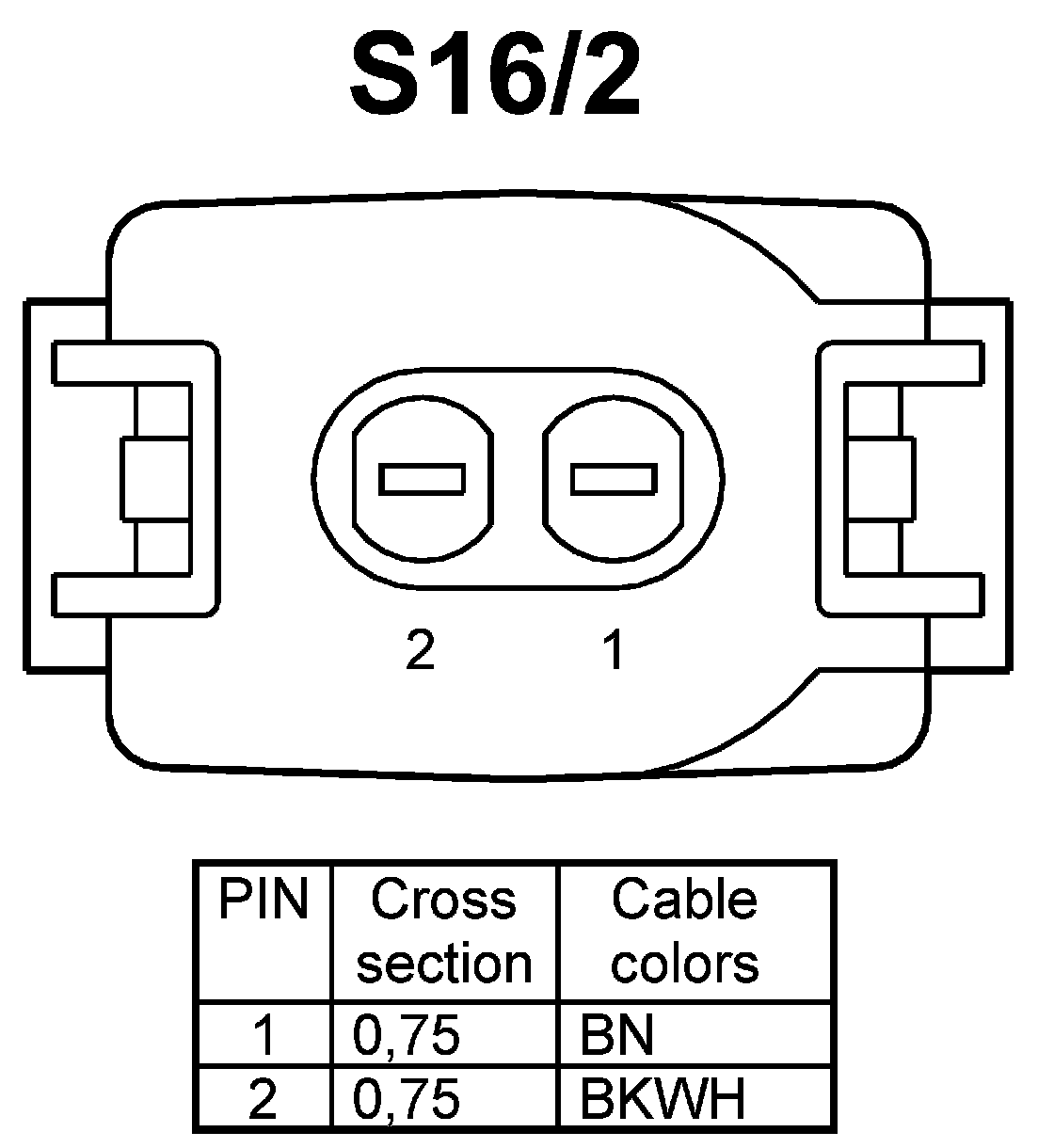

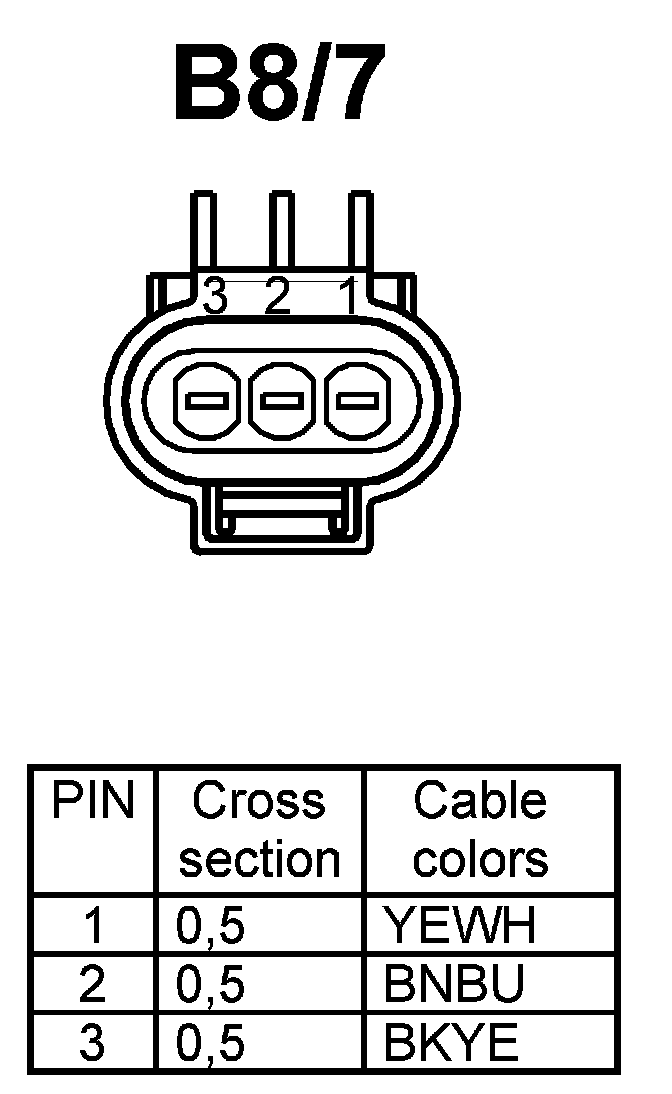

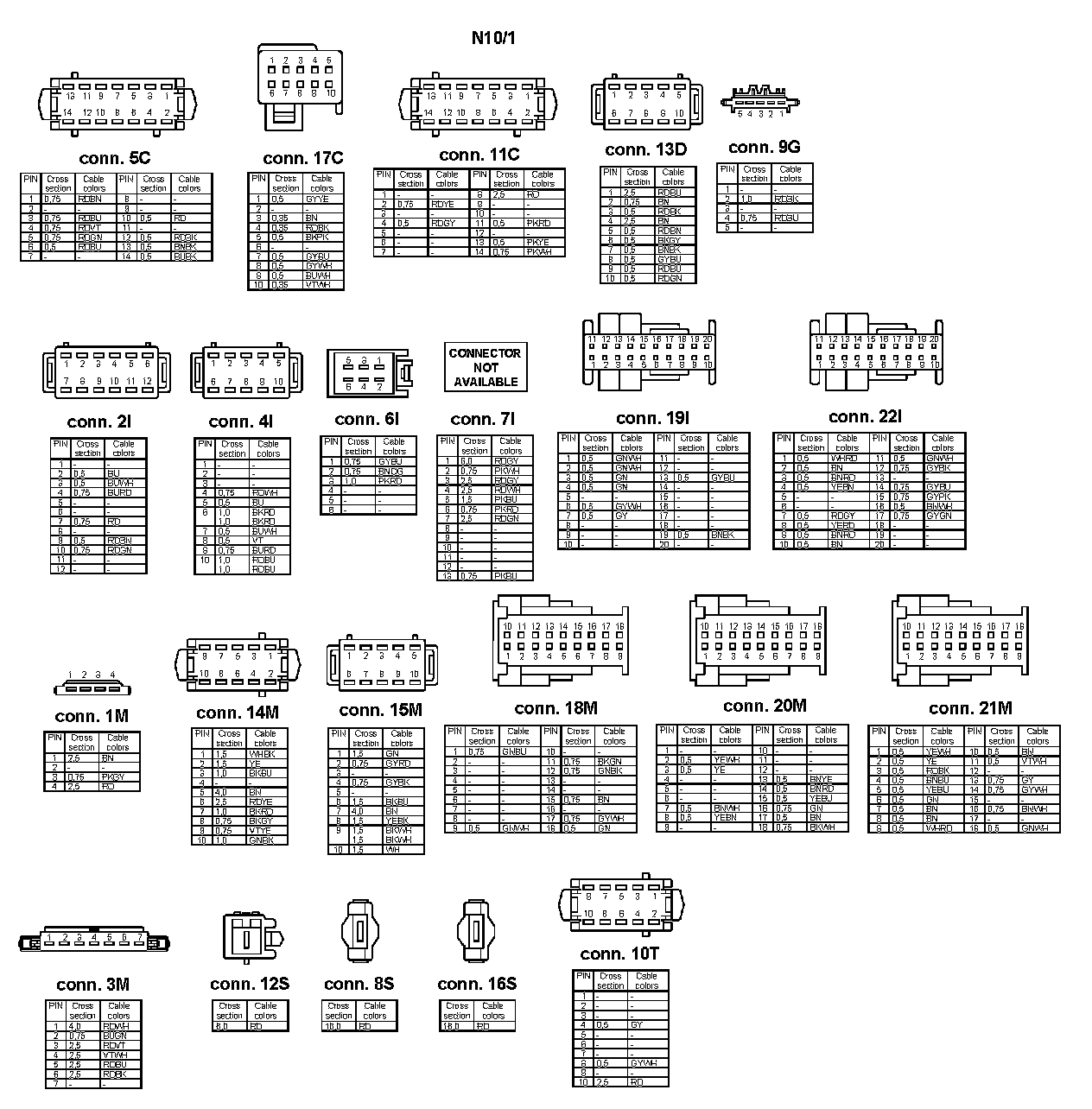

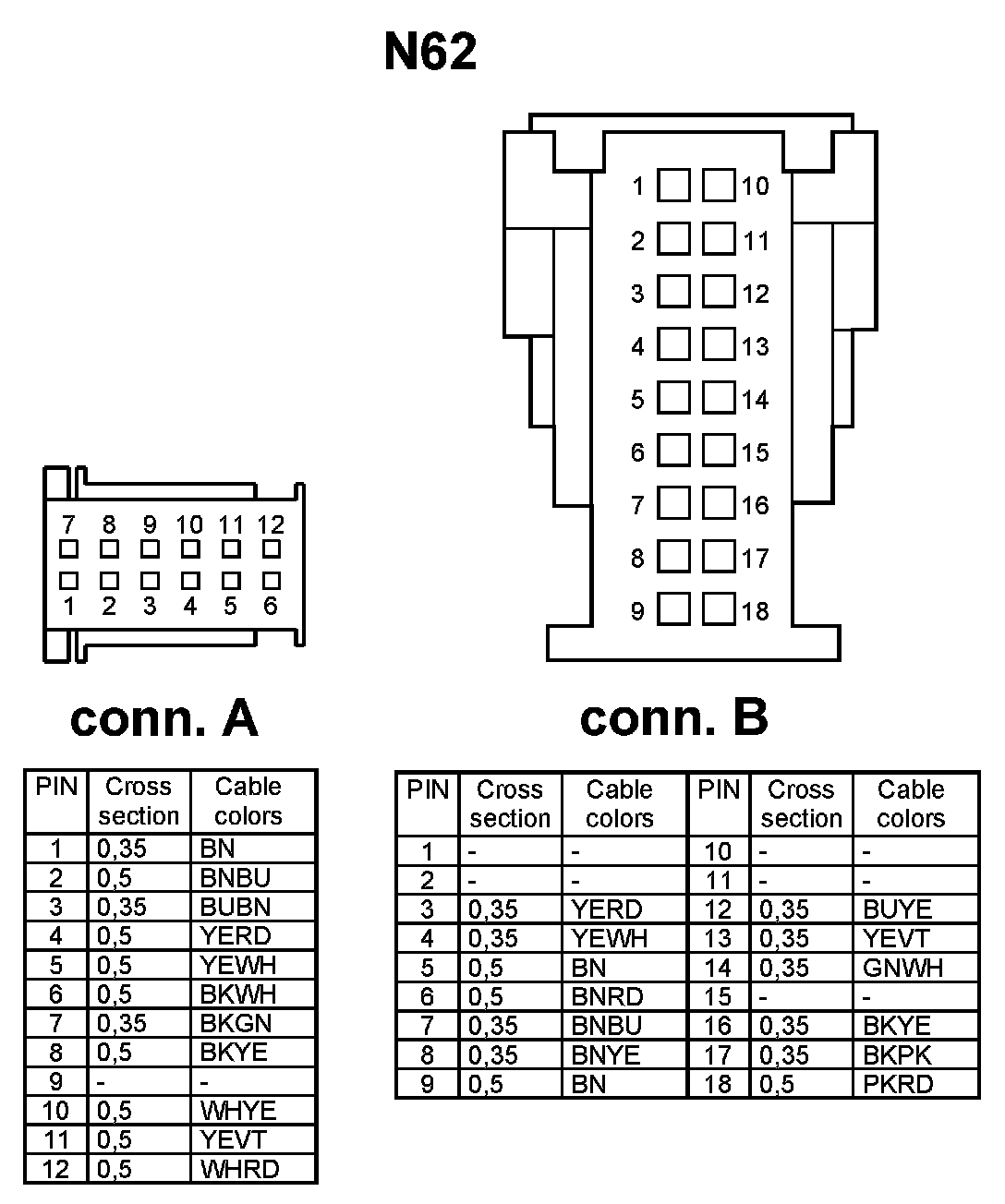

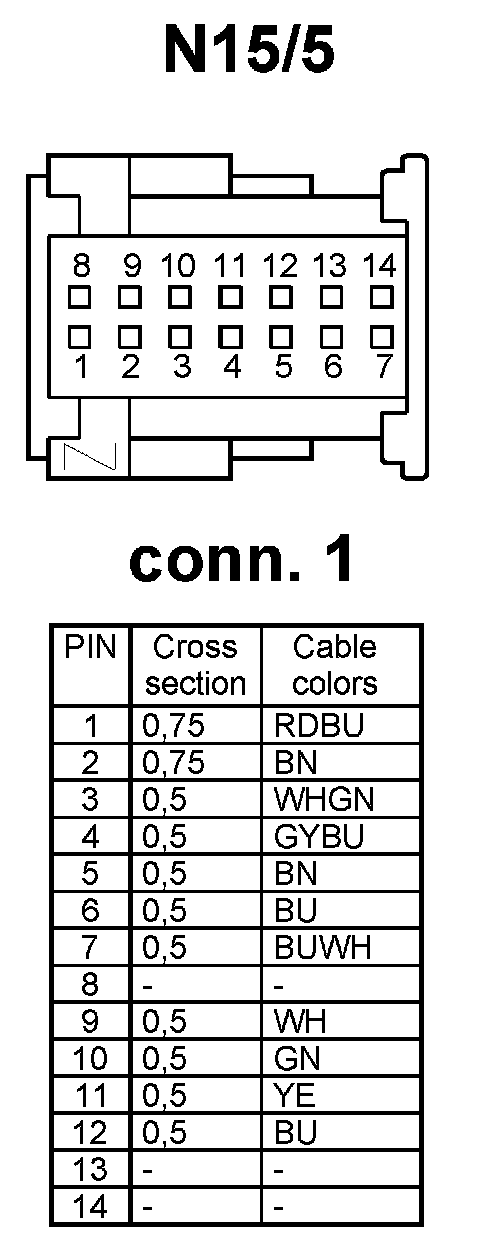

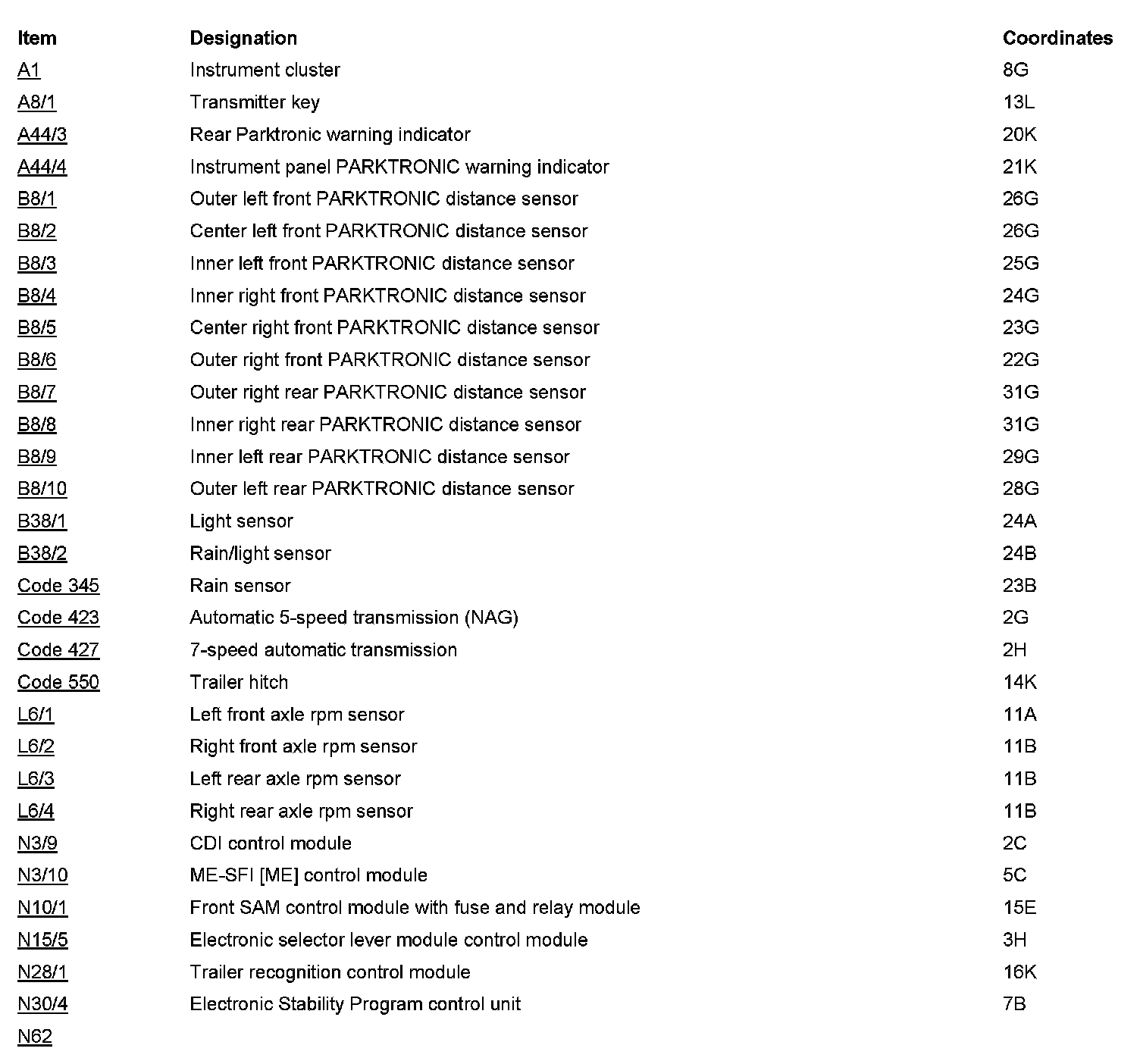

PE54.65-P-2052FAA Electrical Function Schematic, Parktronic, Driving Mode

MODEL 204
- up to model year 08/YoM 07















































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
