PE82.70-P-2056FAA Electrical Function Schematic For Switch on and Switch Off Characteristics, Establishing, Accepting and

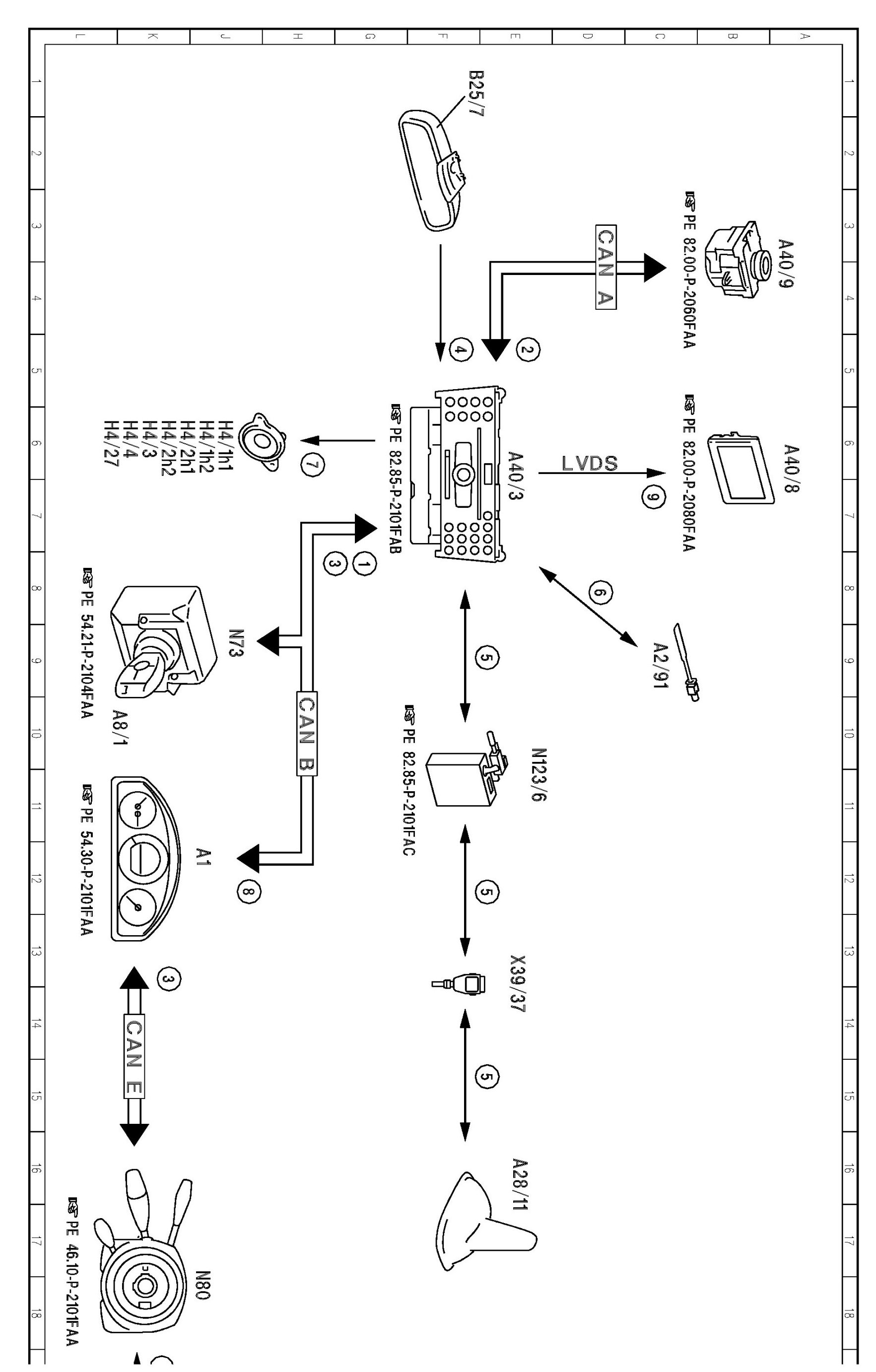

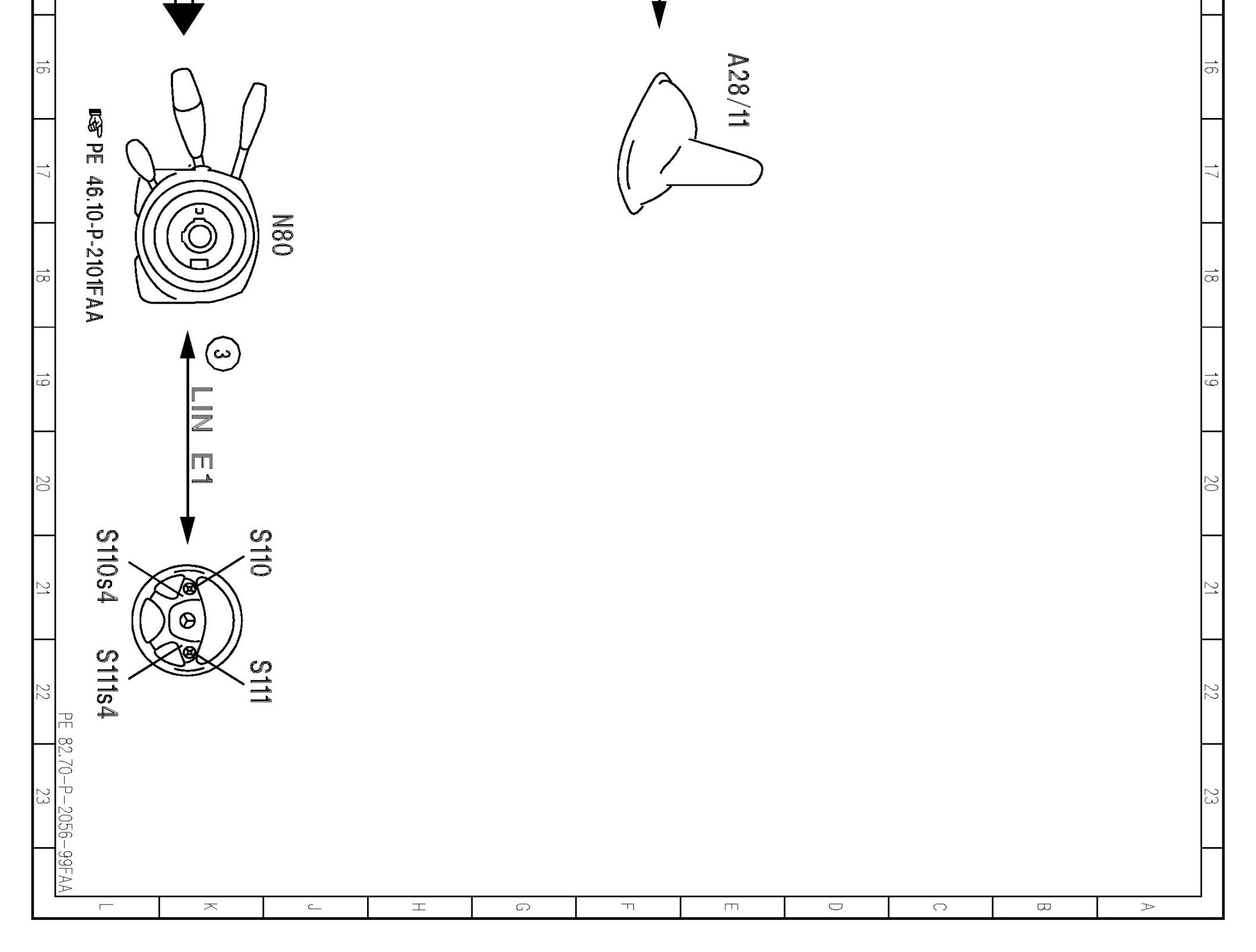

PE82.70-P-2056FAA Electrical Function Schematic For Switch On And Switch Off Characteristics, Establishing, Accepting And Ending Calls

MODEL 204
- with CODE (498) Japan version
- up to model year 08/YoM 07

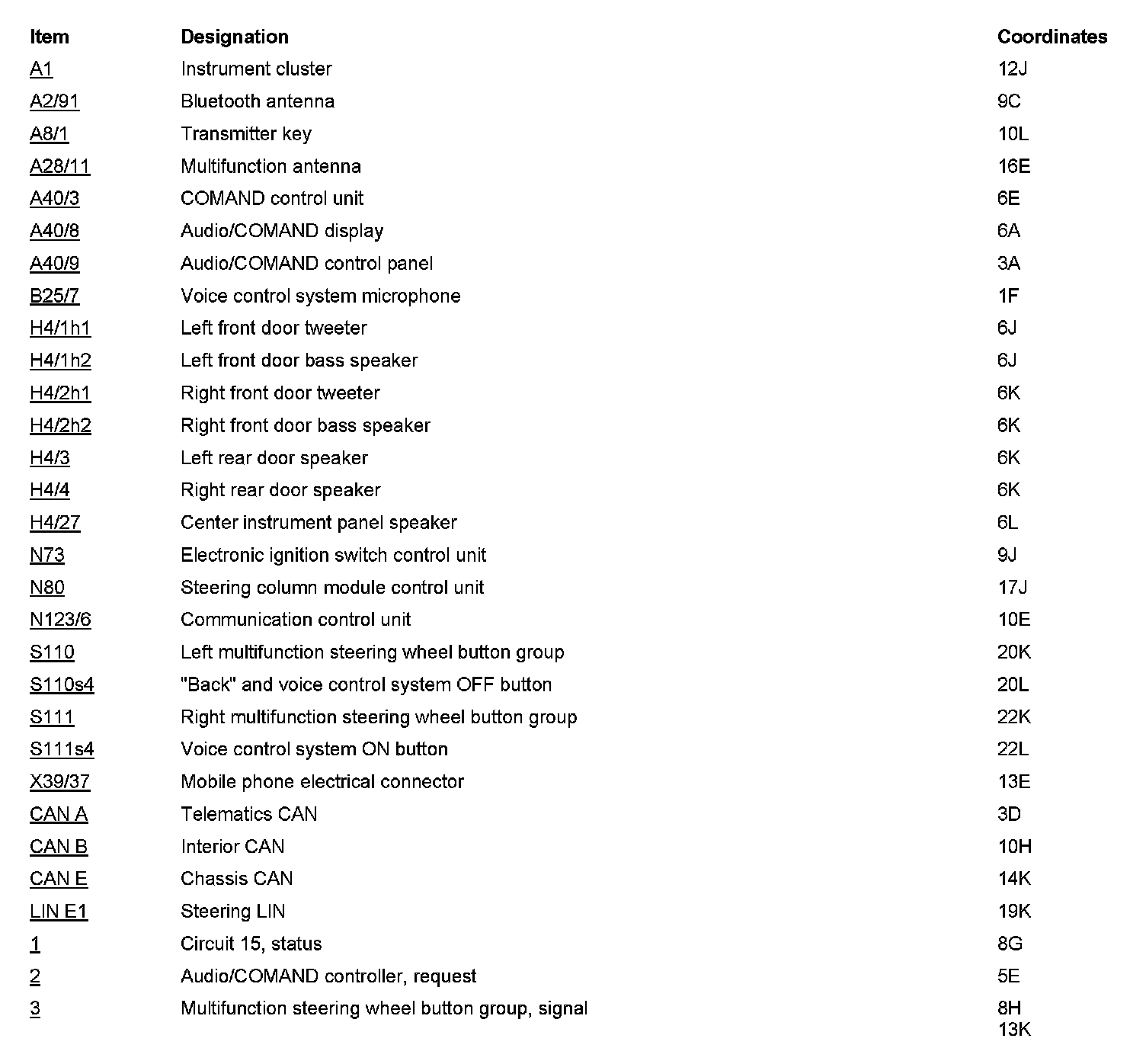

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
