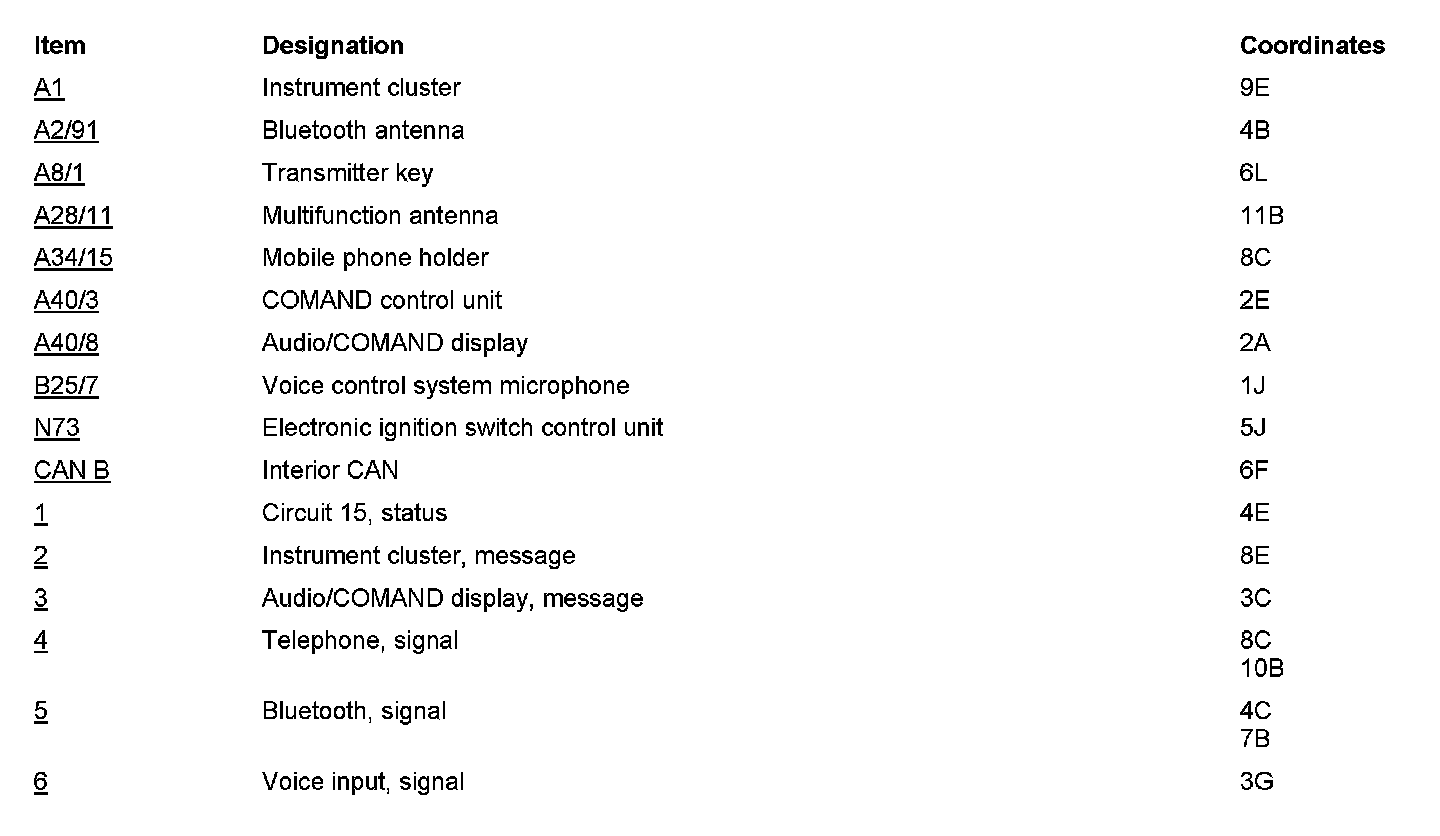

PE82.70-P-2054FAA Electrical Function Schematic For Mobile Phone, Switch on and Switch Off Characteristics

PE82.70-P-2054FAA Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics

MODEL 204
- with CODE (512) COMAND APS with DVD changer
- with CODE (386) Mobile phone
- with CODE (810) Sound system
- up to model year 08/YoM 07 comfort telephony







































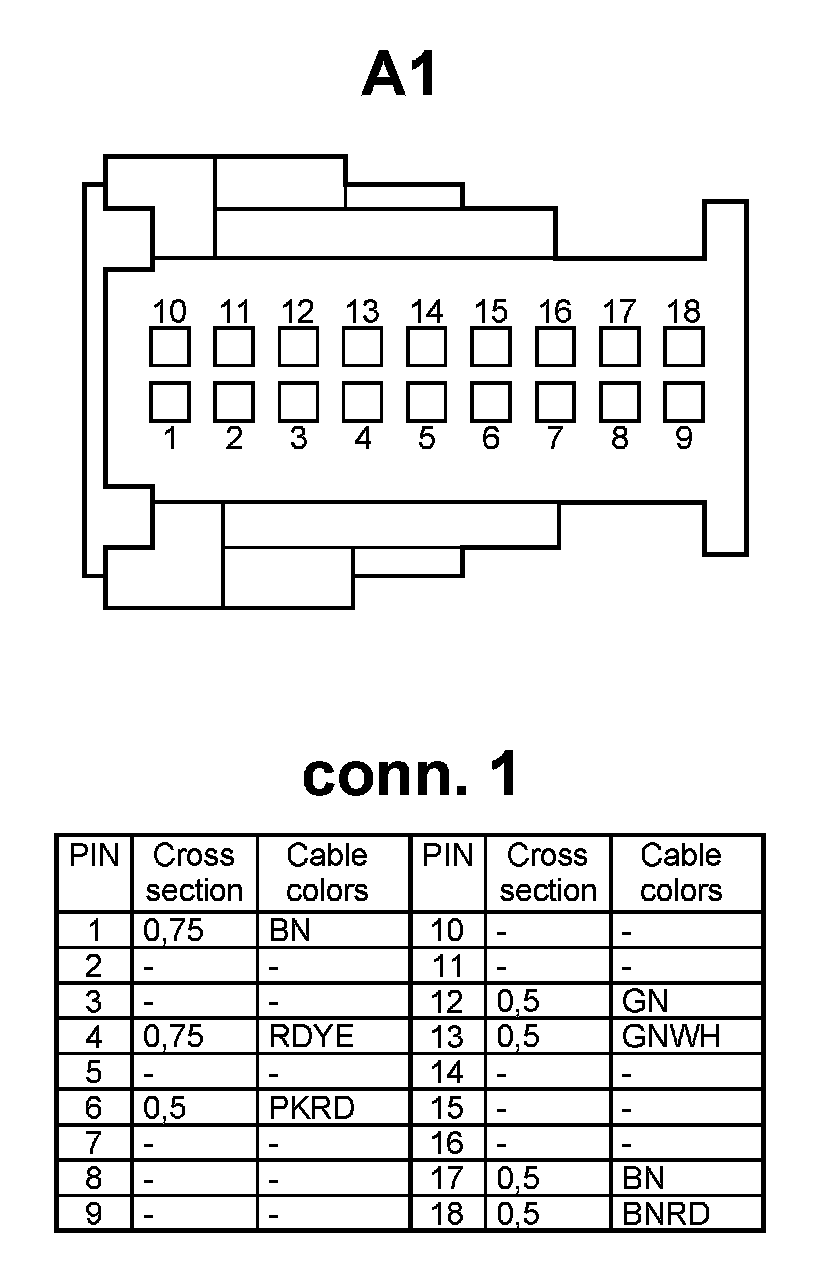

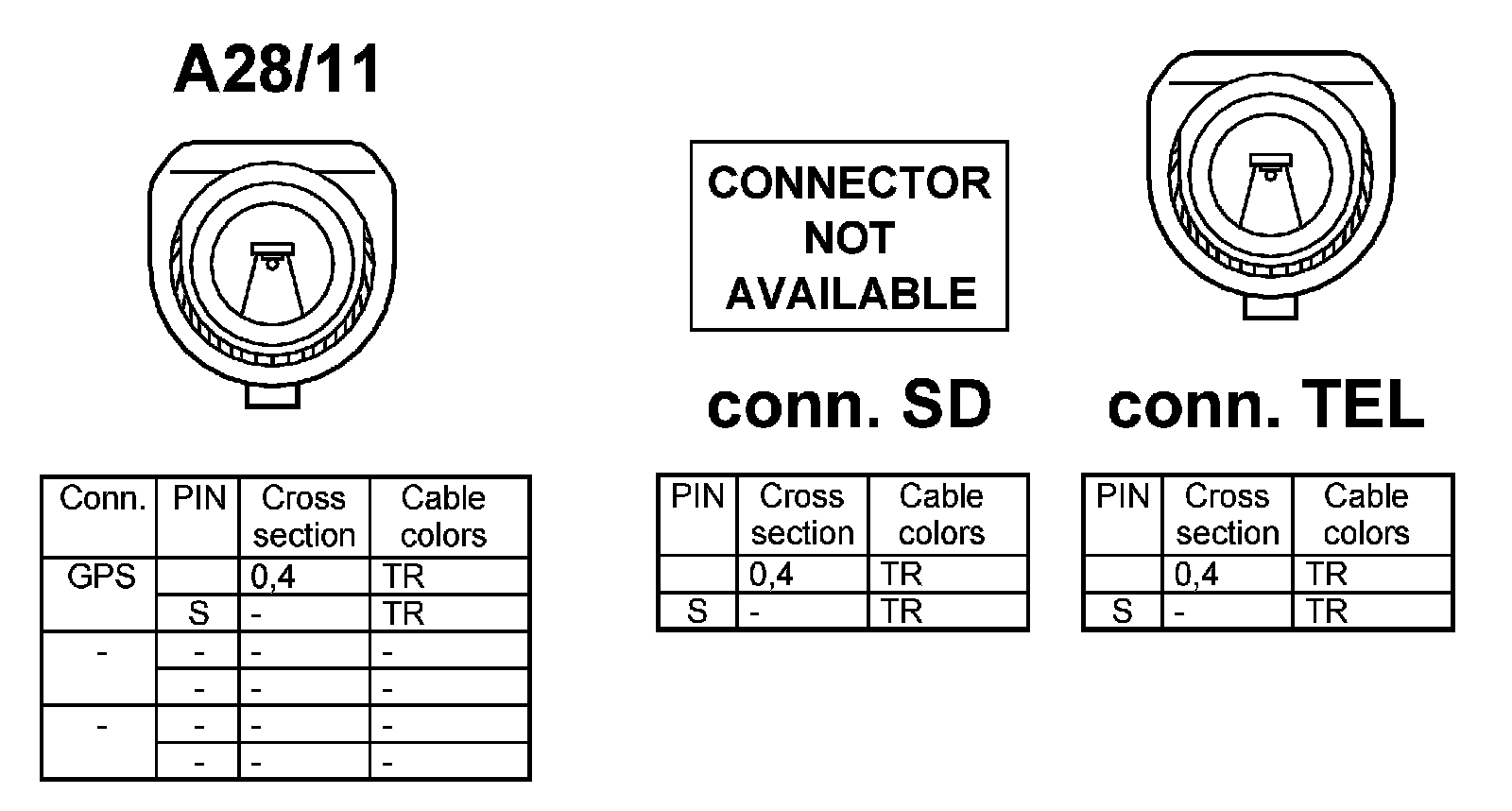

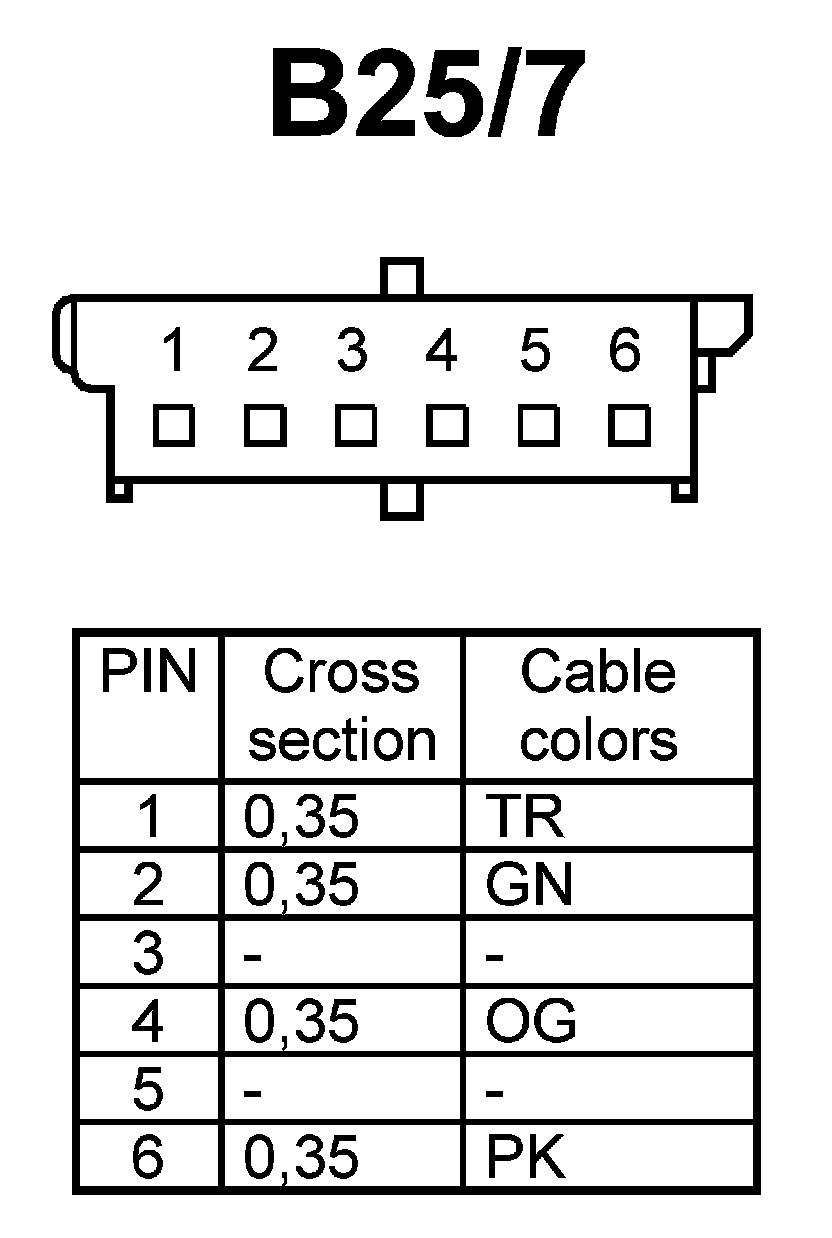

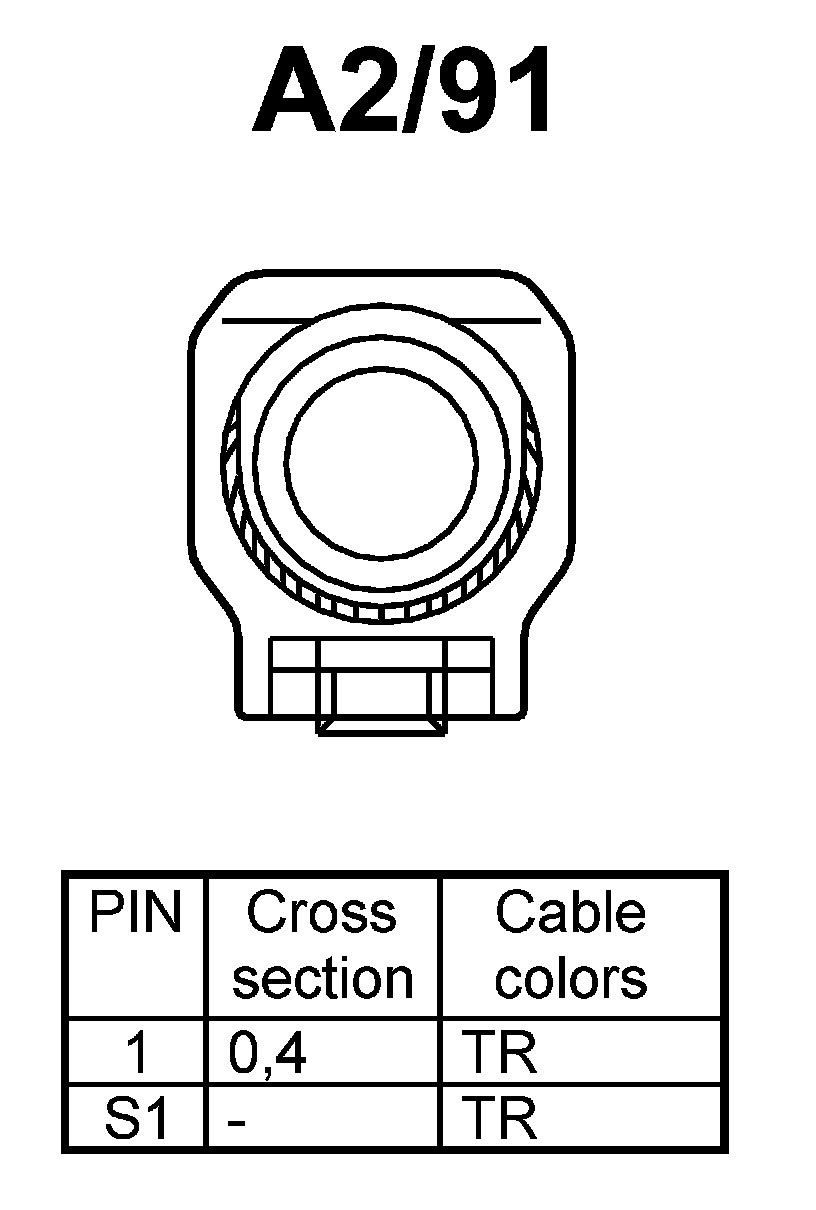

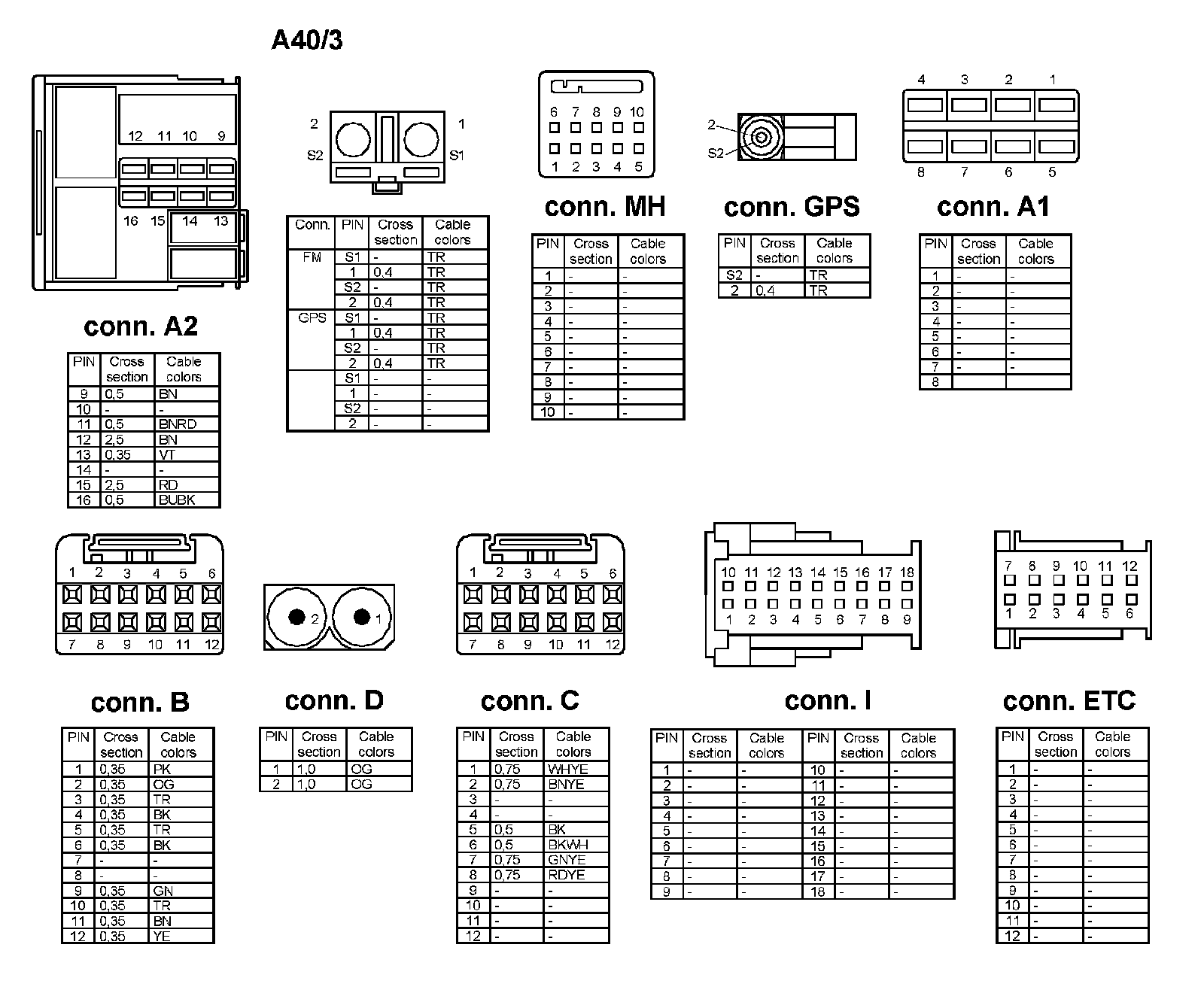

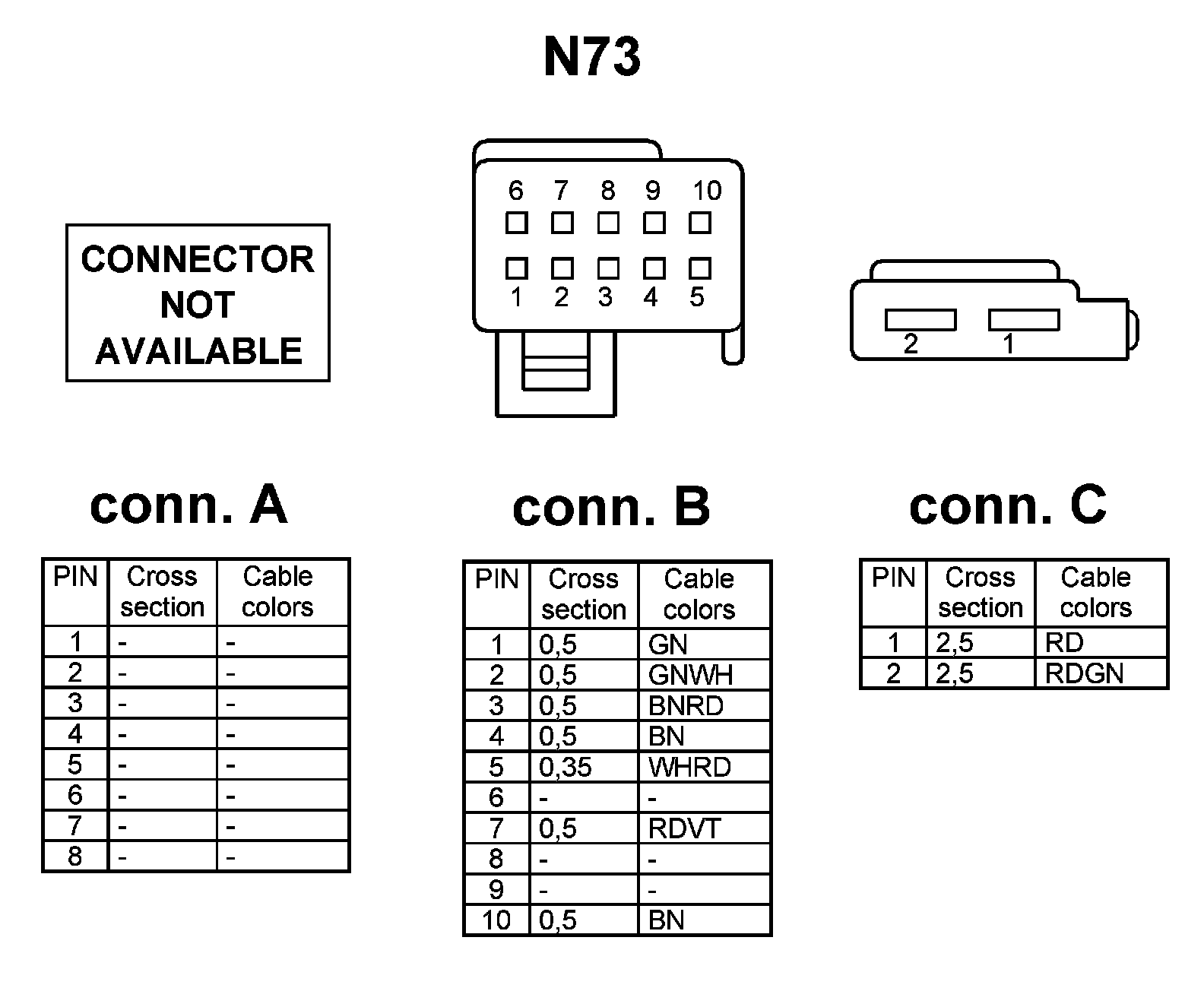

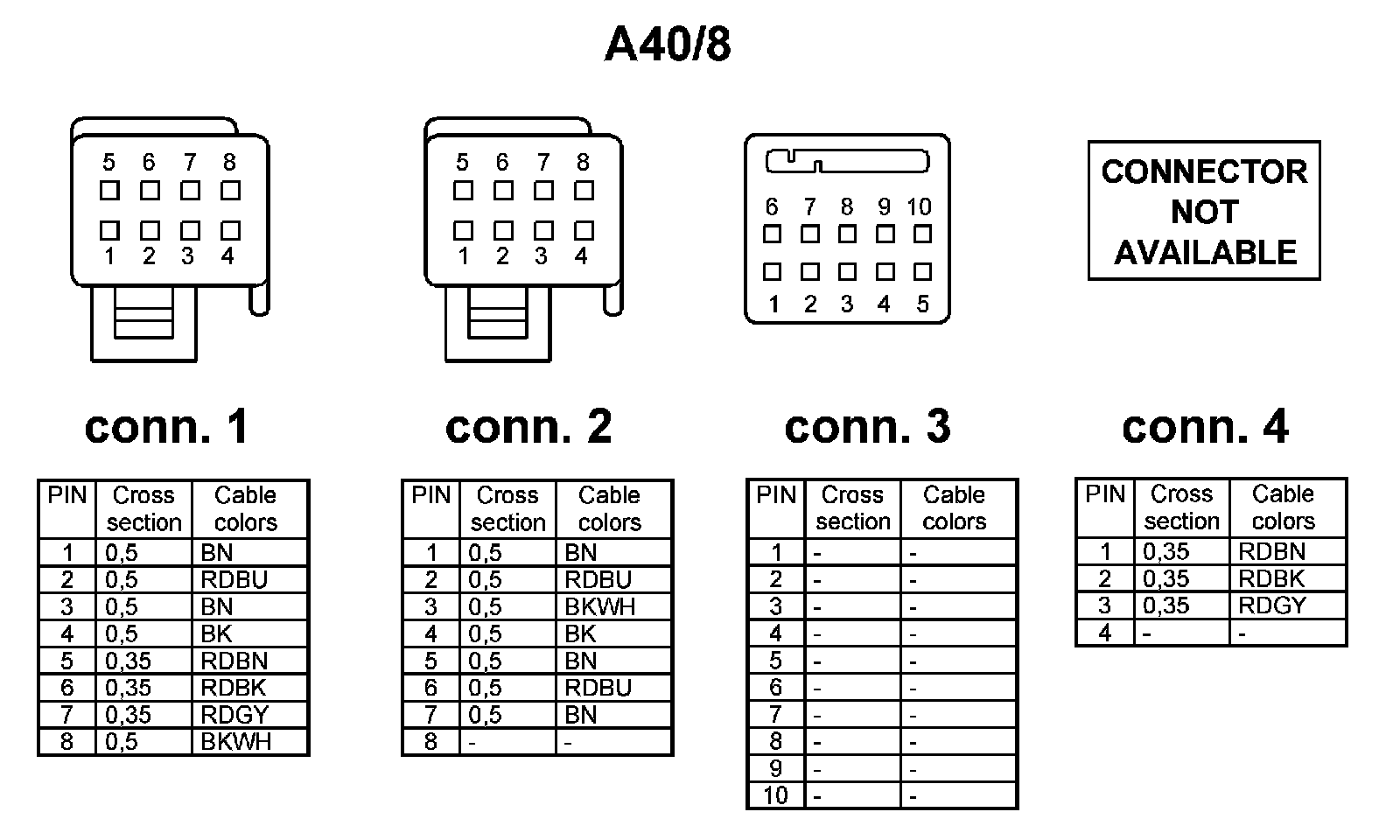

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
