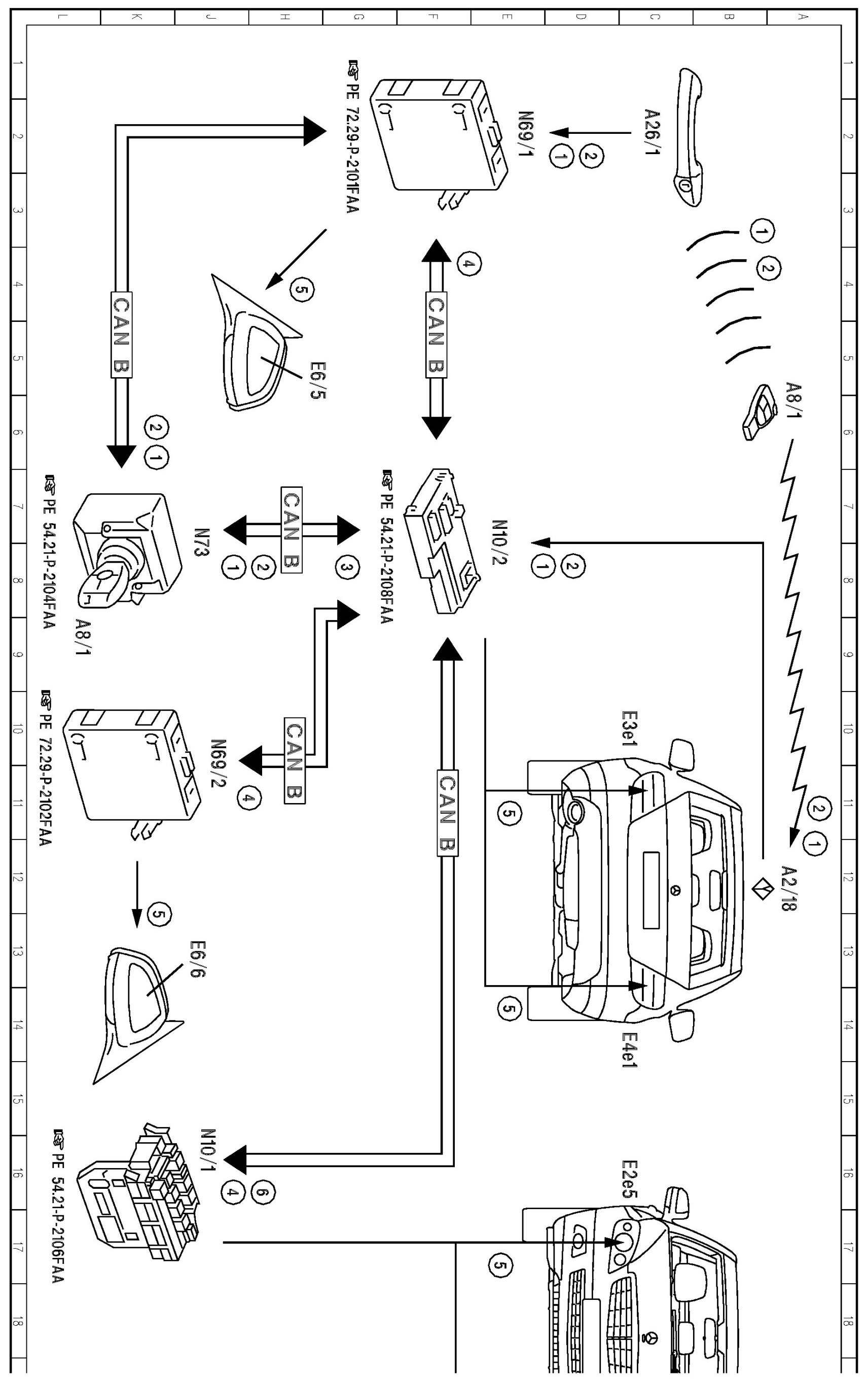

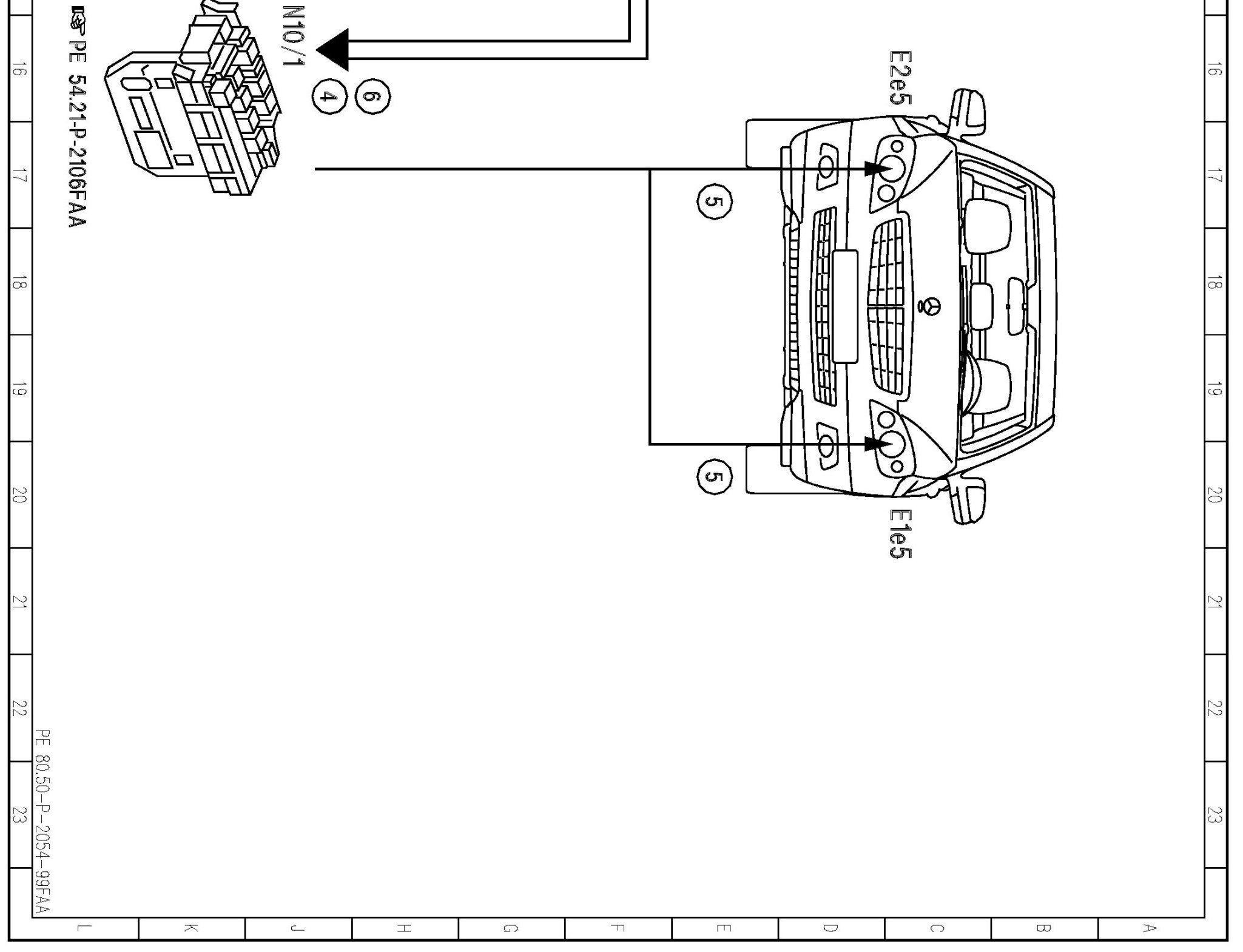

PE80.50-P-2054FAA Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation By Panic Switch

PE80.50-P-2054FAA Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation By Panic Switch

MODEL 204
- with CODE (763) Radio remote control with panic switch
- up to model year 08 /YoM 07















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
