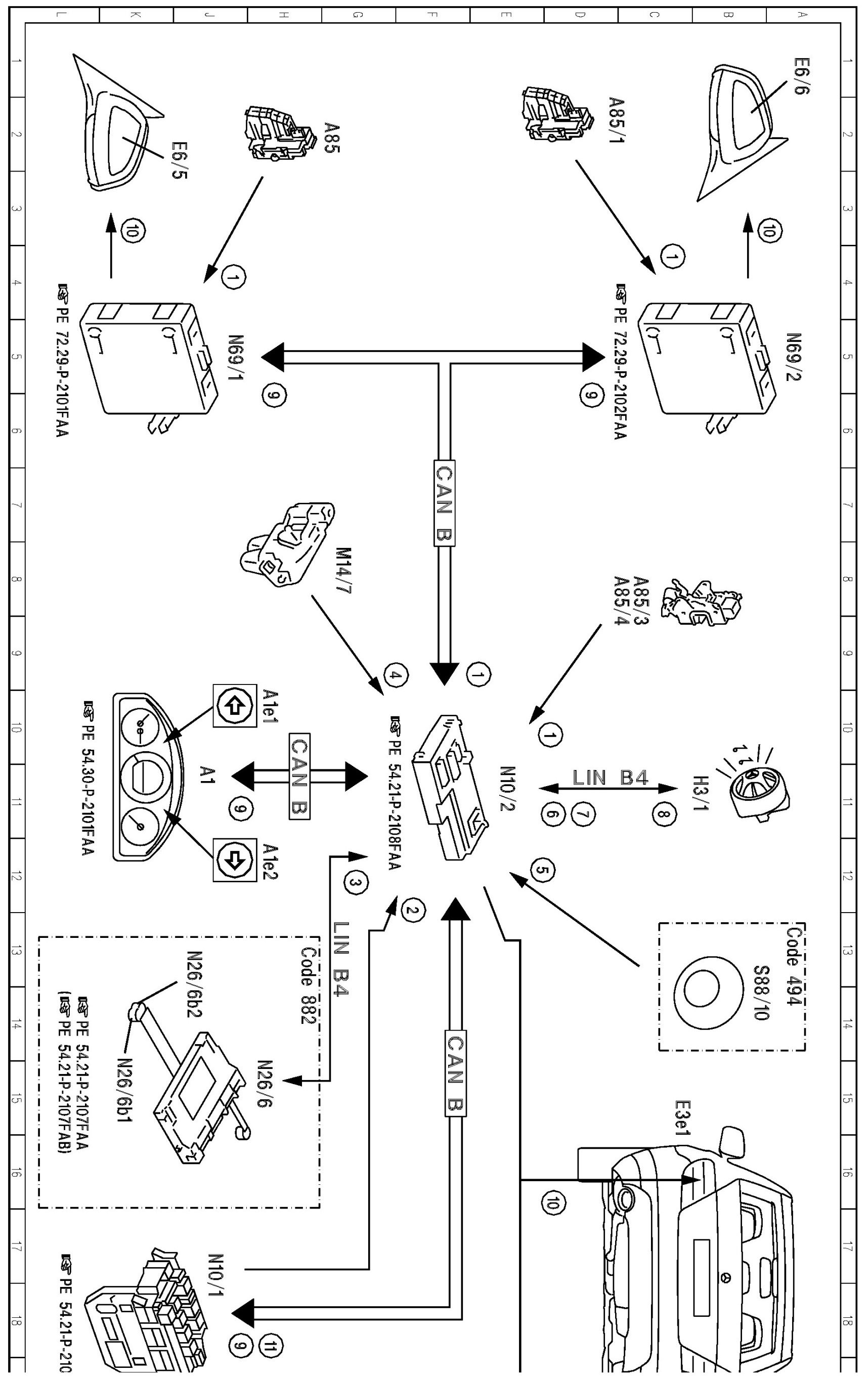

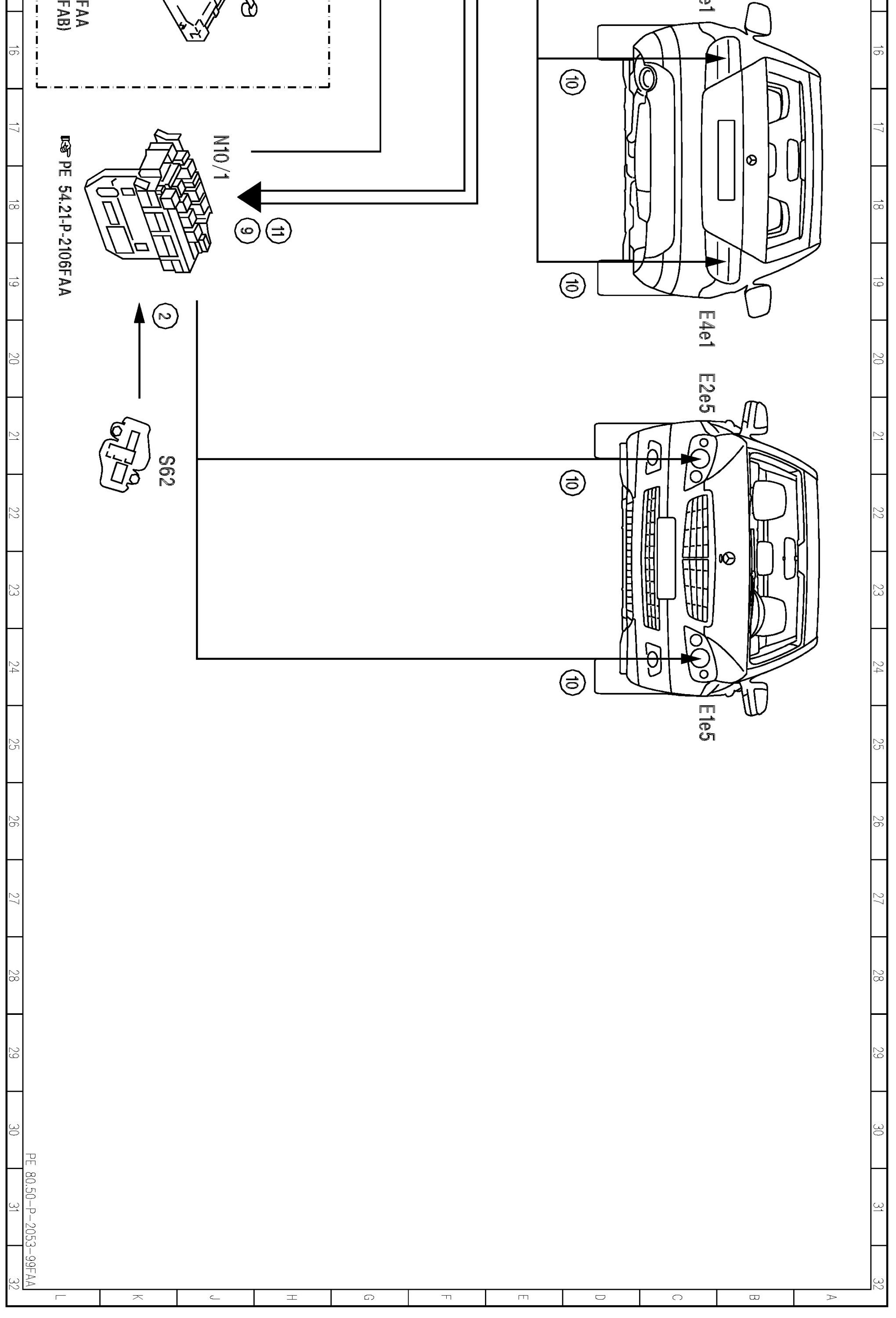

PE80.50-P-2053FAA Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation

PE80.50-P-2053FAA Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation

MODEL 204
- up to model year 08/YoM 07

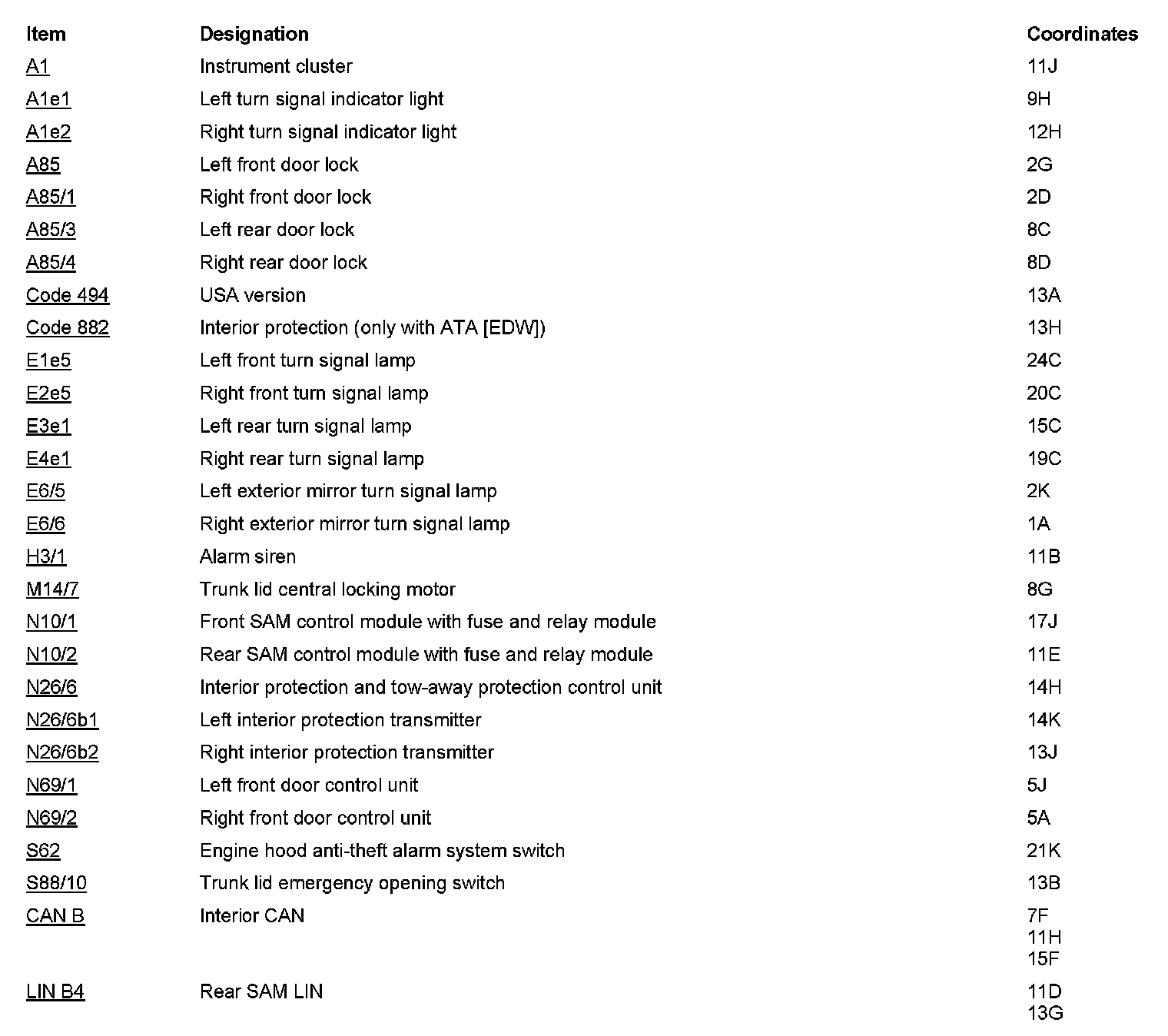

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
