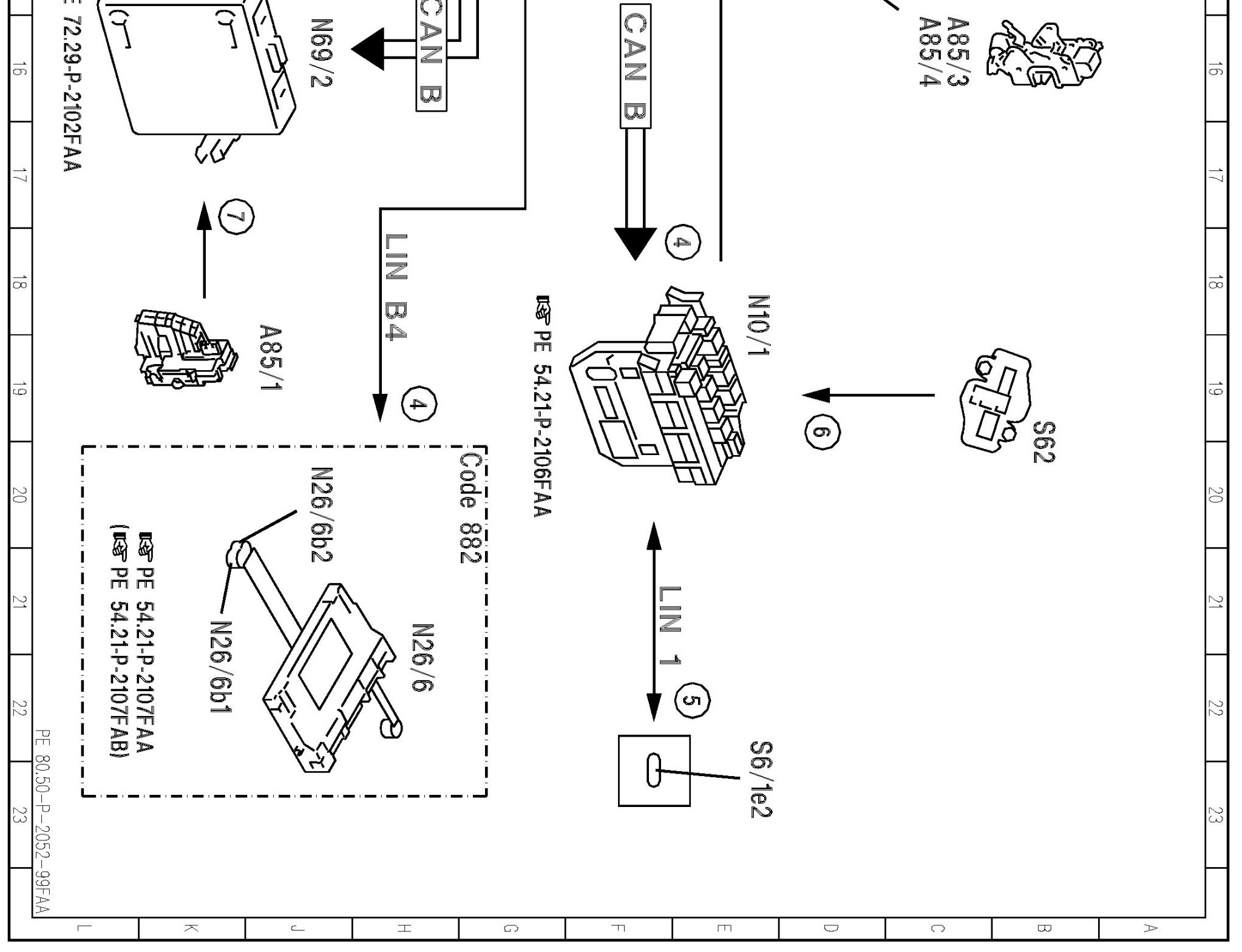

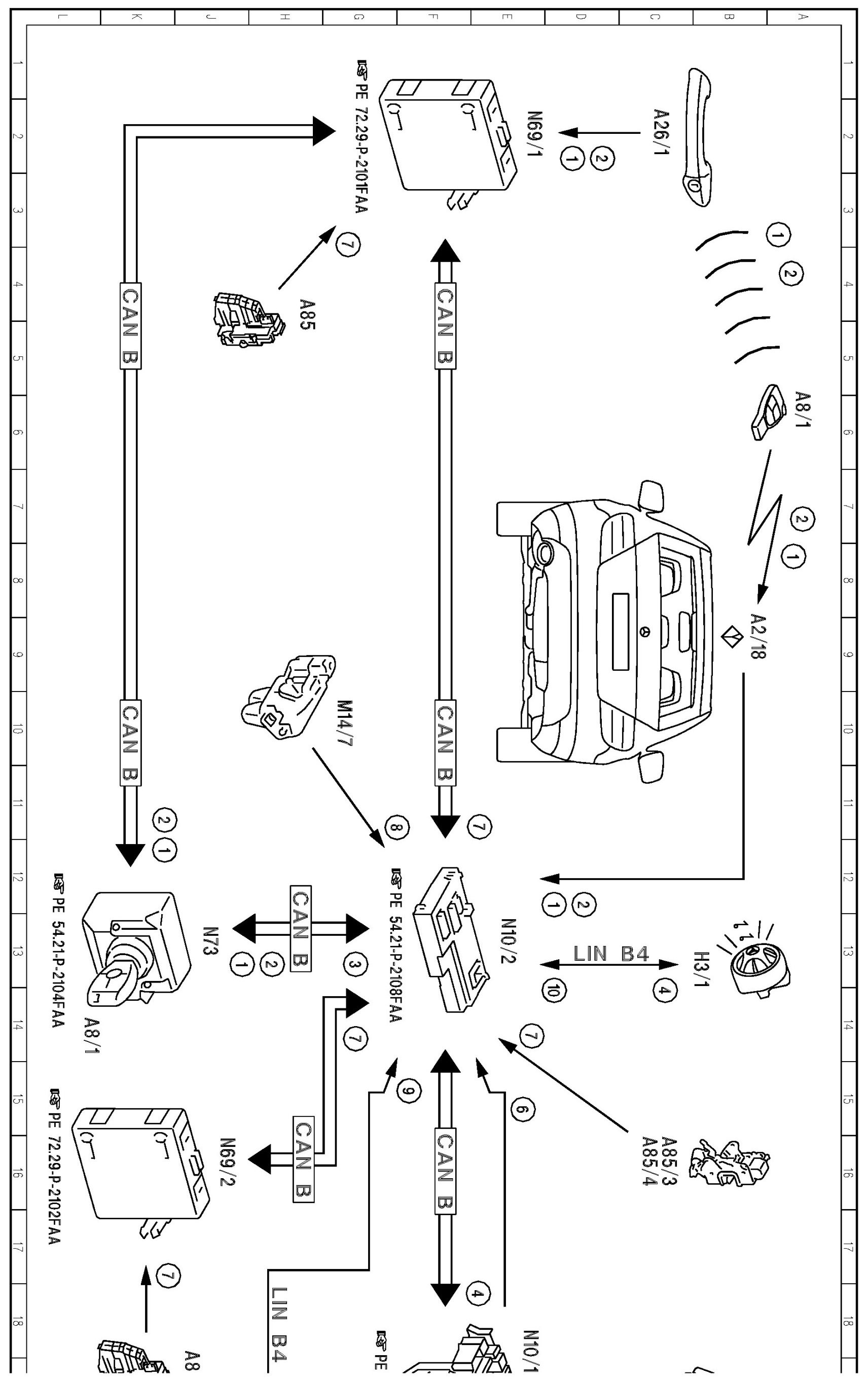

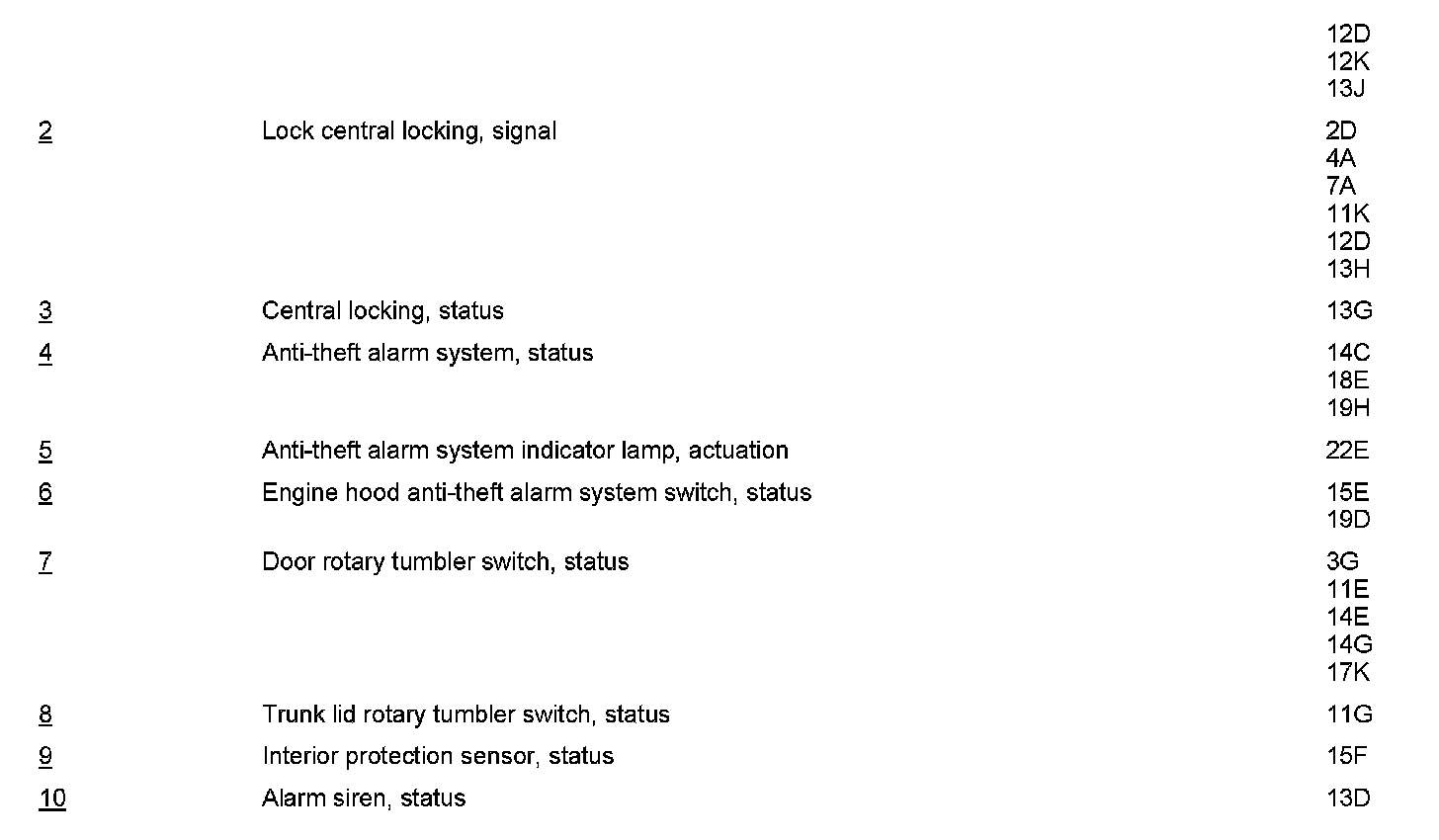

PE80.50-P-2052FAA Function Schematic For Electric Anti-Theft Alarm System, Activation

PE80.50-P-2052FAA Function Schematic For Electric Anti-theft Alarm System, Activation

MODEL 204.0
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- up to model year 08 /YoM 07

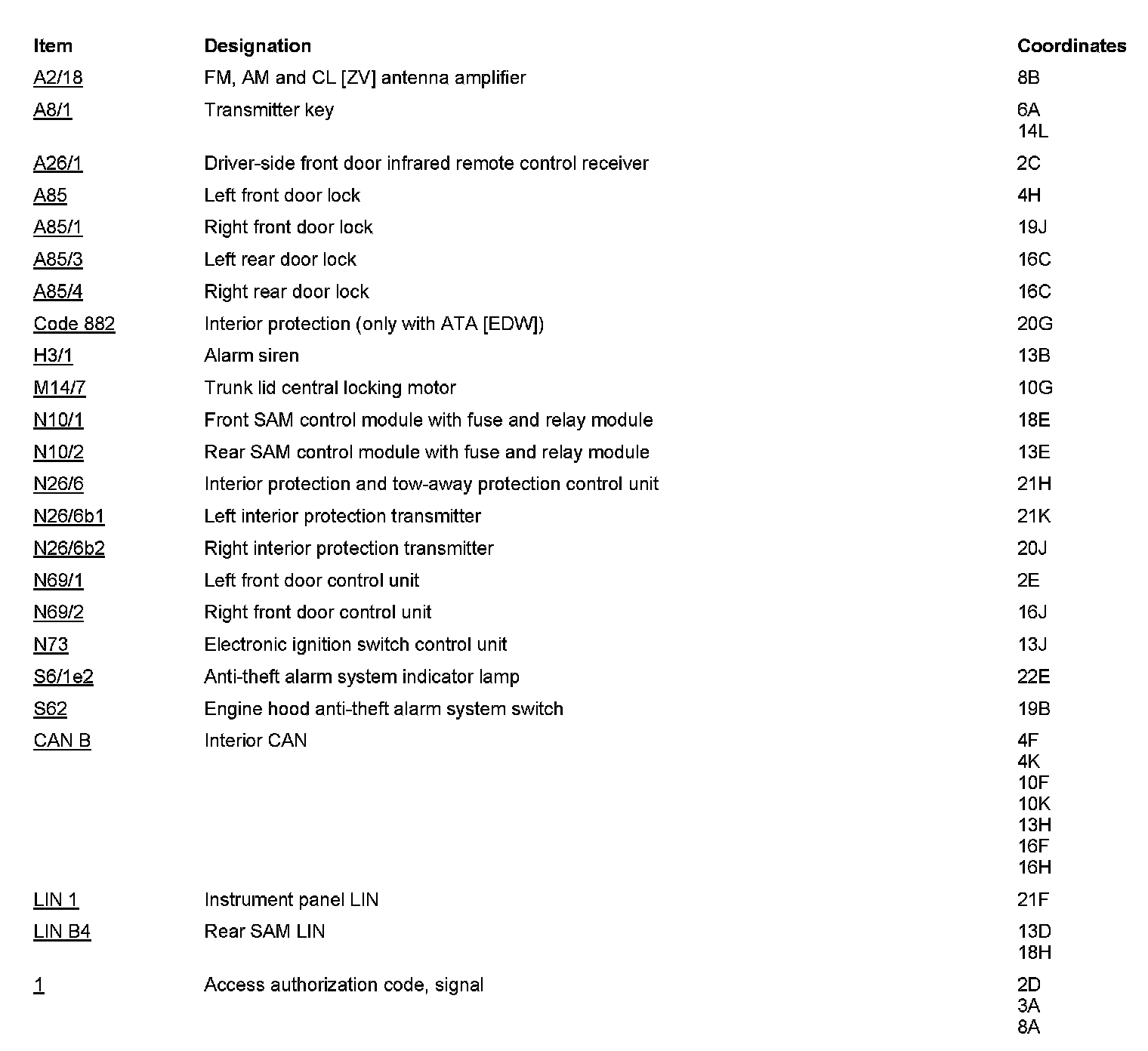

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
