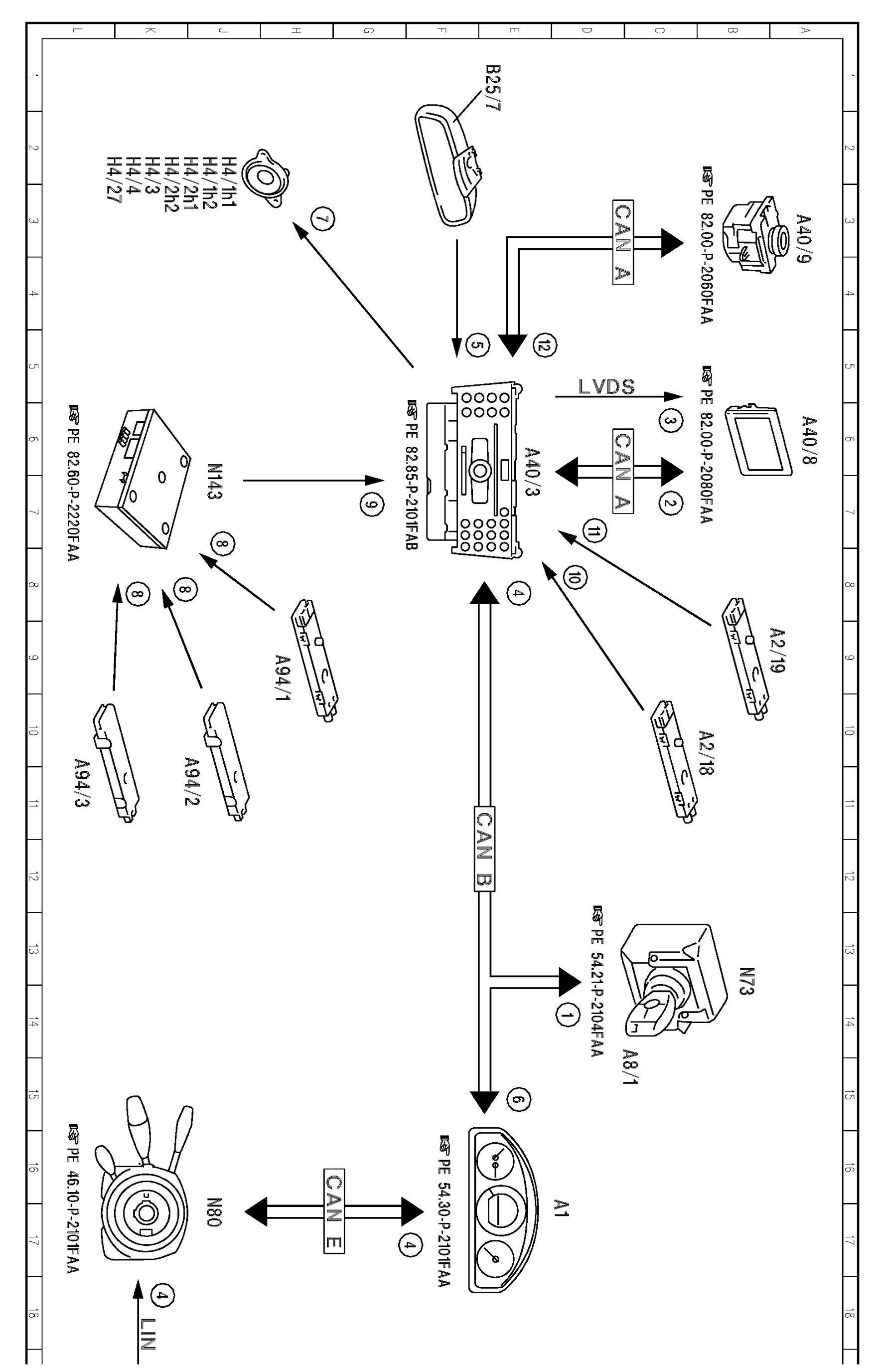

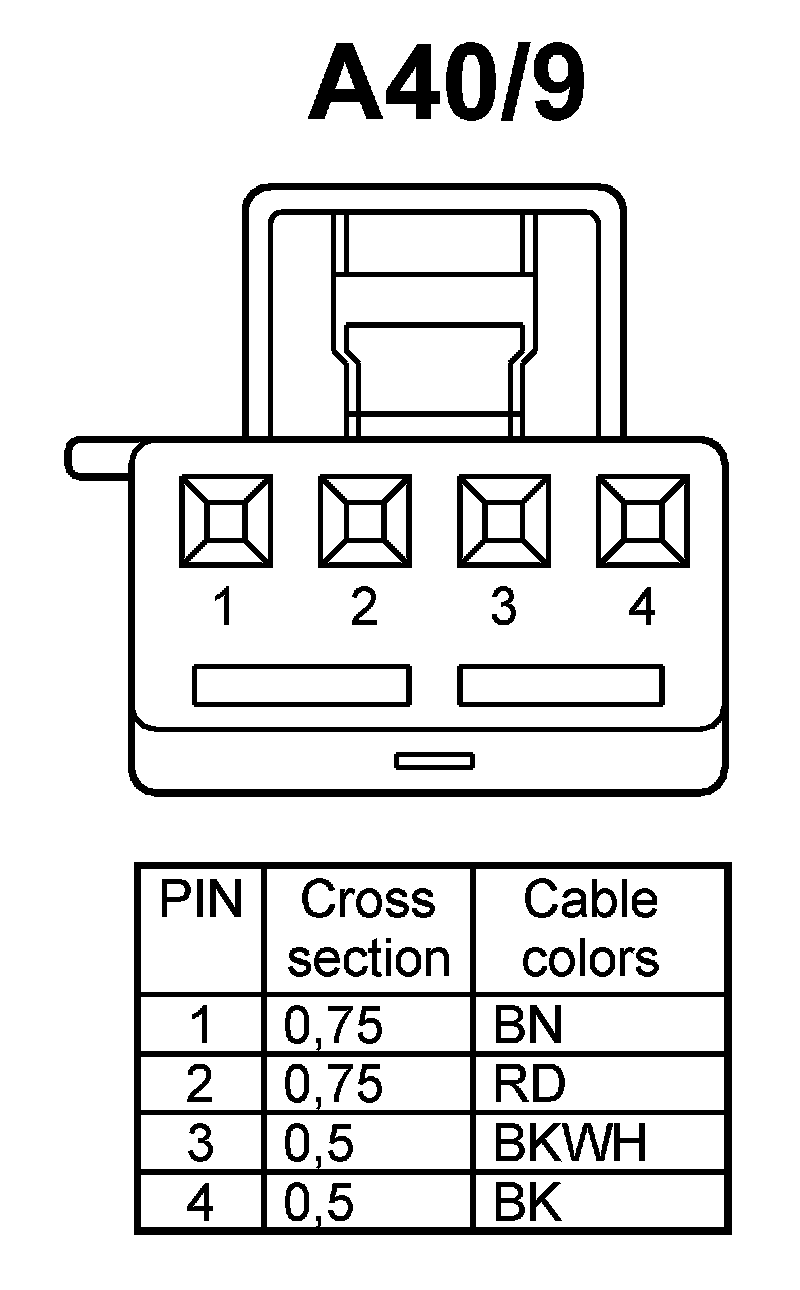

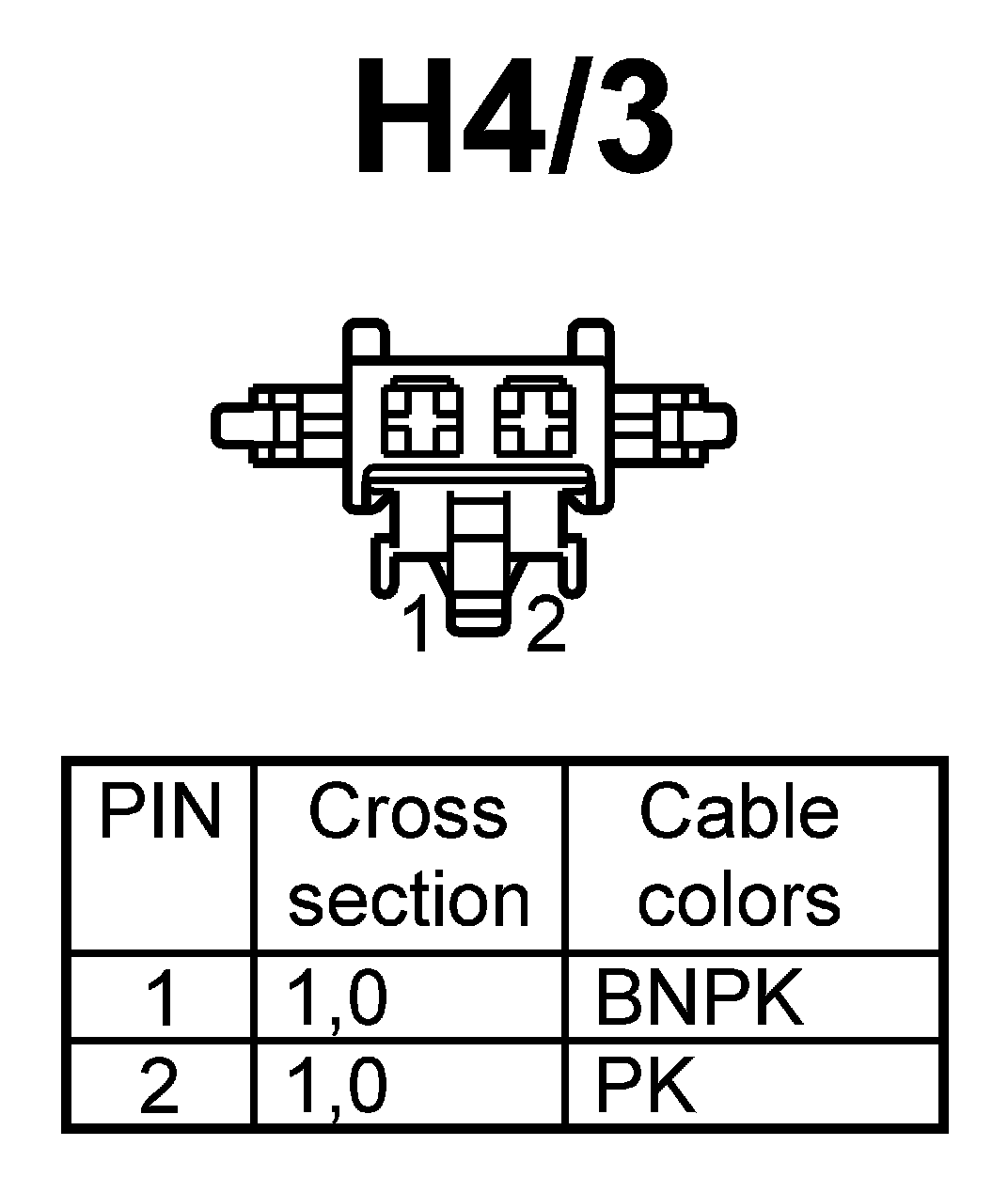

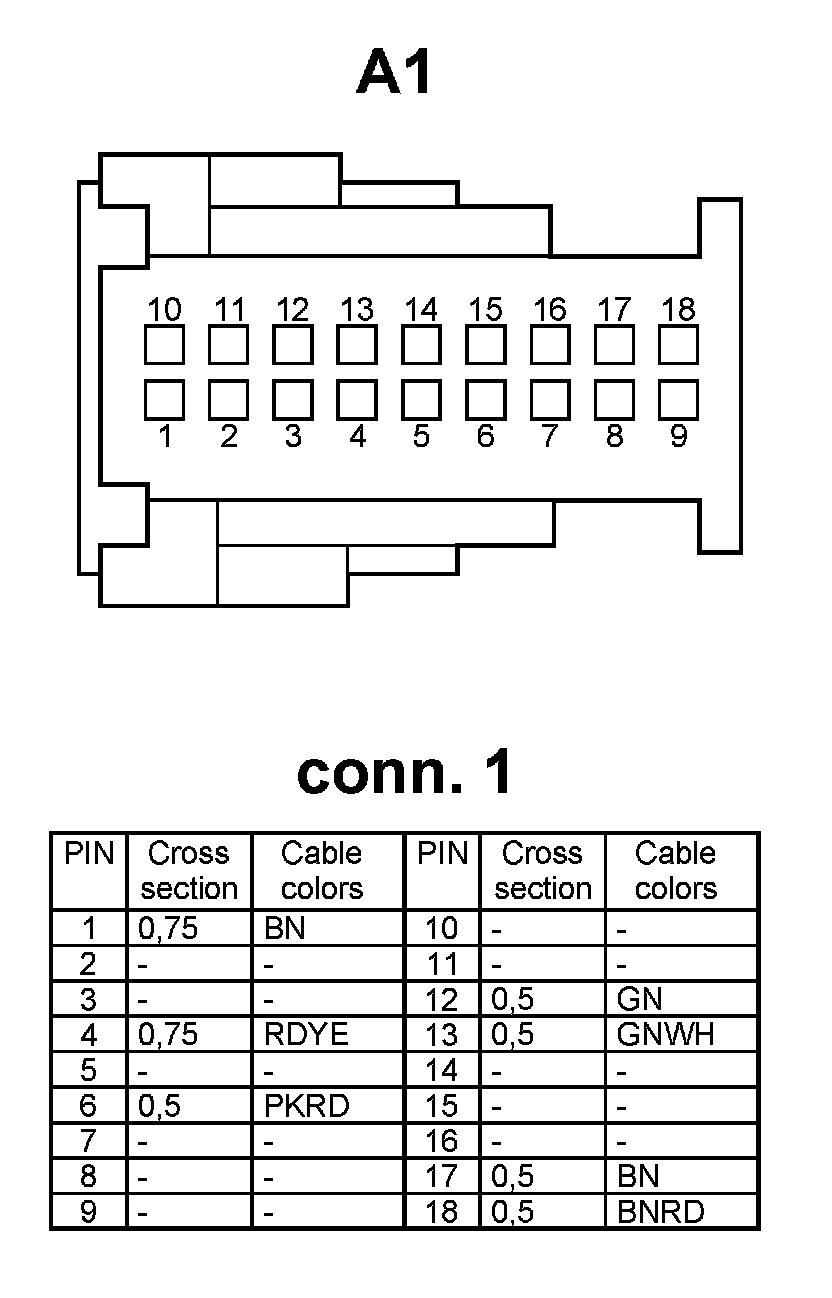

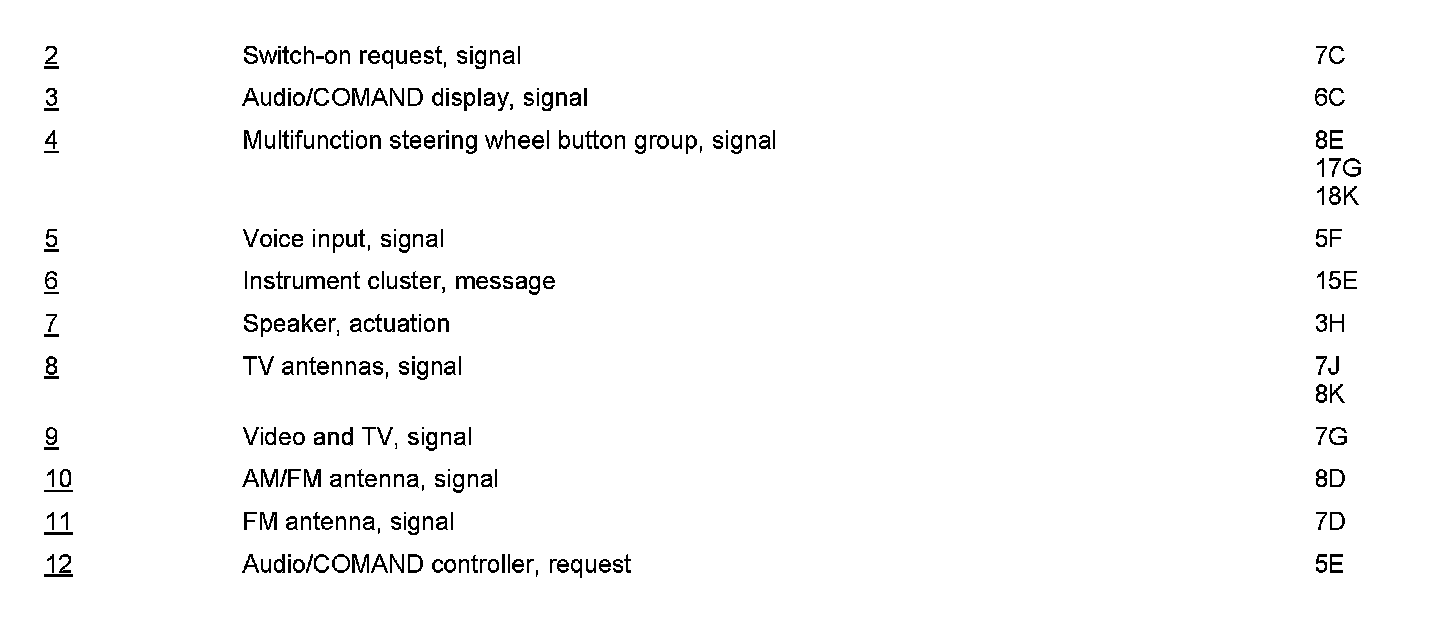

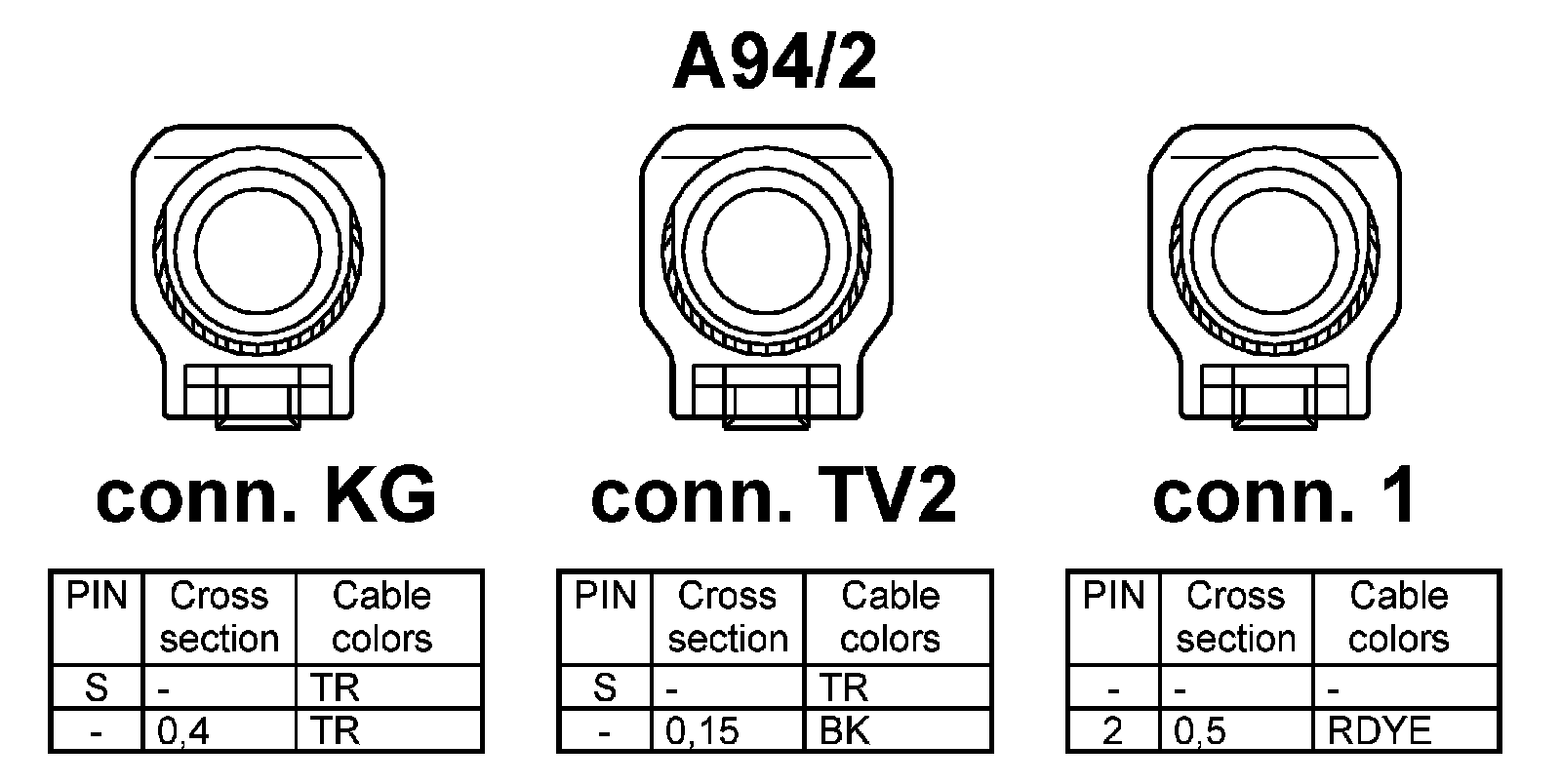

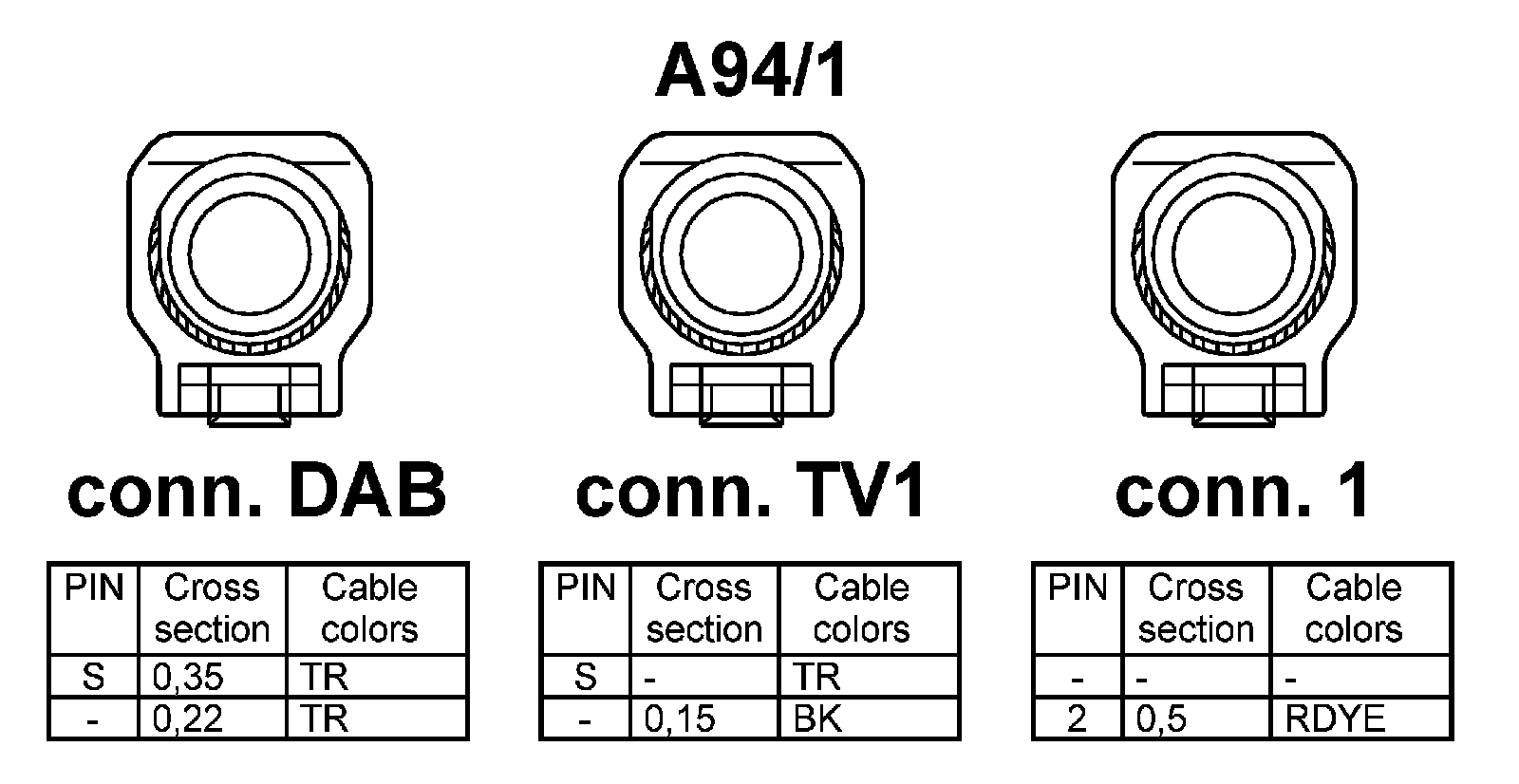

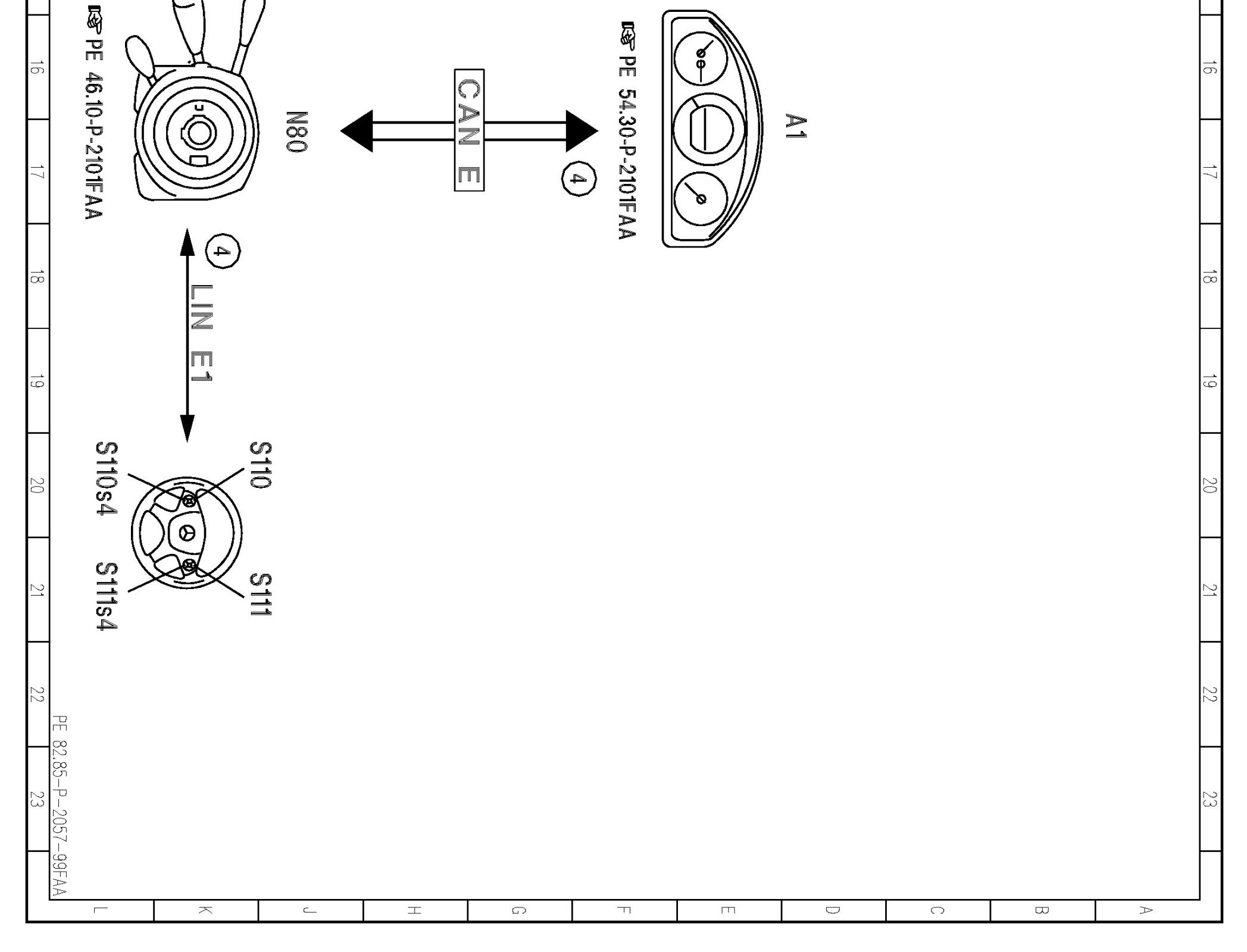

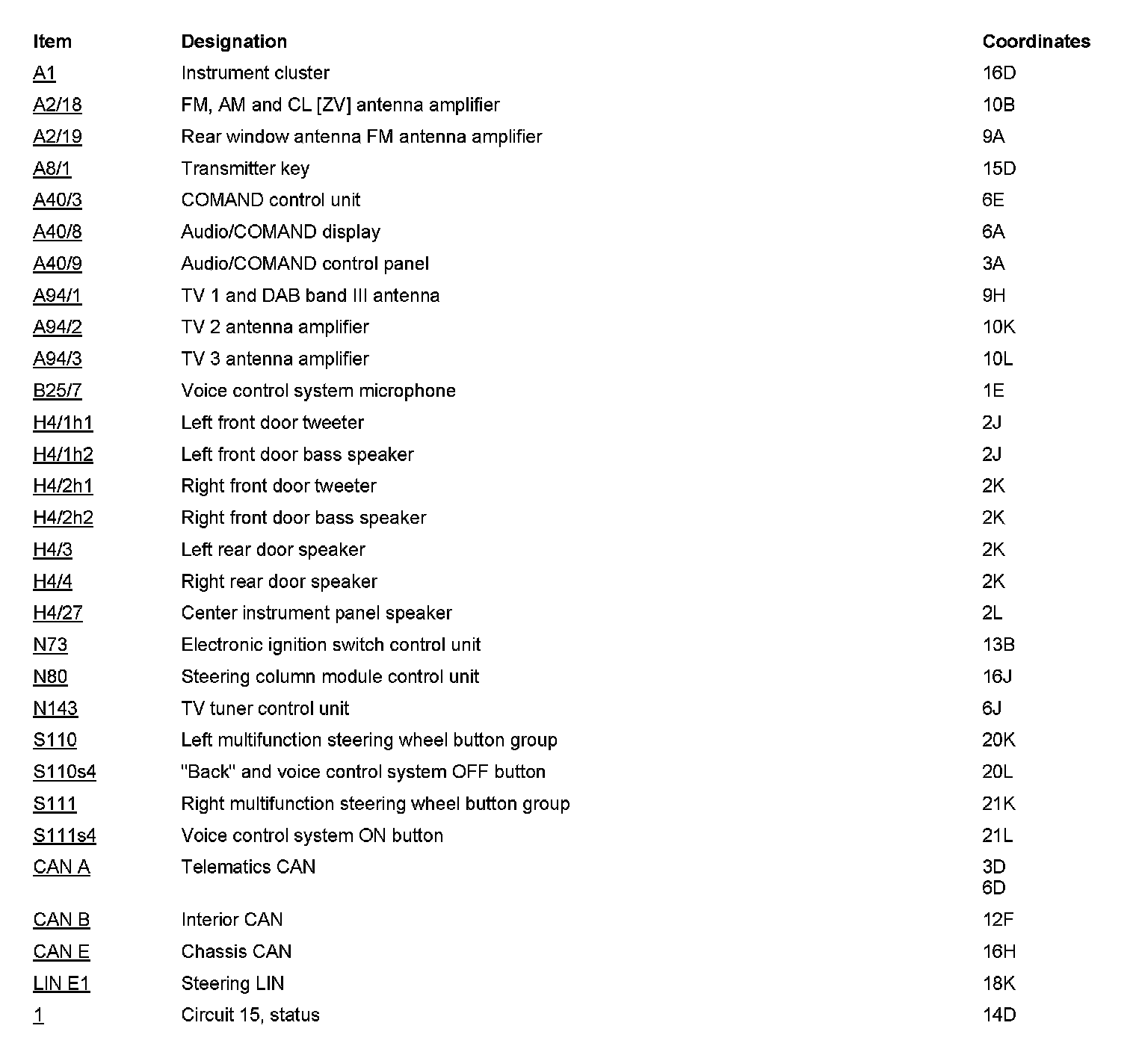

PE82.85-P-2057FAA Electrical Function Schematic, COMAND Audio Video TV

PE82.85-P-2057FAA Electrical Function Schematic, COMAND Audio Video TV

MODEL 204
- with CODE (498) Japan version
- up to model year 08/YoM 07







































































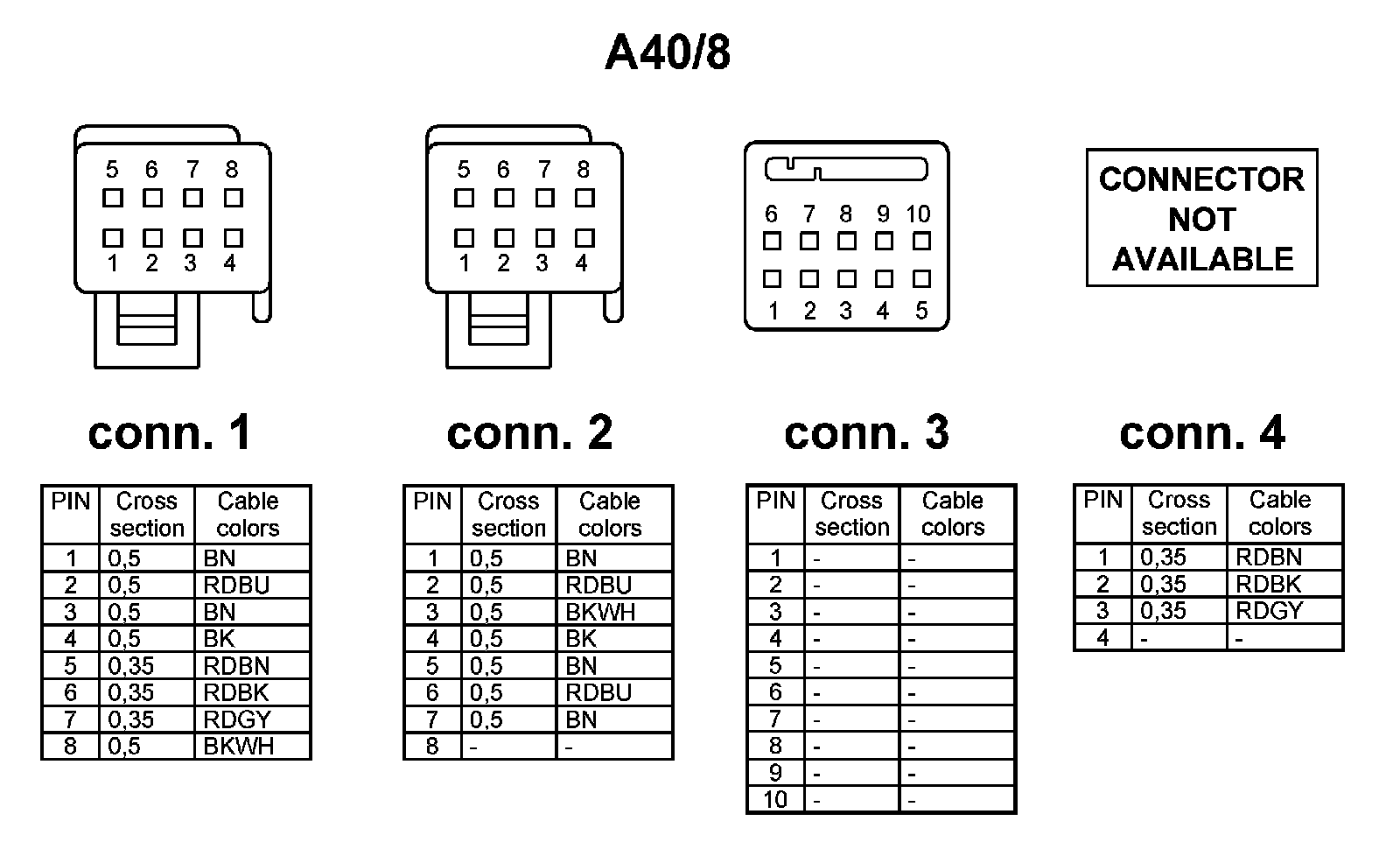

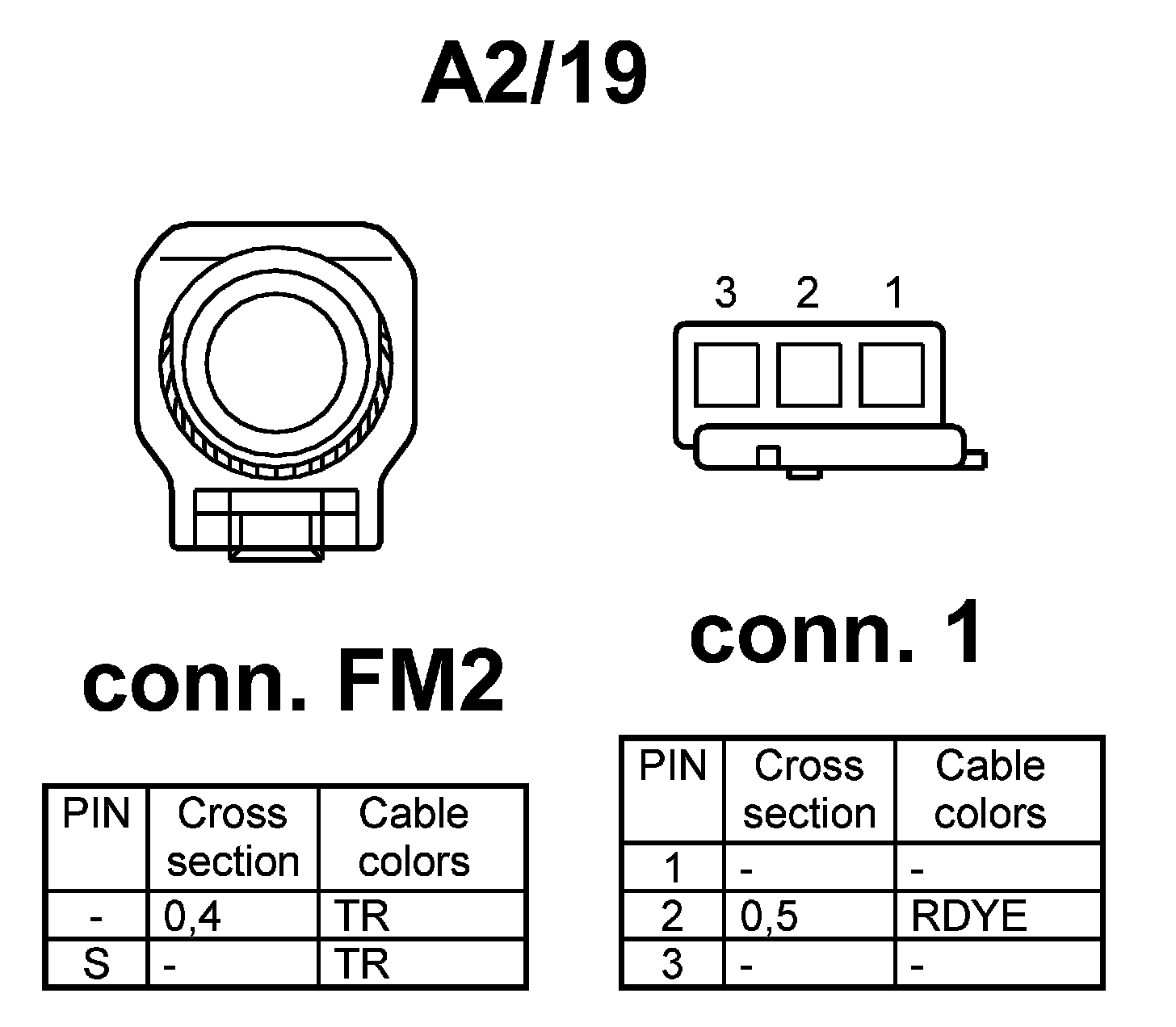

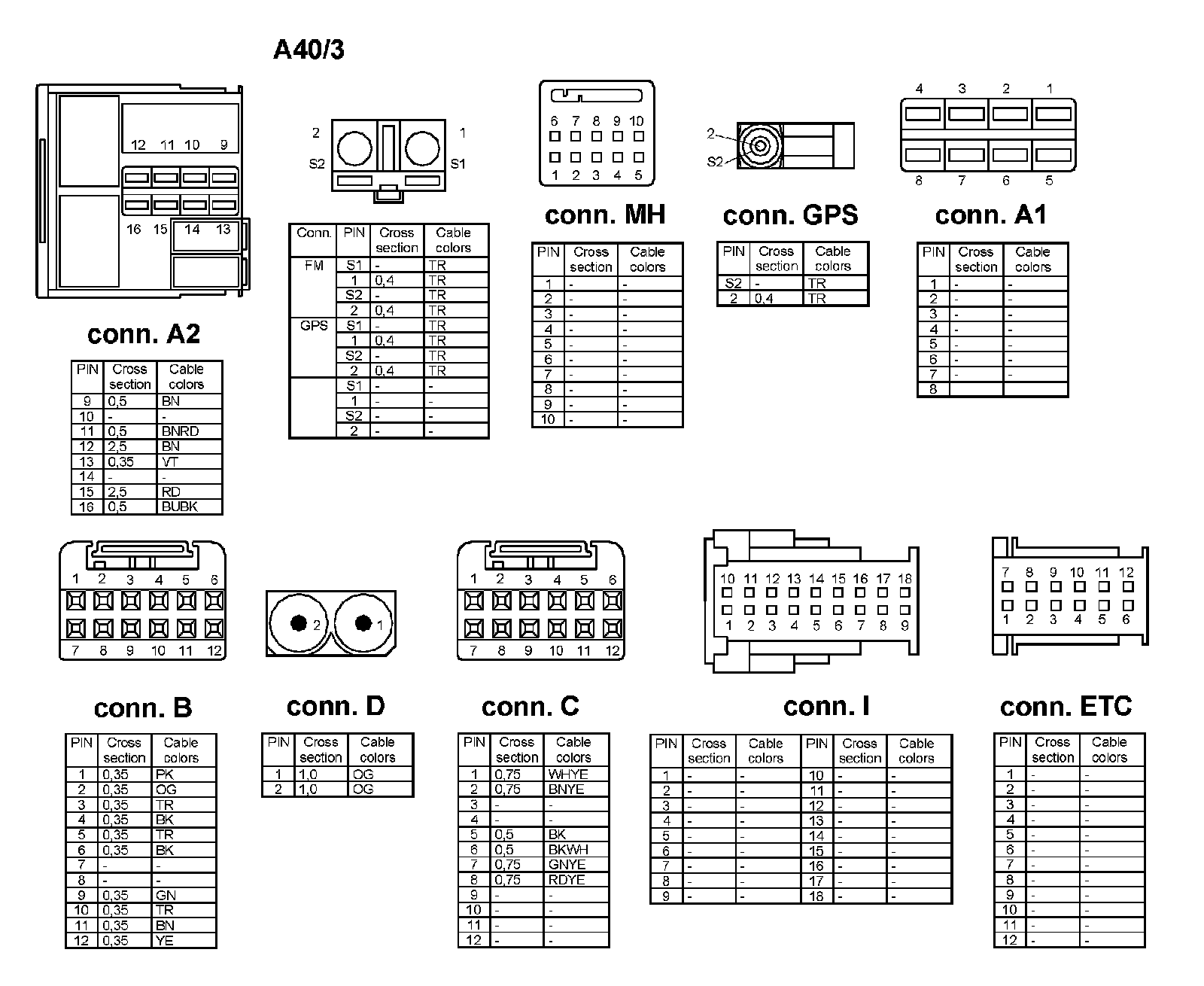

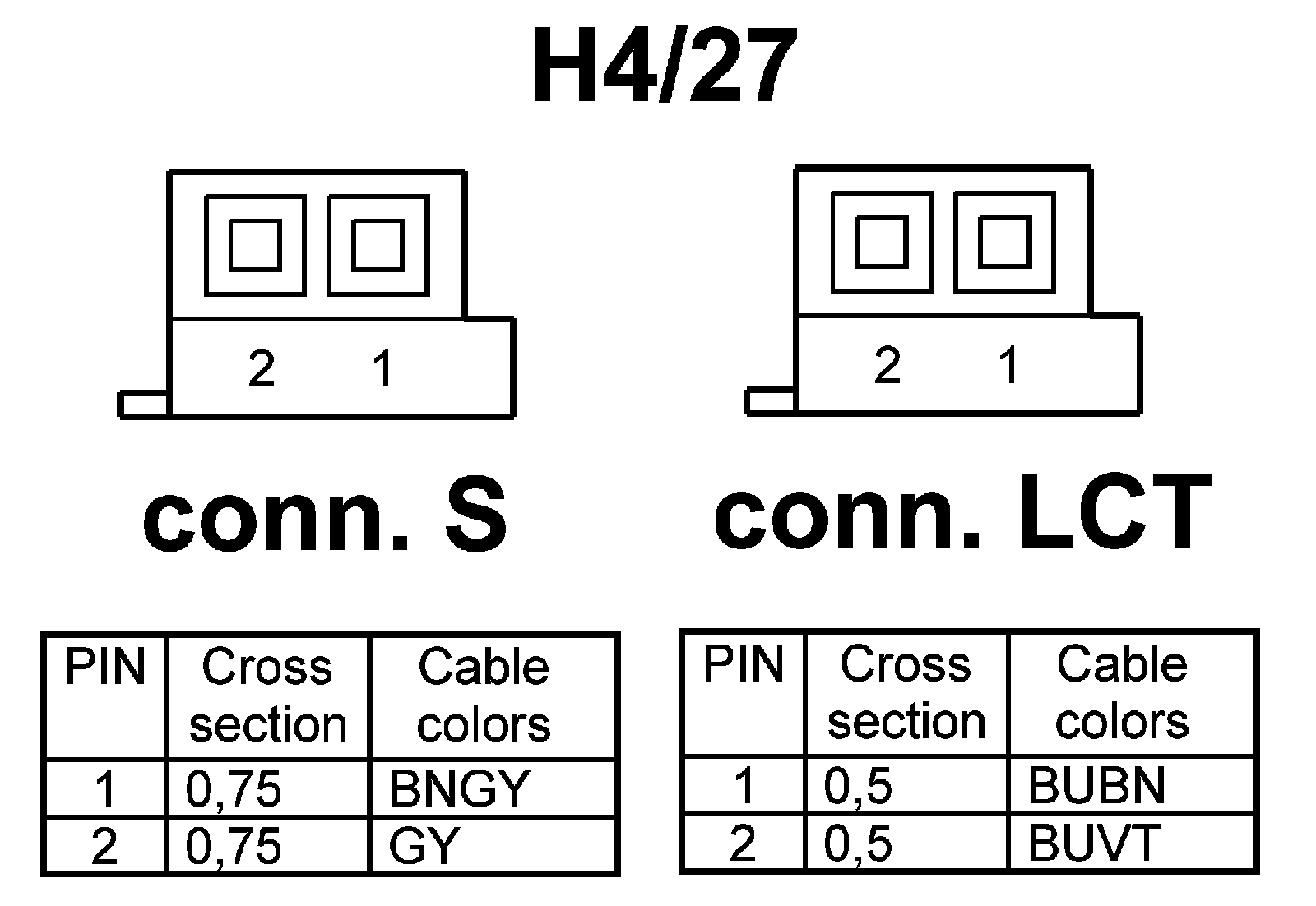

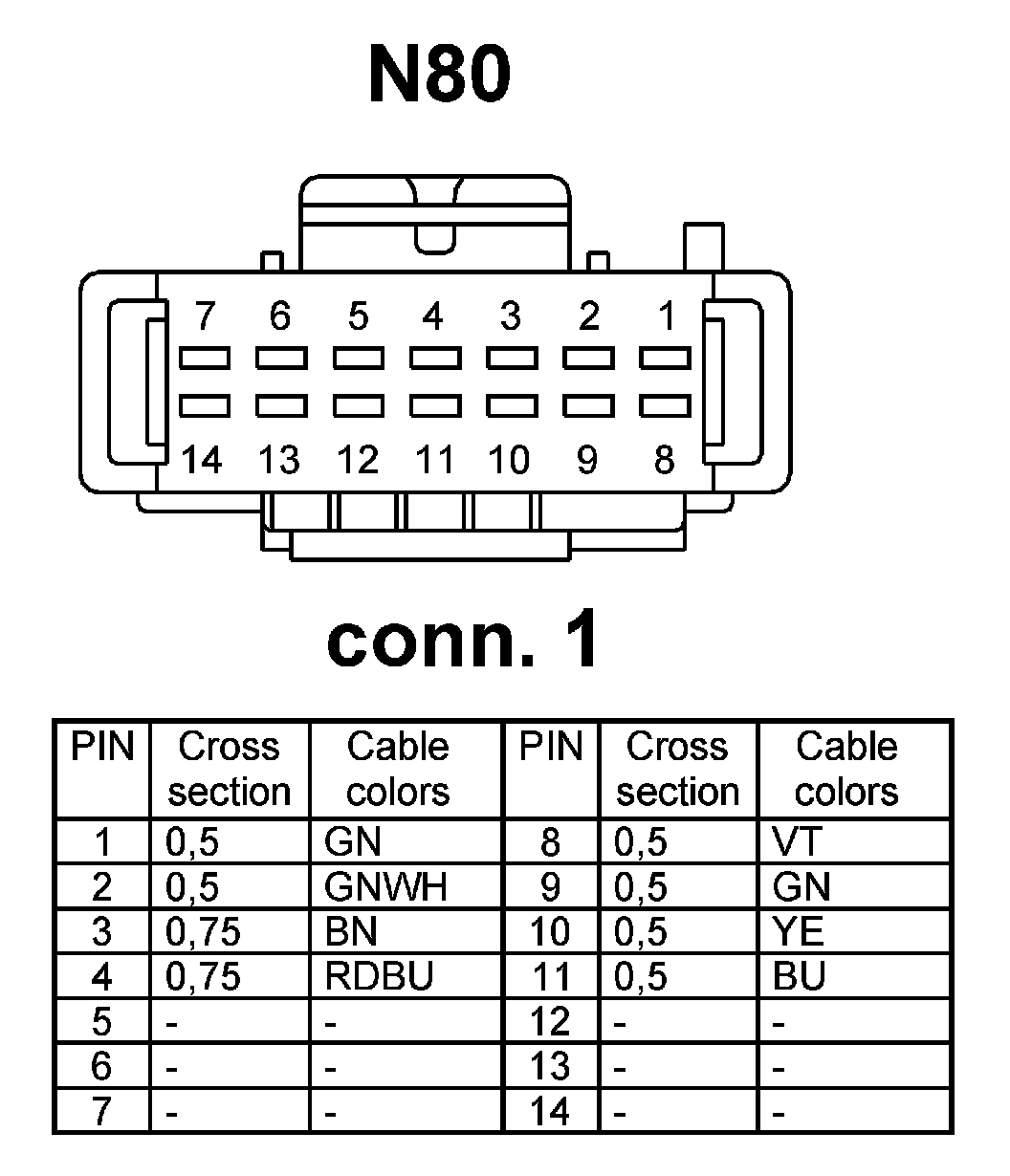

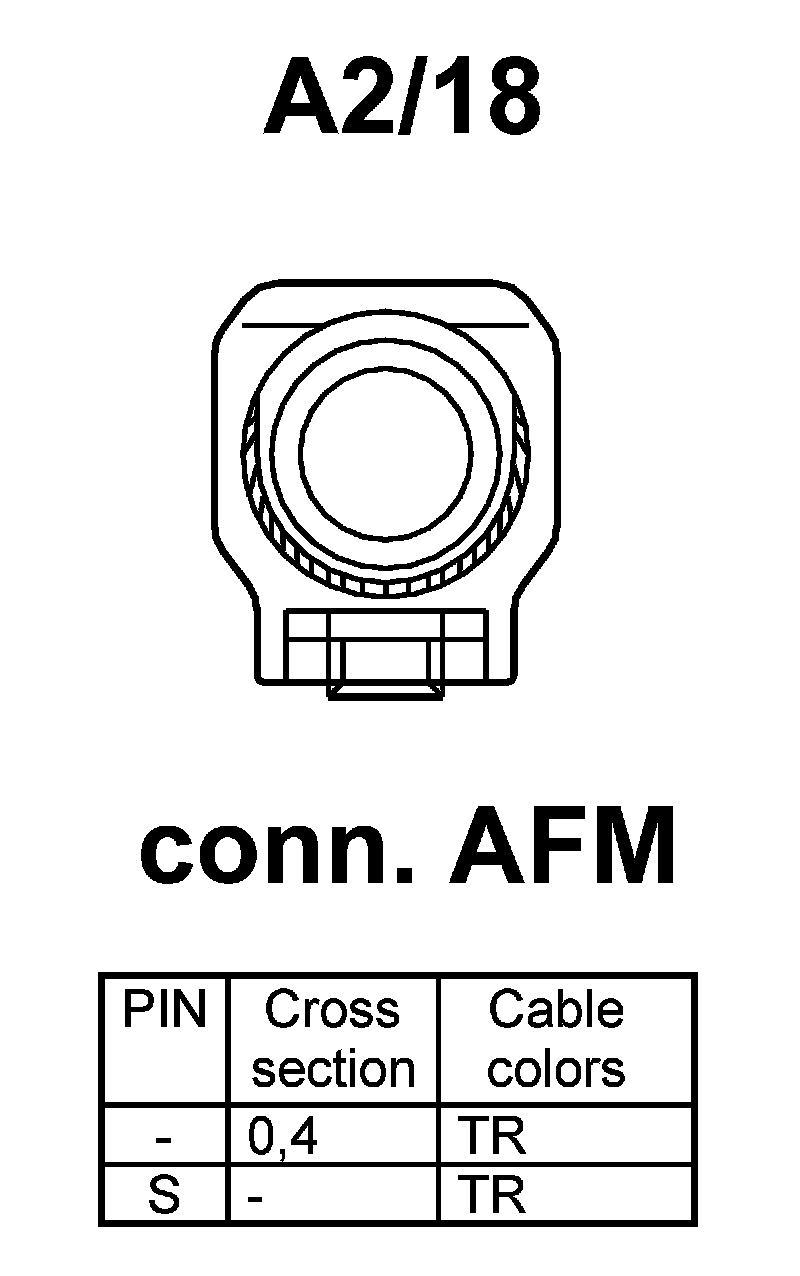

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
