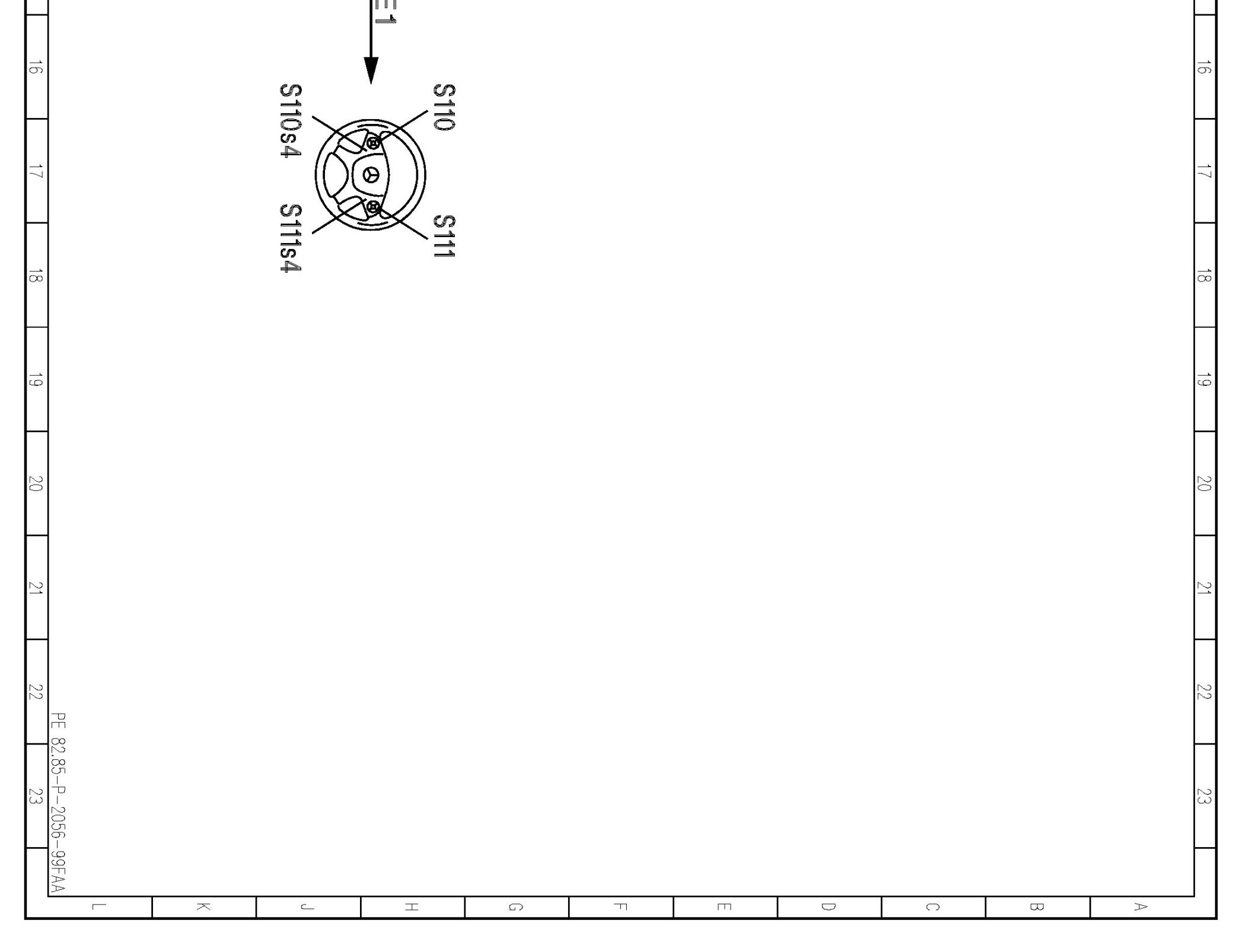

PE82.85-P-2056FAA Electrical Function Diagram For COMAND Voice Control

PE82.85-P-2056FAA Electrical Function Diagram For COMAND Voice Control

MODEL 204
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (810) Sound system
- up to model year 08 /YoM 07























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
