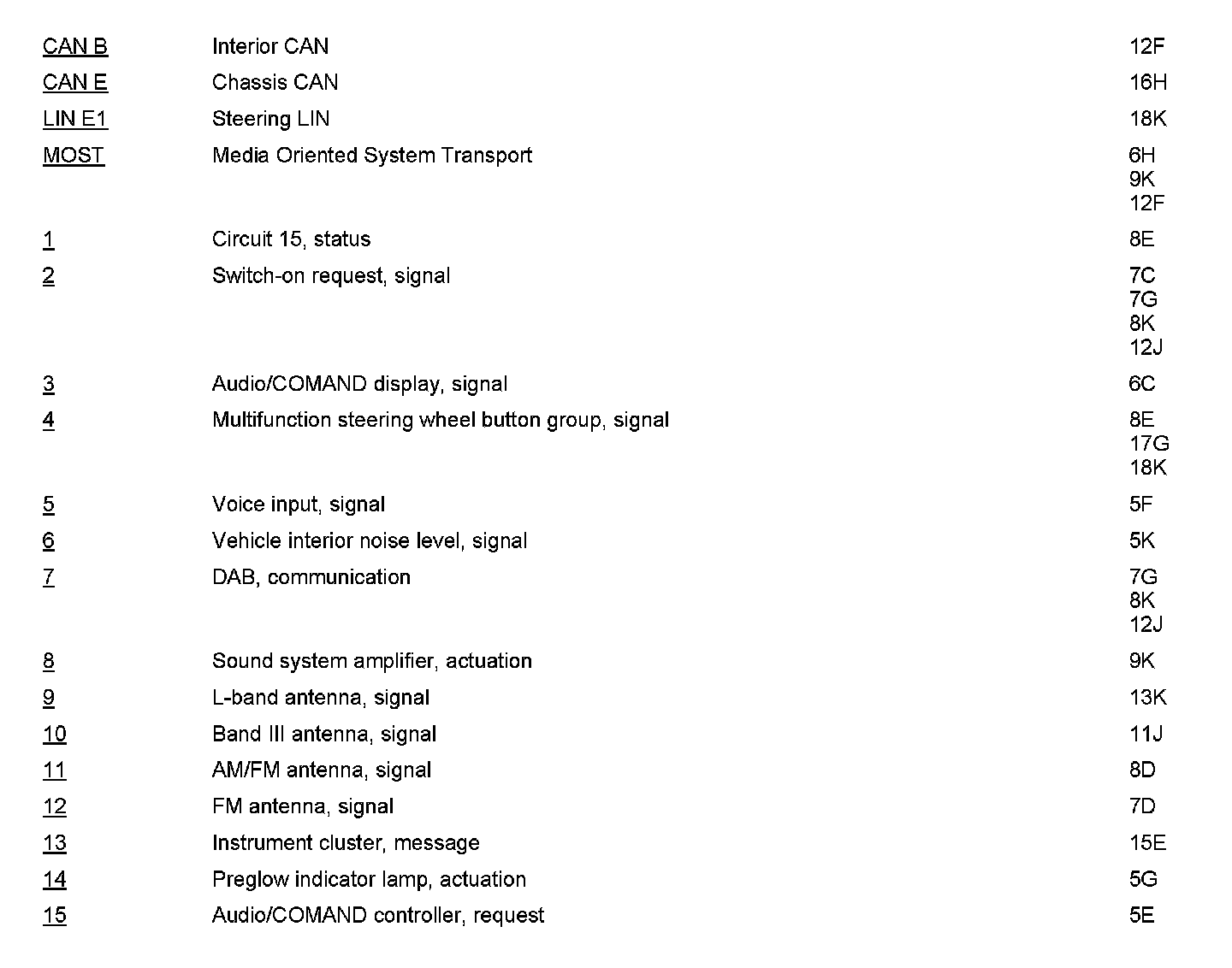

PE82.85-P-2055FAA Electrical Function Schematic For COMAND Audio, Video

PE82.85-P-2055FAA Electrical Function Schematic For COMAND Audio, Video

MODEL 204
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (537) Digital radio
- with CODE (810) Sound system
- with CODE (512) COMAND APS with DVD changer
- except CODE (494) USA version
- up to model year 08/YoM 07

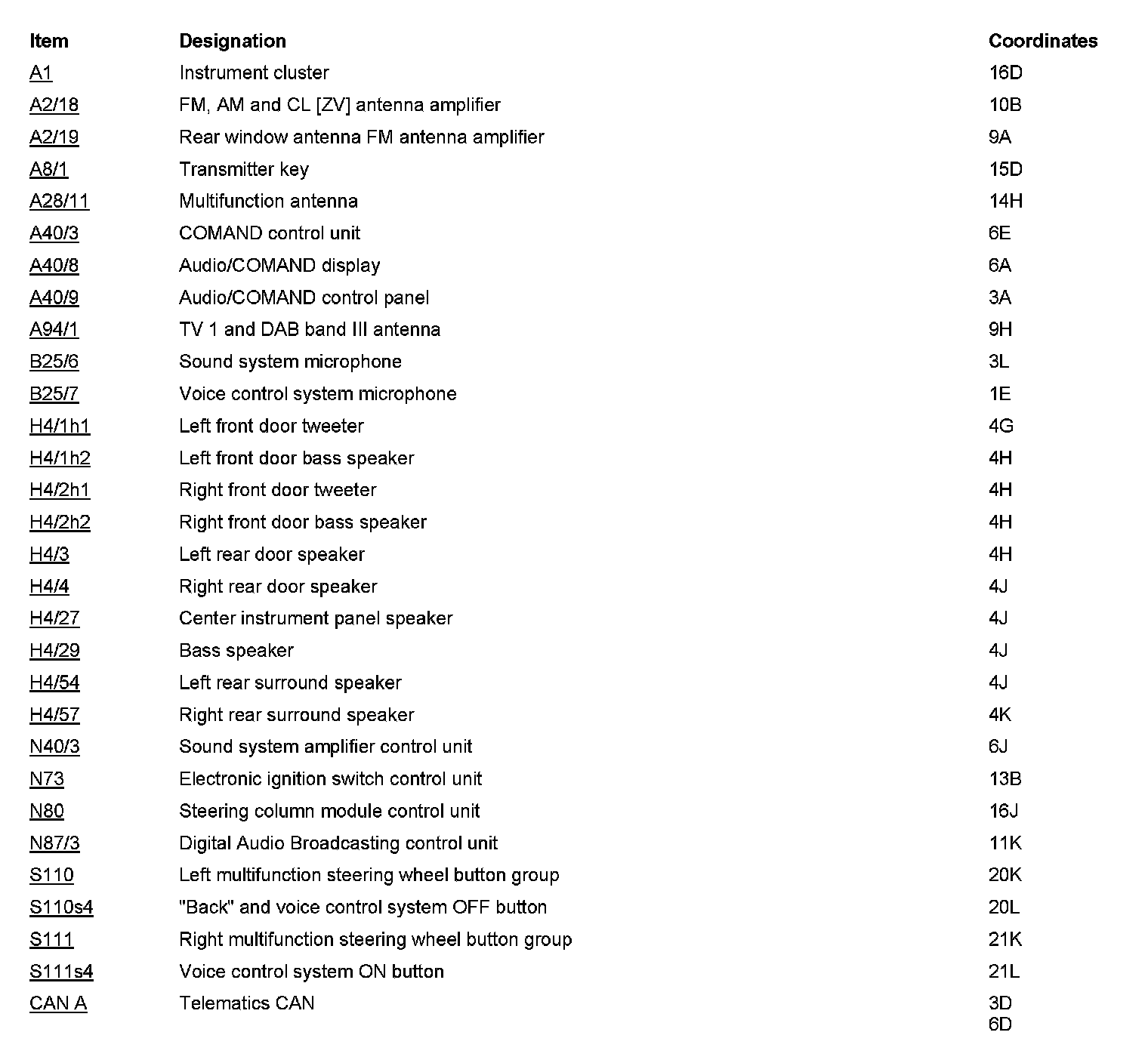

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
