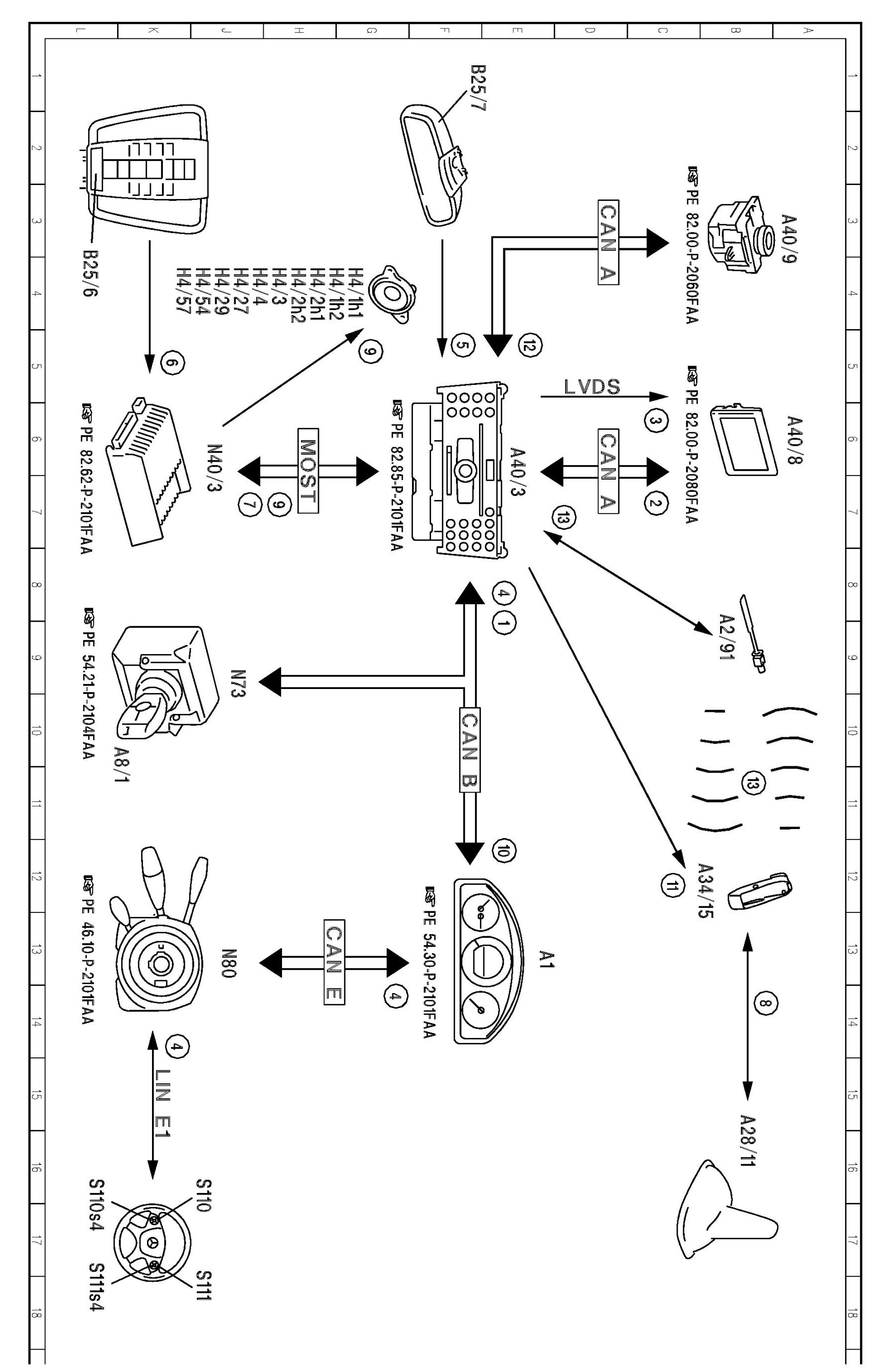

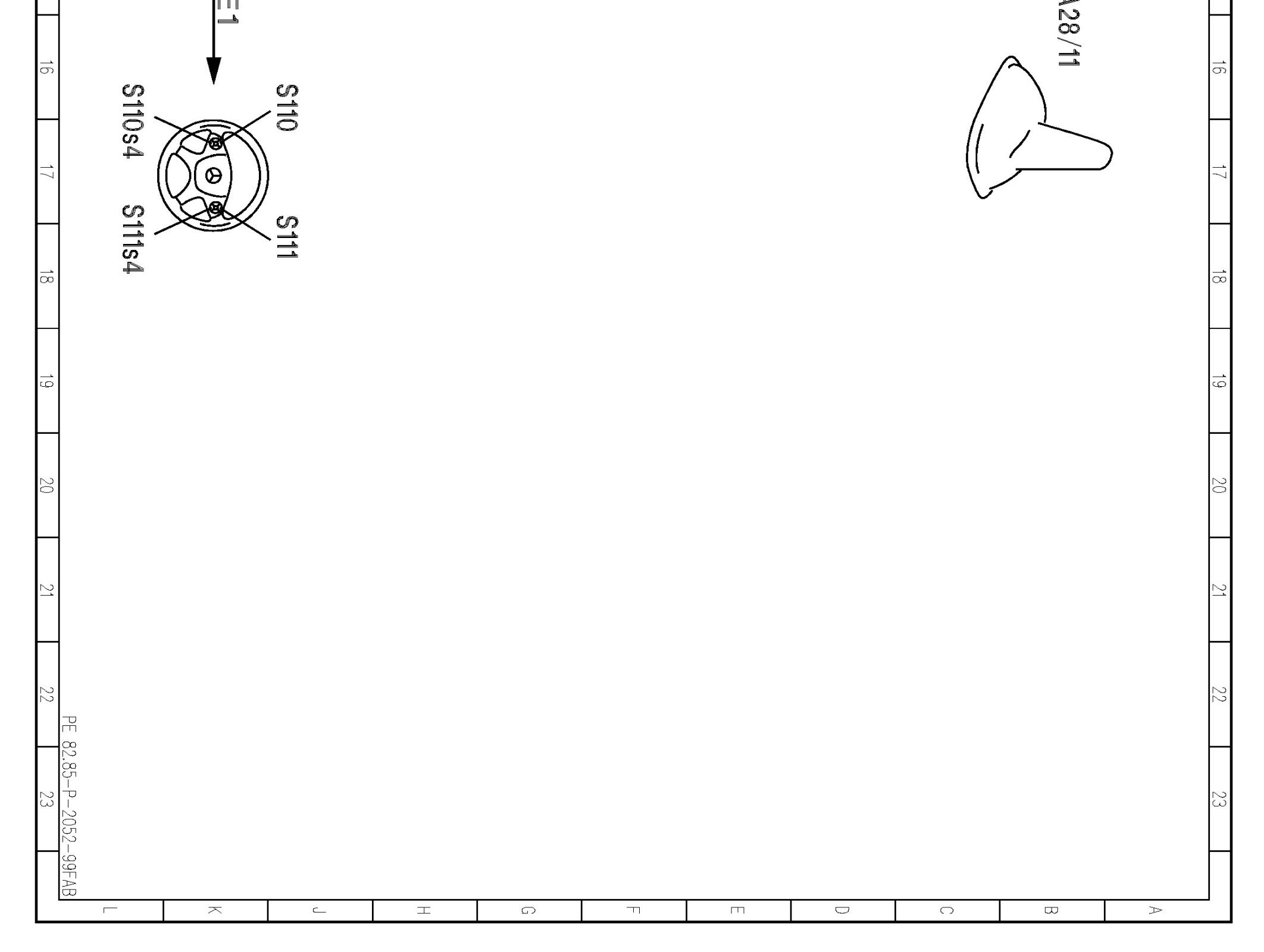

PE82.85-P-2052FAB Electrical Function Schematic For Information And Communications System

PE82.85-P-2052FAB Electrical Function Schematic For Information And Communications System

MODEL 204
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (810) Sound system
- with CODE (386) Preinstallation for telephone "cell phone", UPCI [UHI] system
- except CODE (494) USA version
- up to model year 08/YoM 07 comfort telephony















































































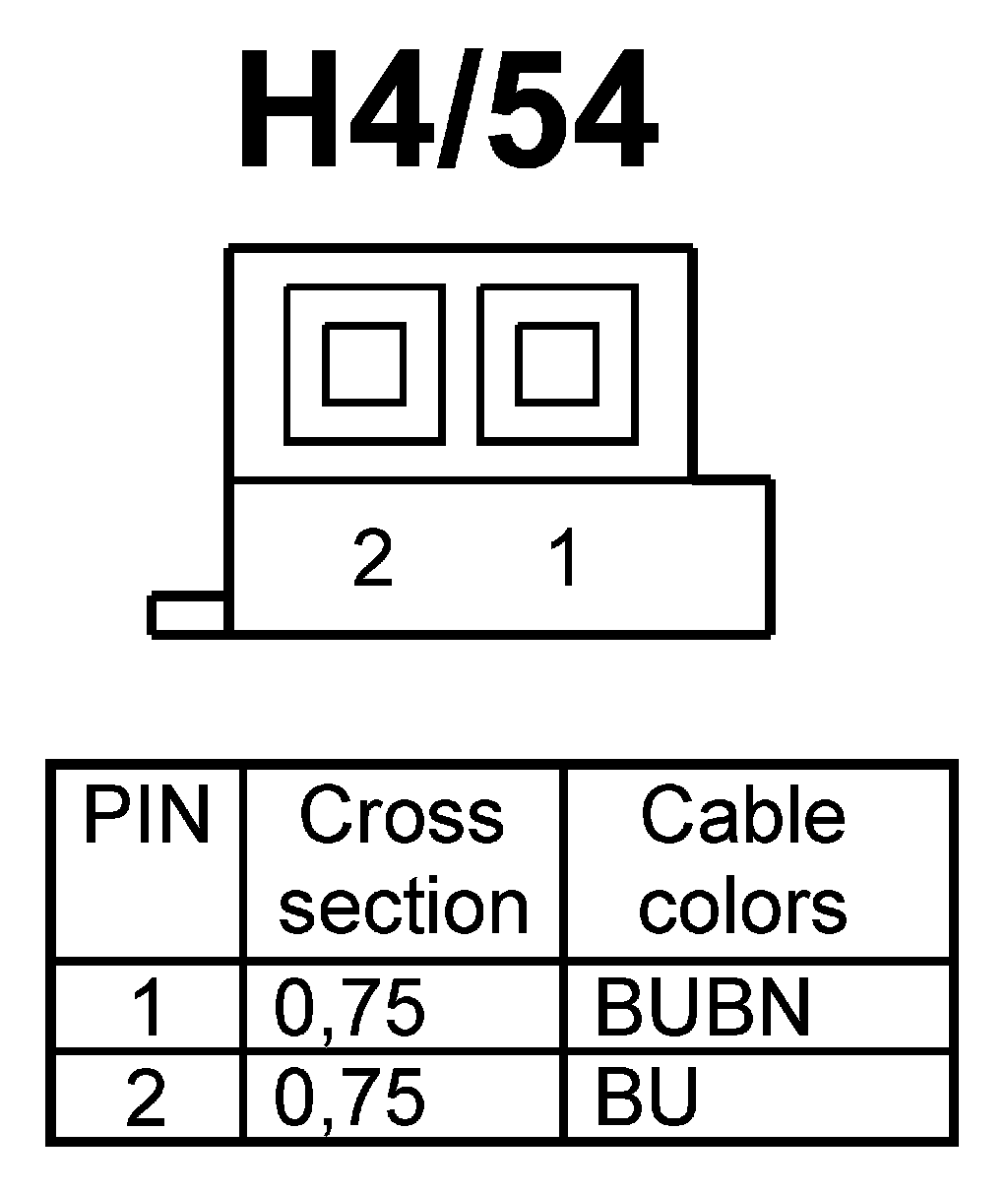

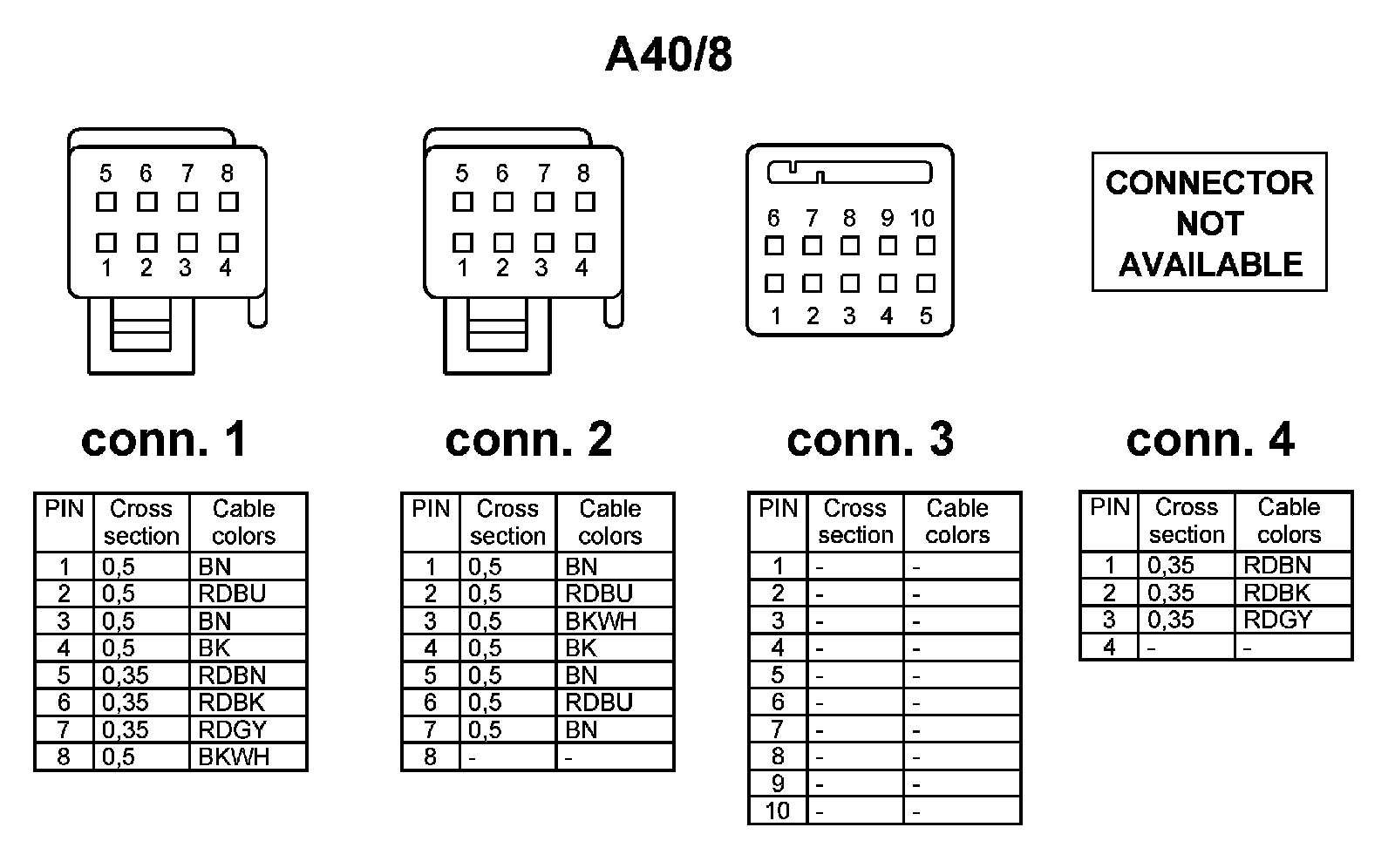

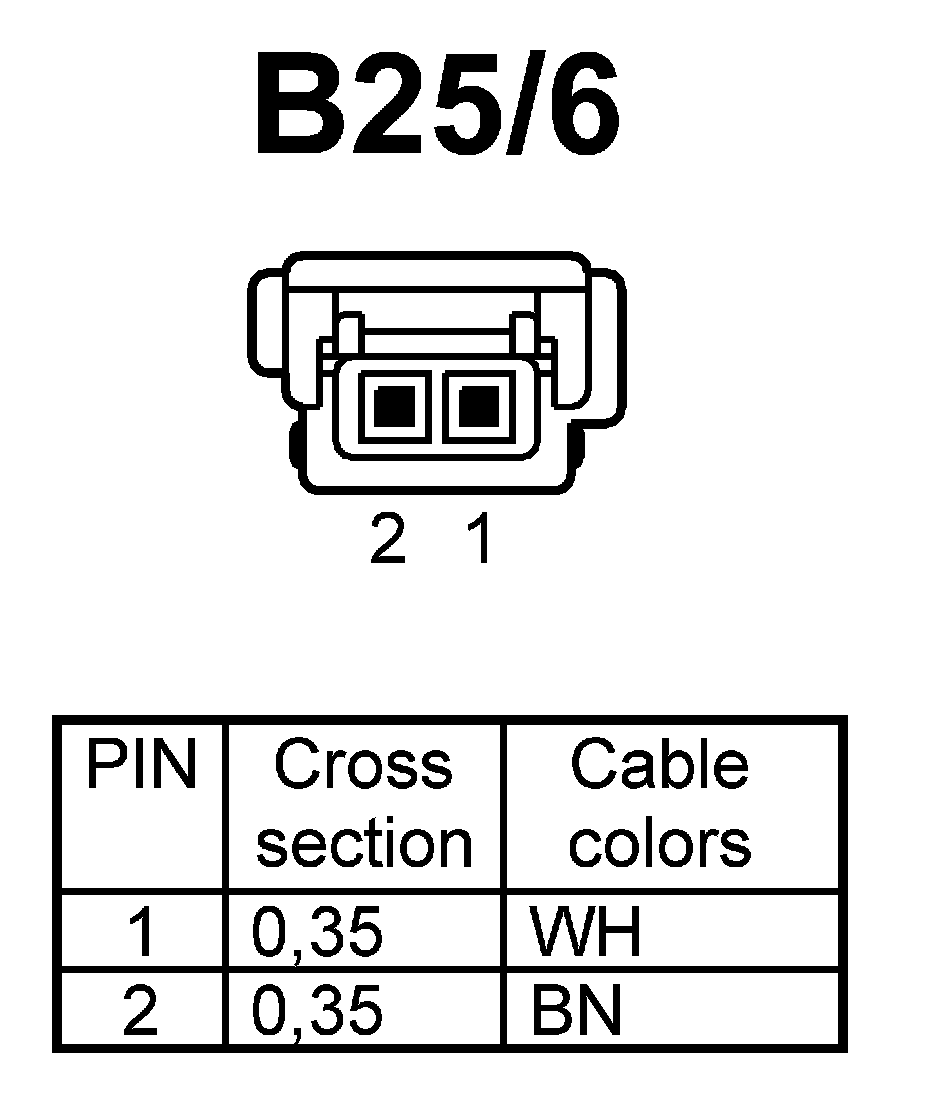

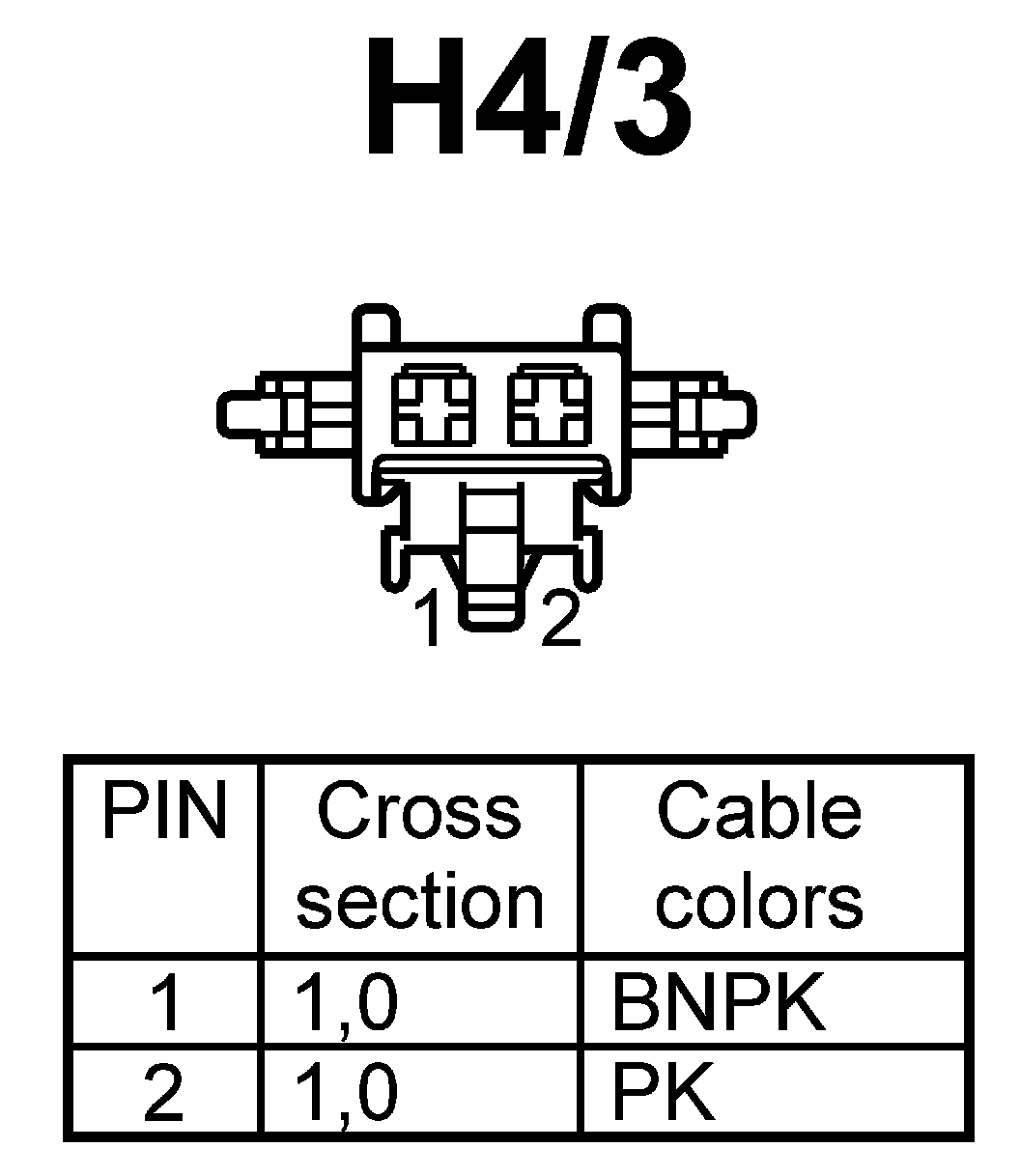

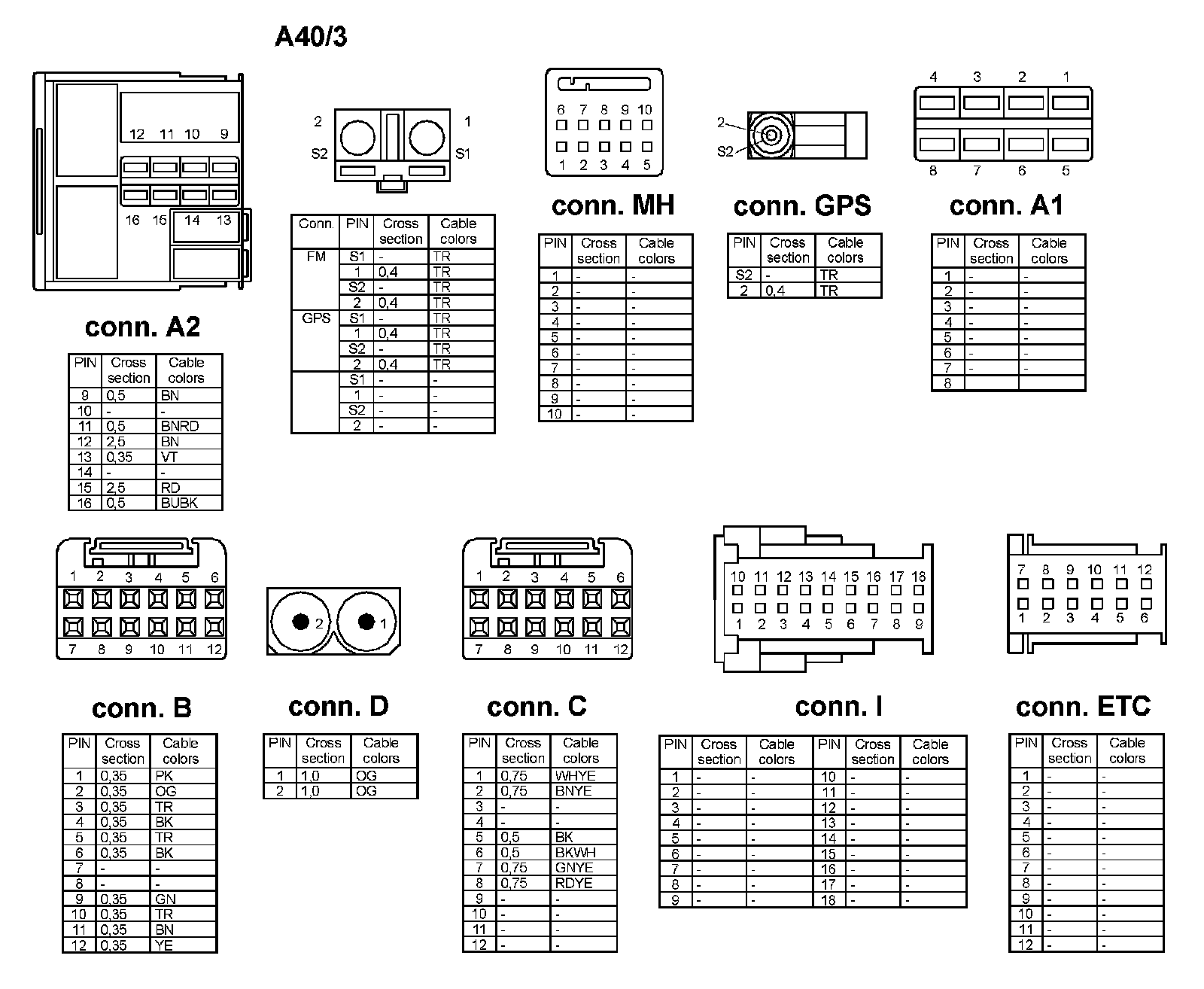

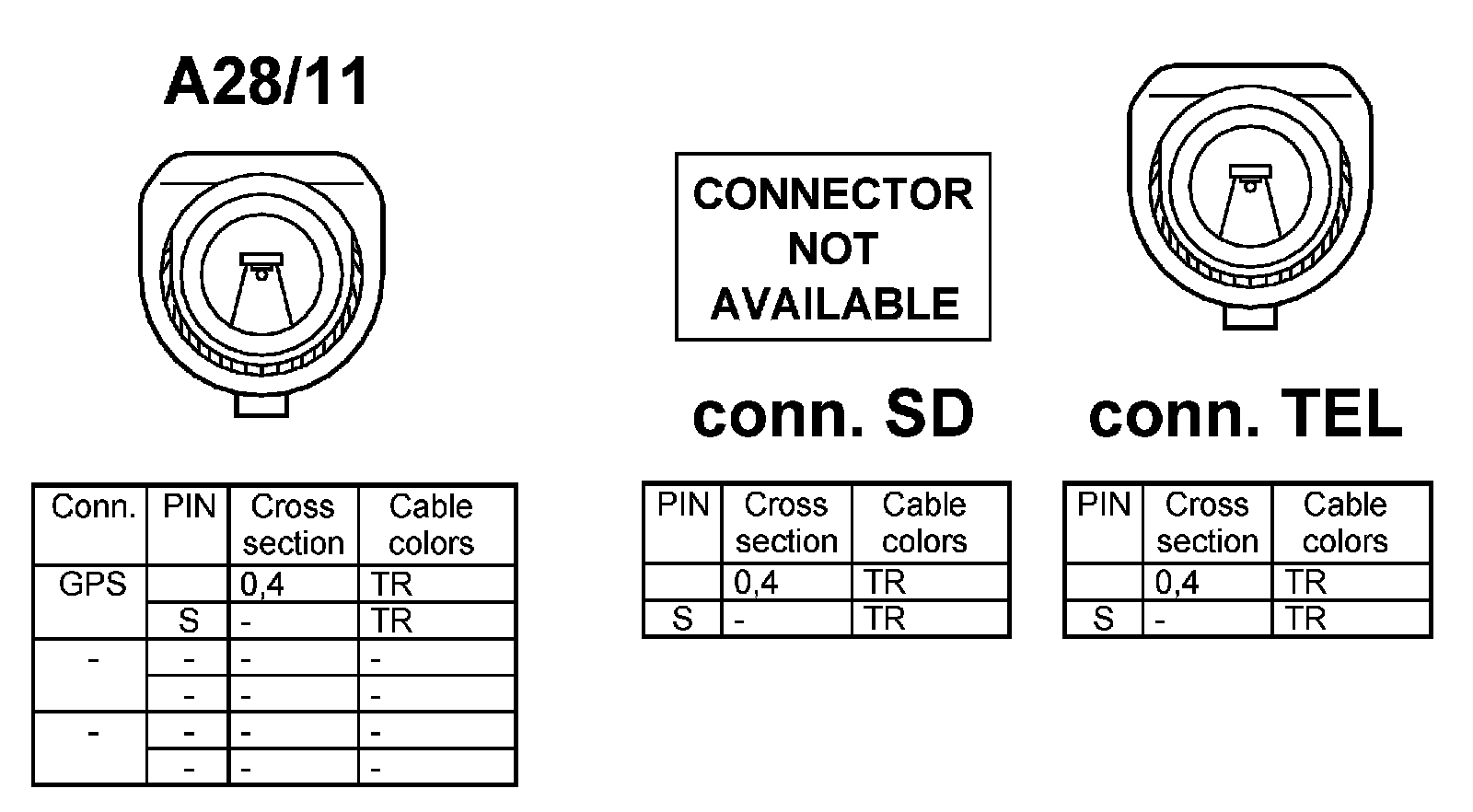

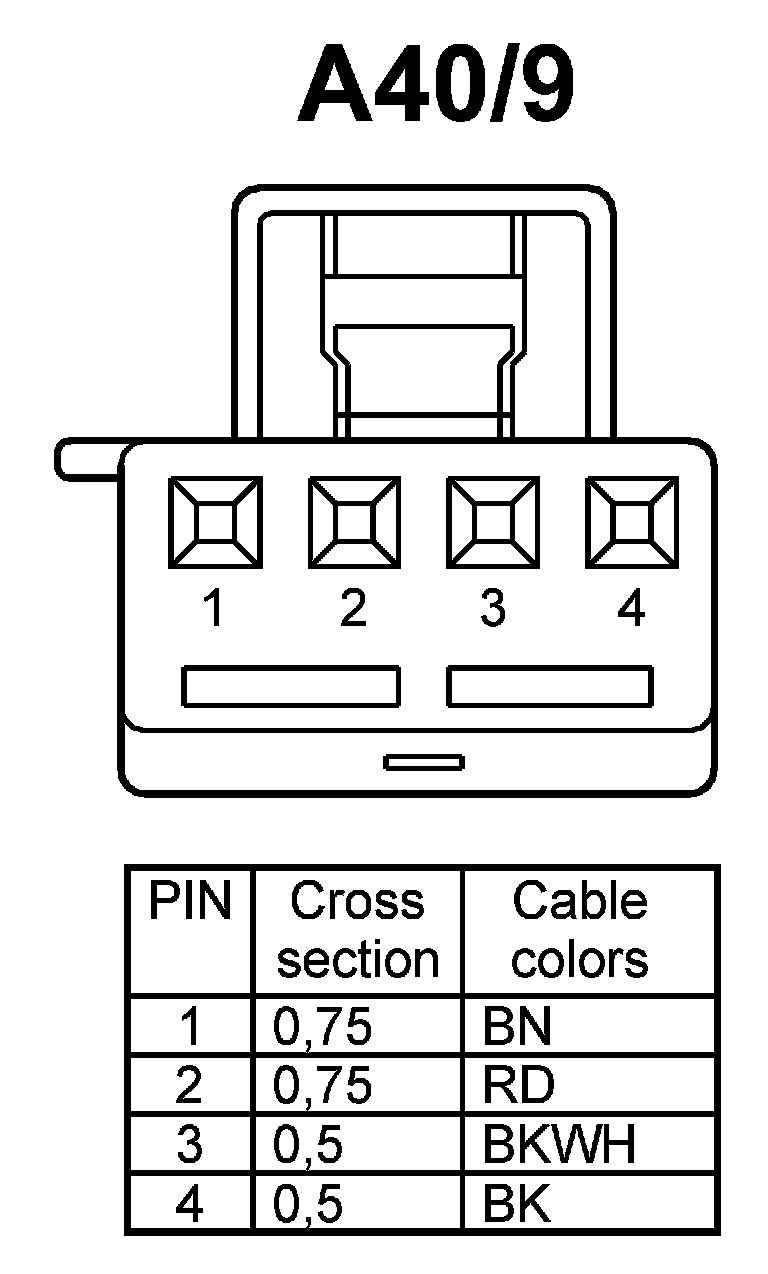

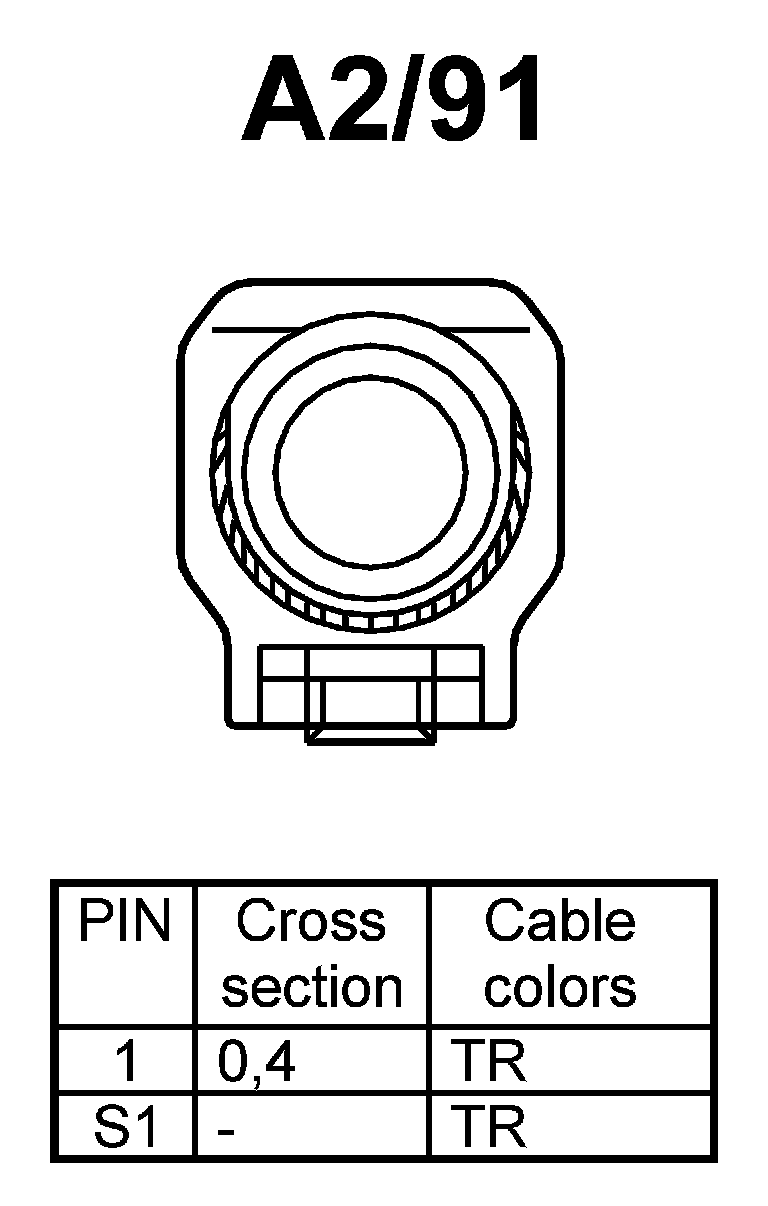

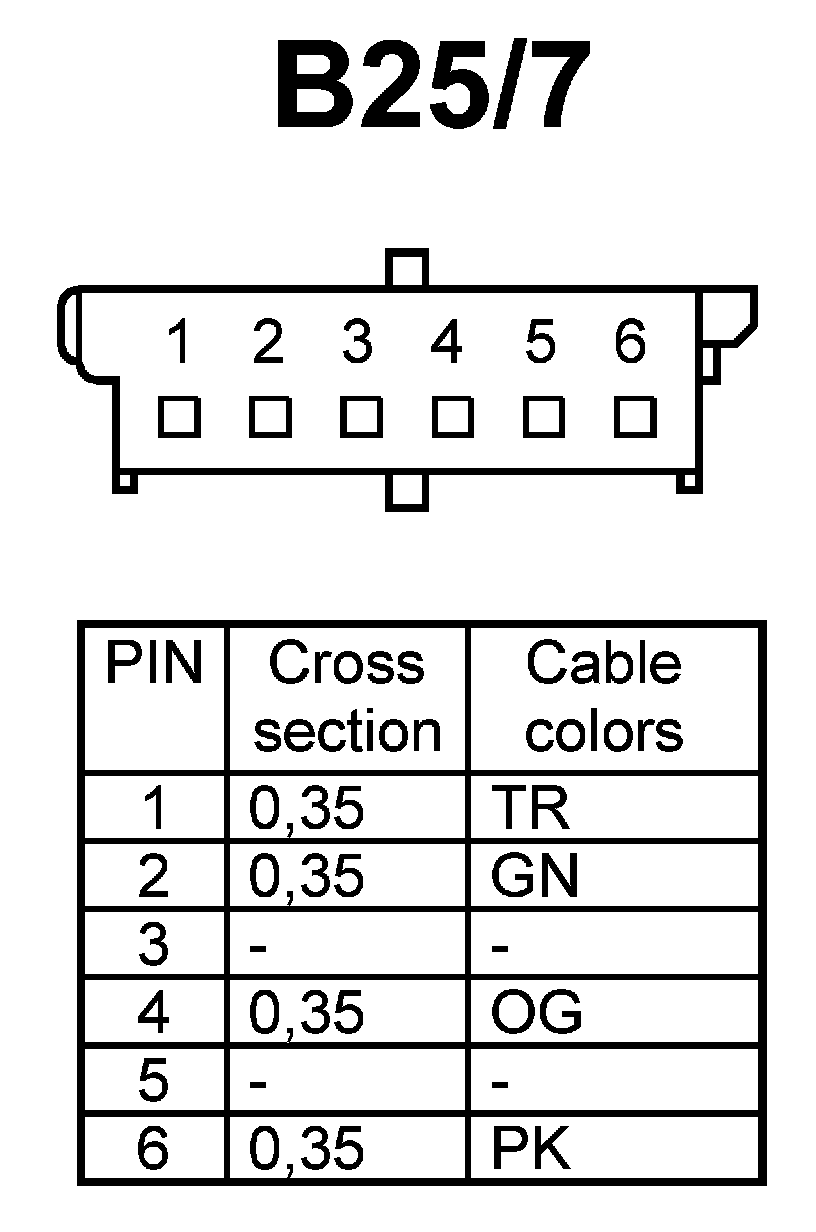

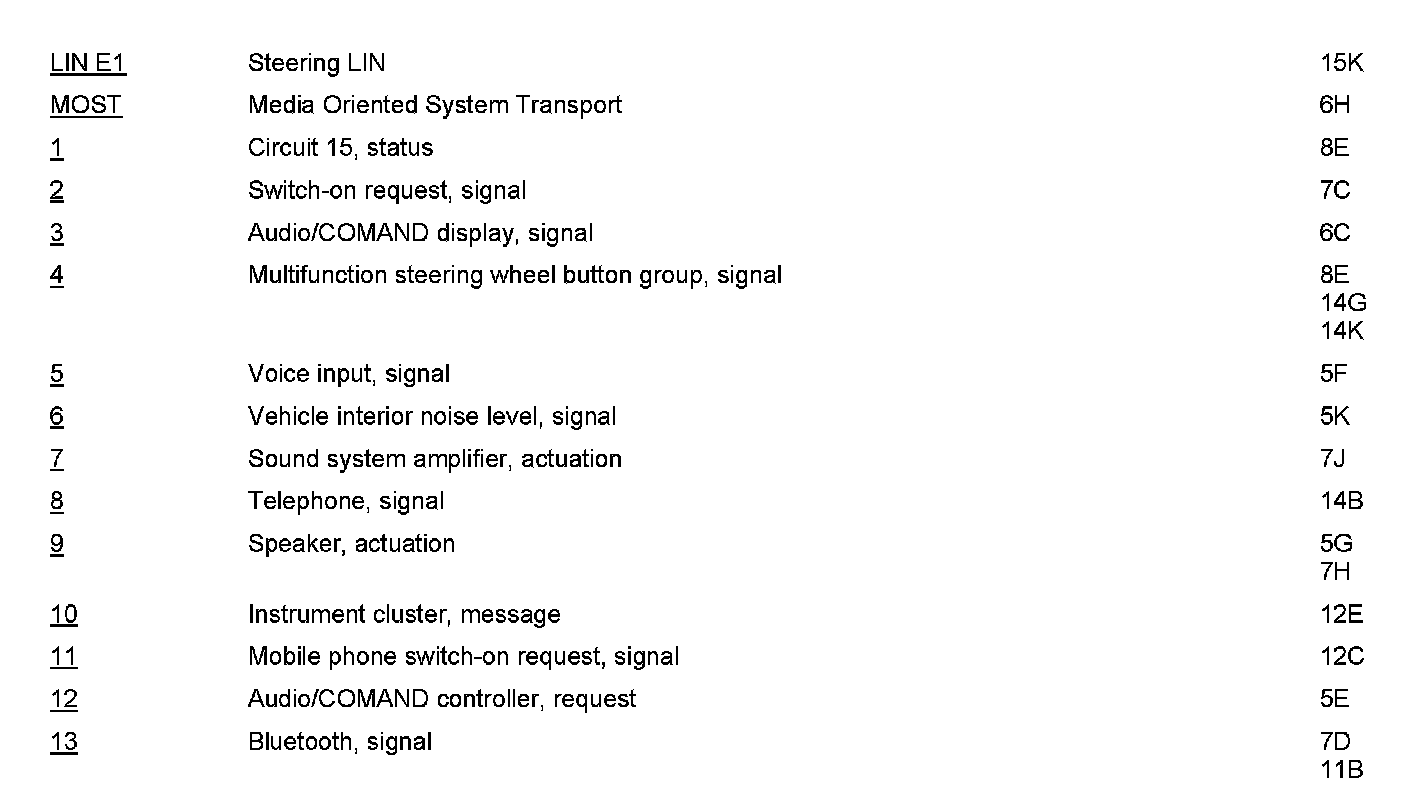

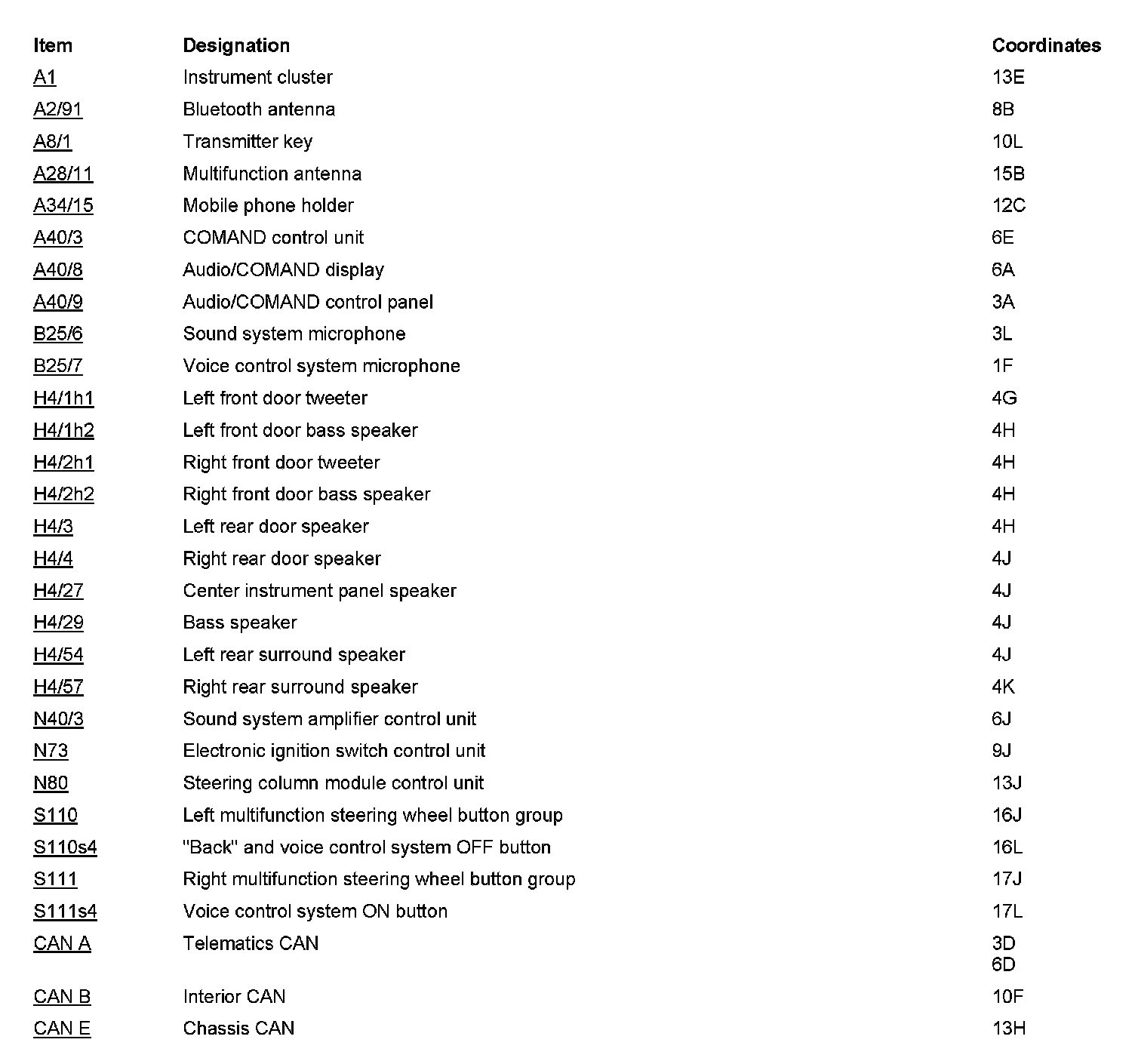

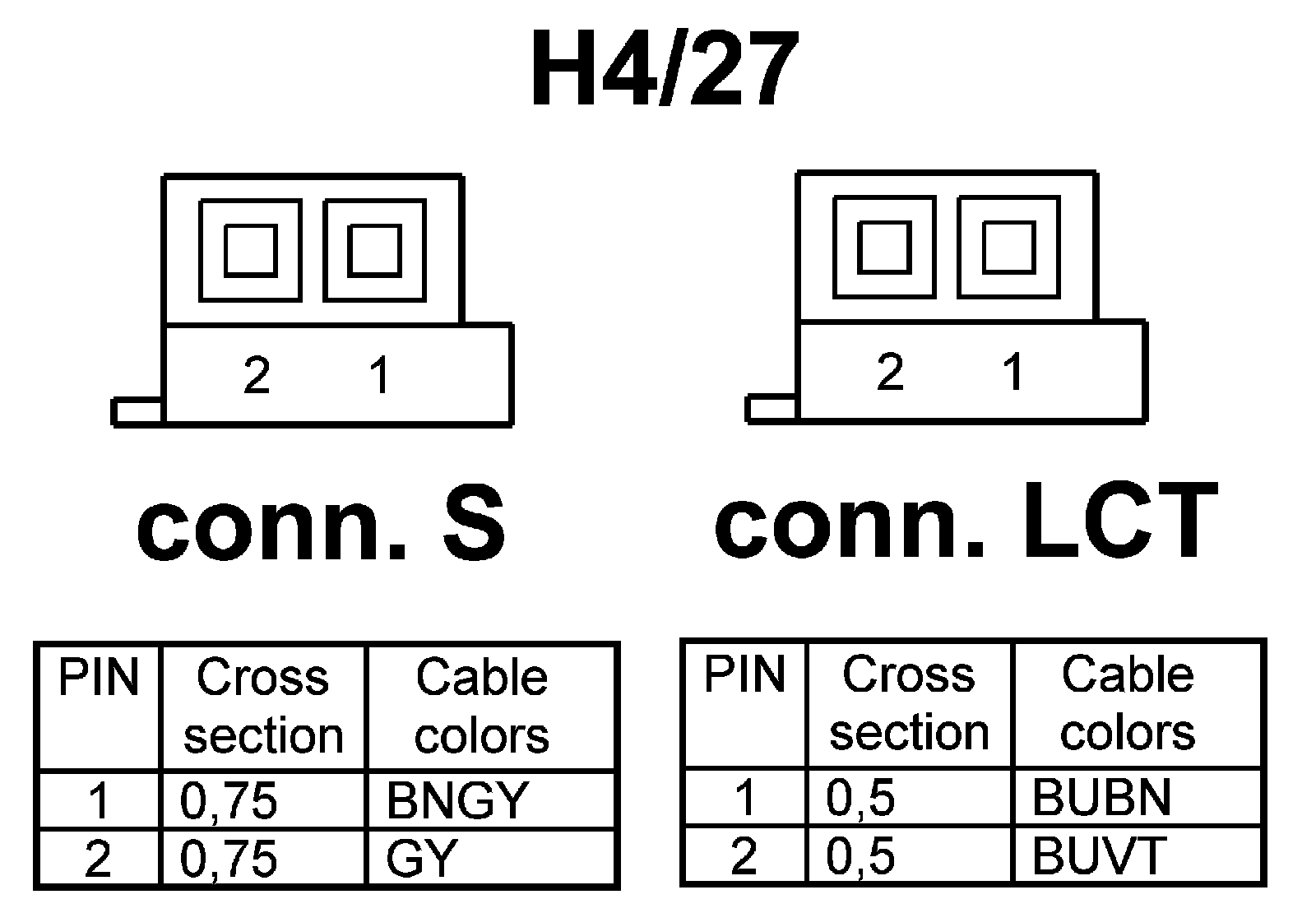

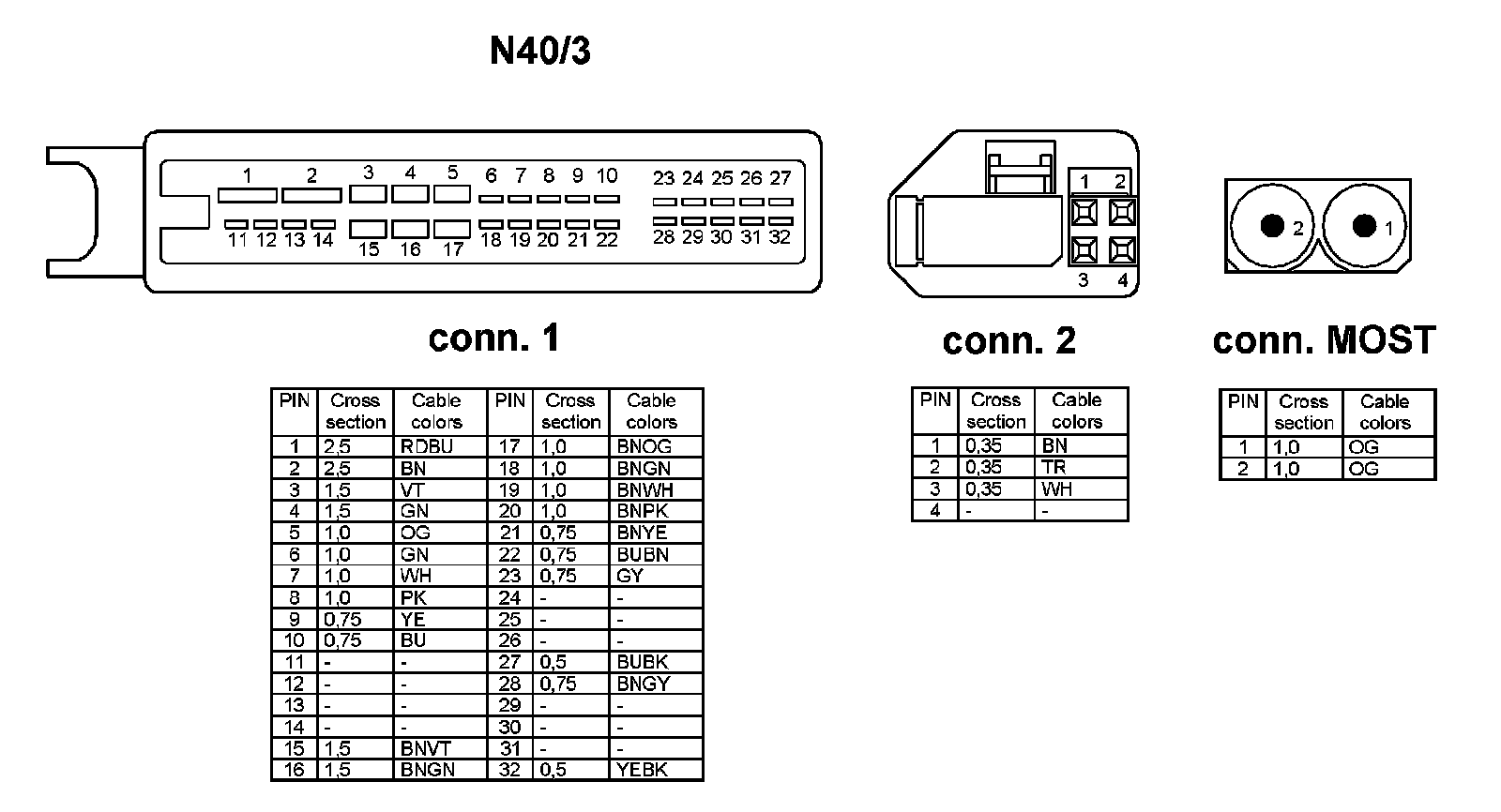

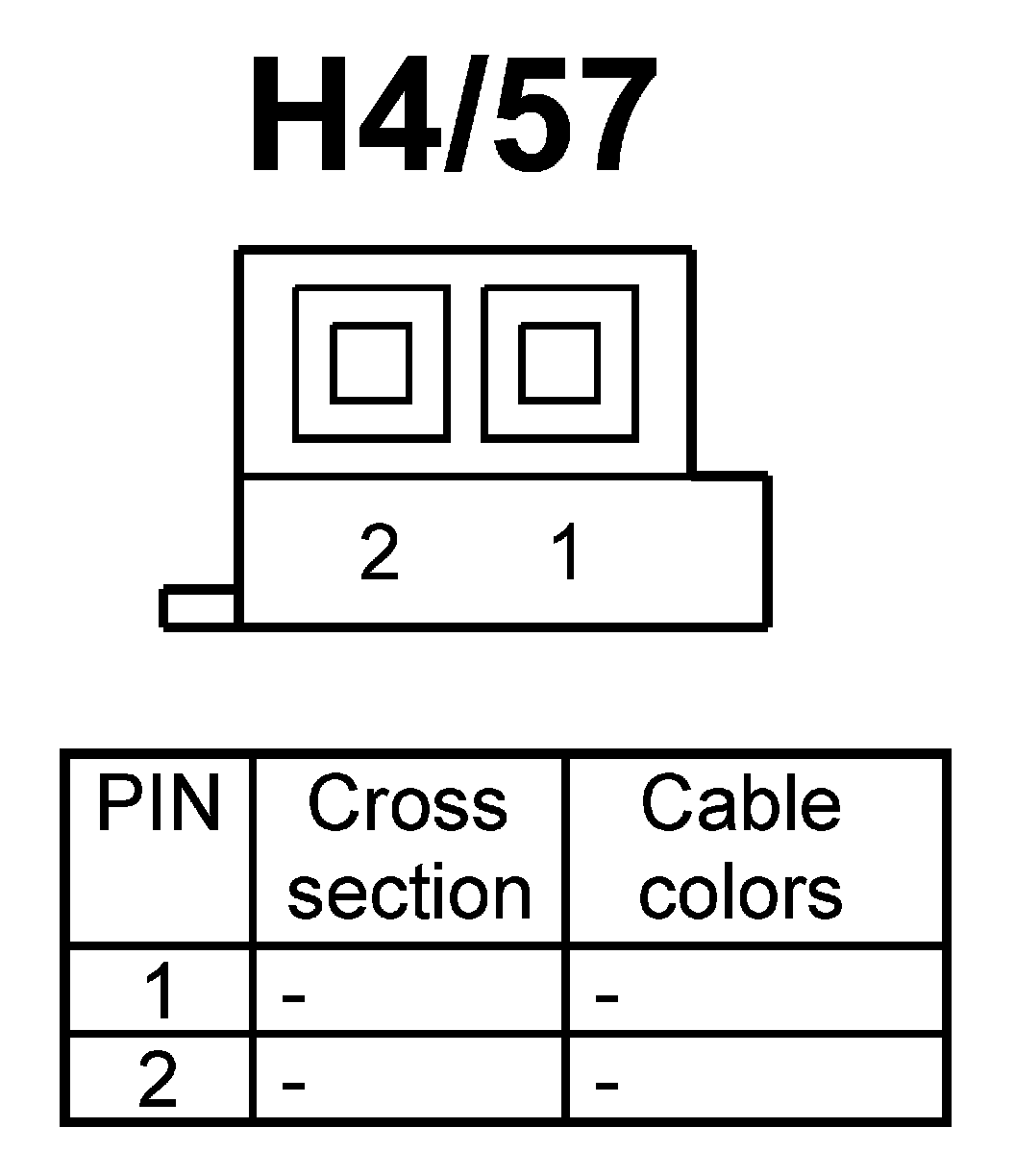

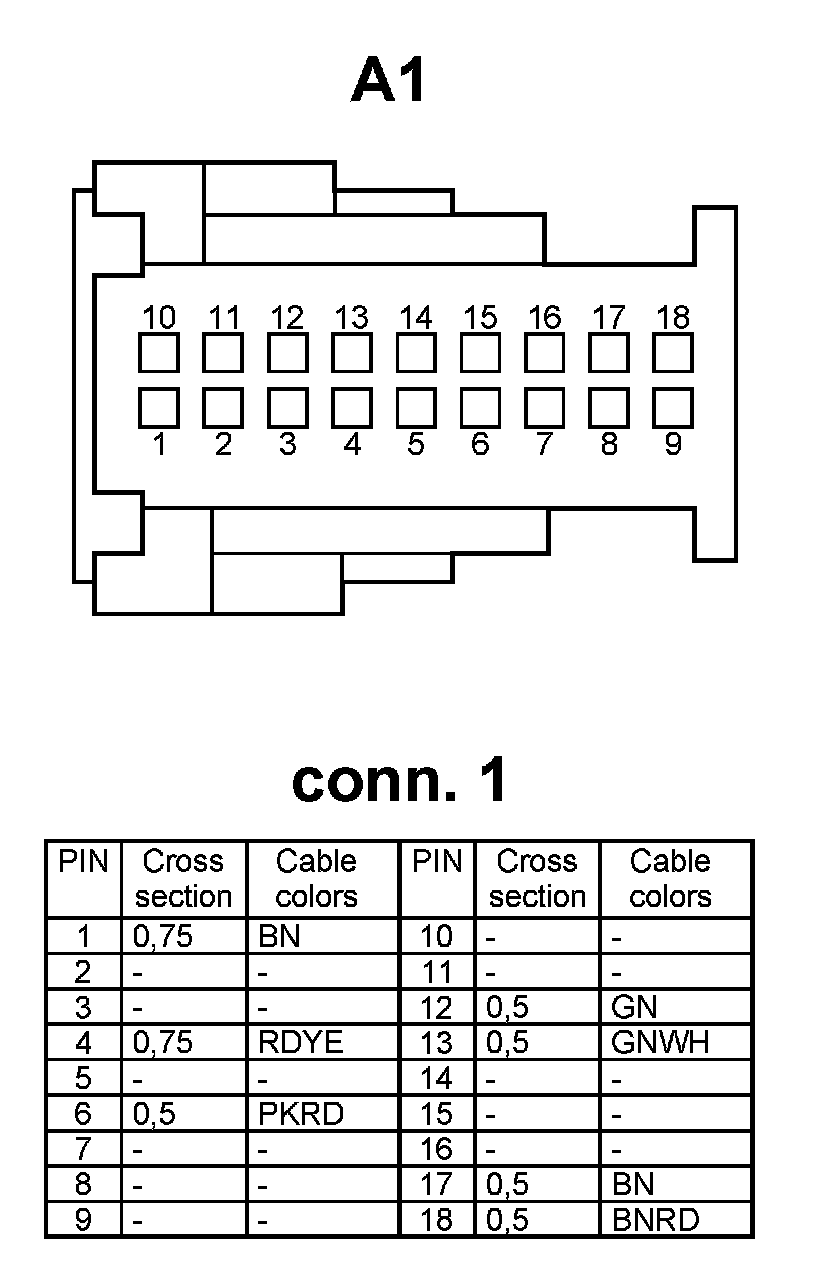

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
