AR42.20-P-0510CW Remove/Install Parking Brake Pedal Assembly



AR42.20-P-0510CW Remove/install parking brake pedal assembly

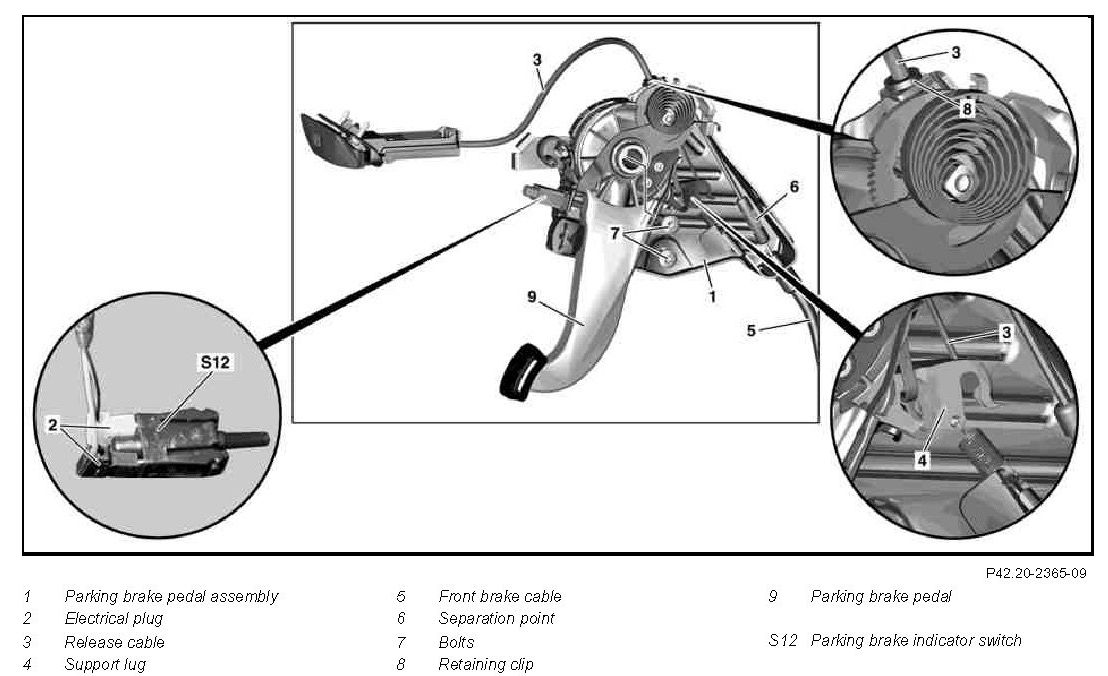

Component Identification:

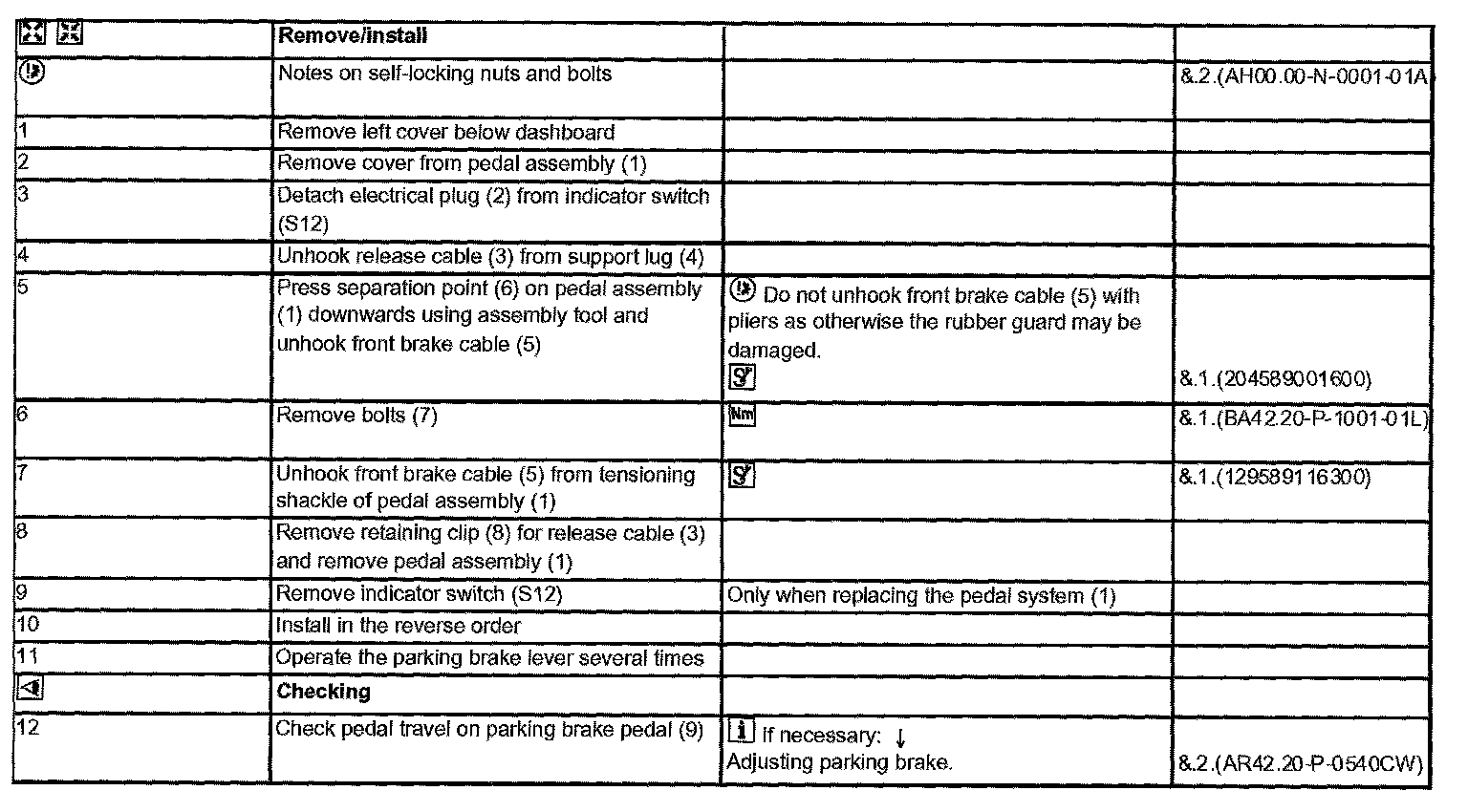

Remove/install Steps 1-12:

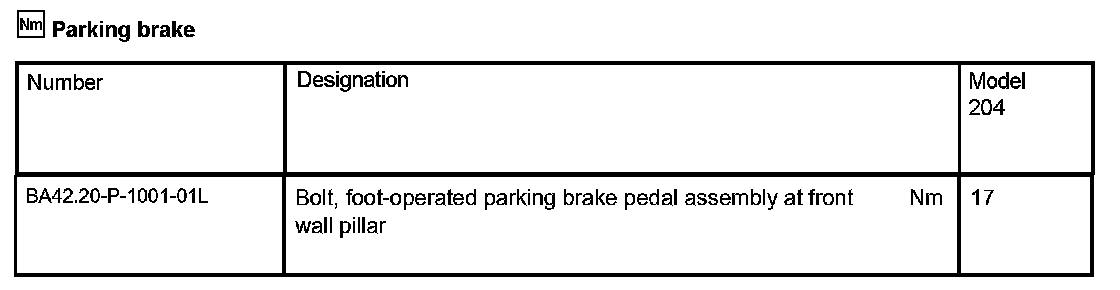

Parking brake:

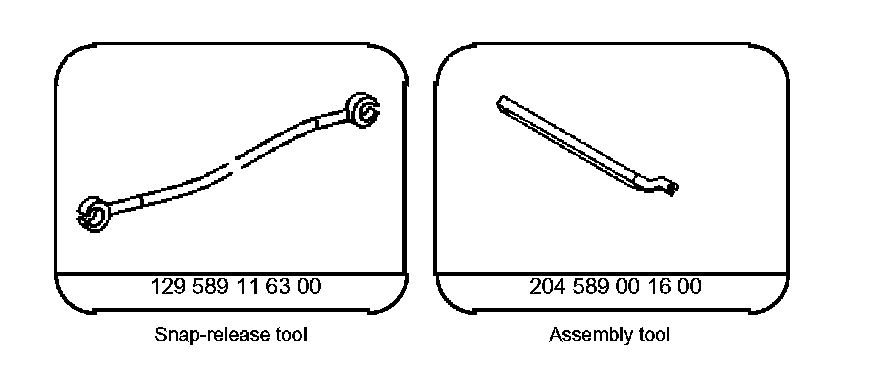

Special Tools:
