Removal and Replacement
AR42.10-P-0220CMG Remove/install brake disc
- with 6-piston or 4-piston brake caliper

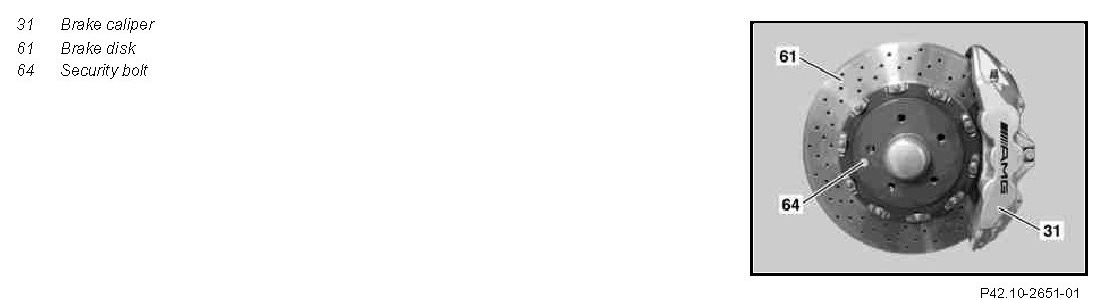

Component Identification:

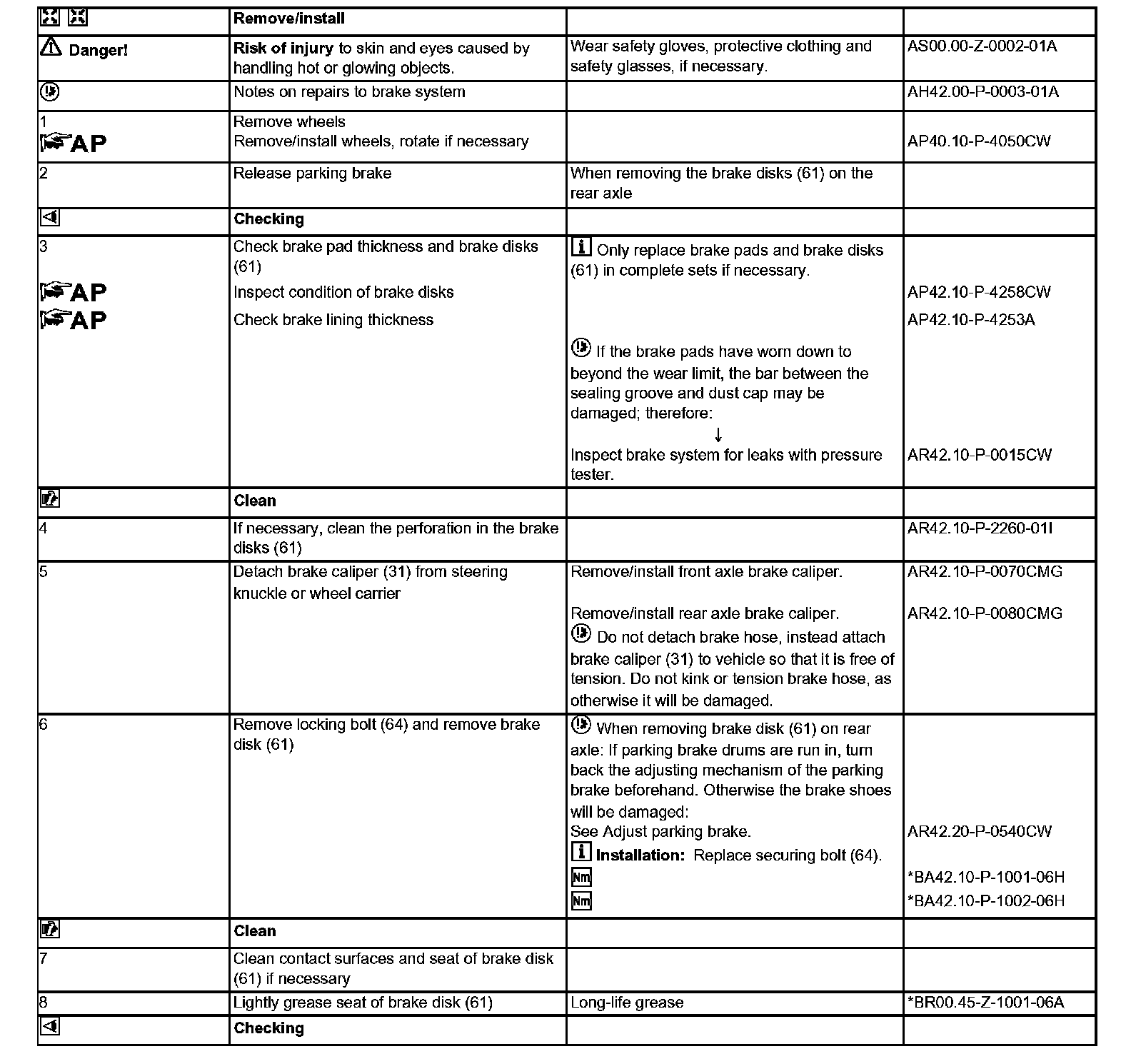

Remove/install Steps 1-8:

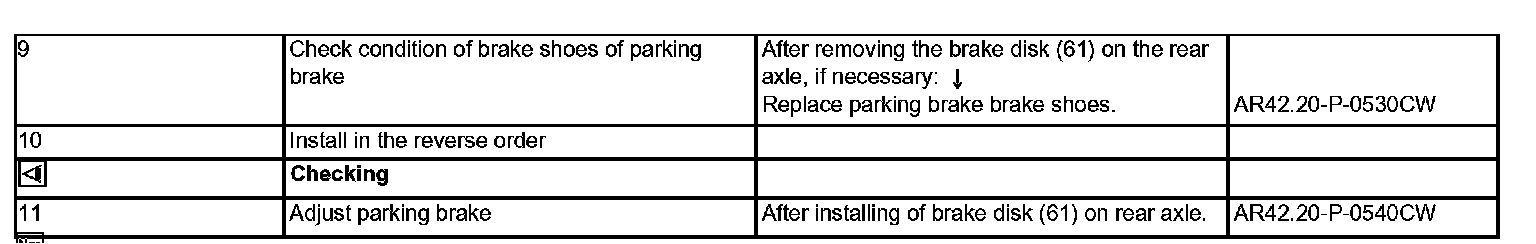

Remove/install Steps 9-11:

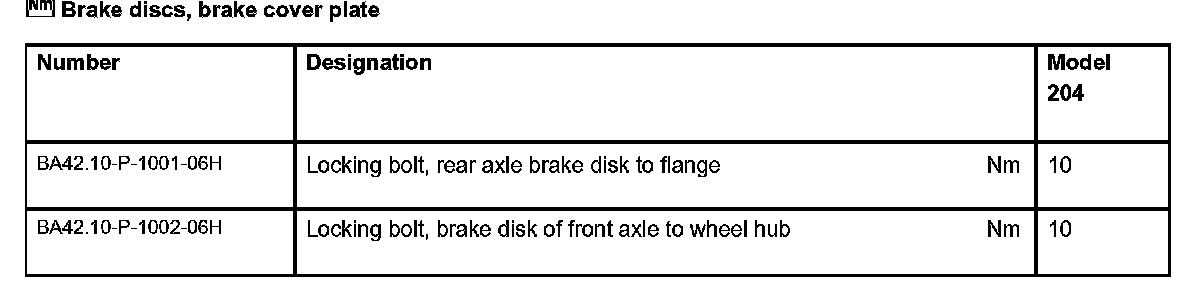

Brake discs, brake cover plate:

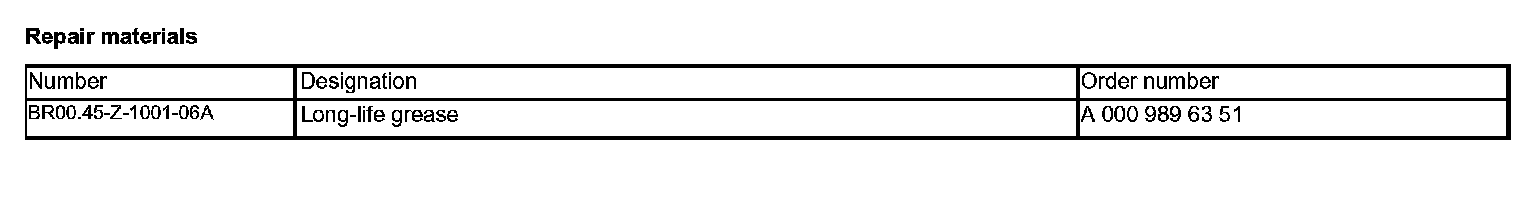

Repair materials:
AR42.10-P-0220CMG Remove/install brake disc
- with 6-piston or 4-piston brake caliper
