AR42.10-P-1600CMG Remove/Check/Install Front Axle Brake Pads



AR42.10-P-1600CMG Remove/check/install front axle brake pads
- with 6-piston brake caliper

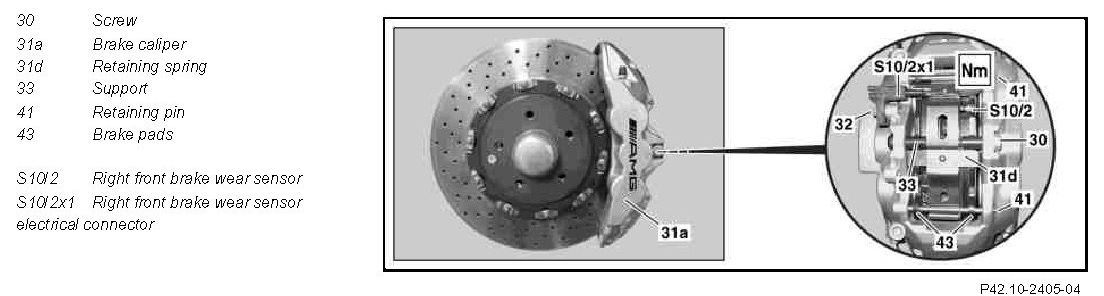

Component Identification:

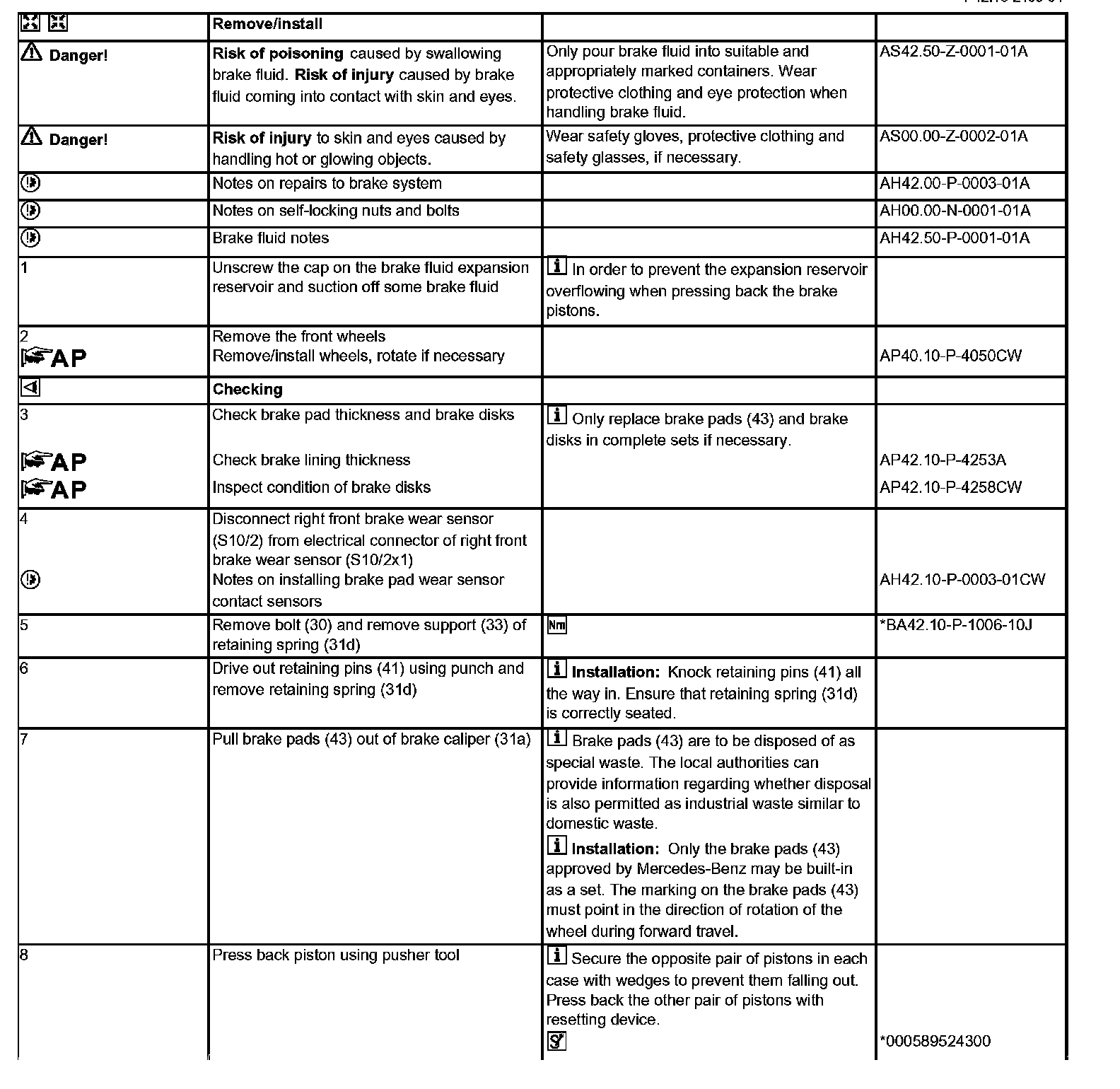

Remove/install Steps 1-8:

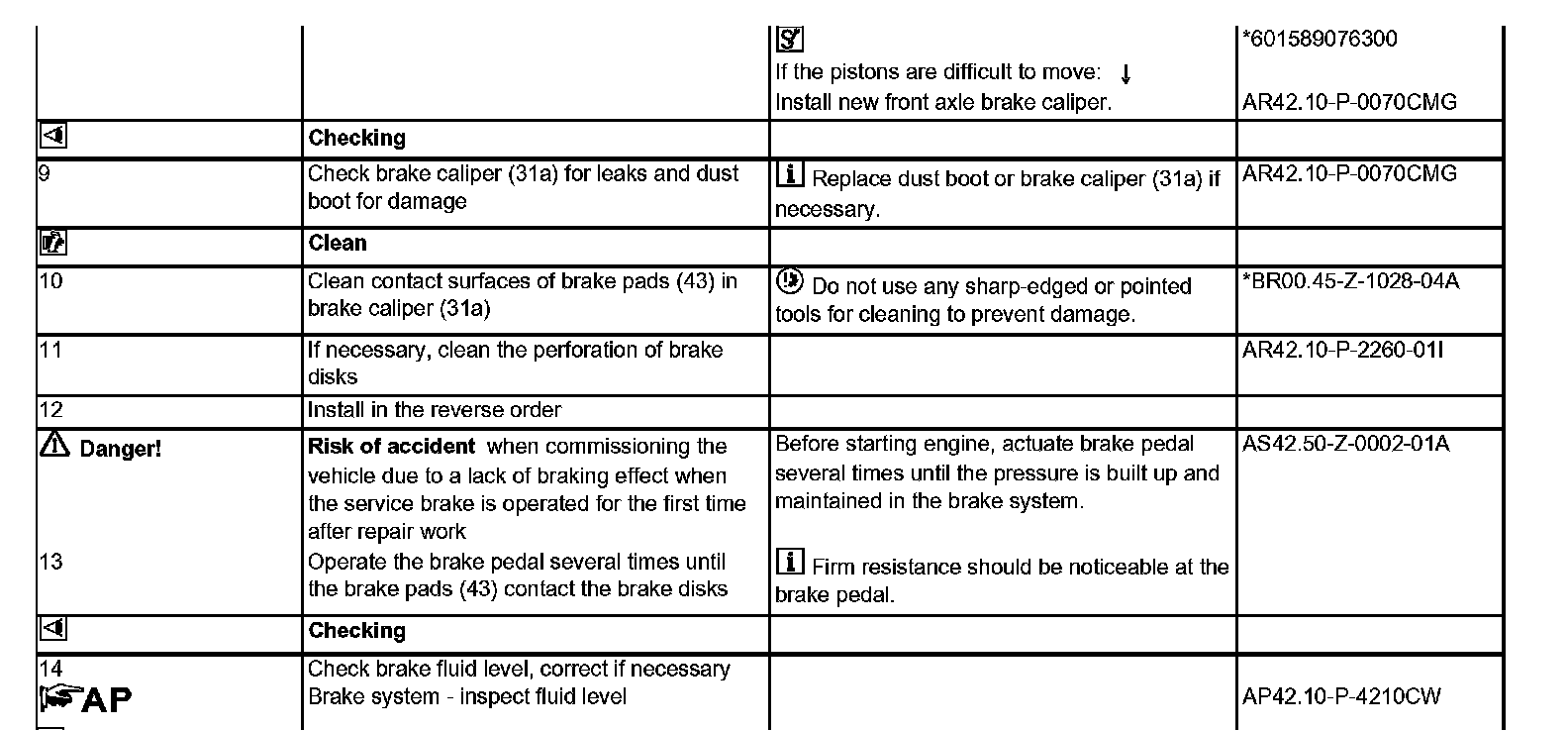

Remove/install Steps 8 (Continued)-14:

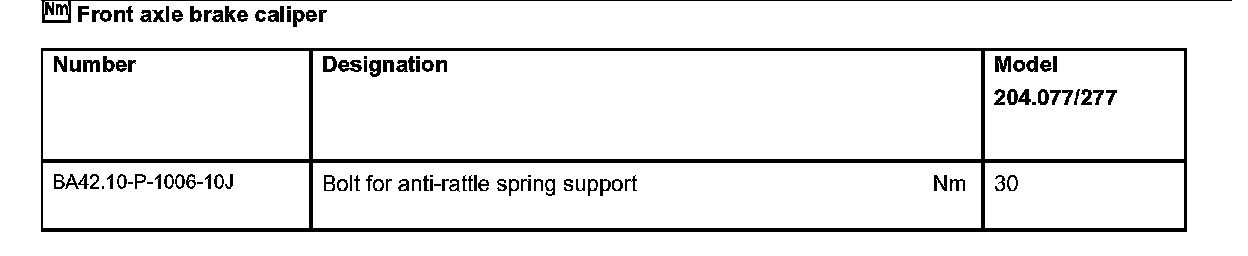

Front axle brake caliper:

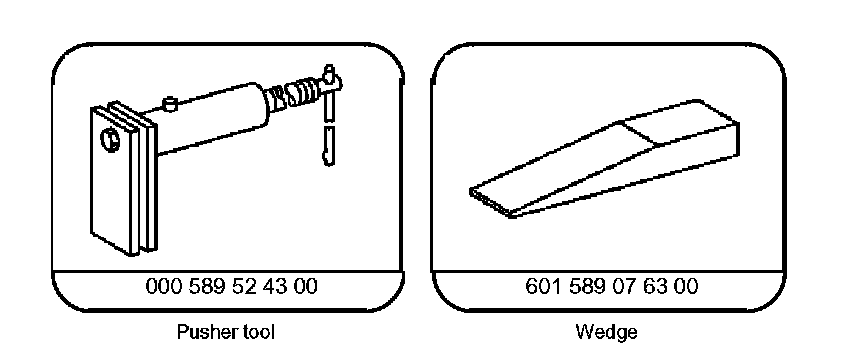

Special Tools:

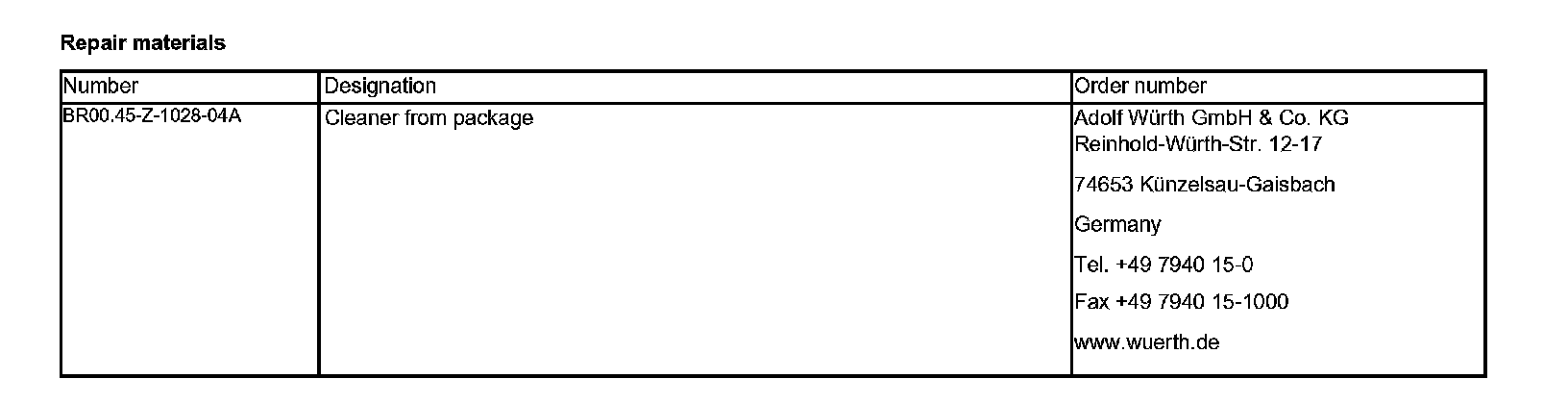

Repair materials:
