AR42.10-P-0080CMG Remove/Install Rear Axle Brake Caliper



AR42.10-P-0080CMG Remove/install rear axle brake caliper
- with 4-piston brake caliper

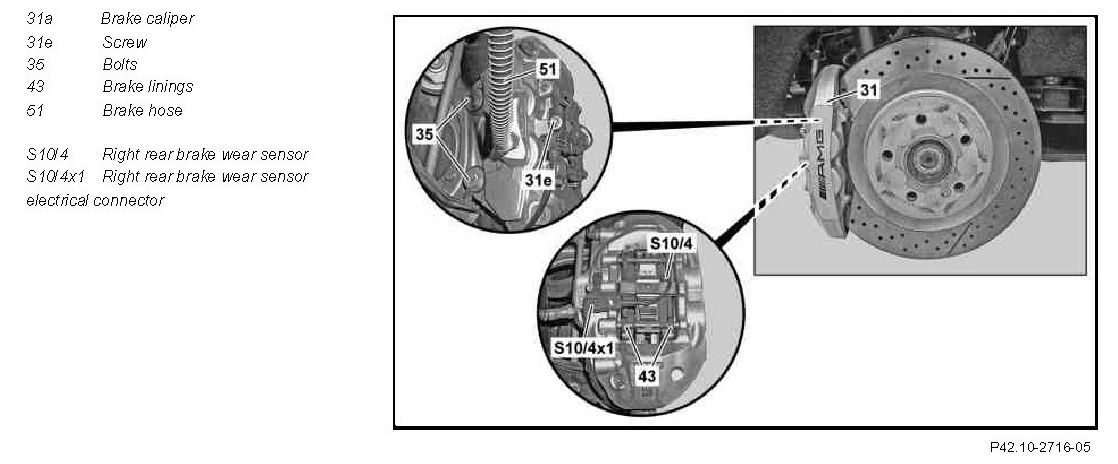

Component Identification:

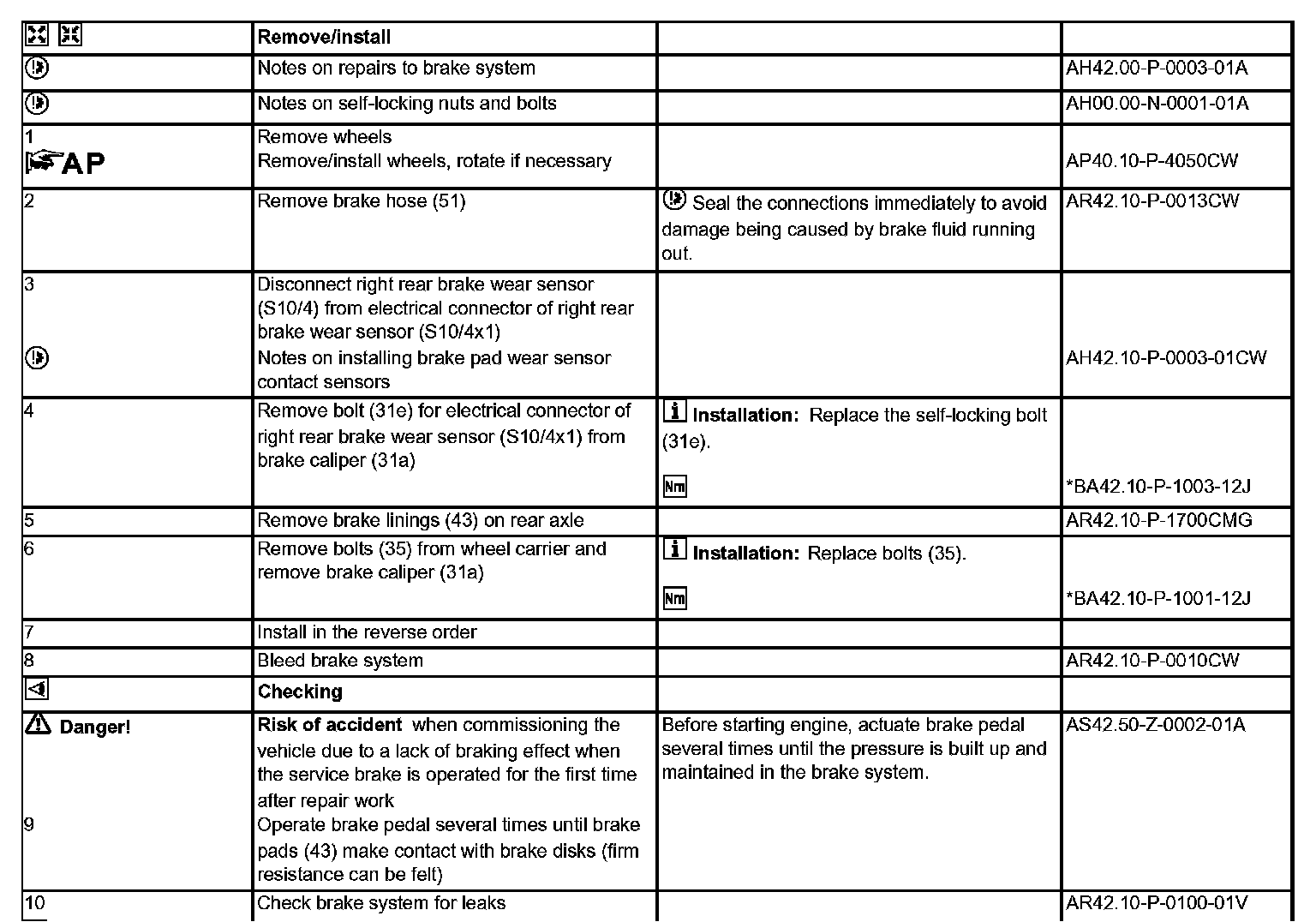

Remove/install Steps 1-10:

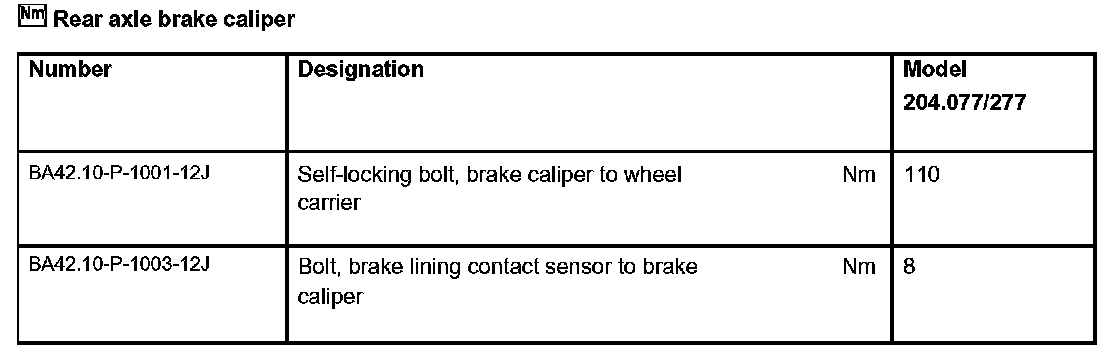

Rear axle brake caliper:
