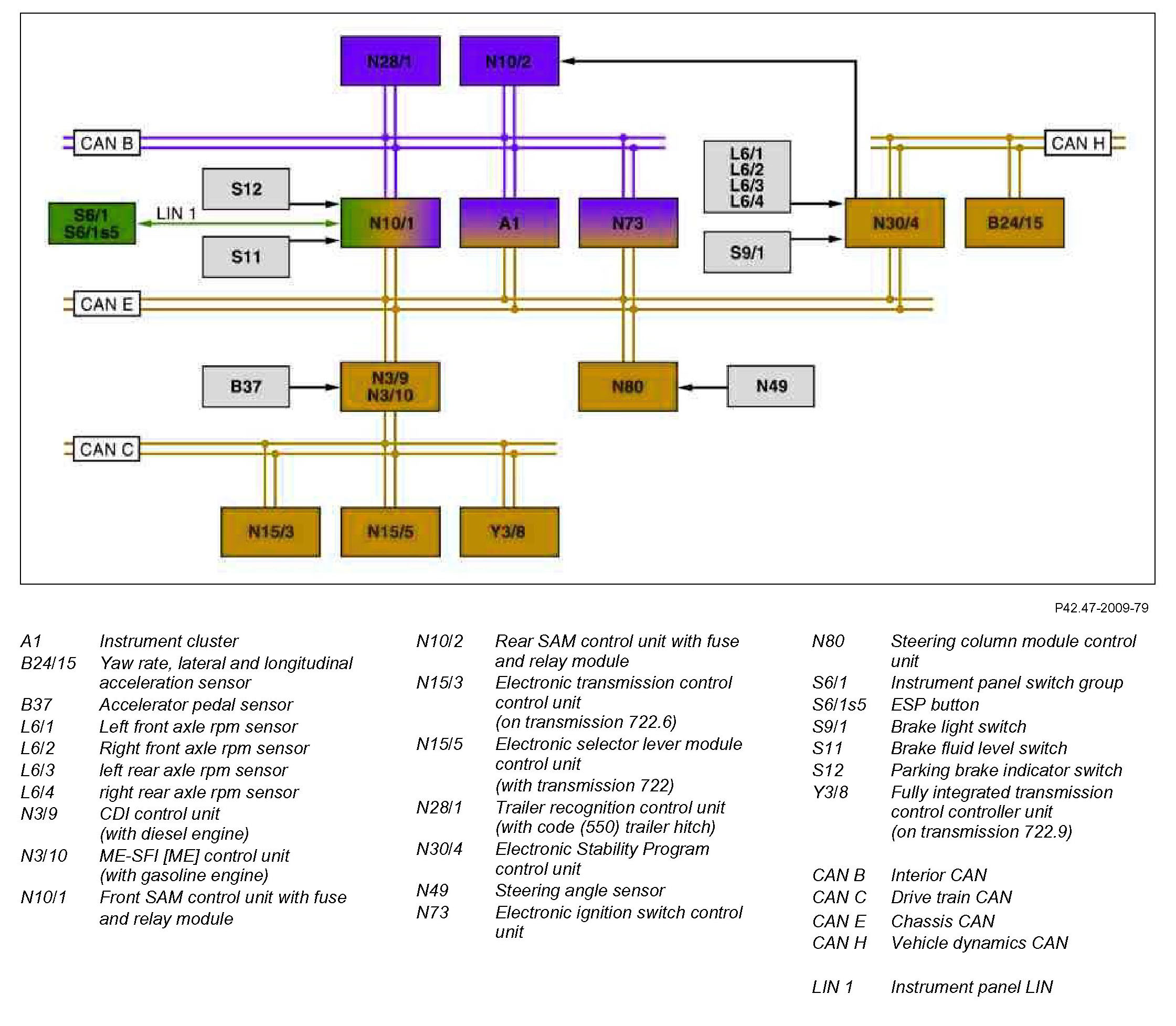

GF42.47-P-0001-03CW Adaptive Brake (ABR) Block Diagram
GF42.47-P-0001-03CW Adaptive Brake (ABR) Block Diagram
GF42.47-P-0001-03CW Adaptive Brake (ABR) block diagram
