Home >> Mercedes Benz >> 2008 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> AR91.20-P-1855CW Remove/Install Cover on Child Seat Cushion

AR91.20-P-1855CW Remove/Install Cover on Child Seat Cushion



AR91.20-P-1855CW Remove/Install cover on child seat cushion
- with CODE (248) Rear seat with integrated child seat

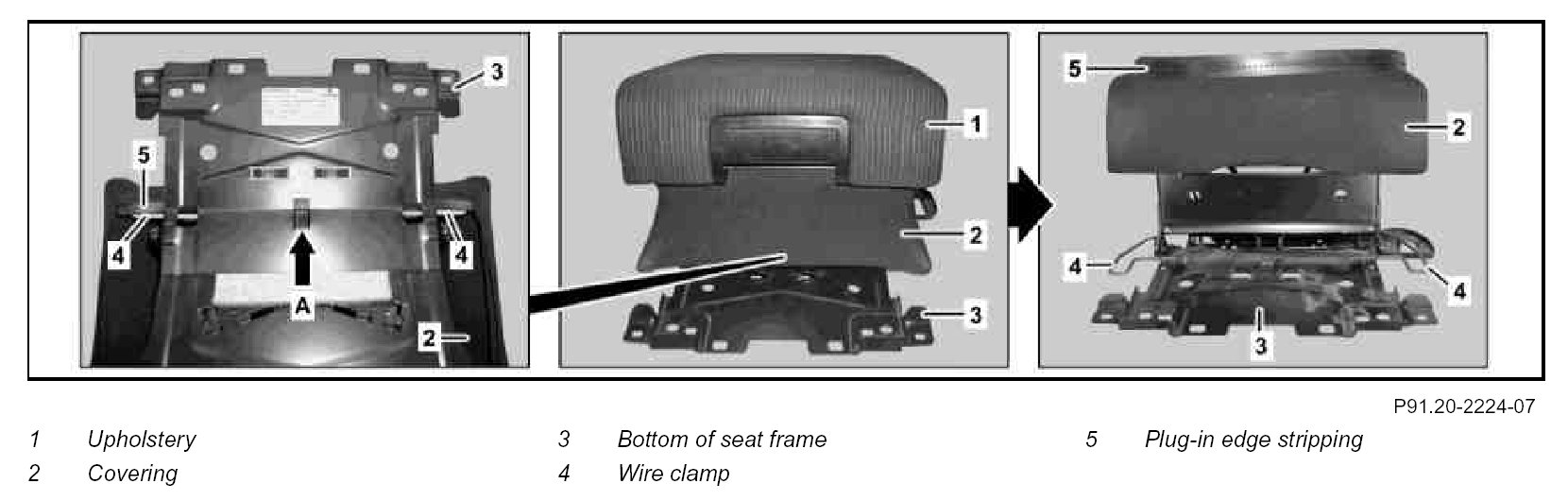

Component Identification:

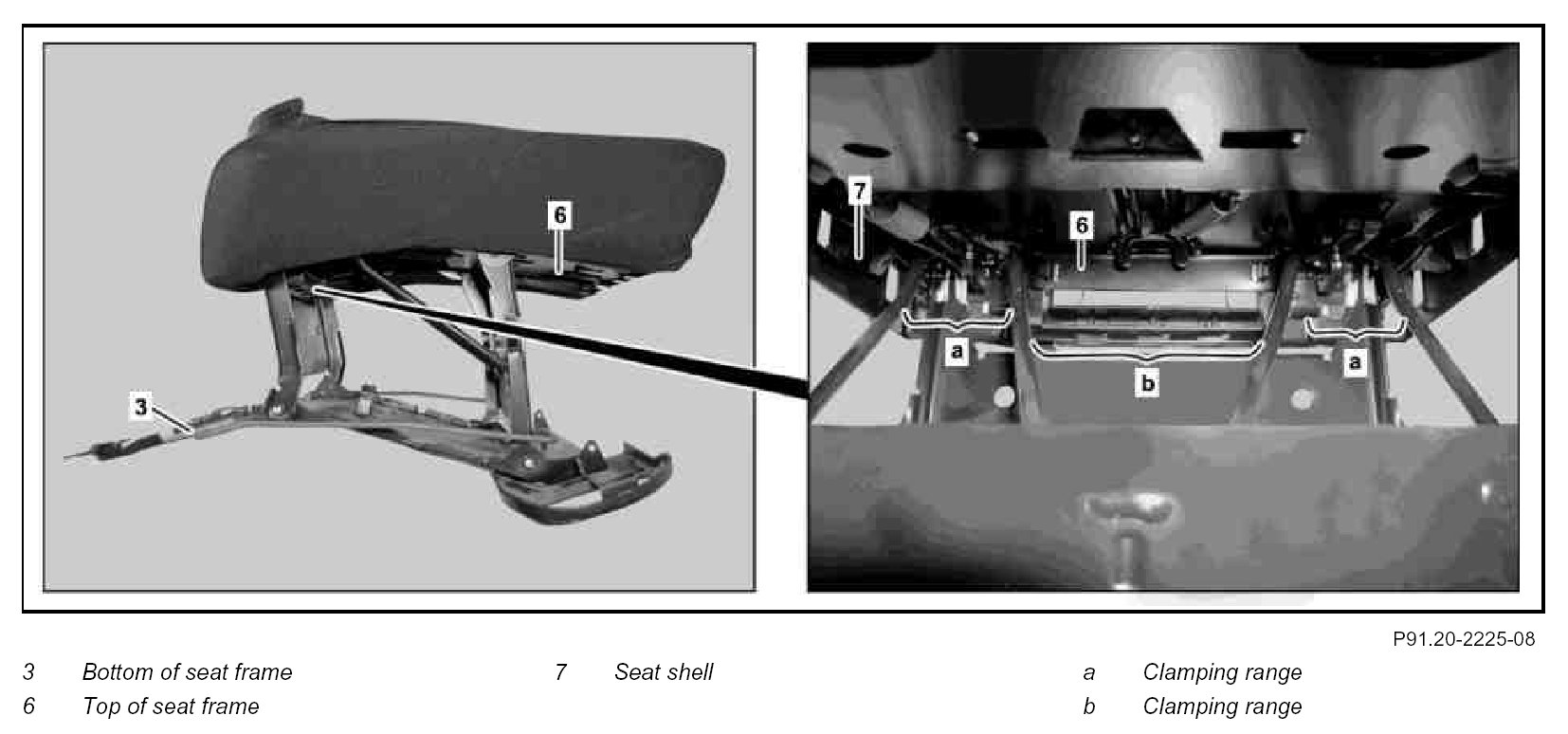

Component Identification:

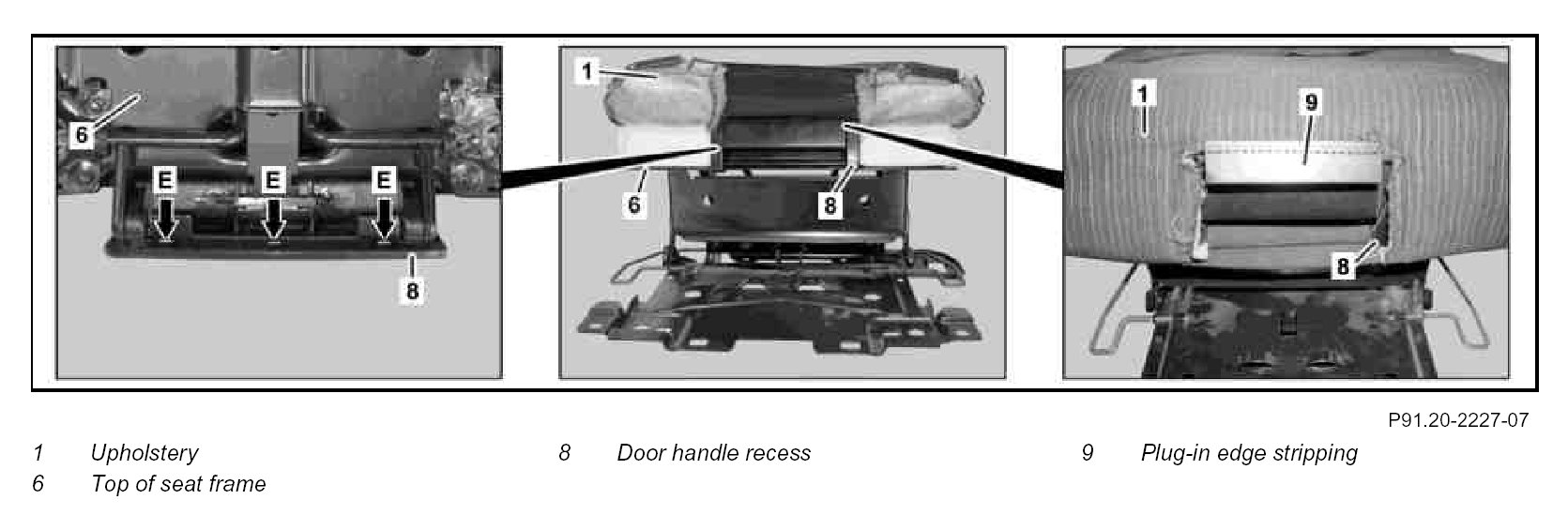

Component Identification:




Component Identification:




Steps 1 - 10:
