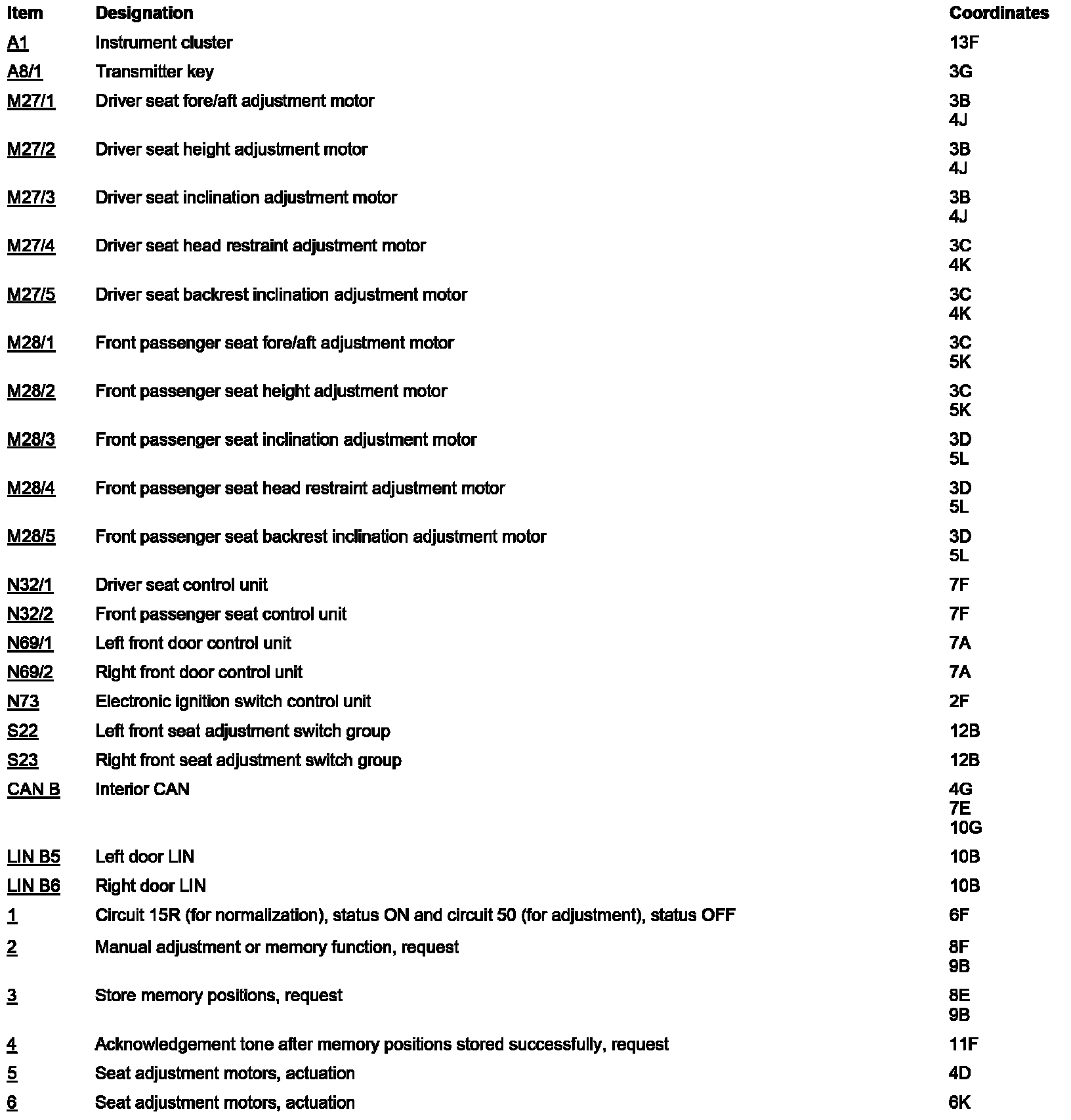

PE91.29-P-2054FAA Electrical Function Schematic For Seat Adjustment (ESE) With Memory

PE91.29-P-2054FAA Electrical Function Schematic For Seat Adjustment (ESE) With Memory
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- with CODE (242) Electrically adjustable front passenger seat with memory










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
