Home >> Mercedes Benz >> 2008 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Description and Operation >> GF77.20-P-0003-01CW Electric Panoramic Sliding Window, Location of Components

GF77.20-P-0003-01CW Electric Panoramic Sliding Window, Location of Components



GF77.20-P-0003-01CW Electric Panoramic Sliding Window, Location Of Components
- with CODE (413) Panoramic glass roof with top sliding roof
- up to model year 08

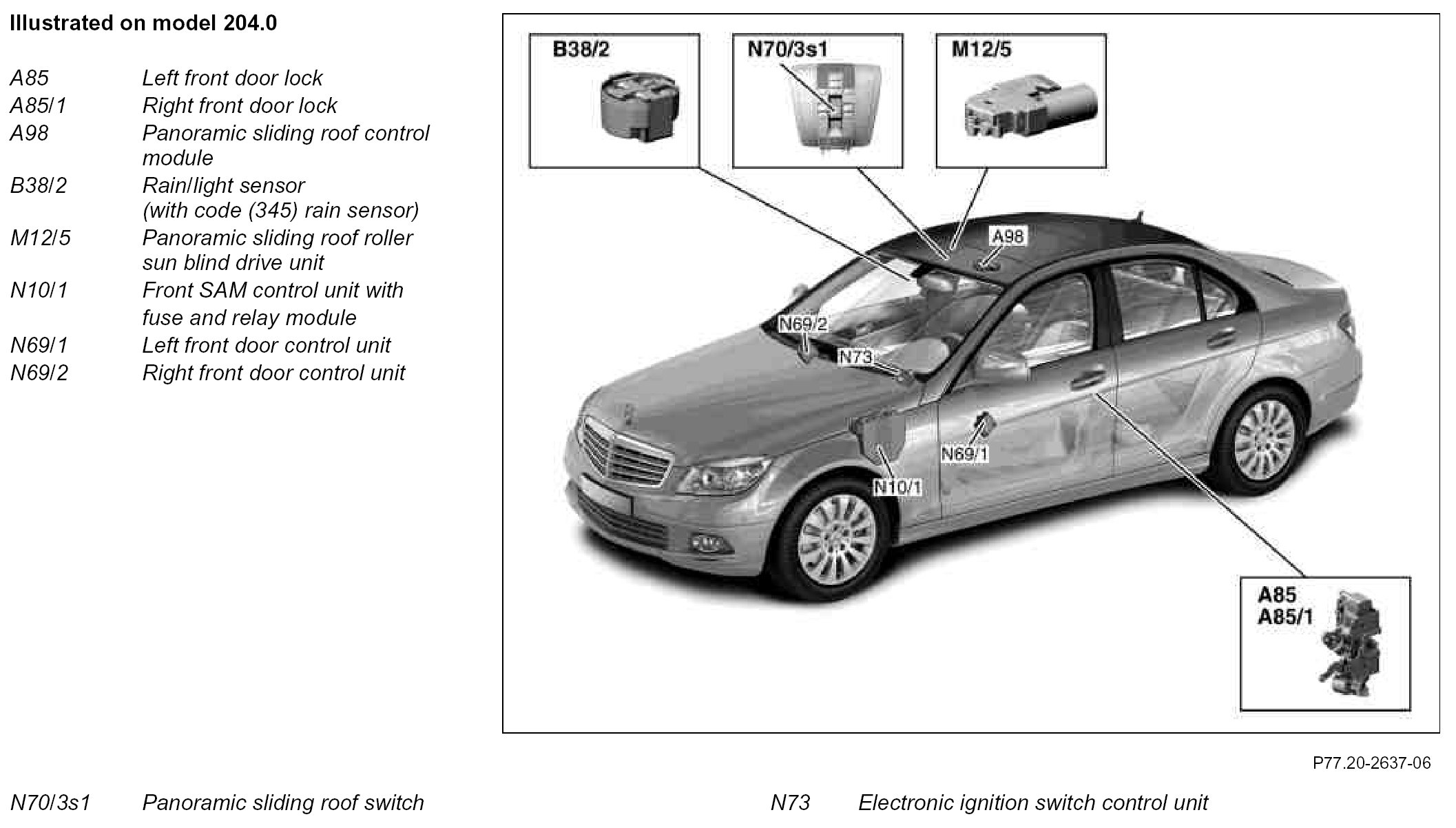

Component Identification:
