Body - Warped Sliding Roof Covers/Flaps

Date: February 14, 2008

Order No.: P-B-77.30/60

Supersedes:

Group: 77

SUBJECT:
All Model 204 Vehicles

Equipped with Panorama Sunroof (code 413)

Warped Sliding Roof Covers/Flaps

If you receive customer reports in the above model vehicles of deformed or warped covers for the roof rack mounting points on either side of the panoramic sunroof, replace the roof trim strips/covers as per the below steps.

1. Remove roof trim strips, unclip using a plastic wedge.





2. On the new trim strips, cut a 2 cm long piece of the ribs on the flap carriers using a side cutter (Figure 1).

3. Install trim strips.

Note:
The covers at the front are all 0.5 mm deeper than the trim strips. Covers at the rear are flush with the trim strip.

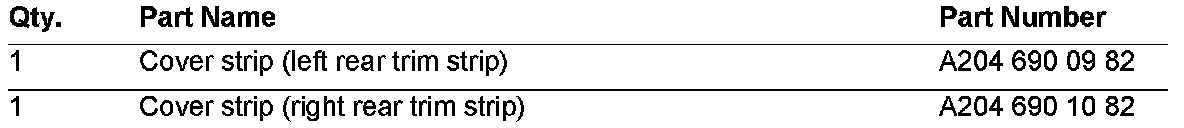

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on February 14, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

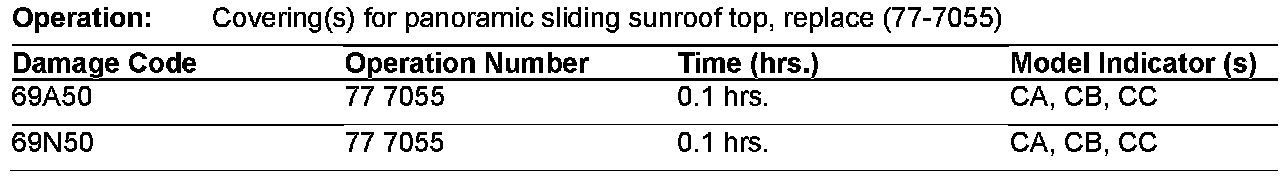

In Case of Warranty, use the table.
