Power Seat Relay: Locations
Seat Adjustment Relay

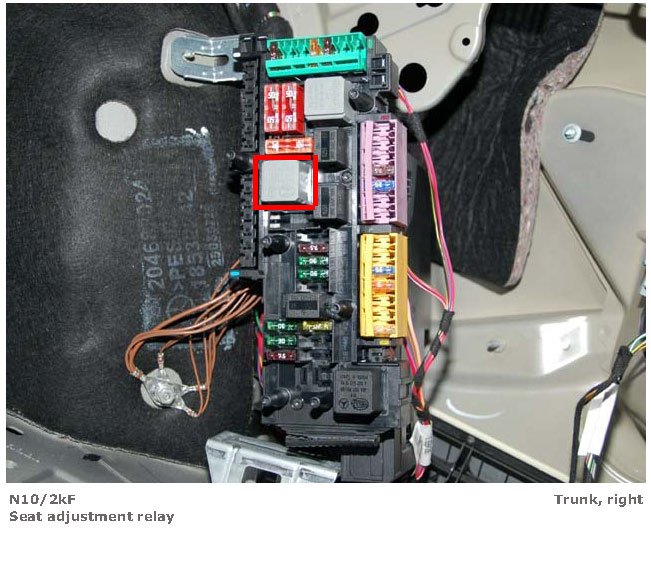

Seat Adjustment Relay (View 1):

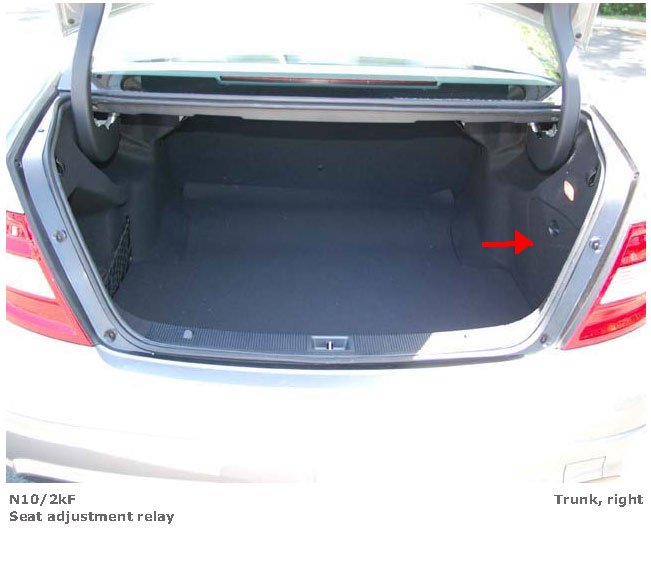

Seat Adjustment Relay (View 2):

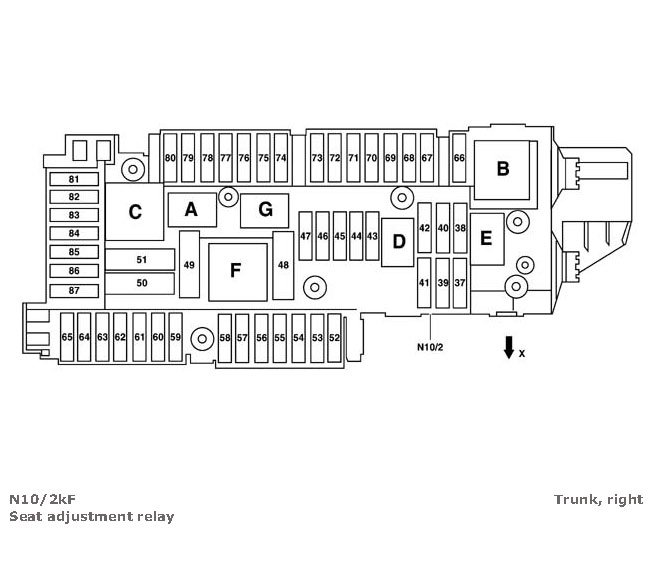

Seat Adjustment Relay (View 3):
