Keyless Start Antenna: Description and Operation

GF82.62-P-3139CW TV 2 And KEYLESS GO Antenna Amplifier, Component Description

MODEL 204.0 /2
- with CODE (889) Keyless Go
- up to Model Year 8
MODEL 204.0 /2
- with CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- up to Model Year 8

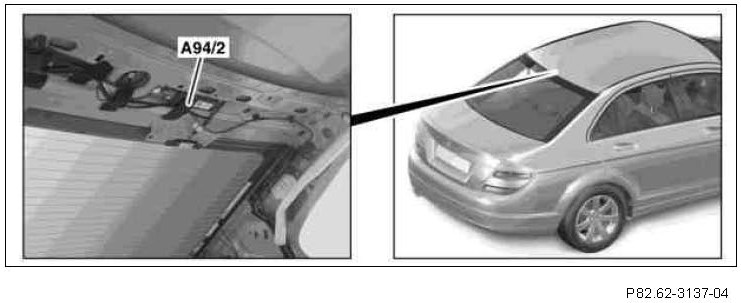

Illustrated on model 204.0

A94/2 TV 2 and KEYLESS GO antenna amplifier

Location
The antenna amplifier is installed at the rear of the roof frame.

Tasks
with code (889) Keyless-Go:
The antenna amplifier receives radio signals from the transmitter key (A8/1) via the antenna in the rear window and forwards them to the KEYLESS-GO control unit (N69/5).

With code (498) Japan version with code (527) COMAND APS with single DVD drive (with navigation system):
The antenna amplifier receives analog terrestrial TV signals via the antenna in the rear window and forwards them to the TV tuner control unit (N143).
