Rear Shelf: Service and Repair

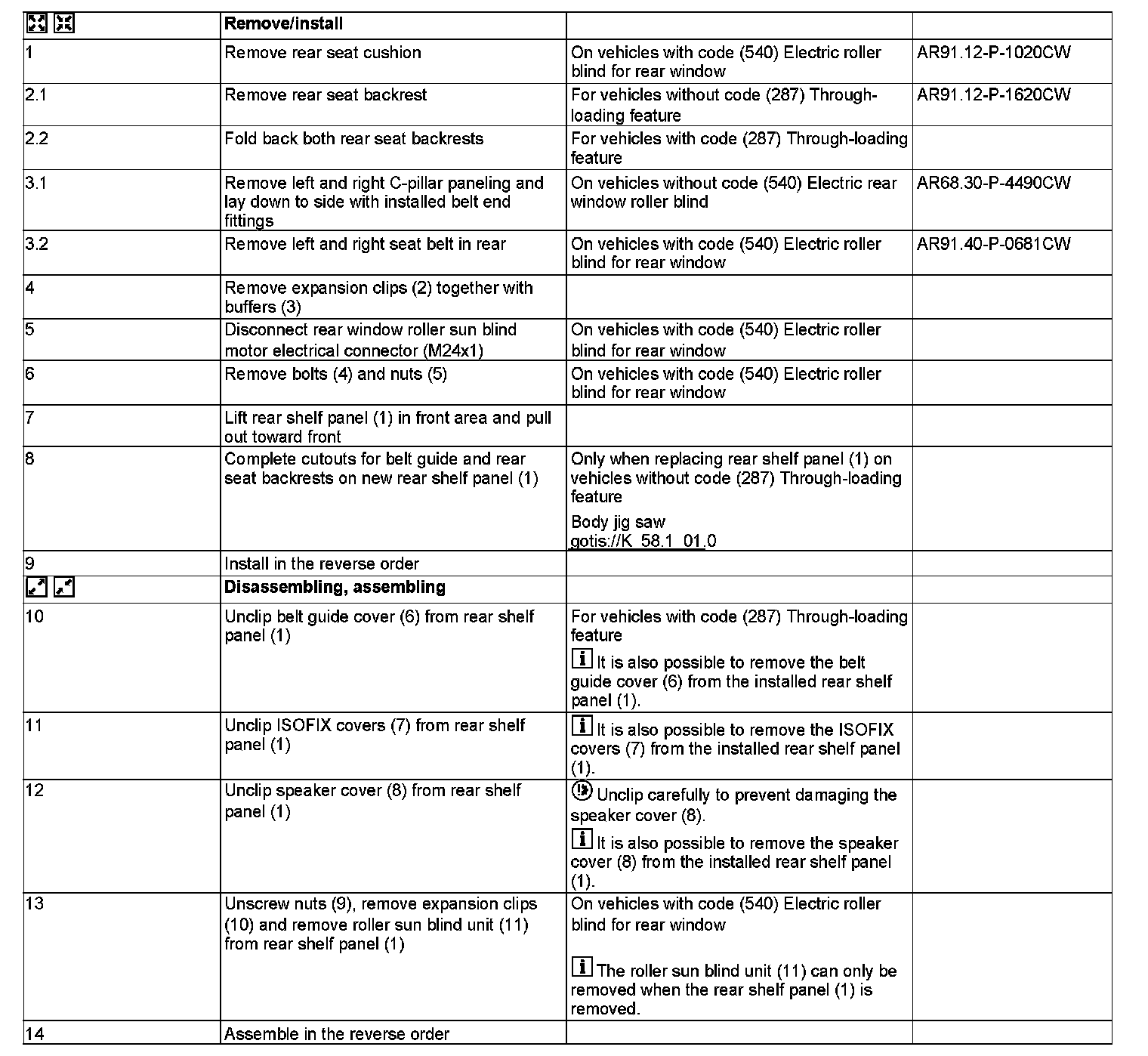

AR68.30-P-4580CW Remove/Install and Disassemble Rear Shelf
MODEL 204.0





Shown with code (540) Electric rear window roller blind

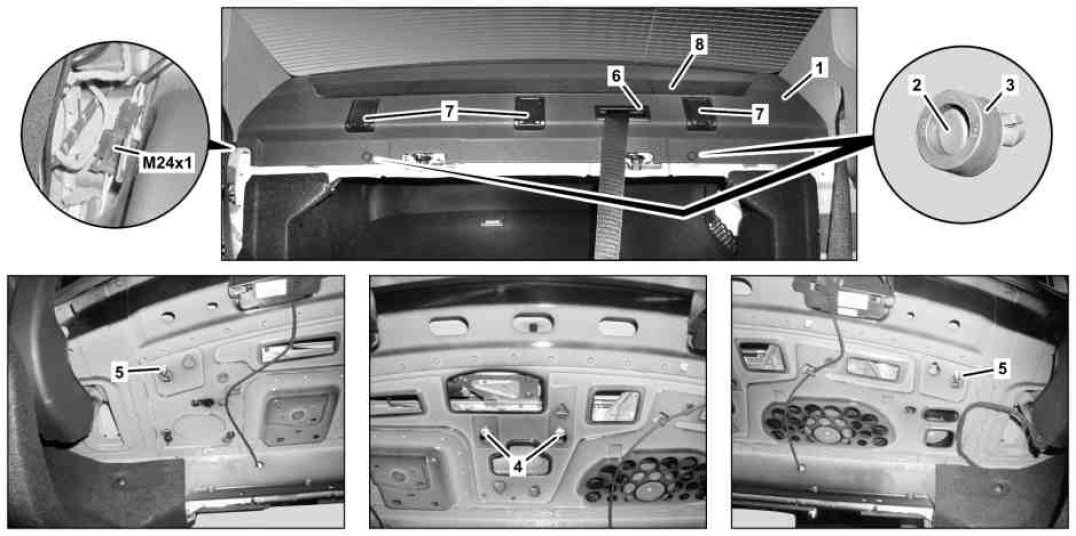

1 Rear shelf panel
2 Expansion clip
3 Buffer
4 Bolts (with code (540) Electric roller blind for rear window)
5 Nut (with code (540) Electric sun shade for rear window)
6 Belt guide cover (with code (287) Through-loading feature)
7 ISOFIX covers
8 Speaker cover

M24x1 Rear window roller sun blind motor electrical connector (with code (540) Electric roller blind for rear window)





Shown with code (540) Electric rear window roller blind

1 Rear shelf panel
9 Nut (with code (540) Electric sun shade for rear window)
10 Expansion clip (with code (540) Electric roller blind for rear window)
11 Roller sun blind unit (with code (540) Electric roller blind for rear window)
