AR68.10-P-1200CW Remove/Install Glove Box Lid
AR68.10-P-1200CW Remove/Install Glove Box Lid
AR68.10-P-1200CW Remove/Install Glove Box Lid

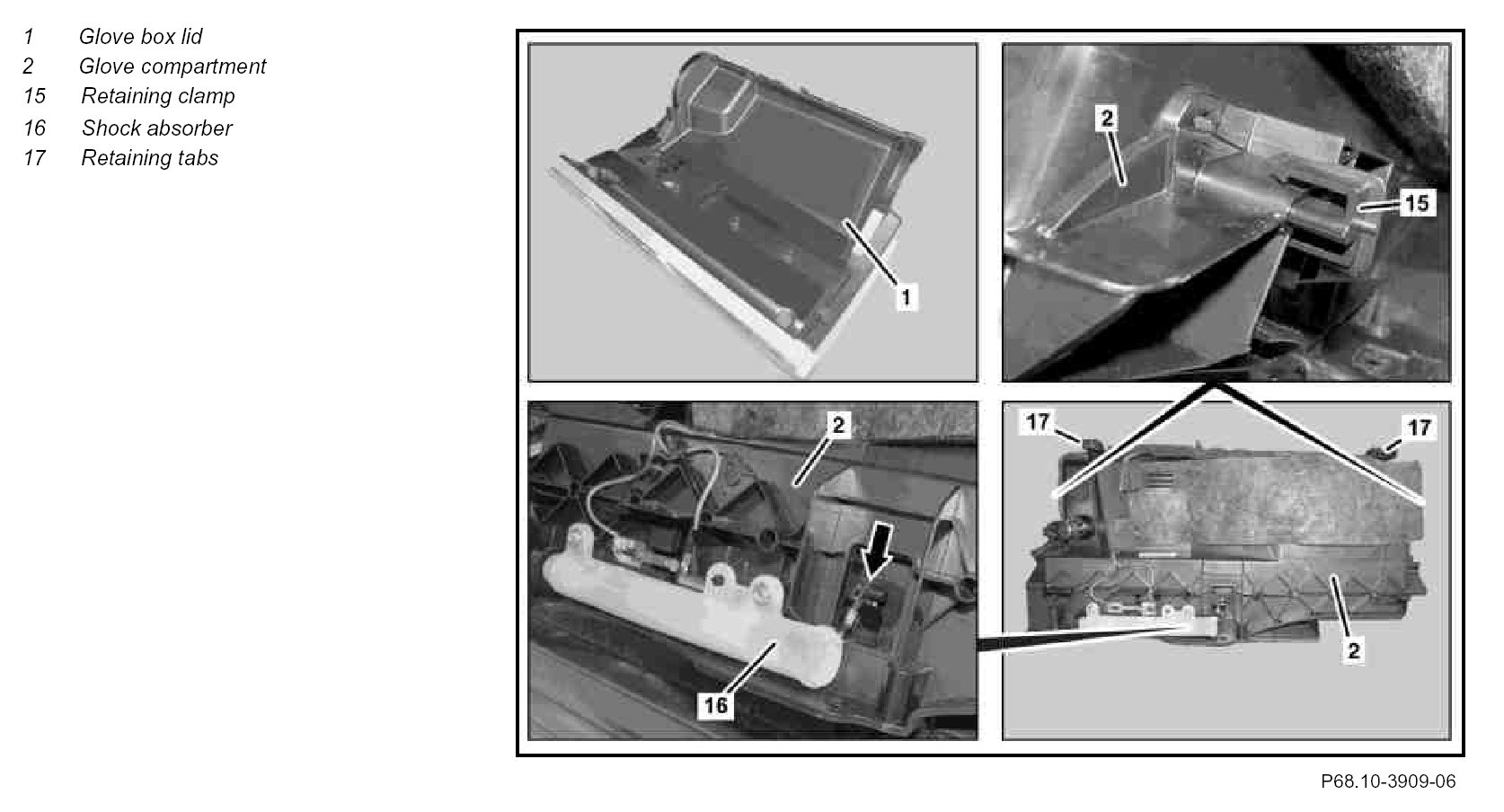

Component Identification:
Component Identification:
Modification Notes:

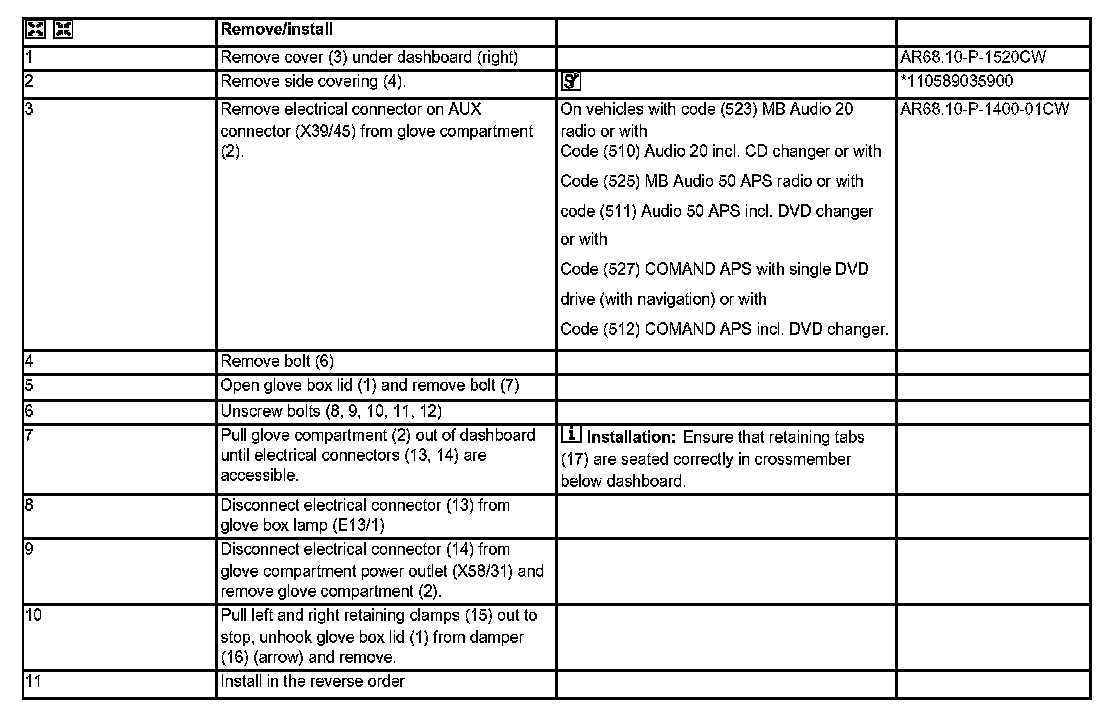

Steps 1 - 11:
Special Tools:
