AN31.10-P-0001CW Retrofit Mechanical Swing-Away Trailer Hitch

AN31.10-P-0001CW Retrofit Mechanical Swing-Away Trailer Hitch
- Model 204.0## (except 204.006/044/077) 1#
- except CODE (460) Canada version
- except CODE (494) USA version
- except CODE (498) Japan version
- except CODE (450) AMG sport package

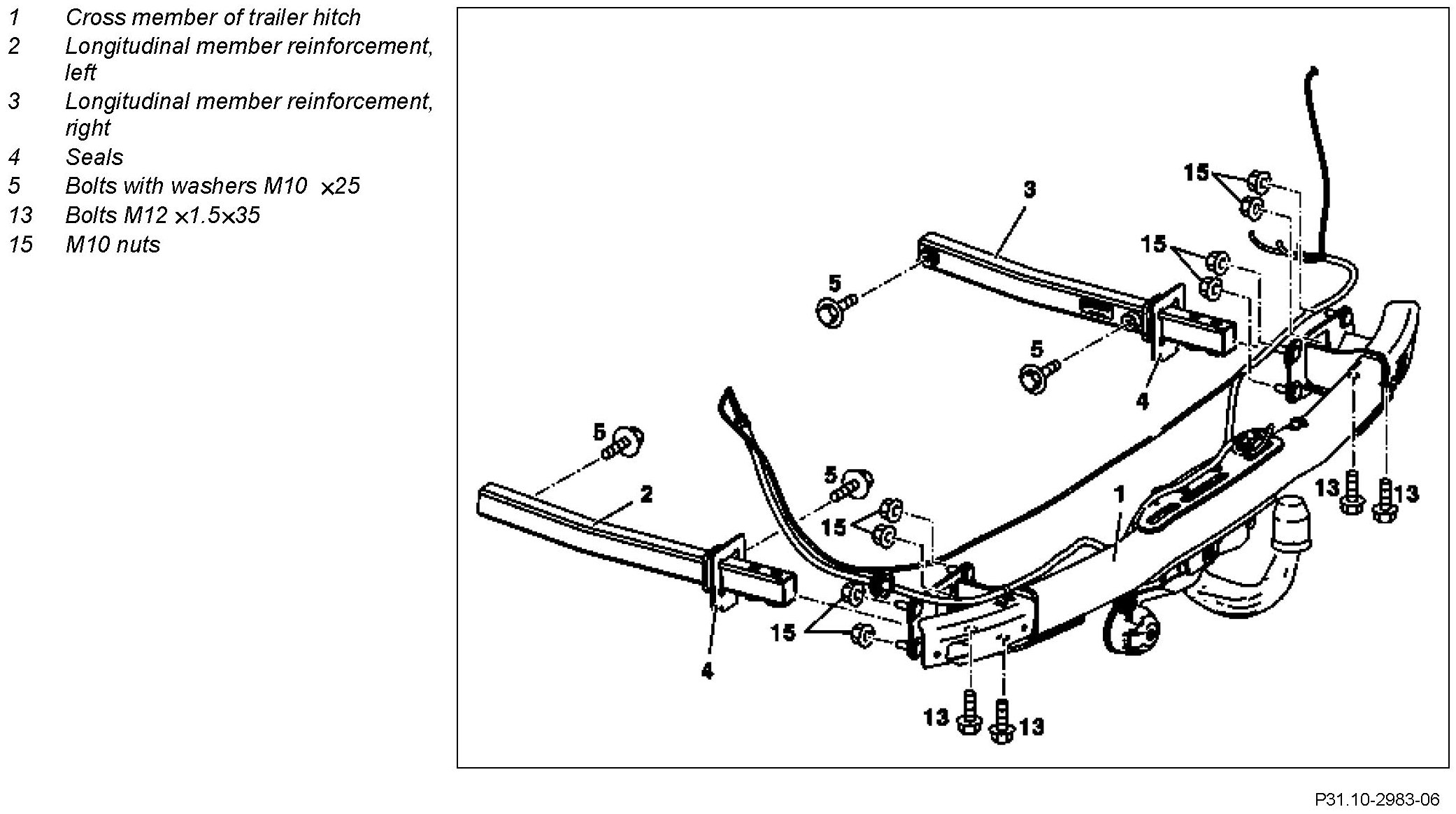

Component Identification:

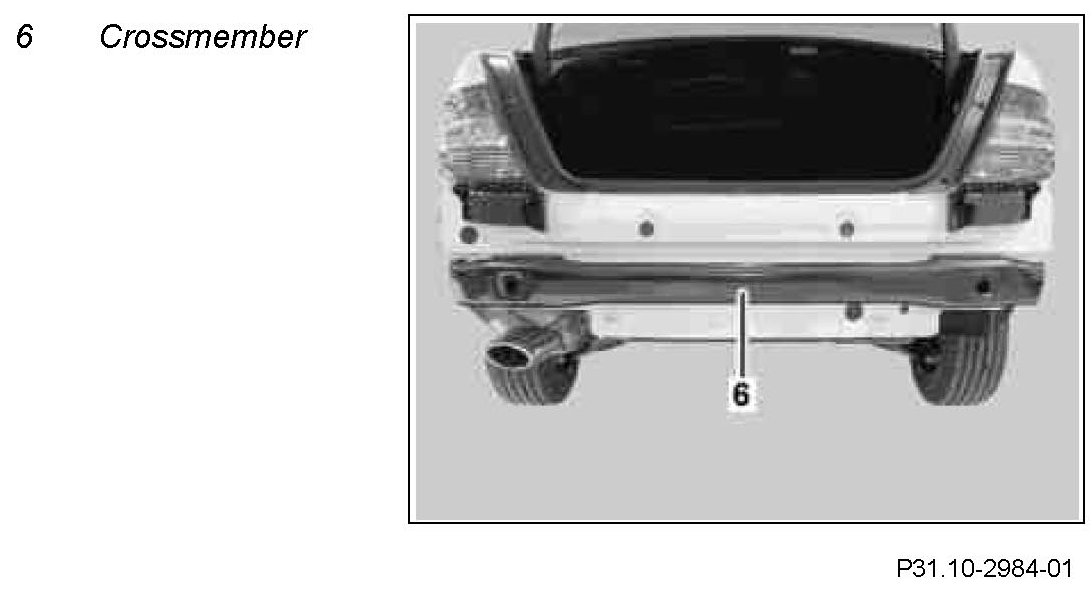

Component Identification:

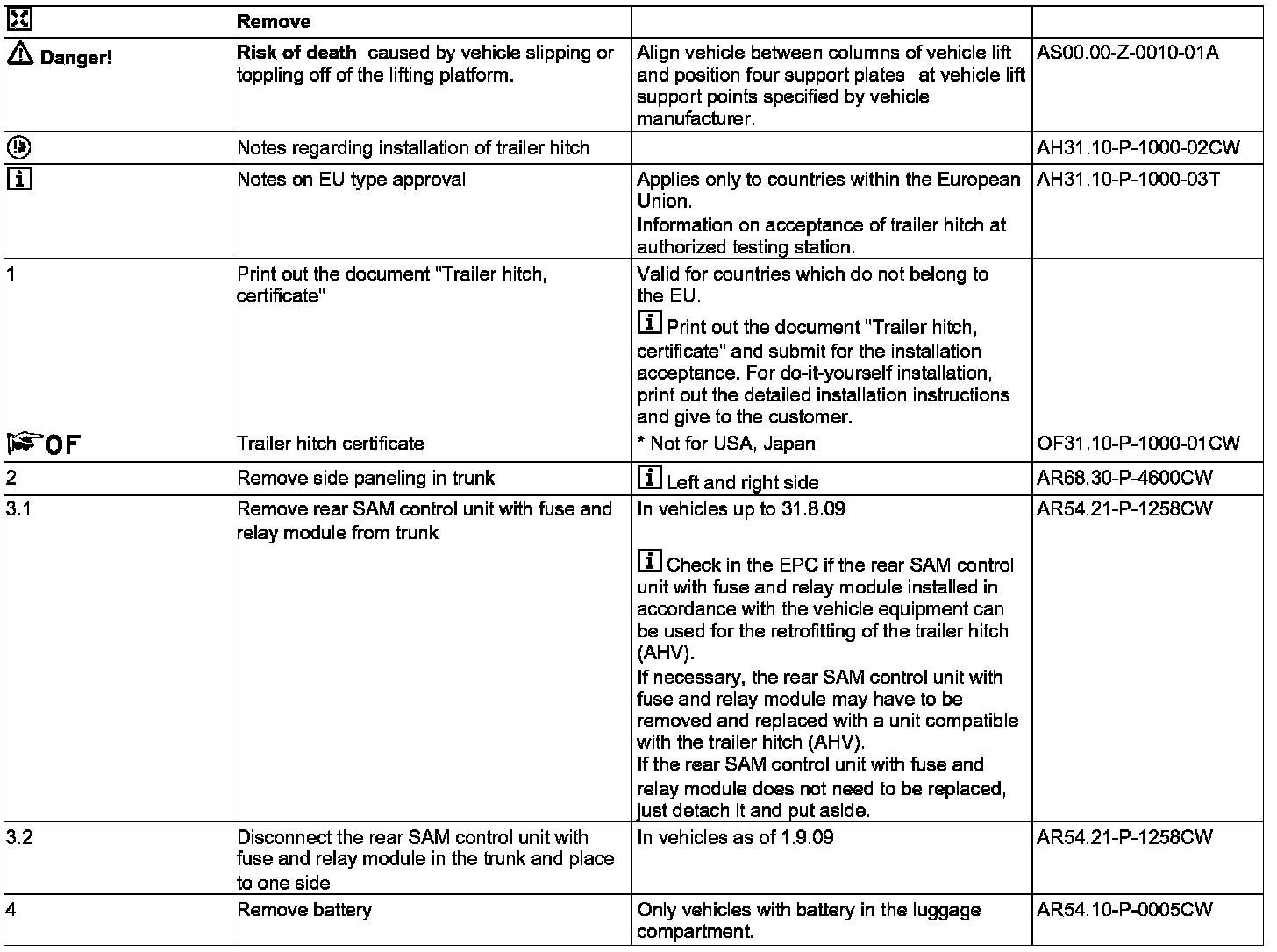

Steps 1 - 4:

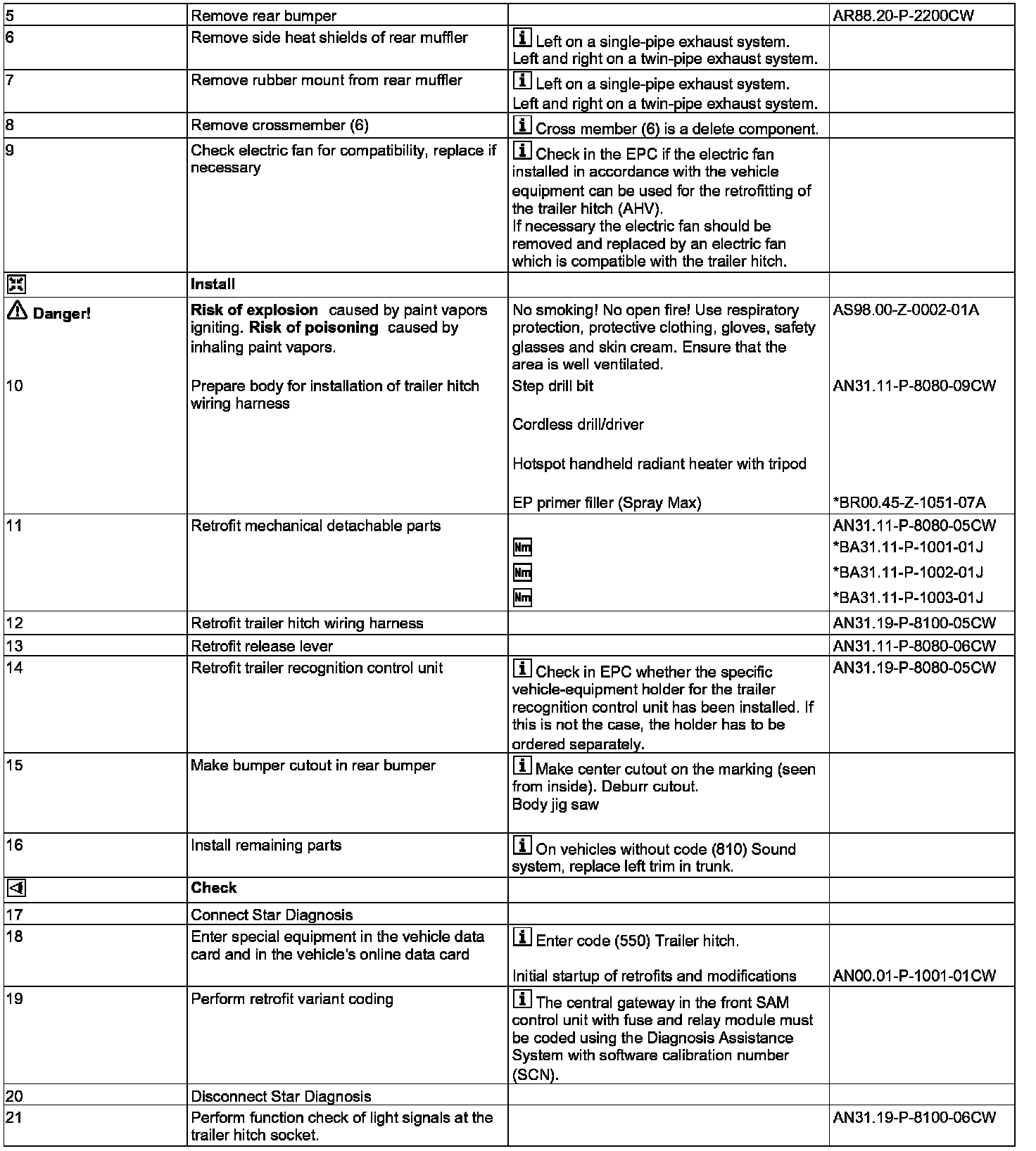

Steps 5 - 21:

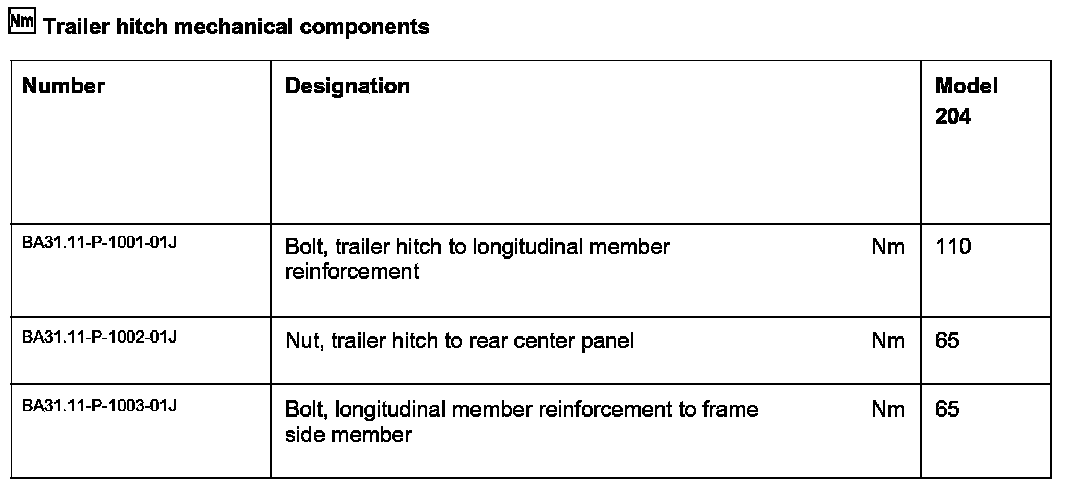

Trailer Hitch Mechanical Components:

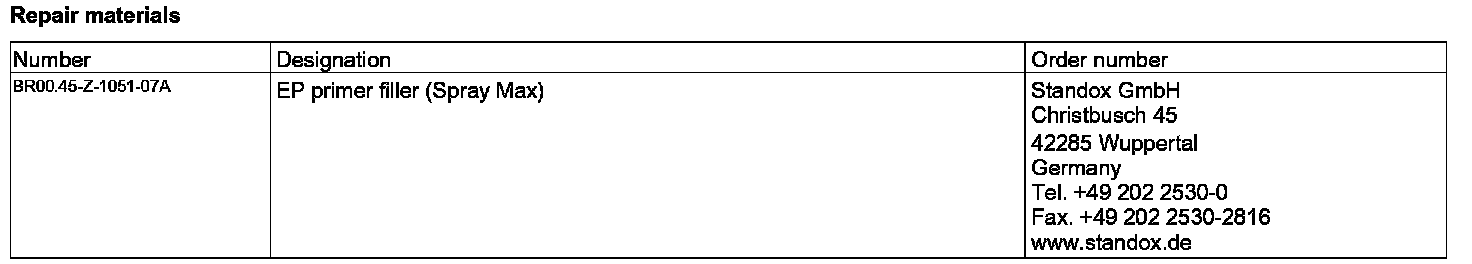

Repair Materials:

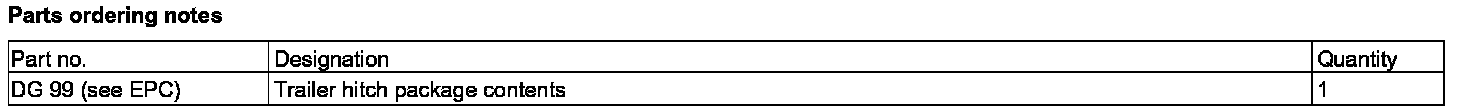

Parts Ordering Notes:
