Rear Door Hinge: Service and Repair
AR72.12-P-2660CW Remove/Install Rear Door Hinge

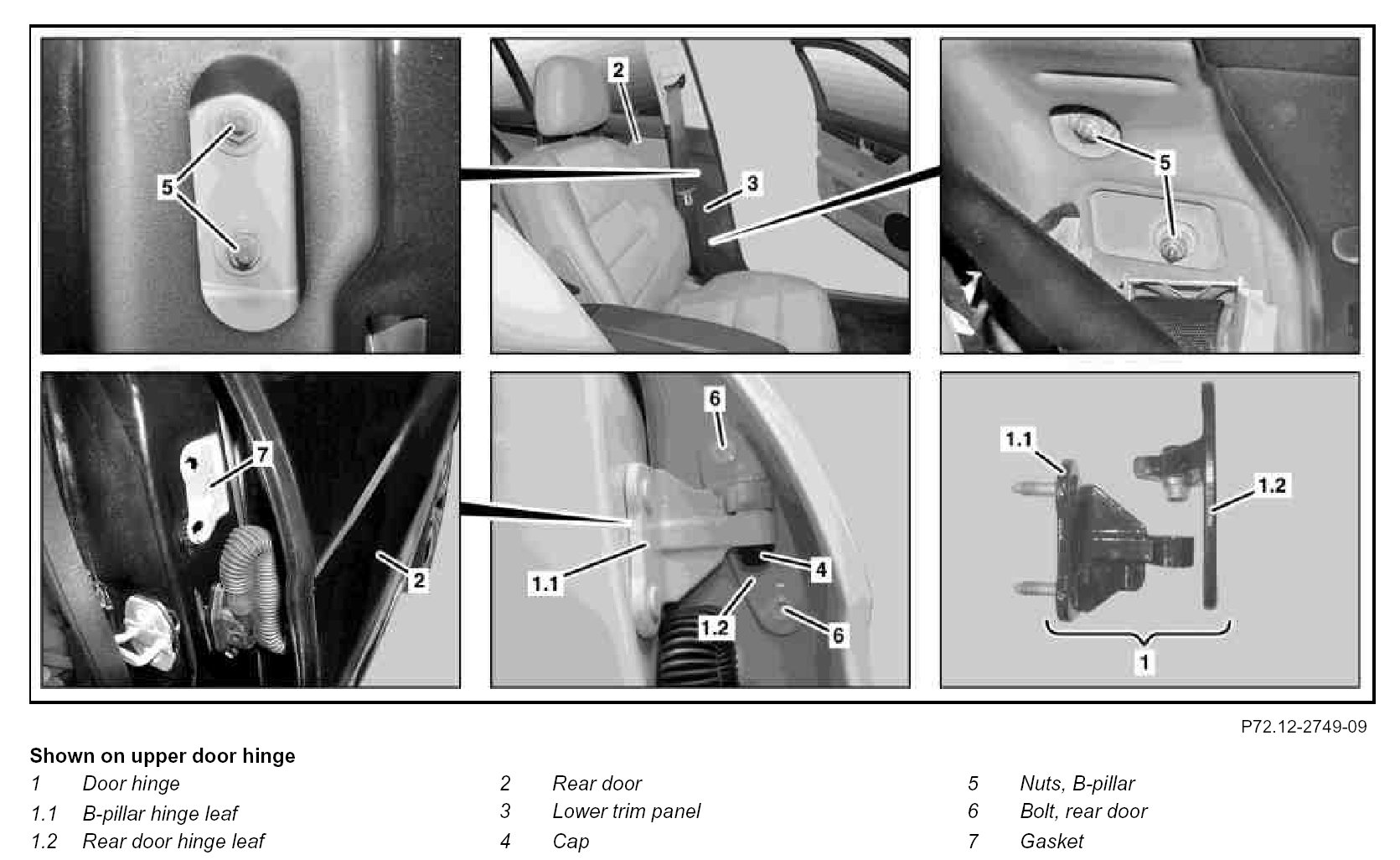

Component Identification:
Modification Notes:

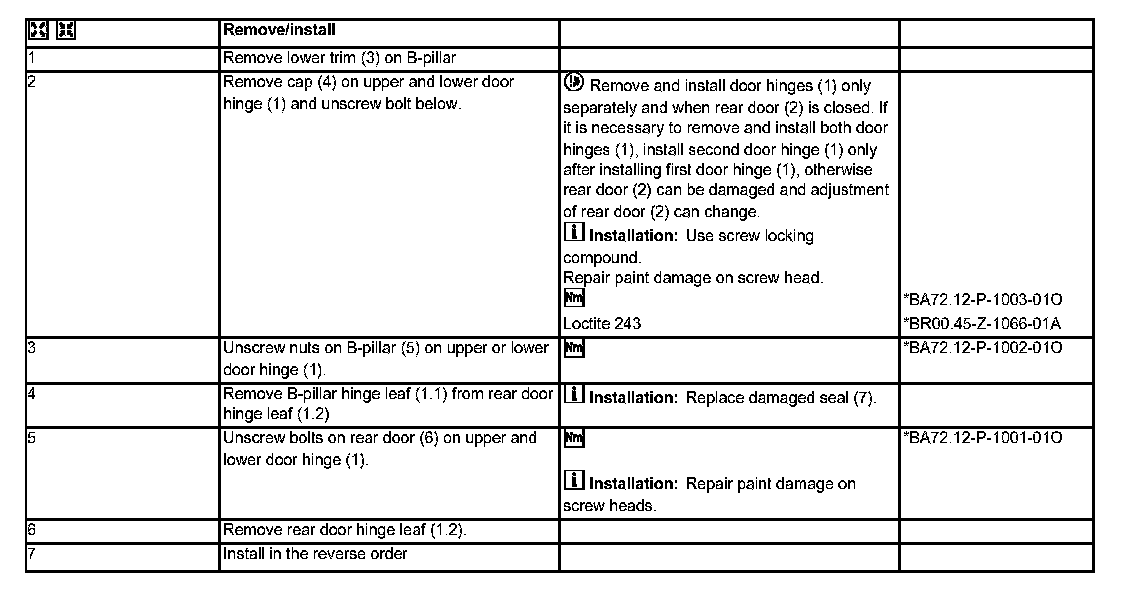

Steps 1 - 7:
Rear Door:

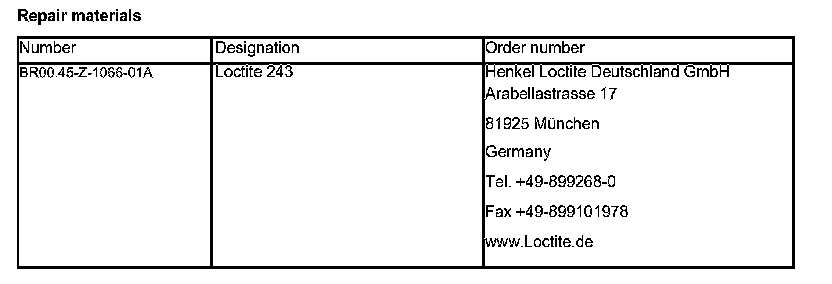

Repair Materials:
